YN06H00084F1 YN06H00086F1 MAIN CONTROL LINES Kobelco SK210-8 SK210LC-8

YN06H00084F1 YN06H00086F1 MAIN CONTROL LINES Kobelco SK210-8 SK210LC-8
　 YN06H00084F1 CONTROL LINES, MAIN
　 .
　 1 YN06H00086F1 CONTROL LINES, MAIN 1
　 1-1 2420R537D030 HOSE 1
　 1-2 2420R349D028 HOSE 1
　 1-3 2420R349D055 HOSE 1
　 1-4 2420R537D038 HOSE ASSY 1
　 1-5 2420R349D125 HOSE 1
　 1-6 2420R349D120 HOSE 1
　 1-7 YN21V00005F1 VALVE, CHECK 2
　 1-7A YN21V00005S001 CONNECTOR 1
　 1-7B YN21V00005S002 VALVE, CHECK 1
　 1-7D EN35V00004S013 RETAINER 1
　 1-7E ZD12P01400 O-RING 1
　 1-8 LC52S00019P1 SENSOR, PRESS 1
　 1-9 ZH22X04000 CONNECTOR 4
　 1-10 ZH22X04006 CONNECTOR 2
　 1-11 ZH22X06000 CONNECTOR 7
　 1-12 ZH32X04000 ELBOW, 90 3
　 1-13 ZH32X04006 ELBOW 3
　 1-14 ZH32X06000 ELBOW, 90 4
　 1-16 2444Z3711 CONNECTOR 1
　 1-17 2444Z2336 TEE 2
　 1-18 HH55Q06006G1 TEE 2
　 1-19 YN06H01046P1 TEE 1
　 1-20 2444T3402 TEE 1
　 1-21 YN06H01045P1 ELBOW 1
　 1-22 ZH42X06000 ELBOW 2
　 1-23 2444Z2891 CONNECTOR 1
　 1-24 YN21V00005F2 VALVE, CHECK 1
　 1-24D EN35V00004S013 RETAINER 1
　 1-24E ZD12P01400 O-RING 1
　 1-24F YN21V00005S006 CONNECTOR 1
　 1-24G YN21V00005S007 VALVE, CHECK 1
　 1-25 HH25R06006G1 CONNECTOR 1
　 2 YN06H00087F1 CONTROL LINES, MAIN 1
　 2-1 ZE72X06000 PLUG 2

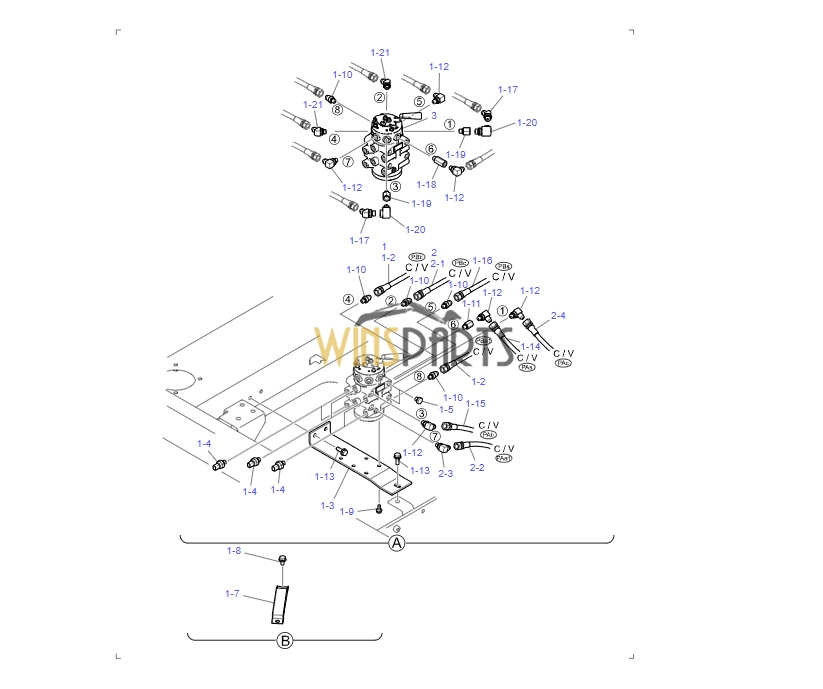

YN30V00117F2 YN64H00212F1 YN64H00214F1 VALVE, CONTROL CONTROL LINES, MULTI
　 .
　 1 YN64H00214F1 CONTROL LINES, MULTI 1
　 1-2 2420R537D220 HOSE 2
　 1-3 LC64H01113P1 BRACKET 1
　 1-4 LC52S00019P1 SENSOR, PRESS 6
　 1-5 ZE72X04000 PLUG 2
　 1-7 YN64H01289P1 CLAMP 1
　 1-8 ZM73C10020 SEMS-BOLT 2
　 1-9 ZM73C08020 SEMS-BOLT 4
　 1-10 2444Z2337 CONNECTOR 5
　 1-11 2444Z2525 CONNECTOR 1
　 1-12 2444Z2338 ELBOW 6
　 1-13 ZM73C10030 SEMS-BOLT 3
　 1-14 2420R537D120 HOSE 1
　 1-15 2420R537D135 HOSE 1
　 1-16 2420R537D210 HOSE ASSY 1
　 1-17 ZH42X06000 ELBOW 2
　 1-18 2444T2524 CONNECTOR 1
　 1-19 2444Z2516 CONNECTOR 2
　 1-20 2444Z3155 ELBOW 2
　 1-21 HH45X06004G1 ELBOW, 45 2
　 2 YN64H00215F1 CONTROL LINES, MULTI 1
　 2-1 2420R537D230 HOSE 1
　 2-2 2420R537D125 HOSE 1
　 2-3 2444Z2338 ELBOW 1
　 2-4 2420R537D140 HOSE 1
　 3 YN30V00117F2 VALVE, CONTROL 1
　 3-1 YN30V01033P1 HOUSING 1
　 3-2 YN30V01037P1 SPOOL 1
　 3-3 YN30V01040P1 COVER 1
　 3-4 YN30V01057P1 COVER 1
　 3-5 YN30V01059P1 LEVER 1
　 3-6 YN30V01036P1 SEAL, DUST 1
　 3-7 ZD12G05500 O-RING 2
　 3-8 ZD11P02800 O-RING 1
　 3-10 ZS28C06016 CAPSCREW 6
　 3-11 ZS28C06020 CAPSCREW 4
　 3-12 YN30V01027P1 PLUG 4
　 3-13 2420Z1036D3 CLEVIS 2
　 3-14 ZE82T02000 PLUG 8
　 3-15 ZP26D06020 PIN, SPRING 1
　 3-16 ZW16X06000 WASHER 6
　 3-17 YN30V01015P1 BALL 1
　 3-18 YN30V01028P1 SPRING 1
　 3-19 YN22T00264P1 NAME PLATE 1
　 3-22 YN30V01074P1 BOLT 1
YN30V00111F1 VALVE, PILOT YN68H00131F1 CONTROL LINES, REMOTE Kobelco SK210-8 SK210LC-8
　 . (WITH MULTI)
　 .
　 1 YN30V00111F1 VALVE, PILOT 2
　 1-2 YT30V00008S151 PLATE 1
　 1-5 2436U1277S211 PLUG 4
　 1-6 2436U2938S212 ROD, PUSH 4
　 1-7 2436U1277S213 SEAL 4
　 1-8 ZD12P02000 O-RING 4
　 1-9 YT30V00008S216 SEAT 2
　 1-10 YT30V00008S10 SEAT 2
　 1-11 2436U1277S217 WASHER 4
　 1-12 PX30V00043S221 SPRING 4
　 1-13 YN30V00069S241 SPRING 2
　 1-14 YN30V00069S242 SPRING 2
　 1-15 2436U2581S301 JOINT 1
　 1-16 YT30V00008S302 PLATE 1
　 1-17 YT30V00008S312 NUT 1
　 1-18 YT30V00008S501 COVER 1
　 2 2420R537D135 HOSE 2
　 3 LS68H01016D1 HOSE 2
　 4 HX23L06190CR HOSE 1
　 5 HX23L06190CB HOSE 1
　 6 YN68H01105D3 HOSE 1
　 7 HX23L06195CH HOSE 1
　 8 HX23L06170CH HOSE 1
　 9 HX23L06195CR HOSE 1
　 10 HX23L06160CB HOSE 1
　 11 HX23L06165CG HOSE 1
　 12 HH25X04004G2 CONNECTOR 2
　 13 ZH22X06000 CONNECTOR 10
　 14 ZS28C06025 CAPSCREW 8
　 15 ZW16P06000 WASHER 8
　 16 PH03M01250P1 BOOT 2
　 17 PY01P01043D8 CLIP 4
　 18 YN68H01106P1 COVER 2

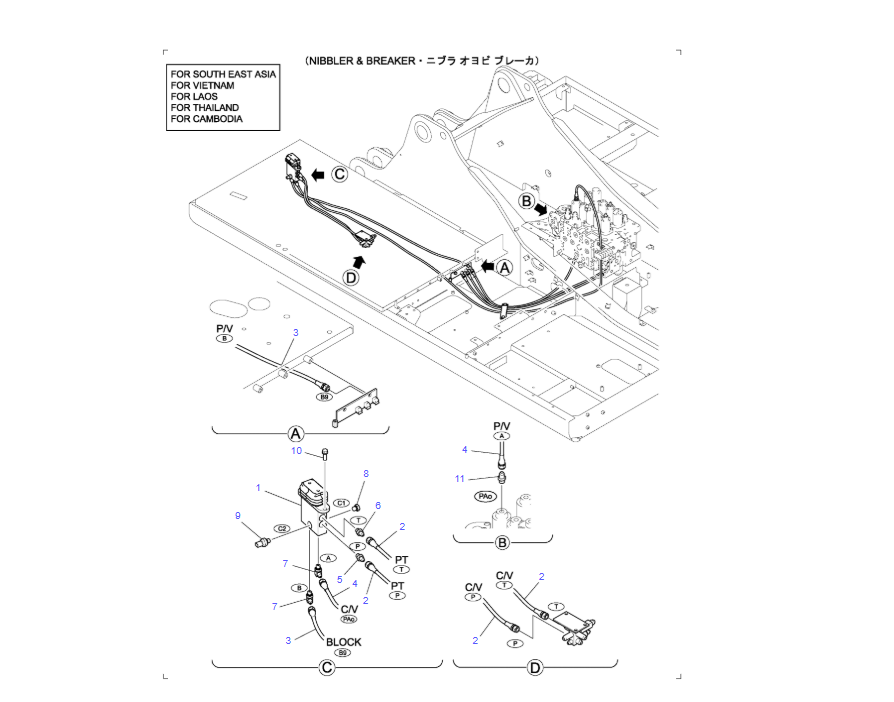

YN30V00080F1 PILOT VALVE YN68H00135F1 CONTROL LINES, REMOTE Kobelco SK210-8 SK210LC-8
　 .
　 1 YN30V00080F1 VALVE, PILOT 1
　 1-1 2436U1142S13 SHIM (0.1) 2
　 1-2 2436U1487S7 SHIM (0.2) 2
　 1-3 2436U2755S4 SEAT 1
　 1-5 2436U1354S5 SLEEVE 2
　 1-6 2436U1354S6 COVER 1
　 1-7 NO P/No PISTON 2
　 1-8 YR30V00004S012 SPRING 1
　 1-9 YR30V00013S009 SPRING 2
　 1-10 NO P/No NAME PLATE 1
　 1-11 2436U1354S25 SHIM (0.2) 2
　 1-12 YR30V00013S012 SHIM (0.1) 1
　 1-13 YN30V00022S015 CAM 1
　 1-14 YN30V00022S016 BOOT 1
　 1-15 YN30V00022S017 PIN 1
　 1-16 NO P/No BODY 2
　 1-18 2436U2412S26 PLUG 1
　 1-19 ZS23C12025 CAPSCREW 1
　 1-20 2436U1354S15 BOLT 2
　 1-21 ZS83C08008 SETSCREW 2
　 1-22 2436U1354S16 WASHER 2
　 1-23 YN30V00080S023 SCREW 2
　 1-24 2436U2888S24 PIN 2
　 1-25 NO P/No BALL 1
　 1-26 2436U1487S37 BALL 3
　 1-27 ZD11P01000 O-RING 2
　 1-28 ZD12P01100 O-RING 1
　 1-29 YN30V00080S029 O-RING 2
　 1-31 2436U1354S26 PISTON ASSY 2
　 1-32 NO P/No SPOOL 2
　 2 2420R349D090 HOSE 2
　 3 2420R349D160 HOSE ASSY 1
　 4 2420R349D365 HOSE 1
　 5 HH25X04004G2 CONNECTOR 1
　 6 ZH22X04000 CONNECTOR 1
　 7 ZH32X04000 ELBOW, 90 2
　 8 ZE72X04000 PLUG 1
　 9 LC52S00019P1 SENSOR, PRESS 1
　 10 HM83C10030G1 SEMS-BOLT 2
　 11 ZH22X04006 CONNECTOR 1
　 .
　 YN30V00080R200 REPAIR KIT 1
　 . (1-16, 1-25)X1
　 . (1-32)X2
