YN61B00331F1 YN61B00312F1 0.8M3 BUCKET ASSY Kobelco SK200-8 SK210LC-8 (SIDE TYPE PIN) 1 YN61B00331F1 BUCKET ASSY 1 1-1 YN61B00328P1 BUCKET 1 …

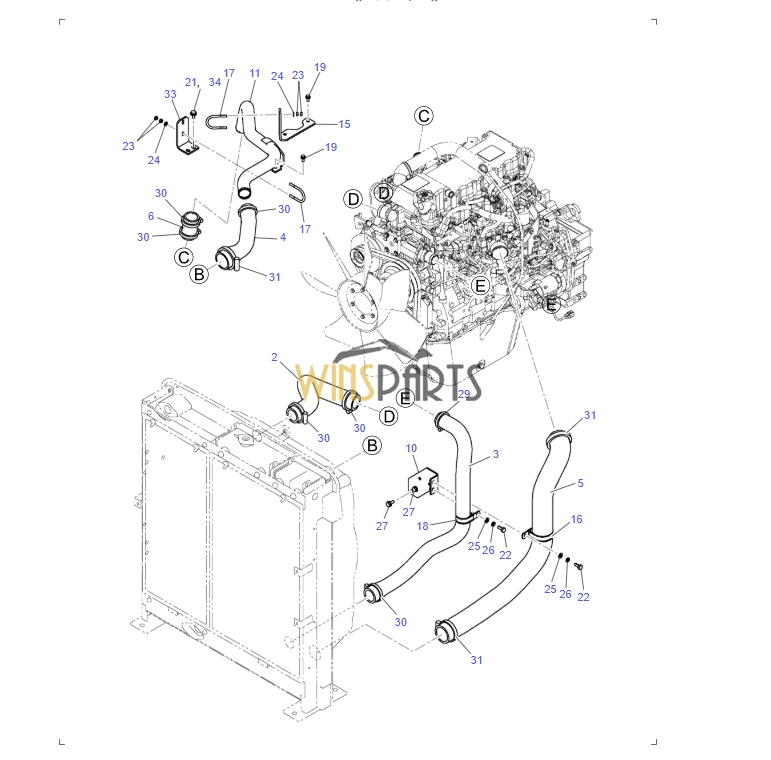

YN05P01495P1 YB05P01147P1 YN05P01479P1 RADIATOR HOSE TUBE Kobelco SK210-8 SK210LC-8
2 YN05P01479P1 HOSE, RADIATOR 1
3 YN05P01494P1 HOSE, RADIATOR 1
4 YN05P01439P1 HOSE 1
5 YN05P01495P1 HOSE 1
6 YN05P01236P2 HOSE 1
7 HX11Y05066DX HOSE 1
9 YN05P01504P1 PLATE 1
10 YN05P01489P1 SUPPORT 1
11 YB05P01147P1 TUBE 1
12 YN05P01513P1 GUARD 1
13 YN05P01512P1 GUARD 1
14 YN03E01001D5 CLIP 4
15 YN05P01573P2 PLATE 1
16 YN05P01882P1 CLIP 1
17 2420T2948D3 U-BOLT 2
18 YW05P01025P1 CLIP 1
19 ZM73C08020 SEMS-BOLT 7
20 ZM73C08025 SEMS-BOLT 4
21 ZS18C10020 CAPSCREW 2
22 ZS18C10025 CAPSCREW 2
23 ZN18C08007 NUT 8
24 ZW16P08000 WASHER 4
25 ZW16P10000 WASHER 2
26 ZW26X10000 LOCK WASHER 2
27 ZM73C10025 SEMS-BOLT 2
28 ZM73C10035 SEMS-BOLT 2
29 ZC16X05000 CLIP 1
30 ZC16X05800 CLIP 6
31 ZC16X07000 CLIP 3
32 PH05P01088D6 CLIP 1
33 YB05P01159P1 PLATE 1
34 ZW16H10000 WASHER 2
33 YB05P01159P1 PLATE 1
34 ZW16H10000 WASHER 2
.

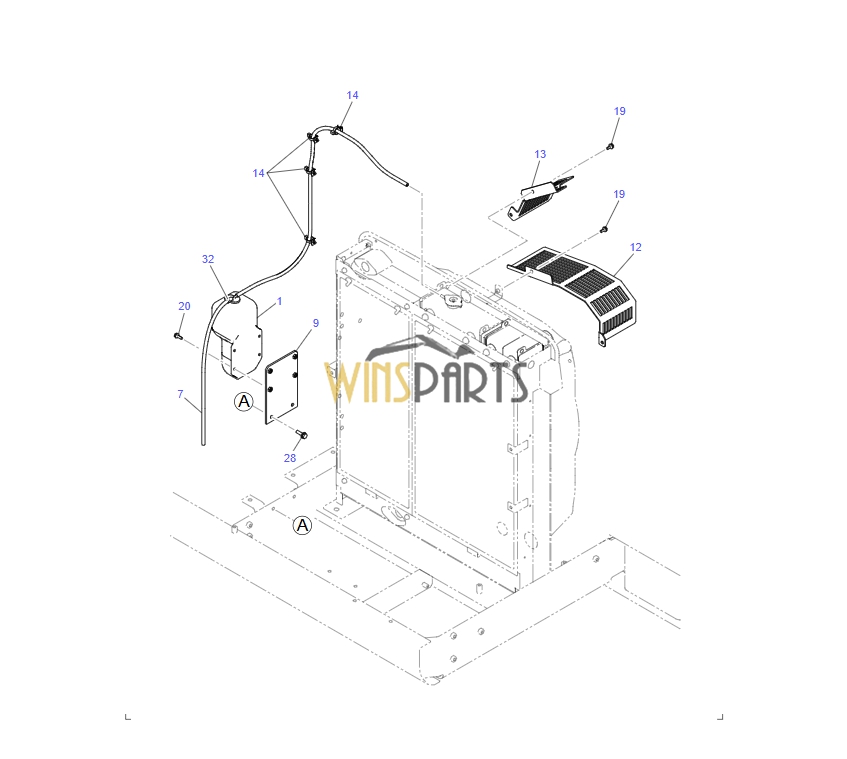

1 YN05P01496F1 TANK ASSY, WATER,SUB 1
