VHS171114661 VH17103E0062 AIR INTAKE AND EXHAUST SYSTEM 11492 VH11492E0011 PLATE, WATER SEAL 1 11499 VH11499E0010 PLUG, CYLINDER BLOCK HOLE 1…

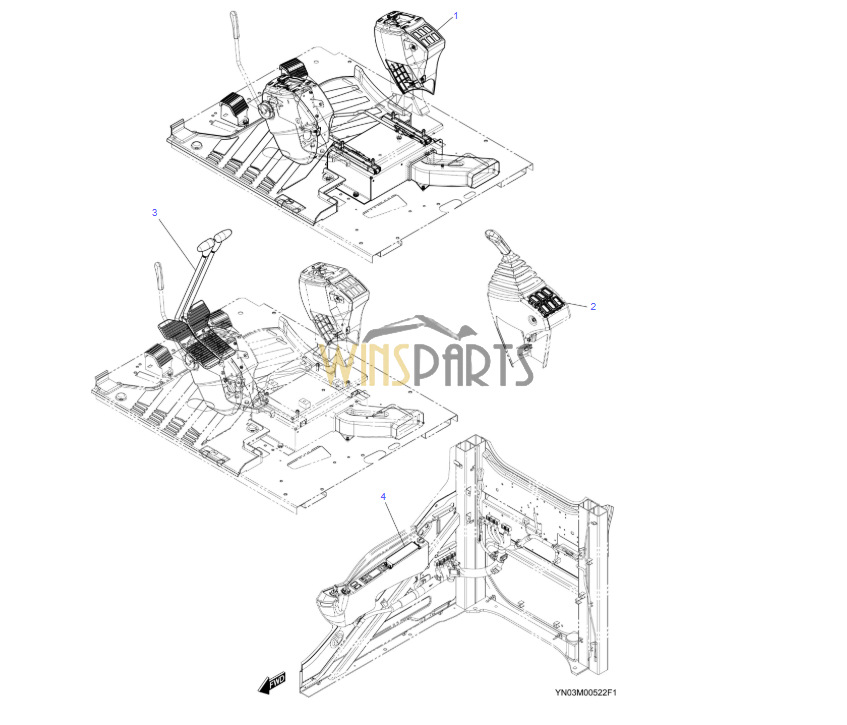

YN03M00522F1 CONTROLS, OPERATORS KOBELCO

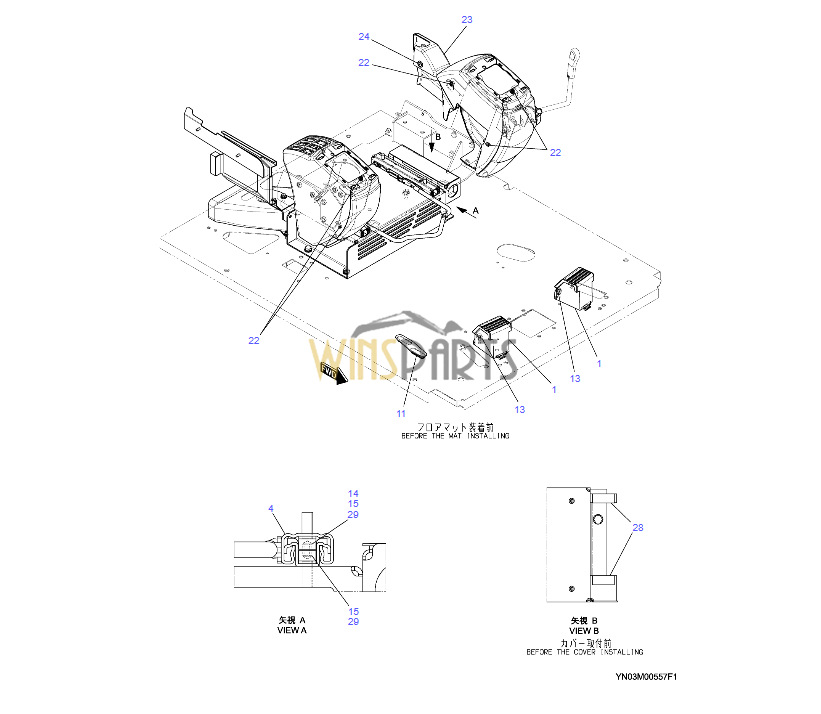

YN03M00557F1 CONTROLS, OPERATORS
1 YN03M02417P1 SUPPORT 2
2 YN26M00089P2 MAT, FLOOR 1
4 YN25M01298P1 STAND, SEAT 1
5 YN25M01329F1 RAIL 1
6 YN03M02436F1 COVER ASSY 1
6-1 YN03M02420P1 COVER 1
6-2 YN17M01296P1 COLLAR 3
7 YN03M02437F2 COVER ASSY 1
7-2 YN17M01296P1 COLLAR 3
7-3 YN03M02440P1 CLIP 3
7-4 YN03M02421P2 COVER 1
8 YN03M02438F1 COVER ASSY 1
8-1 YN03M02422P1 COVER 1
8-2 YN17M01296P1 COLLAR 2
9 YN03M02439F1 COVER ASSY 1
9-1 YN03M02423P1 COVER 1
9-2 YN17M01296P1 COLLAR 4
9-3 YN03M02440P1 CLIP 3
10 YN03M02430P1 COVER 1
11 YN20M01930F1 DUCT ASSY 1
11-1 YN20M01929P1 DUCT 1
11-2 YN20M01931P1 INSULATION 1
12 ZM73C10020 SEMS-BOLT 4
13 ZS28C08016 CAPSCREW 4
14 ZW26K08000 LOCK WASHER 8
15 ZS28C08040 CAPSCREW 4
16 YN03M02085P2 GROMMET 1
17 ZM73C08025 SEMS-BOLT 2
18 ZM66C06016 SEMS-BOLT 10
20 ZM66C06020 SEMS-BOLT 2
YN03M00610F1 CONTROLS, OPERATORS .

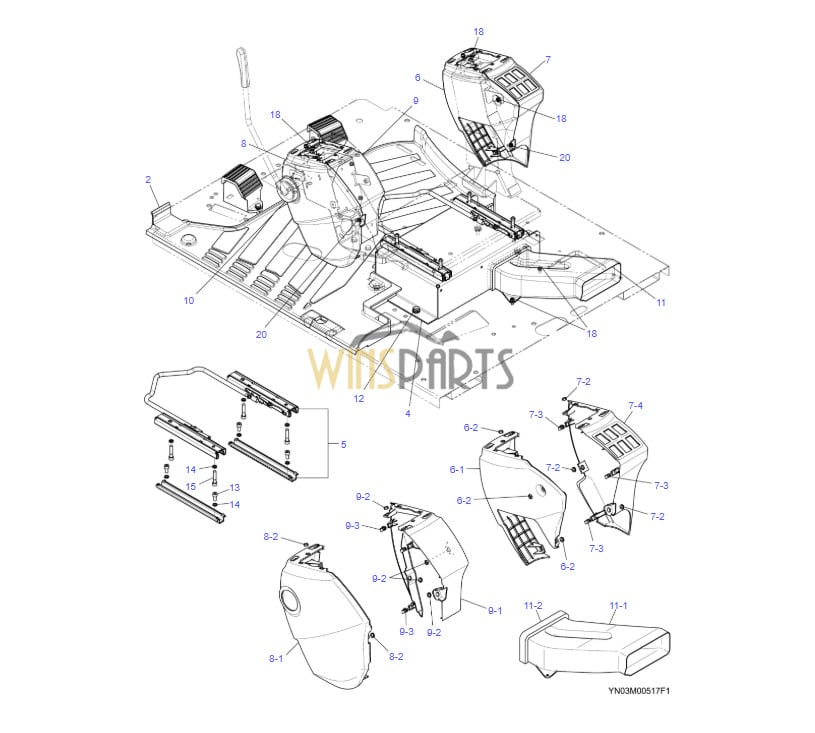

160-01 KCMU D0001918721 1 1 YN03M00517F1 CONTROLS, OPERATORS 1 P.160-01
160-02 ASIA D0001917351 1 2 YN50E00079F1 SWITCH INSTAL 1 P.160-02
160-03 YN50M00013F1 CKCM D0001932668 1 3 YN50M00013F1 LEVER ASSY, PROPEL 1 P.160-03
160-04 YN54E00064F1 ASIA-02 D0001921009 1 4 YN54E00064F1 RADIO INSTAL 1 P.160-04
