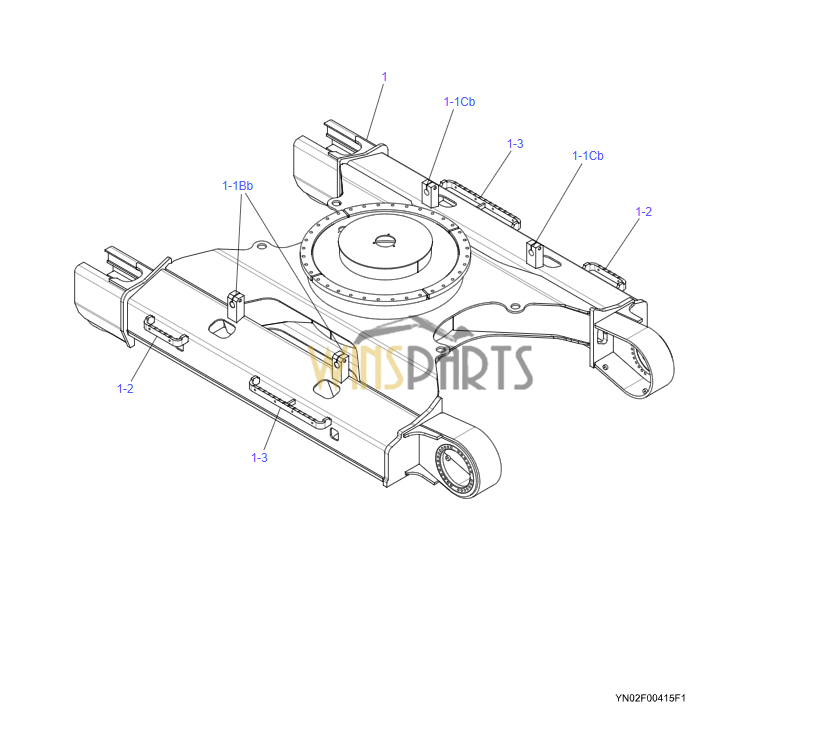

YN02F00416P1 YN02F00415F1 FRAME ASSY, LOW KOBELCO SK200-10

YN02F00416P1 YN02F00415F1 FRAME ASSY, LOW KOBELCO
　 .
　 1 YN02F00416P1 FRAME, LOW 1
　 1-1Bb YN07F01408P1 SUPPORT 2
　 1-1Cb YN07F01408P1 SUPPORT 2
　 1-2 YN41C00081P1 STEP 2
　 1-3 YN41C00112P1 STEP
YN02F00422F1 YN02F00423P1 FRAME ASSY, LOW KOBELCO SK200-10 SK210LC-10
　 1 YN02F00423P1 FRAME, LOW 1
　 1-1Ab-1 YN02F01735P1 BLOCK, TAPPED 4
　 1-1Bb YN07F01493P1 SUPPORT 2 YN15T17101–20677
　 . YN15425001–28214
　 1-1Bc YN07F01534P1 SUPPORT 2 YN15428215-
　 1-1Bd YN07F01535P1 SUPPORT 2 YN15428215-
　 1-1Cb YN07F01493P1 SUPPORT 2 YN15T17101–20677
　 . YN15425001–28214
　 1-1Cc YN07F01534P1 SUPPORT 2 YN15428215-
　 1-1Cd YN07F01535P1 SUPPORT 2 YN15428215-
　 1-2 YN41C00081P1 STEP 2
　 1-3 YN41C00112P1 STEP

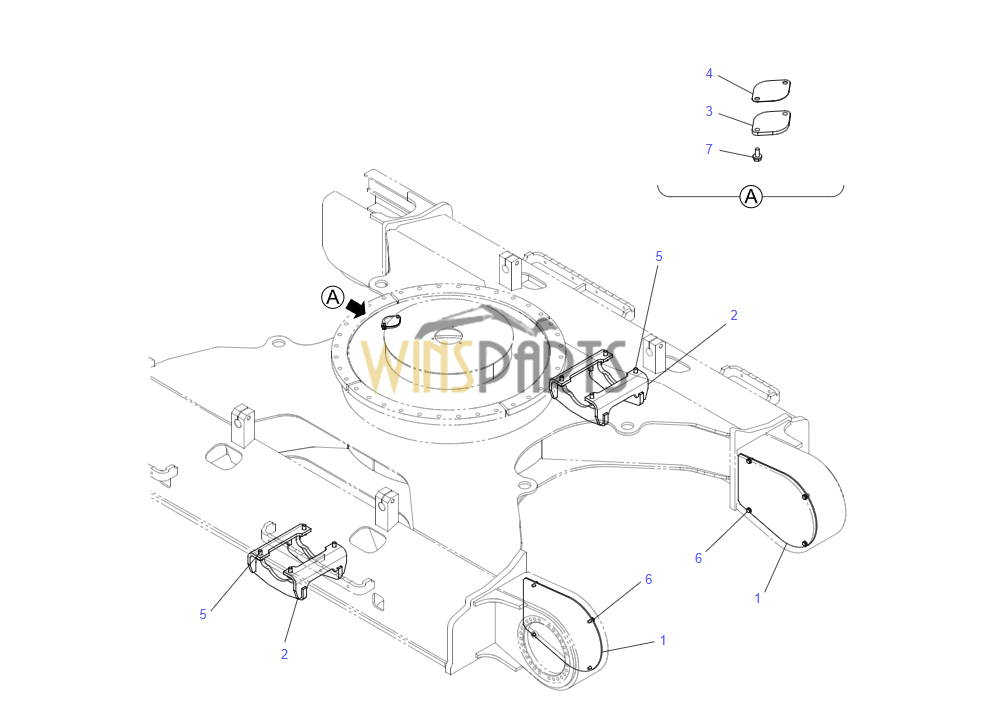

YN02F00549F1 YN02F00550P1 YN02F00411F1 YN01F00070F1 LOW GROUP
　 1 YN01F01120P1 COVER 2
　 2 YN63D00006P2 GUIDE, TRACK 2
　 3 YN01F01088P2 PLATE 1
　 4 YN01F01089P2 PACKING 1
　 5 2420P1580D1 CAPSCREW 8
　 6 ZM73C12025 SEMS-BOLT 8
　 7 ZM73C10025 SEMS-BOLT
　 1 YN02F00412P1 FRAME, LOW 1
　 1-1Bb YN07F01408P1 SUPPORT 2
　 1-1Cb YN07F01408P1 SUPPORT 2
　 1-2 YN41C00081P1 STEP 2
　 1-3 YN41C00112P1 STEP 2

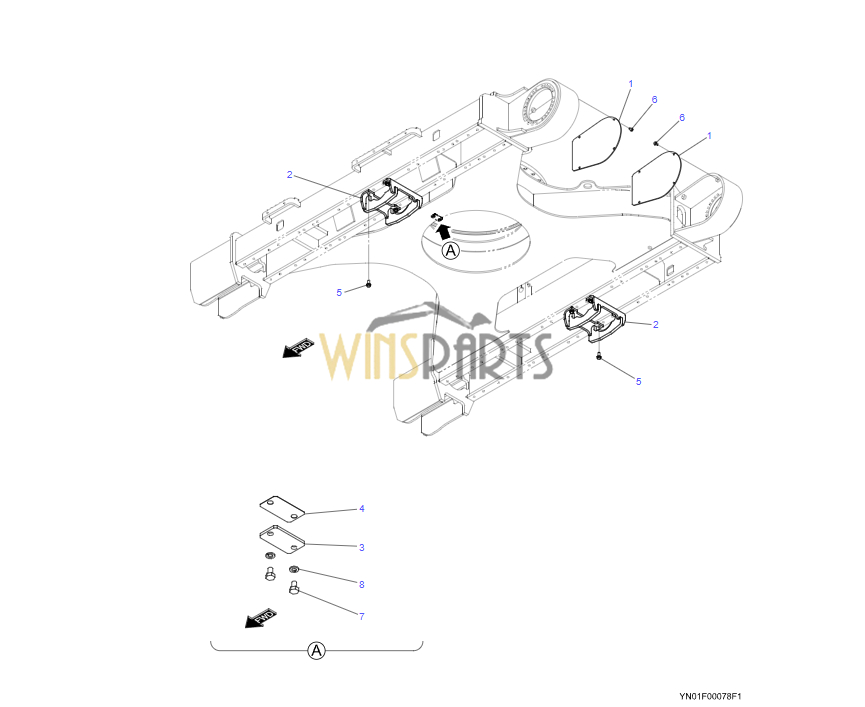

YN01F00078F1 YN63D00006P2 GUIDE, TRACK LOW GROUP KOBELCO SK200XDL-10 SK200XDL-10 SK210LC-10
　 1 YN01F01120P1 COVER 2
　 2 YN63D00006P2 GUIDE, TRACK 2
　 3 2422T556 PLATE 1
　 4 2418T12274 PACKING 1
　 5 2420P1580D1 CAPSCREW 8
　 6 ZM73C12025 SEMS-BOLT 8
　 7 ZS18C10016 CAPSCREW 2
　 8 ZW26X10000 LOCK WASHER 2
YN01F00048F1 LOW GROUP
　 1 YN63D00006P2 GUIDE, TRACK 4
　 2 2420P1580D1 CAPSCREW
YN01F01083F1 CAP ASSY
　 1 YN01F01040P1 CAP
YN24C00082F1 COVER ASSY, UNDER
　 1 YN24C01215P1 COVER ASSY 2
　 2 ZS13C18035 CAPSCREW 8
　 3 ZW13H18000 WASHER
