YN61B00331F1 YN61B00312F1 0.8M3 BUCKET ASSY Kobelco SK200-8 SK210LC-8 (SIDE TYPE PIN) 1 YN61B00331F1 BUCKET ASSY 1 1-1 YN61B00328P1 BUCKET 1 …

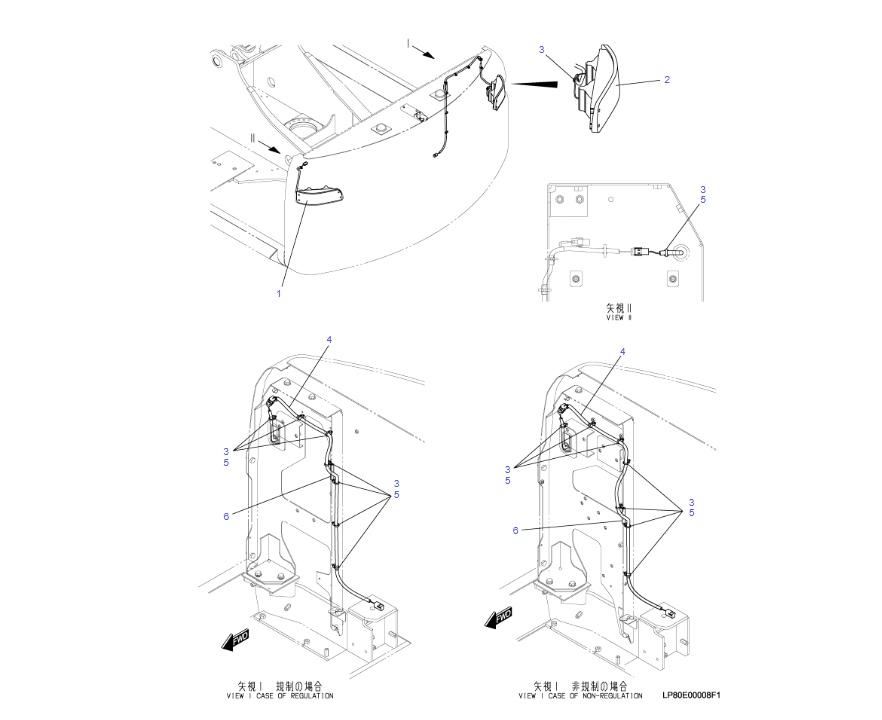

YM80S00001F1 YM80S00001F2 LP80E00008F1 LAMP FLASHER KOBELCO SK130LC-11 SK140LC-11 SK125SR-5
.
030-01_YM80S00001F1_CKCM_D0003591581_1 1 YM80S00001F1 LAMP, FLASHER 1 P.030-01
030-02_YM80S00001F2_CKCM_D0003591582_1 2 YM80S00001F2 LAMP, FLASHER 1 P.030-02
3 PY01P01043D3 CLIP 9
4 LP80E01007P1 HARNESS 1
5 YN13E01375P1 CLIP 8
6 HX85C20007DX TRIM 1 LP10030001–30519
YM80S00001F1 LAMP, FLASHER KOBELCO SK130LC-11 SK140LC-11 SK125SR-5 SK130SR-7 SK140SRLC-7 SK135SRLC-5
YM80S00001F2 LAMP FLASHER KOBELCO SK130LC-11 SK125SR-7 SK130SR-7 SK140SRD-7 SK140SRLC-7 SK140LC-11 ED460BR-7 .
1 YN80S00015S001 BULB 4
4 YN80S00015S004 LENS 1
6 YN80S00015S006 LENS 1
9 YN80S00015S009 GASKET 1
10 YN80S00015S010 SCREW 2
11 YN80S00015S011 SCREW 4
12 YN80S00015S012 BODY ASSY 1
14 YM80S00001S014 CABLE 1
.
1 YN80S00015S001 BULB 4
5 YN80S00015S005 LENS 1
7 YN80S00015S007 LENS 1
9 YN80S00015S009 GASKET 1
10 YN80S00015S010 SCREW 2
11 YN80S00015S011 SCREW 4
13 YN80S00015S013 BODY ASSY 1
14 YM80S00001S014 CABLE 1
.

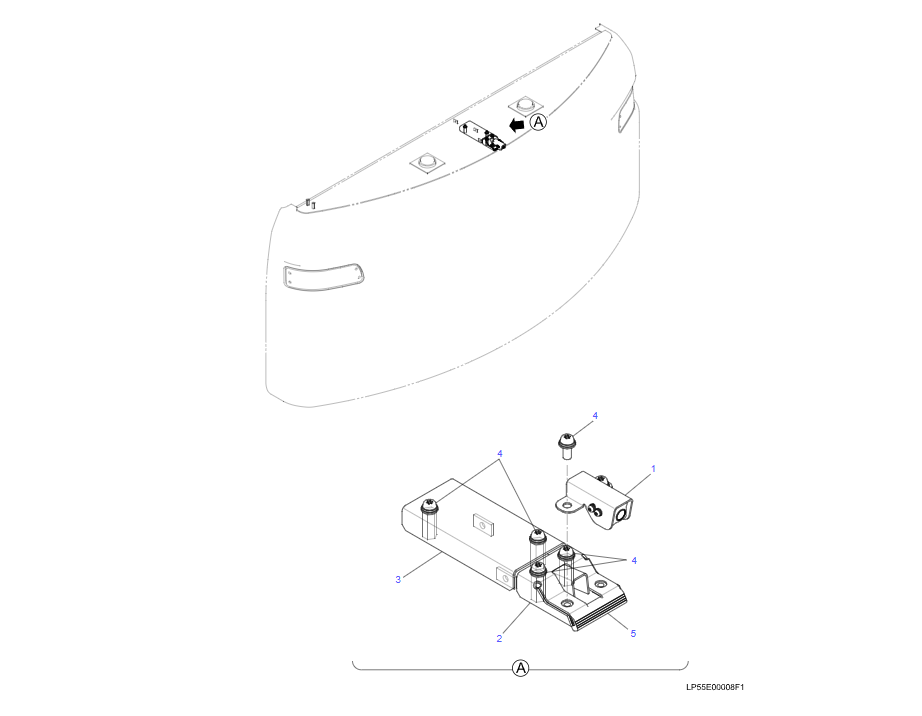

1 YN55S00013F3 CAMERA 1 LP10030001–30002
1 YN55S00013F5 CAMERA 1 LP10030003–30866
1 YN55S00013F7 CAMERA 1 LP10030867-
2 LP55E01048P1 BRACKET 1
3 LP55E01053P1 COVER 1 LP10030001–30519
3 LP55E01053P2 COVER 1 LP10030520-
4 YN55E01107P1 SEMS-BOLT 6
5 HX85D10007DX TRIM 1
LP11E00019F1 HARNESS ASSY
1 LP11E01029P1 CABLE 1
2 HX80X07033DX TUBE 1 LP10030001–30002
2 HX80X07070DX TUBE 1 LP10030003-
3 PY01P01043D3 CLIP 25
4 YN13E01375P1 CLIP 3 LP10030001–30187
4 YN13E01375P1 CLIP 7 LP10030188-
