VI8980450273 8-98045027-3 ENGINE STARTER KOBELCO SK125SR-5 SK130SR-5 SK130UR-5 . 2 VI8980566690 CASE; PINION, STARTER 1 7 VI8982221020 CLUTCH ASM; PINION,…
VI8982746620 8-98274662-0 ISUZU 4JJ1 CYLINDER BLOCK ASSY KOBELCO
.
1 VI8982746620 BLOCK ASM; CYL 1
7 VI9096640010 PLUG; WATER DRAIN 1 PT 1/4
8 VI8944326420 BOLT; BRG CAP 10 M14X89 FLANGE
13 VI8944533440 DOWEL; C/BL TO HD 2 OD=14
15 VI1096050500 PLUG; OIL GALLERY 4 PT 1/8
21A VI5112190170 CUP; SEALING, RR 1 OD=38
21B VI5112190180 CUP; SEALING, RR 1 OD=36
21C VI5096000130 CUP; SEALING, RR 1 OD=12.3
23A VI8970365501 CUP; SEALING, C/BL FRT & RR 3 OD=45
23B VI5112190080 CUP; SEALING, C/BL FRT & RR 2 OD=18
23C VI5112190150 CUP; SEALING, C/BL FRT & RR 4 OD=32
23D VI5112190180 CUP; SEALING, C/BL FRT & RR 2 OD=36
29 VI9132130350 GASKET; COVER, OIL PORT 1
38 VI8971354230 PIN; TIMING GEAR CASE 2 L=20 OD=10
51 VI8943362920 GASKET; OIL PRESS WARNING SW, C/BL 1
52A VI8980194751 NIPPLE; OIL PRESS WARNING SW, C/BL 1
53 VI9096065350 BOLT; REAMER 1 M10X43
61 VI9098785970 PIN; STRAIGHT 2
70 VI5111290060 CUP; SEALING, FRT & RR 6 OD=16
83 VI9081510300 PIN; FLYWHEEL HSG 1
103B VI8973169834 NIPPLE; OIL FEED 1
211 VI0286508250 BOLT; CRANKCASE 19 M8X25 FLANGE
213B VI9095714100 GASKET; NIPPLE, OIL FEED 1 ID=10.2 OD=16.0
303A VI9095672180 GASKET; PLUG 1 ID=17.8
303B VI9095672300 GASKET; PLUG 1 ID=29.7
352 VI9095661090 GASKET; C/BL TO CRANKCASE 1
399 VI8973121081 SENSOR; CRANKSHAFT POSITION 1
400 VI8973694040 GASKET; CRANKSHAFT POSITION SENSOR 1
401 VI0280506160 BOLT; SENSOR 1 M6X16 FLANGE
465A VI8970636120 PLUG 1 PT 1/2 L=12
465B VI8980388531 PLUG 1
.
1G VI8975056070 PAN ASM; OIL 1
2 VI8981801341 GAUGE; OIL LEVEL 1
3B VI1096300900 GASKET; DRAIN PLUG 1 ID=24.2 OD=30
6B VI1096801040 PLUG; OIL DRAIN 1
8 VI8981372471 TUBE; GUIDE, OIL LEVEL GAUGE 2
9 VI5096230020 GASKET; GUIDE TUBE, OIL LEVEL GAUGE 2 ID=11 OD=15.8
10 VI0280508160 BOLT; GUIDE TUBE 2 M8X16 FLANGE
17A VI8982530910 GASKET; OIL PAN 1
22 VI0915108080 WASHER; LK, OIL PAN 2
23 VI0506408180 BOLT; OIL PAN 22 M8X18 W/LK&PL WASHER
24 VI0911105080 NUT; OIL PAN 2 M8
25 VI0410108160 STUD; OIL PAN 2 M8X16 L=28
27 VI8982817770 CRANKCASE 1
29 VI0911802080 NUT; CRANKCASE 1 M8 FLANGE
30 VI0410108400 STUD; CRANKCASE 1 M8X40 L=52
383 VI5111290030 CUP; SEALING 1 OD=15.6
.

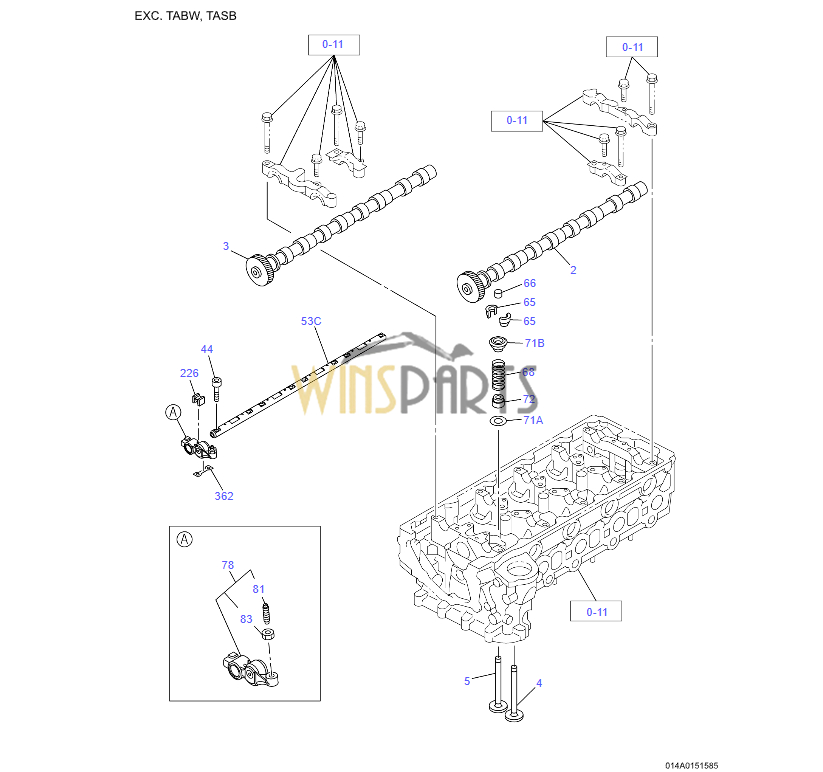

2 VI8982575410 CAMSHAFT; INL 1
3 VI8982575420 CAMSHAFT; EXH 1
4 VI8980169730 VALVE; INL 8
5 VI8980169741 VALVE; EXH 8
44 VI8982246260 BOLT 14 M6X25 HEX SOCKET
53C VI8982711050 SHAFT; ROCKER ARM 2
65 VI8942395010 COLLAR; SPLIT 32
66 VI8981479450 CAP; VLV STEM END 16
68 VI8980388810 SPRING; VLV 16
71A VI8971445840 SEAT; SPR 16 LOWER
71B VI8980170670 SEAT; SPR 16 UPPER
72 VI8973286470 SEAL; VLV GUIDE 16
78 VI8982361980 ARM; ROCKER 16
81 VI8980254970 SCREW; ADJ. ROCKER ARM 16 M8 L=22
83 VI9098445740 NUT; ADJ. SCREW, LK 16 M8
107A VI8973123152 SHAFT; IDLE GEAR 1
107B VI8982015490 SHAFT; IDLE GEAR 1
112A VI8982224840 GEAR; IDLE 1 Z=80
112B VI8973815203 GEAR; IDLE 1 Z=35
114A VI0280610600 BOLT; IDLE GEAR 2 M10X60 FLANGE
114B VI8981762330 BOLT; IDLE GEAR 1 M12X75
133 VI8973123360 GASKET; CHAIN TENSIONER 1
136 VI0280506160 BOLT; TENSIONER 2 M6X16 FLANGE
162 VI8981931790 SPROCKET; IDLE 1
166 VI0583306160 BOLT; SPROCKET TO LAYSHAFT 6 M6X16 HEX SOCKET
172 VI8979450670 CHAIN; TIMING, CM/SHF 1
185 VI8980397541 TENSIONER; CHAIN 1
198 VI8979450690 GUIDE; TIMING CHAIN 1
199 VI8973560611 JET; OIL, TIMING CHAIN 1
200 VI1090701201 BOLT; CHAIN GUIDE, LWR 2 M8X20 FLANGE
226 VI8982048890 SPRING; CMPR, ROCKER ARM 8
252A VI8980168920 FLANGE; IDLE SHAFT 1
275 VI9081605100 PIN; IDLE GEAR 1 OD=5 L=10
300 VI8979450700 LEVER; TENSION, TIMING CHAIN 1
329 VI8980175391 GEAR; INJ PUMP 1 Z=44
347 VI8973123301 SPROCKET; I/PUMP 1
348 VI8973124232 NUT; SPROCKET 1 M14 FLANGE
349 VI8973123280 PIVOT; CHAIN LEVER 1
359 VI8982015540 SLEEVE; GEAR 1
362 VI8982253811 PLATE 6
.

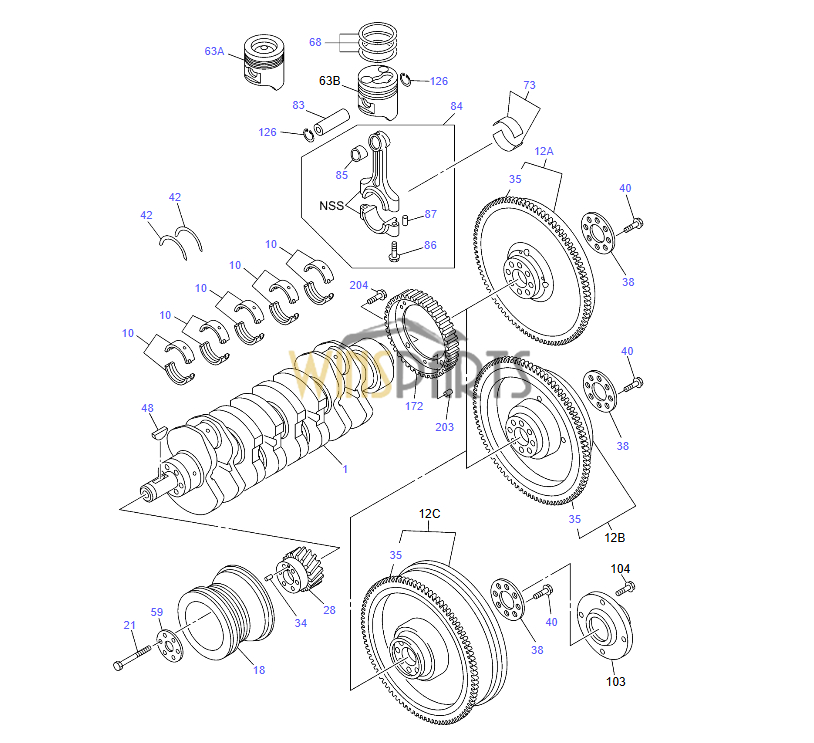

1 VI8982735900 CRANKSHAFT 1
10 VI8973879640 METAL SET; CRANKSHAFT 5 GRADE=1
10 VI8973879650 METAL SET; CRANKSHAFT 5 GRADE=2
10 VI8973879660 METAL SET; CRANKSHAFT 5 GRADE=3
10 VI8973879670 METAL SET; CRANKSHAFT 5 GRADE=4
10 VI8973879680 METAL SET; CRANKSHAFT 5 GRADE=5
12A VI8982019450 FLYWHEEL 1
18 VI8981834521 PULLEY; CR/SHF 1 OD=147
21 VI8981652341 BOLT; PULLEY FIX 6 M10X90
28 VI8981549451 GEAR; CR/SHF 1 Z=44
34 VI9081605100 PIN; GEAR SETTING 1 OD=5 L=10
35 VI9123336061 GEAR; RING 1 Z=122
38 VI8941421561 WASHER; FLYWHEEL 1
40 VI8944180500 BOLT; FLYWHEEL 8 M13X45
42 VI8980407040 WASHER; THRUST, CR/SHF 2
48 VI8942016410 KEY; WOODRUFF, CR/SHF 1
59 VI8981651250 WASHER; CR/SHF PULLEY 1
63A VI8982323560 PISTON 4 GRADE=A
63A VI8982323570 PISTON 4 GRADE=B
63A VI8982323580 PISTON 4 GRADE=C
68 VI8980572220 RING SET; PISTON, STANDARD 4
73 VI8973582340 METAL SET; CONN ROD, STANDARD 4
83 VI8980151931 PIN; PISTON 4
84 VI8973889212 ROD ASM; CONN 4
85 VI8973830660 BUSHING; CONNROD 4 AFTER PRESS FITTING
86 VI8980485380 BOLT; CONNROD 8 M11X44.5
87 VI9081605080 PIN; CONNROD BIG END 8 OD=5 L=8
126 VI8944606870 RING; SNAP, PISTON PIN 8 OD=37.5
172 VI8981636930 ROTOR; CRANK SENSOR 1
203 VI9081605080 PIN; ROTOR 1 OD=5 L=8
204 VI8980383430 BOLT; ROTOR 3 M6X10
.
1A VI8979452612 CASE; TIMING GEAR 1
2 VI8982555000 HOUSING; FLYWHEEL 1
4 VI8980495210 VALVE ASM; CHECK 1
32 VI8973122212 GASKET; GEAR CASE TO C/BL 1
36A VI0280508160 BOLT; GEAR CASE 1 M8X16 FLANGE
36B VI0280508200 BOLT; GEAR CASE 16 M8X20 FLANGE
36C VI0280508350 BOLT; GEAR CASE 1 M8X35 FLANGE
36D VI0280508450 BOLT; GEAR CASE 2 M8X45 FLANGE
36E VI0280508600 BOLT; GEAR CASE 1 M8X60 FLANGE
36F VI0286508300 BOLT; GEAR CASE 3 M8X30 FLANGE
38 VI8971354230 PIN; GEAR CASE COVER 2 L=20 OD=10
49A VI8979452980 GASKET; GEAR CASE TO COVER 1
50A VI8973548082 STUD 6 M8X27,M8X14 L=64.5
51 VI8973546971 BOLT; GEAR CASE COVER 14
54A VI8982537001 COVER; GEAR CASE 1
63 VI8973673362 COVER; P/S 1
64 VI8971096790 GASKET; COVER, P/S 1 ID=59.6
79 VI8973703902 BRACKET; GEAR CASE COVER 1
80A VI0911802060 NUT; COVER 2 M6 FLANGE
80B VI0911802080 NUT; COVER 3 M8 FLANGE
81A VI0410106160 STUD; GEAR CASE COVER FIX 2 M6X16 L=25
81B VI0491408300 STUD; GEAR CASE COVER FIX 2 M8X30 L=48
98 VI0911802080 NUT; STUD, INJ PUMP 2 M8 FLANGE
99A VI8983369830 STUD; INJ PUMP 1 M8X30 L=41
99B VI8973694500 STUD; INJ PUMP 1 M8X45 L=56
103 VI8981581100 SEAL; OIL, CR/SHF, FRT 1 ID=73 OD=96
123 VI8973717201 COVER; TIMING, LWR 1
124 VI0280506160 BOLT; TIMING COVER 3 M6X16 FLANGE
172 VI8973798260 RETAINER; CR/SHF 1
175 VI8970715611 SEAL; OIL, CR/SHF, RR 1 ID=95 OD=118
185 VI0286508250 BOLT; RET TO C/BL 5 M8X25 FLANGE
205 VI0911801100 NUT; HSG 1 M10 FLANGE
211A VI0286510300 BOLT; HSG 3 M10X30 FLANGE
211B VI0287512350 BOLT; HSG 4 M12X35 FLANGE
211C VI5090002270 BOLT; HSG 3 M12X25
487 VI8972207400 COVER; HOLE 1
510 VI8982517640 PUMP ASM; VACUUM 1
516 VI8980512750 VANE; VAC PUMP 3
517A VI9095662710 GASKET; VAC PUMP 1
517B VI8982517690 GASKET; VAC PUMP 1
518A VI8980495230 BOLT; VAC PUMP 3 M6X16 W/WASHER
595A VI8980185190 GASKET; VLV 2 ID=18 OD=24
595B VI8980185180 GASKET; VLV 1 ID=12 OD=24
620 VI8973288282 GASKET; GEAR CASE 1 T=1.40 1-NOTCH
620 VI8973316312 GASKET; GEAR CASE 1 T=1.45 2-NOTCH
620 VI8973316322 GASKET; GEAR CASE 1 T=1.50 3-NOTCH
621 VI0911802080 NUT; VAC PUMP 3 M8 FLANGE
636 VI8980495200 ROTOR & VANE ASM; VAC PUMP 1
.

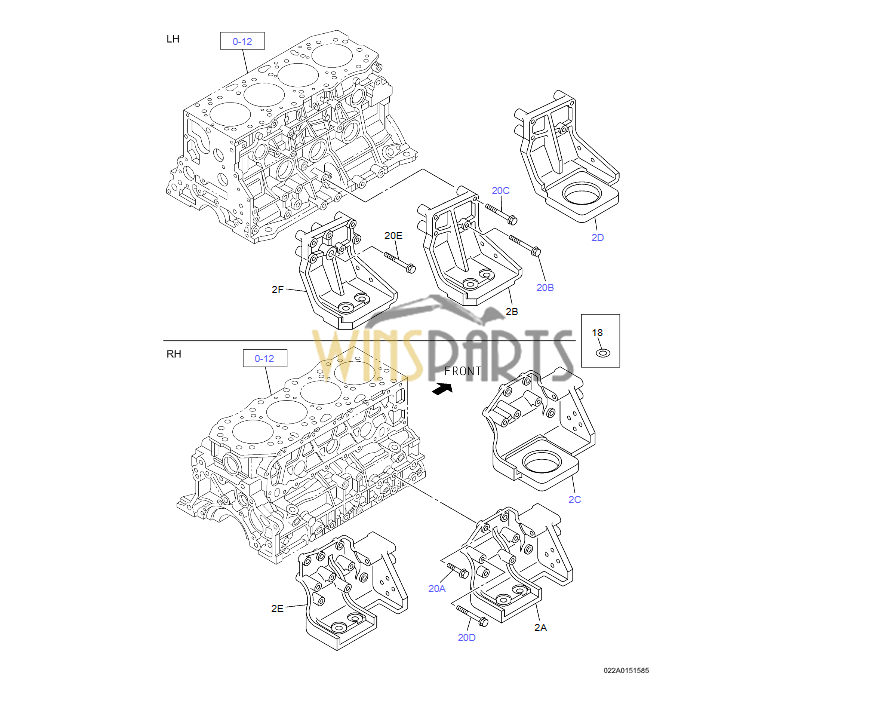

2C VI8975575700 FOOT; ENG 1
2D VI8974862670 FOOT; ENG 1
20A VI0280610300 BOLT; ENG FOOT 3 M10X30 FLANGE
20B VI0280510450 BOLT; ENG FOOT 1 M10X45 FLANGE
20C VI0280510600 BOLT; ENG FOOT 3 M10X60 FLANGE
20D VI0280610700 BOLT; ENG FOOT 3 M10X70 FLANGE
