YN61B00331F1 YN61B00312F1 0.8M3 BUCKET ASSY Kobelco SK200-8 SK210LC-8 (SIDE TYPE PIN) 1 YN61B00331F1 BUCKET ASSY 1 1-1 YN61B00328P1 BUCKET 1 …
UPPERSTRUCTURE Kobelco SK210-8 SK210LC-8
010-01 Kobelco SK210-8 SK210LC-8 FRAME, UPP
011-01 Kobelco SK210-8 SK210LC-8 FRAME GROUP, UPP
016-01 Kobelco SK210-8 SK210LC-8 COUNTERWEIGHT INSTAL
016-57 Kobelco SK210-8 SK210LC-8 COUNTERWEIGHT INSTAL(50FT LONG RANGE)
025-01 Kobelco SK210-8 SK210LC-8 ENGINE INSTAL
030-01 Kobelco SK210-8 SK210LC-8 RADIATOR GROUP
031-01 Kobelco SK210-8 SK210LC-8 RADIATOR INSTAL
042-01 Kobelco SK210-8 SK210LC-8 CLEANER ASSY, AIR
043-01 Kobelco SK210-8 SK210LC-8 CLEANER ASSY, AIR(WITH PRE-FILTER)
046-01 Kobelco SK210-8 SK210LC-8 MUFFLER ASSY
052-01 Kobelco SK210-8 SK210LC-8 FUEL LINES
059-03 Kobelco SK210-8 SK210LC-8 TANK INSTAL, FUEL (WITH DUSTROOF CAP)
063-01 Kobelco SK210-8 SK210LC-8 TANK INSTAL, HYD(WITH AIR BREATHER GUARD)
070-01 Kobelco SK210-8 SK210LC-8 POWER TAKE-OFF ASSY
074-01 Kobelco SK210-8 SK210LC-8 MOTOR INSTAL, SWING
080-01 Kobelco SK210-8 SK210LC-8 VALVE INSTAL
080-60 Kobelco SK210-8 SK210LC-8 VALVE INSTAL (NIBBLER & BREAKER)
090-01 Kobelco SK210-8 SK210LC-8 HYD LINES, PUMP
100-01 Kobelco SK210-8 SK210LC-8 HYD LINES, UPP
100-60 Kobelco SK210-8 SK210LC-8 HYD LINES, UPP (NIBBLER & BREAKER)
102-01 Kobelco SK210-8 SK210LC-8 HYD LINES, SWIVEL
110-01 Kobelco SK210-8 SK210LC-8 HYD LINES, RETURN
120-01 Kobelco SK210-8 SK210LC-8 CONTROLS, OPERATORS(1PEDAL)
120-02 Kobelco SK210-8 SK210LC-8 CONTROLS, OPERATORS
120-03 Kobelco SK210-8 SK210LC-8 CONTROLS, OPERATORS
120-04 Kobelco SK210-8 SK210LC-8 CONTROLS, OPERATORS(1 PEDAL)
120-57 Kobelco SK210-8 SK210LC-8 CONTROLS, OPERATORS(LONG RANGE, SUSPENSION AND HEIGHTRISER)
121-57 Kobelco SK210-8 SK210LC-8 CONTROLS, OPERATORS(50FT LONG RANGE)
122-11 Kobelco SK210-8 SK210LC-8 CONTROLS, OPERATORS
123-11 Kobelco SK210-8 SK210LC-8 CONTROLS, OPERATORS(1 PEDAL)
124-57 Kobelco SK210-8 SK210LC-8 CONTROLS, OPERATORS(50FT LONG RANGE)
140-02 Kobelco SK210-8 SK210LC-8 CONTROL LINES, MAIN
140-57 Kobelco SK210-8 SK210LC-8 CONTROL LINES, MAIN(50FT LONG RANGE)
141-01 Kobelco SK210-8 SK210LC-8 CONTROL LINES, MULTI
142-01 Kobelco SK210-8 SK210LC-8 CONTROL LINES, REMOTE (WITH MULTI)
142-02 Kobelco SK210-8 SK210LC-8 CONTROL LINES, REMOTE
142-60 Kobelco SK210-8 SK210LC-8 CONTROL LINES, REMOTE(NIBBLER & BREAKER)
150-01 Kobelco SK210-8 SK210LC-8 CONTROL LINES, VALVE
150-60 Kobelco SK210-8 SK210LC-8 CONTROL LINES, VALVE (NIBBLER & BREAKER)
160-01 Kobelco SK210-8 SK210LC-8 CONTROL LINES, PROPEL
162-02 Kobelco SK210-8 SK210LC-8 CONTROL LINES, BLOCK
162-60 Kobelco SK210-8 SK210LC-8 CONTROL LINES, BLOCK (1 PEDAL)
163-01 Kobelco SK210-8 SK210LC-8 CONTROL LINES, BLOCK
163-02 Kobelco SK210-8 SK210LC-8 CONTROL LINES, BLOCK
163-60 Kobelco SK210-8 SK210LC-8 CONTROL LINES, BLOCK (NIBBLER & BREAKER)
164-01 Kobelco SK210-8 SK210LC-8 CONTROL LINES, PUMP
170-01 Kobelco SK210-8 SK210LC-8 PLATE INSTAL, FLOOR
175-11 Kobelco SK210-8 SK210LC-8 INSULATION INSTAL
177-01 Kobelco SK210-8 SK210LC-8 CAB INSTAL
190-01 Kobelco SK210-8 SK210LC-8 MIRROR INSTAL
190-11 Kobelco SK210-8 SK210LC-8 MIRROR INSTAL (WITH LIGHT)
191-01 Kobelco SK210-8 SK210LC-8 LIGHT INSTAL
191-02 Kobelco SK210-8 SK210LC-8 LIGHT INSTAL
192-01 Kobelco SK210-8 SK210LC-8 TANK ASSY, WASHER
220-01 Kobelco SK210-8 SK210LC-8 SEAT INSTAL
220-02 Kobelco SK210-8 SK210LC-8 SEAT INSTAL(LONG RANGE, SUSPENSION AND HEIGHTRISER)
225-01 Kobelco SK210-8 SK210LC-8 BELT ASSY, SEAT
240-01 Kobelco SK210-8 SK210LC-8 GUARD INSTAL(TROPIC)
241-01 Kobelco SK210-8 SK210LC-8 GUARD INSTAL(PRECLEANER)
245-01 Kobelco SK210-8 SK210LC-8 MIRROR INSTAL
248-01 Kobelco SK210-8 SK210LC-8 LIGHT INSTAL, UPP
250-01 Kobelco SK210-8 SK210LC-8 COVER ASSY, UNDER
250-02 Kobelco SK210-8 SK210LC-8 COVER ASSY, UNDER(LOGGING)
260-01 Kobelco SK210-8 SK210LC-8 PANEL ASSY, INSTRUM
260-60 Kobelco SK210-8 SK210LC-8 PANEL ASSY, INSTRUM(NIBBLER & BREAKER)
261-11 Kobelco SK210-8 SK210LC-8 PANEL ASSY, INSTRUM
261-60 Kobelco SK210-8 SK210LC-8 PANEL ASSY, INSTRUM(NIBBLER & BREAKER)
275-01 Kobelco SK210-8 SK210LC-8 CONTROLLER INSTAL
275-11 Kobelco SK210-8 SK210LC-8 CONTROLLER INSTAL
275-57 Kobelco SK210-8 SK210LC-8 CONTROLLER INSTAL(50FT LONG RANGE)
276-57 Kobelco SK210-8 SK210LC-8 CONTROLLER INSTAL(50FT LONG RANGE)
280-01 Kobelco SK210-8 SK210LC-8 BATTERY ASSY
285-01 Kobelco SK210-8 SK210LC-8 CONDITIONER, AIR
285-01A Kobelco SK210-8 SK210LC-8 CONDITIONER, AIR
300-01 Kobelco SK210-8 SK210LC-8 ELEC ASSY, UPP
305-01 Kobelco SK210-8 SK210LC-8 LAMP INSTAL
305-11 Kobelco SK210-8 SK210LC-8 LAMP INSTAL
305-57 Kobelco SK210-8 SK210LC-8 LAMP INSTAL(50FT LONG RANGE)
310-01 Kobelco SK210-8 SK210LC-8 HARNESS ASSY, UPP
310-02 Kobelco SK210-8 SK210LC-8 HARNESS ASSY, UPP
310-11 Kobelco SK210-8 SK210LC-8 HARNESS ASSY, UPP
310-20 Kobelco SK210-8 SK210LC-8 HARNESS ASSY, UPP
311-01 Kobelco SK210-8 SK210LC-8 HARNESS ASSY
315-01 Kobelco SK210-8 SK210LC-8 HARNESS ASSY, CAB
315-03 Kobelco SK210-8 SK210LC-8 HARNESS ASSY, CAB
320-01 Kobelco SK210-8 SK210LC-8 HARNESS ASSY, ENGINE
325-01 Kobelco SK210-8 SK210LC-8 HARNESS ASSY(IT KIT)
325-13 Kobelco SK210-8 SK210LC-8 HARNESS ASSY
326-11 Kobelco SK210-8 SK210LC-8 HARNESS ASSY(IT KIT)
.

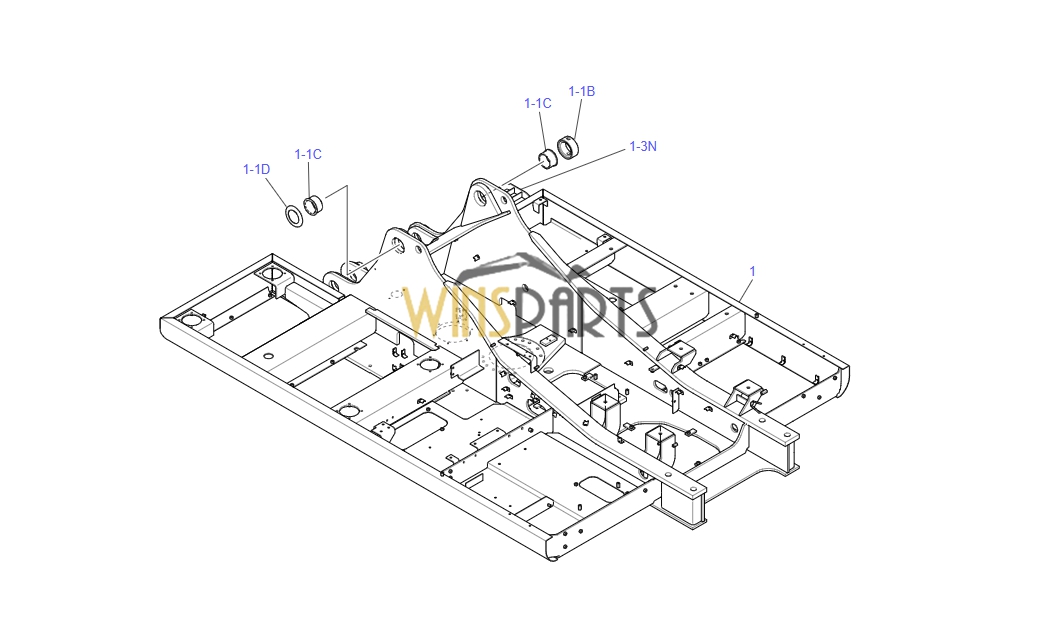

1 YN52F00396P1 FRAME, UPP 1
1-1B YN52F01894P1 BOSS 1
1-1C YN52F01582P1 BUSHING 2
1-1D 2414T2784 COVER 1
1-3N YN41C00058P1 STEP 1
.

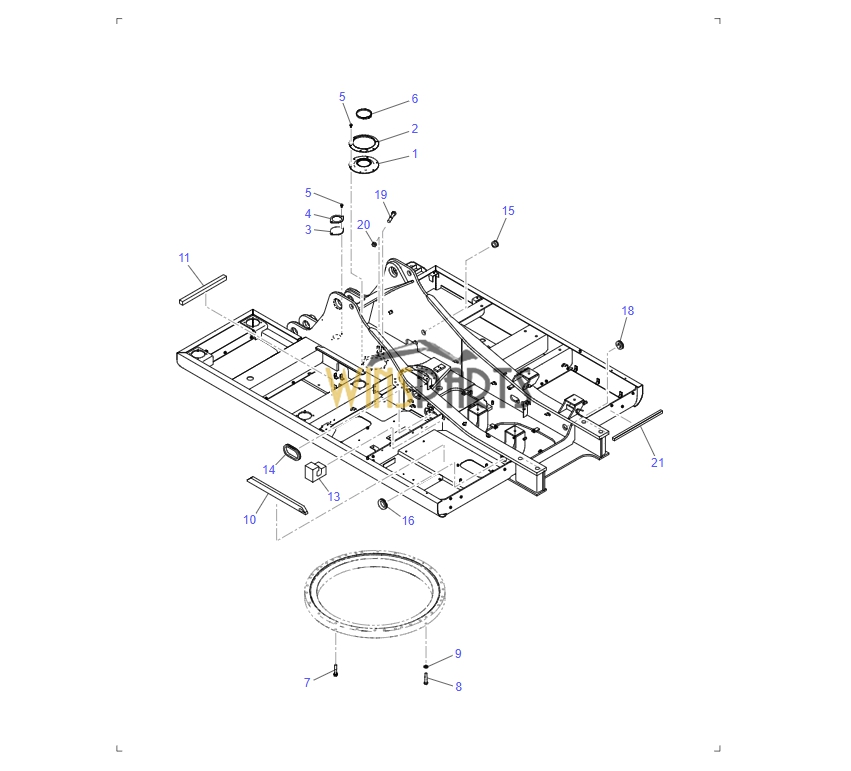

1 YN52F01857P1 SEAL 1
2 YN52F01615P1 PLATE 1
3 YN52F01159P1 PLATE 1
4 2416Z434 PACKING 1
5 ZM73C10025 SEMS-BOLT 8
6 ZC16X12200 CLIP 1
7 YN52F01100D3 CAPSCREW 32
8 HS53C20105G1 CAPSCREW 1
9 ZW13H20000 WASHER 1
10 YN52F01966P2 INSULATION 1
11 YN52F01737P1 INSULATION 1
13 YN52F01965P1 INSULATION 1
14 YN64H01286D1 GROMMET 1
15 PH13E01071P1 GROMMET 1
16 YN13E01363P1 GROMMET 1
18 PH02H01108P1 GROMMET 1
19 ZS18F24130 CAPSCREW 1
20 ZN18F24019 NUT 1
21 YN52F01736P1 INSULATION 1
.

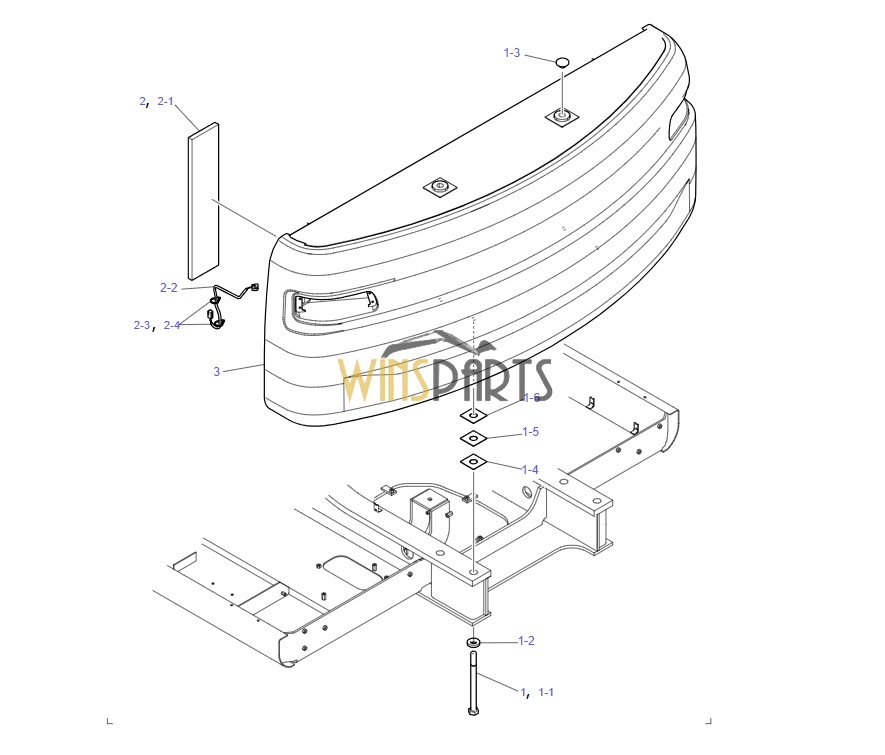

1 YN60C00343F1 COUNTERWEIGHT INSTAL 1
1-1 YN60C01690P1 CAPSCREW 4
1-2 HY26Y31066G2 WASHER 4
1-3 LQ60C01345P1 PLUG 2
1-4 YN60C01470P1 SHIM (1.6) 3
1-5 YN60C01471P1 SHIM (2.3) 3
1-6 YN60C01472P1 SHIM (3.2) 4
2 YN60C00414F1 COUNTERWEIGHT ASSY 1
2-1 YN60C01769P1 INSULATION 1
2-2 LQ80E01009P1 HARNESS 1
2-3 YN13E01375P1 CLIP 2
2-4 PY01P01043D3 CLIP 2
3 YN60C00347P1 COUNTERWEIGHT 1
YN60C00220F1 COUNTERWEIGHT INSTAL
(50FT LONG RANGE)
1 YN60C00148F1 COUNTERWEIGHT INSTAL 1
1-1 YN60C01300P1 CAPSCREW 4
1-2 HY26Y28060G3 WASHER 4
1-3 YN60C01470P1 SHIM (1.6) 3
1-4 YN60C01471P1 SHIM (2.3) 3
1-5 YN60C01472P1 SHIM (3.2) 4
2 YN60C00259F1 COUNTERWEIGHT ASSY 1
2-1 YN60C01589P1 INSULATION 1
2-2 YN60C01654P1 PANEL 2
2-3 YN60C01650P2 PLATE 2
2-4 ZM73C12030 SEMS-BOLT 10
2-5 LQ80E01010P1 HARNESS 1
2-6 PY01P01043D3 CLIP 2
2-7 YN13E01375P1 CLIP 2
2-8 YN21C01757D2 SHIM (3.2) 2
2-9 YN21C01757D3 SHIM (2.0) 2
3 YN60C00258P1 COUNTERWEIGHT 1
