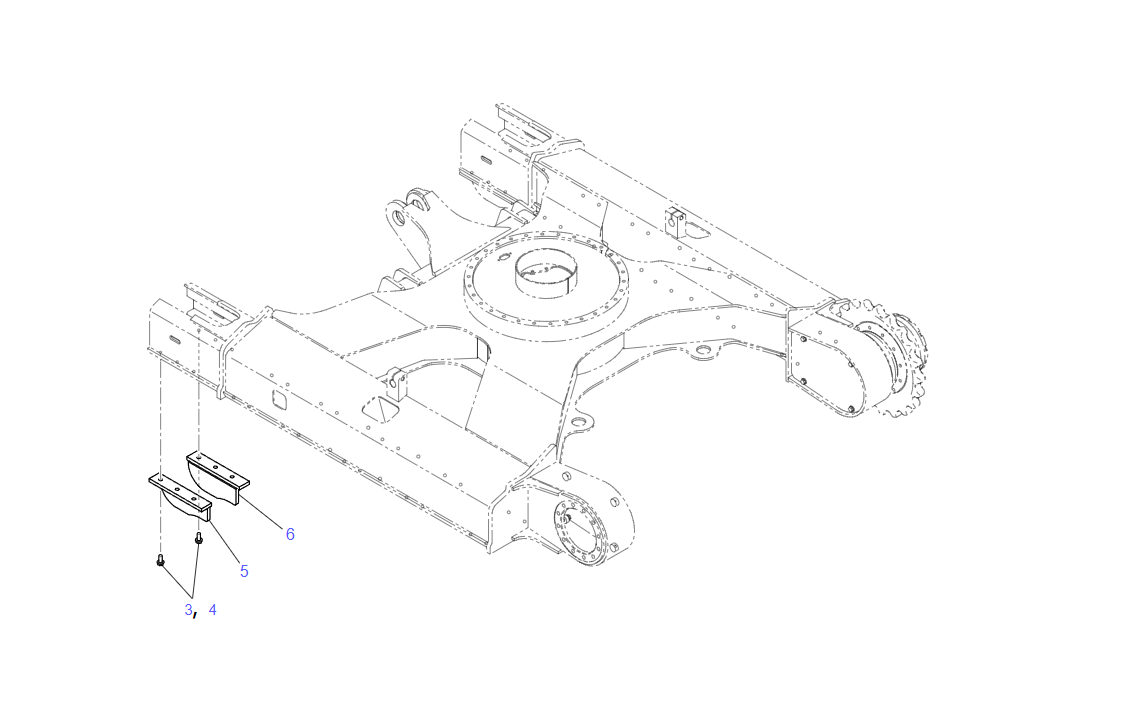

UNDERCARRIAGE FRAME ASSY KOBELCO SK75-8 SK70SR-2 SK75SR-3 SK75UR-5
330-13 LG02F00016F1 FRAME ASSY, LOW
330-13A_LG02F00037F1_B139HKCM_1 330-13A LG02F00037F1 FRAME ASSY, LOW
330-71_LG02F00014F1_B139HKCM_1 330-71 LG02F00014F1 FRAME ASSY, LOW(DOZER)
330-71A_LG02F00033F1_B139HKCM_1 330-71A LG02F00033F1 FRAME ASSY, LOW(DOZER)
331-55_LG02F00020F1_B139HKCM_1 331-55 LG02F00020F1 FRAME ASSY, LOW(NARROW)
331-71_LG02F00018F1_B139HKCM_1 331-71 LG02F00018F1 FRAME ASSY, LOW(NARROW DOZER)
332-13_YT01F00007F1_B139HKCM_1 332-13 YT01F00007F1 LOW GROUP
333-13_YT01F00008F1_B139HKCM_1 333-13 YT01F00008F1 LOW GROUP

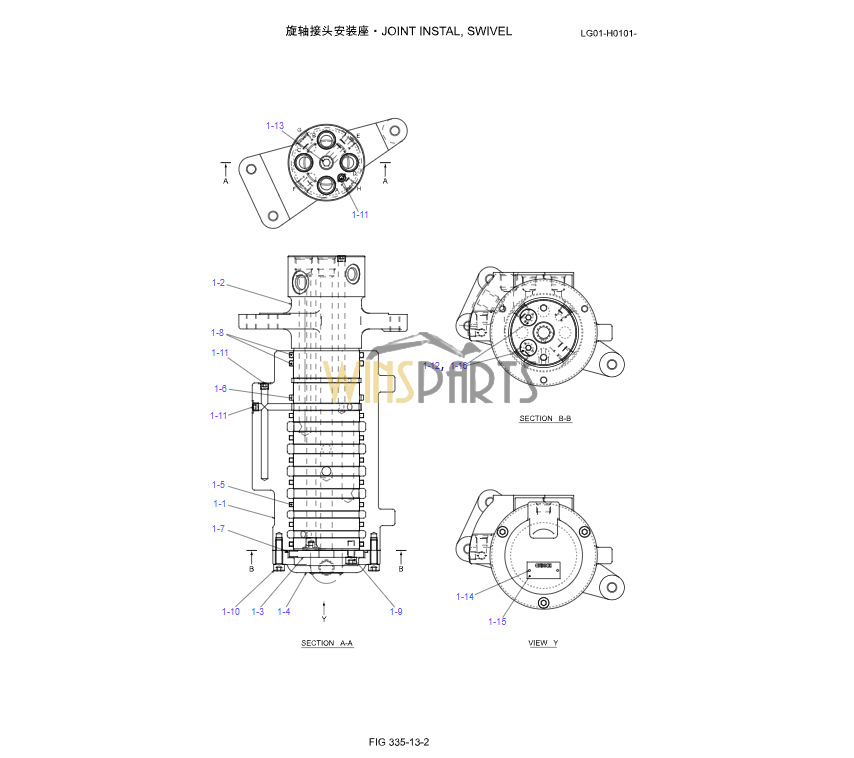

335-13_YT19H00026F1_B139HKCM_1 335-13 YT19H00026F1 JOINT INSTAL, SWIVEL
337-13_LG53D00001F1_B139HKCM_1 337-13 LG53D00001F1 MOTOR INSTAL, PROPEL
337-13A_LG53D00003F1_B139HKCM_1 337-13A LG53D00003F1 MOTOR INSTAL, PROPEL
338-13_YT01F01020F1_B139HKCM_1 338-13 YT01F01020F1 CAP ASSY

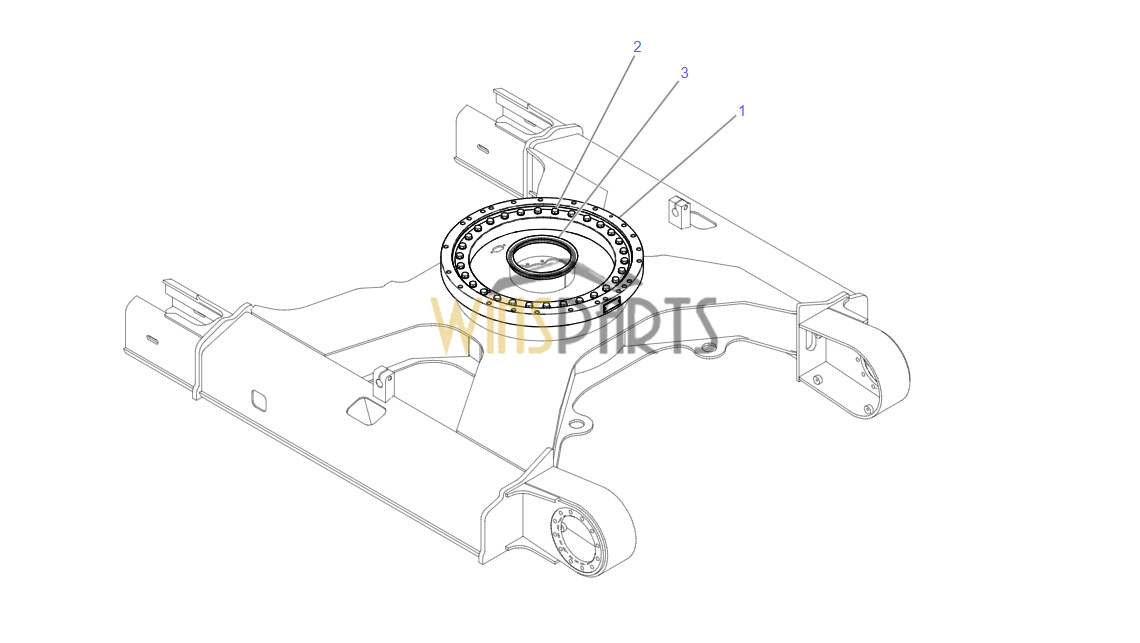

340-13_LG40F00002F1_B139HKCM_1 340-13 LG40F00002F1 RING ASSY, SLEWING
346-13_LG52D00003F1_B139HKCM_1 346-13 LG52D00003F1 IDLER ASSY, CRAWLER
346-13A_LG52D00003F2_B139HKCM_1 346-13A LG52D00003F2 IDLER ASSY, CRAWLER
366-13_LG64D00002F1_B139HKCM_1 366-13 LG64D00002F1 ROLLER ASSY, TRACK
374-13_YT64D00002F1_B139HKCM_1 374-13 YT64D00002F1 ROLLER ASSY, UPP
380-13_LG60D00004F1_B139HKCM_1 380-13 LG60D00004F1 SHOE ASSY(450mm t6)
381-13_LG60D00004F2_B139HKCM_1 381-13 LG60D00004F2 SHOE ASSY(600mm t7)
400-13_YT02H00036F1_B139HKCM_1 400-13 YT02H00036F1 HYD LINES, LOW(DOZER)
400-55_YT02H00038F1_B139HKCM_1 400-55 YT02H00038F1 HYD LINES, LOW(NARROW DOZER)
401-13_YT02H00039F1_B139HKCM_1 401-13 YT02H00039F1 HYD LINES, LOW
401-55_YT02H00042F1_B139HKCM_1 401-55 YT02H00042F1 HYD LINES, LOW(NARROW)
403-13_YT12H00002F1_B139HKCM_1 403-13 YT12H00002F1 HYD LINES, PROPEL
404-13_YT19H00030F1_B139HKCM_1 404-13 YT19H00030F1 HYD LINES, SWIVEL(DOZER)
405-13_YT19H00032F1_B139HKCM_1 405-13 YT19H00032F1 HYD LINES, SWIVEL
419-13_LF51B00038F2_B139HKCM_1 419-13 LF51B00038F2 DOZER ASSY(600mm SHOE)
420-13_LF51B00038F1_B139HKCM_1 420-13 LF51B00038F1 DOZER ASSY(450mm SHOE)
420-55_LF51B00038F3_B139HKCM_1 420-55 LF51B00038F3 DOZER ASSY(NARROW)
421-13_YT51B00003F1_B139HKCM_1 421-13 YT51B00003F1 DOZER GROUP
422-13_YT51B00059F1_B139HKCM_1 422-13 YT51B00059F1 DOZER INSTAL
425-13_LF51B00041F1_B139HKCM_1 425-13 LF51B00041F1 CYLINDER INSTAL(DOZER)
425-13A_LG51B00001F1_B139HKCM_1 425-13A LG51B00001F1 CYLINDER INSTAL(DOZER)
426-13_YT13H00006F1_B139HKCM_1 426-13 YT13H00006F1 HYD LINES, CYLINDER(DOZER)

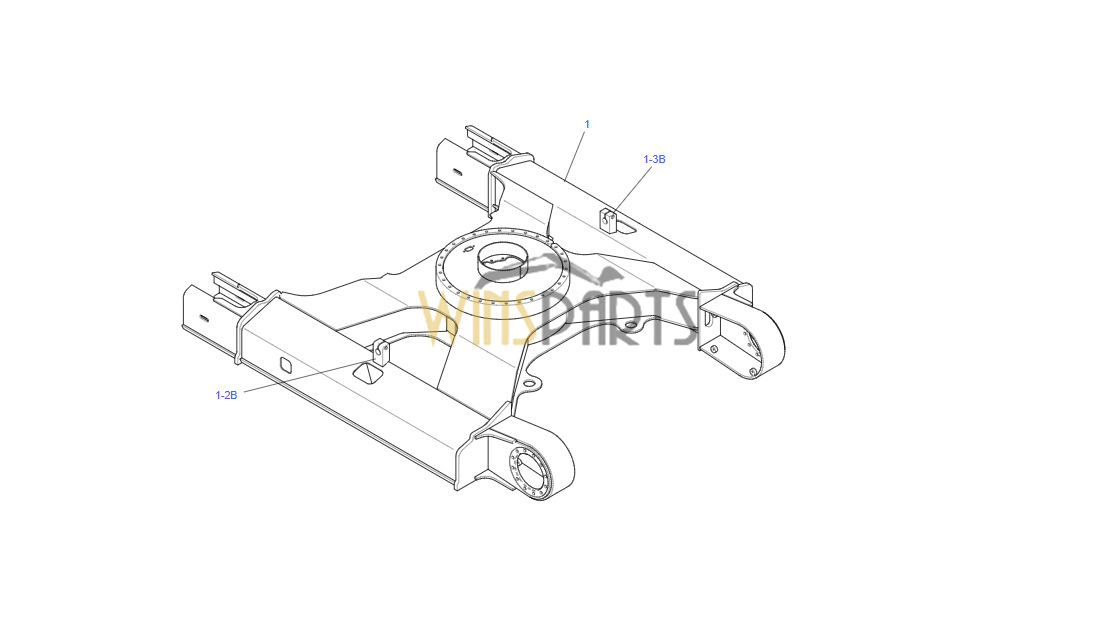

LG02F00037F1 FRAME ASSY, LOW
LG02F00014F1 FRAME ASSY, LOW
LG02F00033F1 FRAME ASSY, LOW
LG02F00020F1 FRAME ASSY, LOW
LG02F00018F1 FRAME ASSY, LOW
. (NARROW DOZER)
.
1 LG02F00019P1 FRAME, LOW 1
1 LG02F00021P1 FRAME, LOW 1
1 LG02F00034P1 FRAME, LOW 1
1 LG02F00015P1 FRAME, LOW 1
1 LG02F00038P1 FRAME, LOW 1 .
1 LG02F00017P1 FRAME, LOW 1
1-2B YT07F01080P1 SUPPORT 1
1-3B YT07F01080P1 SUPPORT 1
.
1 YT55V00009F1 JOINT, SWIVEL 1
1-1 YT55V01008P1 BODY 1
1-2 YT55V01026P1 STEM 1
1-3 2436P256 PLATE, THRUST 1
1-4 2436P266 COVER 1
1-5 YT55V01016P1 SEAL 7
1-6 YN55V01049P1 SEAL 1
1-7 ZD11G09500 O-RING 1
1-8 2445R152D1 O-RING 2
1-9 ZS23C08020 CAPSCREW 2
1-10 ZS23C08030 CAPSCREW 3
1-11 PV52D01007P1 PLUG 3
1-12 LE03H01117D2 PLUG 2
1-13 YN55V01091P1 PLUG 1
1-14 2420Z1036D3 CLEVIS 2
1-15 YN22T00194P1 NAME PLATE 1
1-16 ZD12P01100 O-RING 2
2 ZM73C12030 SEMS-BOLT 3
.
1 LG40F00001F1 RING, SLEWING 1
2 YY52F01378P1 CAPSCREW 30
3 YT40F01003P1 SEAL 1
