YN61B00331F1 YN61B00312F1 0.8M3 BUCKET ASSY Kobelco SK200-8 SK210LC-8 (SIDE TYPE PIN) 1 YN61B00331F1 BUCKET ASSY 1 1-1 YN61B00328P1 BUCKET 1 …
LS20P00169F1 LS20P00197F1 LS20P00172F1 FUEL TANK ASSY KOBELCO
LS20P00168F1 TANK INSTAL, FUEL Not Service
.
070-01_LS20P00169F1_KCMU_D0002346061_1 1 LS20P00169F1 TANK INSTAL, FUEL 1 P.070-01 YS14-05001–05210
. YS14010001–10257
070-01_LS20P00197F1_EUR_D0006242271_1 1 LS20P00197F1 TANK INSTAL, FUEL 1 P.070-01 YS14010258-
070-02_LS20P00172F1_KCMU_D0002346060_1 2 LS20P00172F1 TANK ASSY, FUEL 1 P.070-02 LS14-03501–03513
. YS14-05001–05207
070-02_LS20P00187F1_JP_X1_D0003574308_1 2 LS20P00187F1 TANK ASSY, FUEL 1 P.070-02 LS14-03514–03514
. LS14005001–05009
. YS14-05208–05210
. YS14010001–10148
070-02_LS20P00193F1_EUR_X_D0005581230_1 2 LS20P00193F1 TANK ASSY, FUEL 1 P.070-02 LS14005010–05012
. YS14010149–10237
070-02_LS20P00196F1_ANZ_D0006236169_1 2 LS20P00196F1 TANK ASSY, FUEL 1 P.070-02 LS14005013-
. YS14010238–10257
070-02_LS20P00202F1_EUR_D0006242272_1 2 LS20P00202F1 TANK ASSY, FUEL 1 P.070-02 YS14010258-

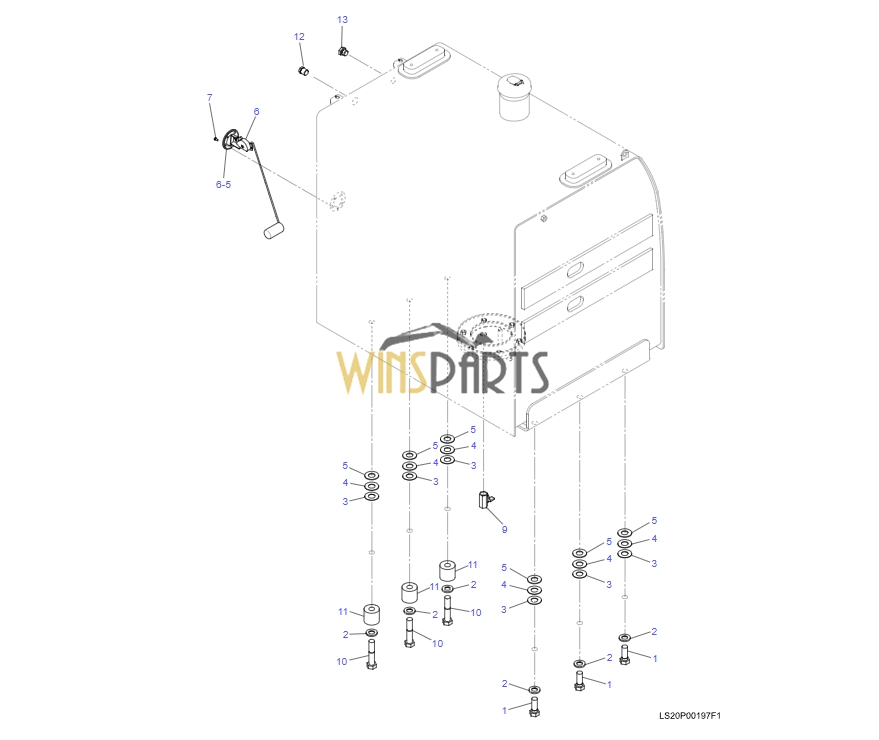

LS20P00169F1 TANK INSTAL, FUEL
.
1 ZS18C20055 CAPSCREW 3
2 ZW16H20000 WASHER 6
3 HY25X24050G1 SHIM (1.0) 5
4 HY25X24050G4 SHIM (1.6) 5
5 HY25X24050G5 SHIM (2.3) 5
6 YN52S00045F1 SENSOR, LEVEL 1
6-5 YN52S00045S005 GASKET 1
7 ZS31C05012 MACHINE SCREW 5
8 ZW26X05000 LOCK WASHER 5
9 YN25V00001P1 VALVE, STOP 1
10 ZS18C20100 CAPSCREW 3
11 LS20P01239P1 COLLAR 3
12 YN20P01342P1 PLUG 1
13 YN33H01052P1 SEAL 1
14 ZE72X08000 PLUG 1
LS20P00172F1 TANK ASSY, FUEL
.
2 YN20P01034P2 CAP 1
3 YN50V00029P1 STRAINER 1
4 LS20P01202P1 FLANGE 1
5 ZM73C10020 SEMS-BOLT 6
6 ZD11G16000 O-RING 1
LS33H00089F1 TANK INSTAL, HYD Not Service
.
075-01_LS33H00102F1_KCMU-02_X_D0002346058_1 1 LS33H00102F1 TANK INSTAL, HYD 1 P.075-01
075-02_LS33H00100F1_KCMU_X_D0002346057_1 2 LS33H00100F1 TANK ASSY, HYD 1 P.075-02 LS14-03501–03504
. YS14-05001–05026
075-02_LS33H00100F2_ASIA_X2_D0002504999_1 2 LS33H00100F2 TANK ASSY, HYD 1 P.075-02 LS14-03505–03514
. LS14005001–05009
. YS14-05027–05120
. YS14010001–10148
075-02_LS33H00123F1_EUR_X_D0005581514_1 2 LS33H00123F1 TANK ASSY, HYD 1 P.075-02 LS14005010-
. YS14010149-
075-03_LS33H01488F1_EUR_X_D0005581515_1 3 LS33H01488F1 CAP ASSY 1 P.075-03 LS14005010-
. YS14010149-

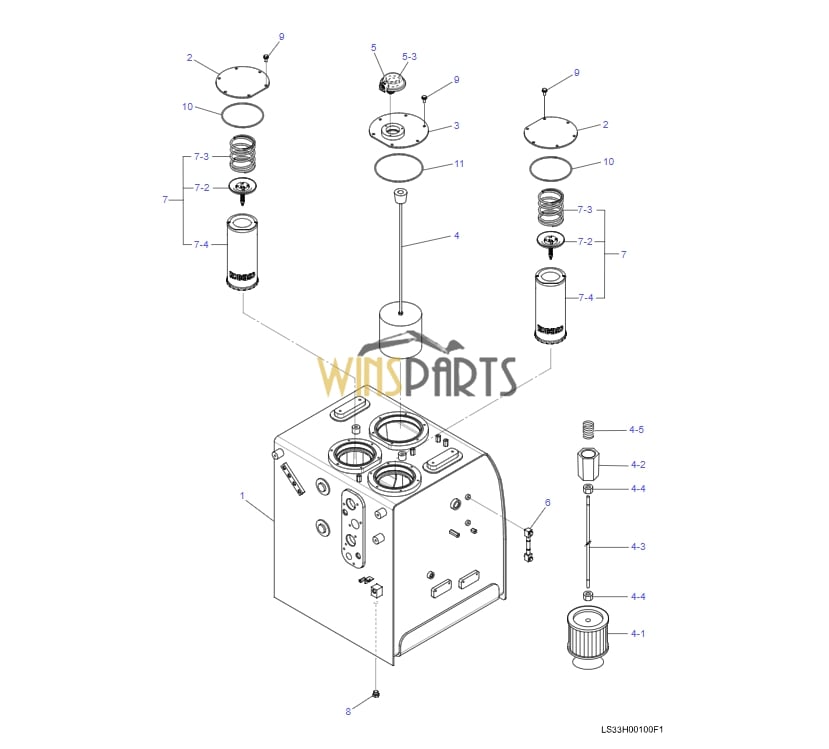

LS33H00100F1 TANK ASSY, HYD
.
1 LS33H00101P1 TANK 1
2 YN33H01259P2 COVER 2
3 LS33H01451P1 COVER 1
4 LS50V00008F1 STRAINER, SUCTION 1
4-1 LS50V00007S001 STRAINER 1
4-2 2446R176S02 HOLDER 1
4-3 WA50V00002S003 BOLT 1
4-4 ZN16C10008 NUT 2
4-5 2446R176S05 SPRING 1
5 LS57V00001F1 BREATHER ASSY 1
5-3 LV57V00002S003 ELEMENT, FILTER 1
6 YN58S00009F1 GAUGE, LEVEL, OIL 1
7 LC52V01004F1 ELEMENT, FILTER 2
7-2 YN21V00025P1 VALVE, CHECK 1
7-3 LC33H01009P1 SPRING 1
7-4 LC52V01006P1 ELEMENT, FILTER 1 R1
8 ZE72X08000 PLUG 1
9 ZM73C10025 SEMS-BOLT 18
10 ZD11G19000 O-RING 2 R1
11 ZD11G22000 O-RING 1
.
LC52V01004R100 FILTER KIT, HYD 1 RK1
. (7-4, 10)X1
LS50P00003F1 TANK INSTAL, UREA Not Service
.
080-01_LS50P00004F1_KCMU-01_D0002346055_1 1 LS50P00004F1 TANK INSTAL, UREA 1 P.080-01
080-02_YN50P00015F1_KCMU_D0002345922_1 2 YN50P00015F1 TANK ASSY, UREA 1 P.080-02 LS14-03501–03504
. YS14-05001–05114
080-02_YN50P00015F2_KCMU_D0002510749_1 2 YN50P00015F2 TANK ASSY, UREA 1 P.080-02 LS14-03505–03510
. YS14-05115–05156
080-02A_YN50P00015F3_NA_X_D0003574309_1 2 YN50P00015F3 TANK ASSY, UREA 1 P.080-02A LS14-03511–03514
. LS14005001–05002
. YS14-05157–05210
. YS14010001–10076
080-02_YN50P00015F4_JP_X1_D0003953751_1 2 YN50P00015F4 TANK ASSY, UREA 1 P.080-02 LS14005003-
. YS14010077–10145

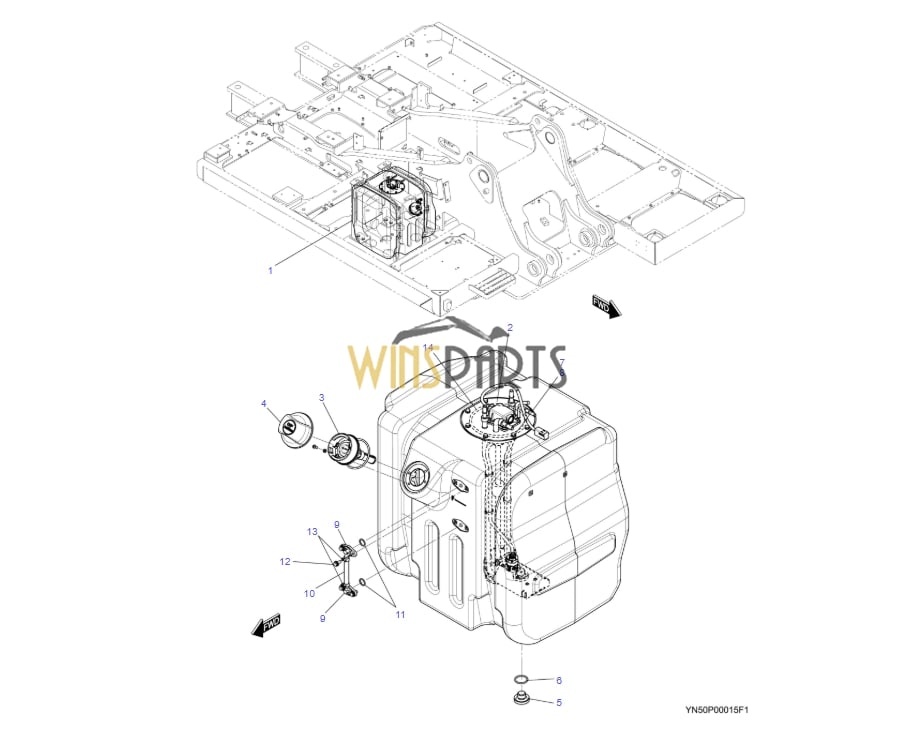

YN50P00015F1 TANK ASSY, UREA
.
1 YN50P00016P1 TANK, UREA 1
2 YN50P01003F1 SENSOR ASSY, UREA 1
3 LC50P01002F1 NECK, FILLER 1
4 YN50P01031F1 CAP 1
5 YN50P01005P1 PLUG 1
6 LC50P01006P1 O-RING 1
7 ZW16P06000 WASHER 8
8 ZS18C06012 CAPSCREW 8
9 YN50P01027P1 FLANGE 2
10 YN50P01028P1 HOSE 1
11 YN50P01029P1 O-RING 2
12 ZM73C06016 SEMS-BOLT 4
13 PH05P01088D5 CLIP 2
14 YN50P01030P1 O-RING 1
.

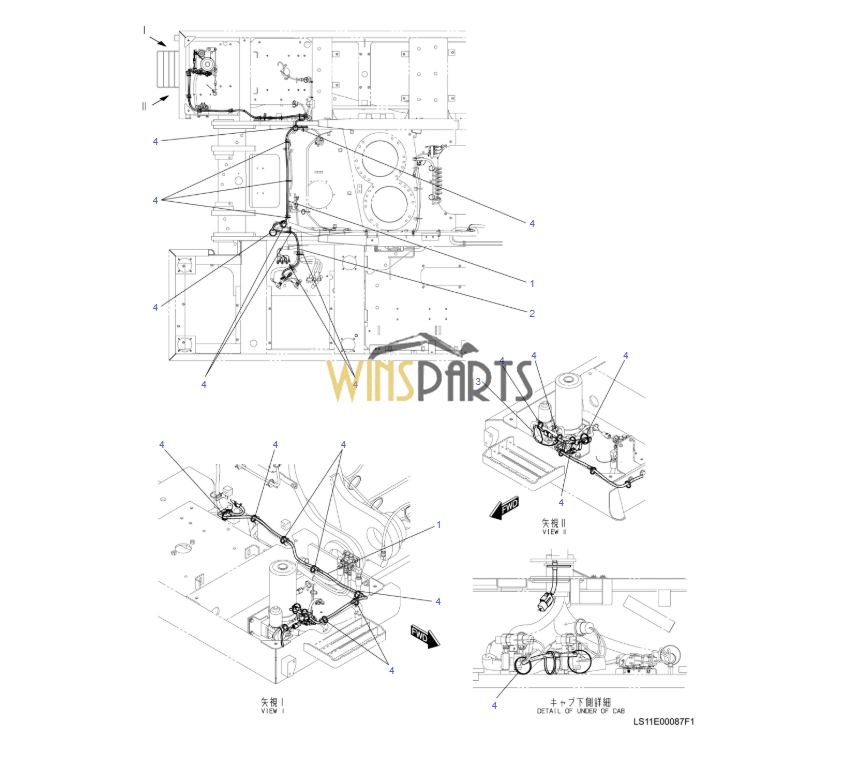

1 LS11E01154P1 HARNESS 1
2 LQ11E01073P1 HARNESS 1
3 LC13E01083P1 HARNESS 1
4 PY01P01043D3 CLIP 30
5 PY01P01043D5 CLIP 5
6 YT11E01043P1 CLIP 3
7 2432Z478D4 CLIP 1
8 LC22E00081P2 CONTROLLER 1
9 YF54E01010P2 BRACKET 1
10 ZM61C05016 SEMS-BOLT 2
11 ZM73C06016 SEMS-BOLT 2
