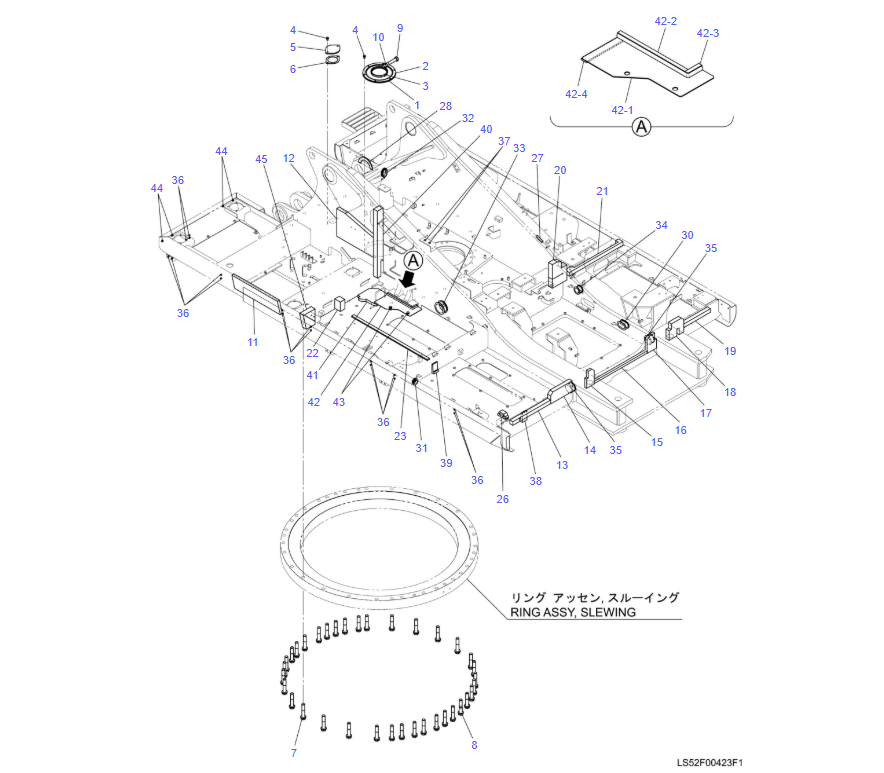

LS52F00423F1 FRAME GROUP, UPP KOBELCO SK470-10 SK500LC-10 SK500DLC-10
.
1 LS52F01290P1 SEAL 1
2 LS52F01289P1 PLATE 1
3 ZC16X14800 CLIP 1
4 ZM73C10025 SEMS-BOLT 8
5 YN52F03092P1 PLATE 1
6 YN52F03094P1 PACKING 1
7 LS52F01995P1 CAPSCREW 35
8 LS52F01996P1 CAPSCREW 1
9 ZS18F24160 CAPSCREW 1
10 ZN18F24019 NUT 1
11 YN52F02269P1 INSULATION 1
12 LS52F01577P1 INSULATION 1
13 LS52F02066P1 INSULATION 1
14 LS52F02067P1 INSULATION 1
15 LS52F01566P1 INSULATION 1
16 LS52F01325P1 INSULATION 1
17 LS52F01567P1 INSULATION 1
18 LS52F01885P1 INSULATION 1
19 LS52F01883P1 INSULATION 1
20 LS52F01997P1 INSULATION 1
21 LS52F01998P1 INSULATION 1
22 LS52F01999P1 RUBBER 1
23 LS53V01031P1 RUBBER 1
26 LS52F02001P1 RUBBER 1
27 YT52F01396D3 RUBBER 1
28 LS52F02002P1 RUBBER 1
30 YN13E01100P1 GROMMET 1
31 LS55E01003P1 GROMMET 1
32 LE32H01038P1 GROMMET 1
33 2420Z2125 GROMMET 1
34 YN13E01099P1 GROMMET 1
35 LS52F02003P1 GROMMET 2
36 YN64H01391D1 CAP 16
37 YT02C01567D1 PLATE 2
38 LS05P02017P1 RUBBER 1
39 LS05P02018P1 RUBBER 1
40 LS53V01032P1 INSULATION 1
41 LS53V01046P1 RUBBER 1
42 LS53V01047F1 COVER ASSY 1
42-1 LS53V01049P1 COVER 1
42-2 LS53V01042P1 INSULATION 1
42-3 LS53V01043P1 INSULATION 1
42-4 LS53V01044P1 RUBBER 1
43 ZM73C12025 SEMS-BOLT 2
44 YN64H01392D1 CAP 4 LS14-03501-
. YS14-05036-
45 LS21C04453P1 INSULATION 1 LS14-03501-
. YS14-05036-
LS60C00333F1 COUNTERWEIGHT INSTAL Not Service
.
020-01_LS60C00160F1_KCMU_D0002345995_1 1 LS60C00160F1 COUNTERWEIGHT INSTAL 1 P.020-01
020-02_LS60C00294F1_KCMU_D0002345994_1 2 LS60C00294F1 COUNTERWEIGHT ASSY 1 P.020-02
3 LS60C00334P1 COUNTERWEIGHT 1
LS60C00294F1 COUNTERWEIGHT ASSY
.
1 LS60C01378P1 INSULATION 1
2 LS60C01379P1 INSULATION 1
3 LS60C01776P1 INSULATION 1
LS60C00160F1 COUNTERWEIGHT INSTAL
.
1 LS60C01452P1 CAPSCREW 4
2 LS60C01453P1 WASHER 4
3 LS60C01007D1 SHIM (1.6) 3
4 LS60C01007D2 SHIM (2.3) 3
5 LS60C01007D3 SHIM (3.2) 4
6 LS60C01764P1 SHIM (0.5) 3
LS60C00326F1 COUNTERWEIGHT ASSY
.
1 LS60C01744P1 INSULATION 1
2 LS60C01379P1 INSULATION 1
3 LS60C01776P1 INSULATION 1
4 YN60C02085P1 PANEL 2
5 YN60C01884P1 BRACKET 2
6 ZM73C12030 SEMS-BOLT 8
7 YN21C01757D2 SHIM (2.3) 2
8 YN21C01757D3 SHIM (3.2) 2
