LS52D00082F1 LS52D00076F1 LS52D00077P1 IDLER ASSY, CRAWLER KOBELCO SK470-10 SK500LC-10

LS52D00082F1 LS52D00076F1 LS52D00077P1 IDLER ASSY, CRAWLER KOBELCO SK470-10 SK500LC-10

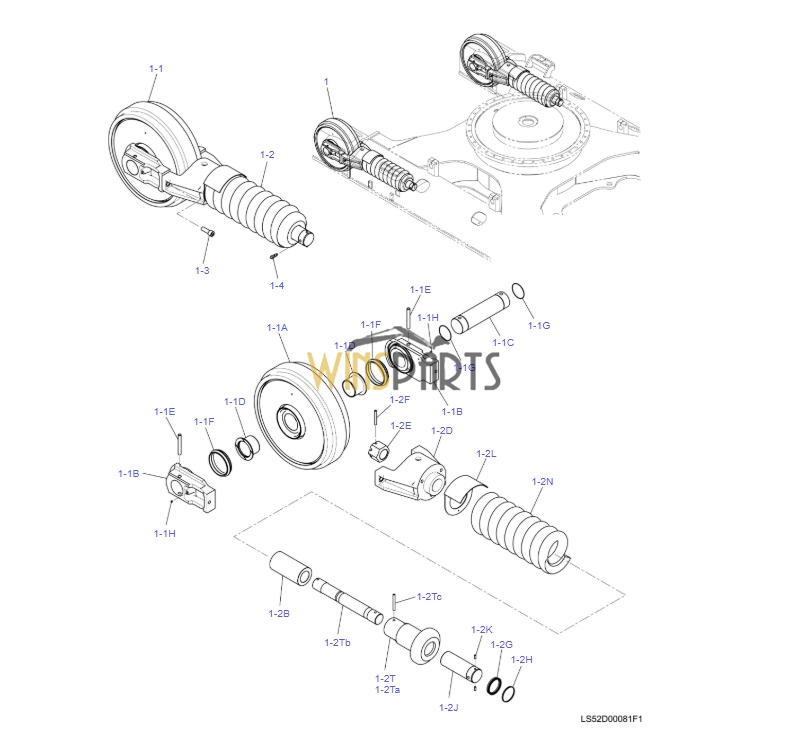

　 LS52D00081F1 IDLER ASSY, CRAWLER .
　 1 LS52D00082F1 IDLER ASSY, CRAWLER 2
　 1-1 LS52D00076F1 IDLER ASSY 1
　 1-1A LS52D00077P1 IDLER 1
　 1-1B LS52D01019P1 COLLAR 2
　 1-1C LS52D01014P1 SHAFT 1
　 1-1D LS54D01015P1 BUSHING 2
　 1-1E 2419T2669D1 PIN 2
　 1-1F 2445U266D24 SEAL 2
　 1-1G ZD11G10500 O-RING 2
　 1-1H ZE82T02000 PLUG 2
　 1-2 LS54D00001F9 IDLER ADJUST ASSY 1
　 1-2B 2418T22900 COLLAR 1
　 1-2D LS54D01002P1 BRACKET 1
　 1-2E LS54D01003P1 NUT 1
　 1-2F ZP26D13110 SPRING PIN 1
　 1-2G R45T0003D7 U-PACKING 1
　 1-2H 2445Z1080D4 SEAL, DUST 1
　 1-2J 2439P176 PISTON 1
　 1-2K LQ54D01023P1 PIN 2
　 1-2L LS54D01004P1 COVER 1
　 1-2N LS54D01008P2 SPRING 1
　 1-2T LS70V00010P1 CYLINDER, GREASE 1
　 1-2Ta LS01V00005P1 CYLINDER 1
　 1-2Tb LS70V01007P1 ROD 1
　 1-2Tc ZP26D13125 SPRING PIN 1
　 1-3 ZS23C24070 CAPSCREW 2
　 1-4 2444P803 NIPPLE 1

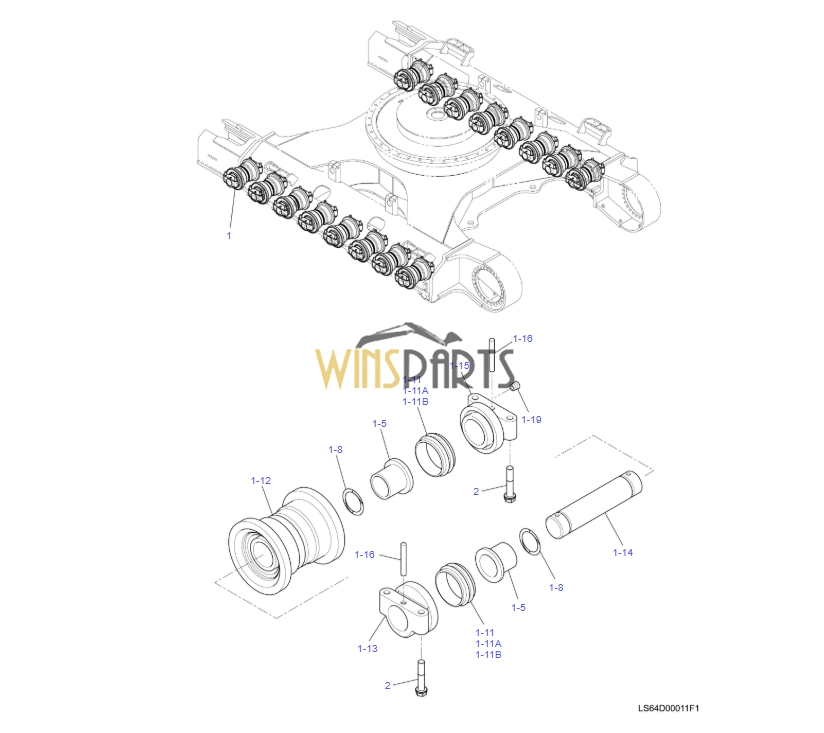

24100N7039F4 LS64D00011F1 TRACK ROLLER ASSY KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10
　 LS64D00011F1 ROLLER ASSY, TRACK Not Service
　 .
　 1 24100N7039F4 ROLLER ASSY 16
　 1-5 2405P440 BUSHING 2
　 1-8 ZD11G08500 O-RING 2
　 1-11 2445R443F1 SEAL, FLOATING 2
　 1-11A 2445R443S1 SEAL 2
　 1-11B 2445R443S2 O-RING 2
　 1-12 LS64D01006P1 ROLLER 1
　 1-13 2418N3414D3 COLLAR 1
　 1-14 LS64D01007P1 SHAFT 1
　 1-15 2418N3414D4 COLLAR 1
　 1-16 2419T2669D8 PIN 2
　 1-19 YN55V01090P1 PLUG 1
　 2 2420P1615D1 CAPSCREW 64

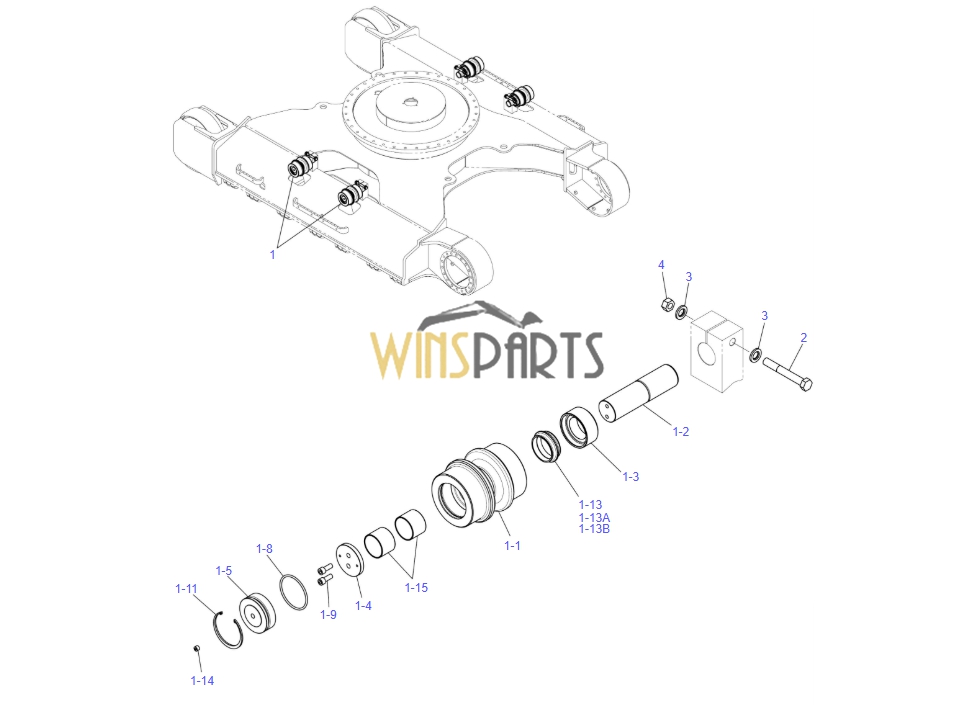

24100N7035F3 LC64D00003F1 UPP ROLLER ASSY KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10
　 .
　 LC64D00003F1 ROLLER ASSY, UPP Not Service
　 .
　 1 24100N7035F3 ROLLER ASSY 4
　 1-1 2413N490 ROLLER 1
　 1-2 2410P815 SHAFT 1
　 1-3 2418P25285 COLLAR 1
　 1-4 2418T22934 PLATE 1
　 1-5 2414P10930 COVER 1
　 1-8 ZD11P09500 O-RING 1
　 1-9 ZS23C12030 CAPSCREW 2
　 1-11 ZR26X10500 RING, SNAP 1
　 1-13 2445R440F1 SEAL, FLOATING 1
　 1-13A 2445R440S1 SEAL 2
　 1-13B 2445R440S2 O-RING 2
　 1-14 YN55V01090P1 PLUG 1
　 1-15 LS64D01012P1 BUSHING 2
　 2 ZS13C20150 CAPSCREW 4
　 3 ZW13H20000 WASHER 8
　 4 ZN13C20016 NUT 4

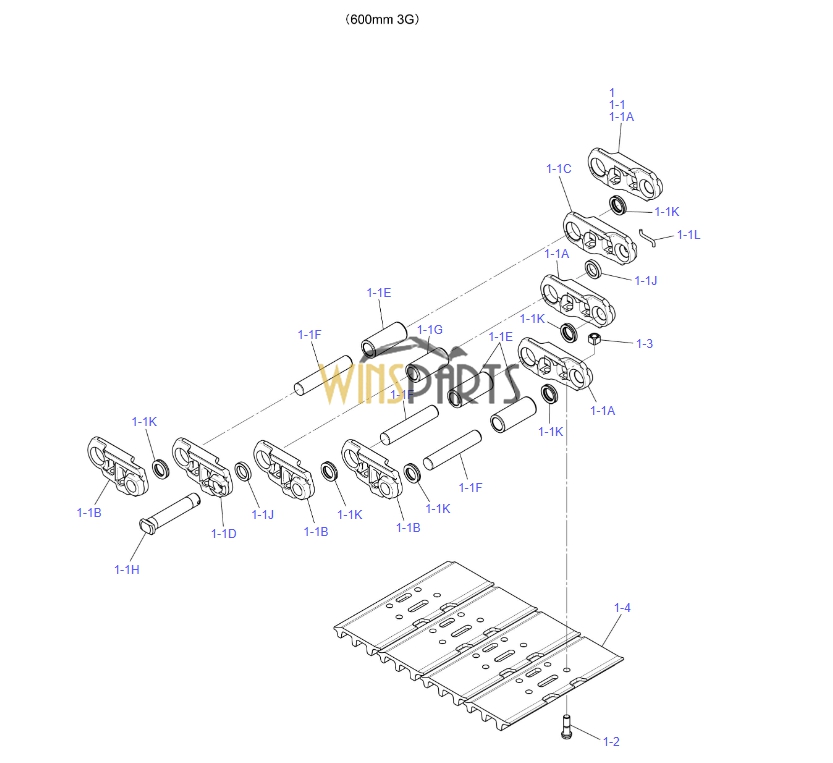

LS60D00008F1 LS62D00001P1 LS62D00001P1 TRACK LINK SHOE ASSY KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10
　 LS60D00011F1 SHOE ASSY Not Service
　 . (600mm 3G)
　 .
　 1 LS60D00008F1 SHOE ASSY 2
　 1-1 LS62D00004F1 TRACK LINK ASSY 1
　 1-1A LS62D00001P1 TRACK LINK 45
　 1-1B LS62D00002P1 TRACK LINK 45
　 1-1C LS62D01001P1 LINK, MASTER 2
　 1-1D LS62D01002P1 LINK, MASTER 2
　 1-1E LS62D01005P1 BUSHING 45
　 1-1F 2419P3563 PIN 45
　 1-1G 2405P730 BUSHING 2
　 1-1H 2419P3564 PIN, MASTER 2
　 1-1J 2418T23196 COLLAR 4
　 1-1K LS62D01006P1 SEAL 90
　 1-1L 2419T1884 PIN 2
　 1-2 LS60D01004P1 BOLT 188
　 1-3 LS60D01002P1 NUT 188
　 1-4 2424N245 SHOE 47

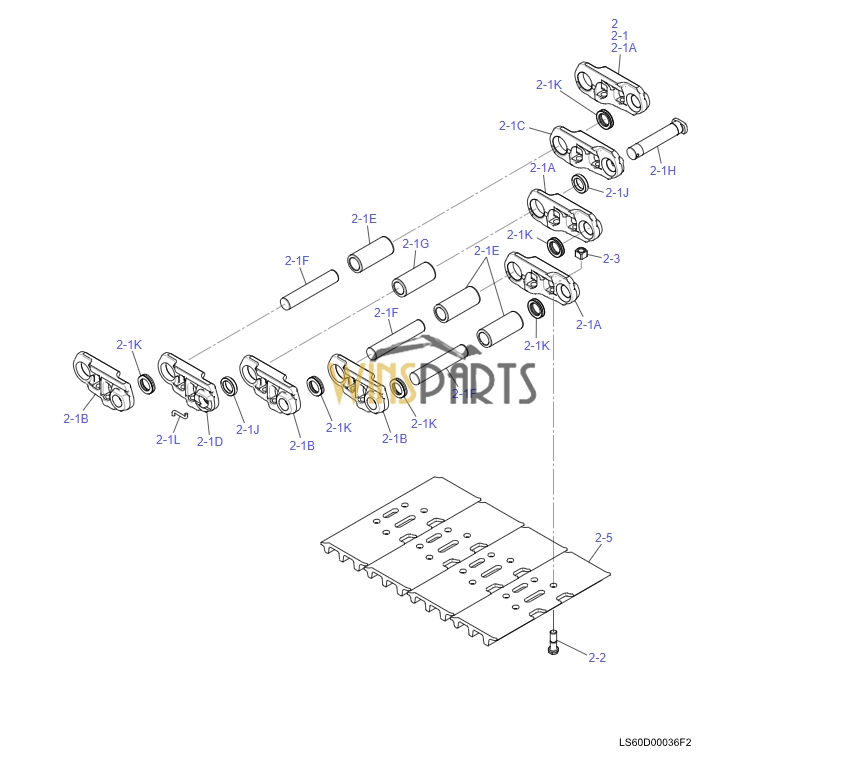

LS60D00042F2 LS62D01016P1 TRACK LINK ASSY KOBELCO SK470-10 SK500LC-10
　 LS60D00036F2 SHOE ASSY Not Service
　 . (600mm 3G)
　 LS60D00011F2 SHOE ASSY Not Service
　 . (HD 600mm 3G)
　 .
　 2 LS60D00042F2 SHOE ASSY 2
　 2-1 LS62D00008F1 TRACK LINK ASSY 1
　 2-1A LS62D01016P1 LINK 45
　 2-1B LS62D01017P1 LINK 45
　 2-1C LS62D01024P1 LINK 2
　 2-1D LS62D01025P1 LINK 2
　 2-1E LS62D01018P1 BUSHING 45
　 2-1F LS62D01019P1 PIN 45
　 2-1G LS62D01020P1 BUSHING 2
　 2-1H LS62D01026P1 PIN 2
　 2-1J LS62D01022P1 COLLAR 4
　 2-1K LS62D01023P1 SEAL 90
　 2-1L LS62D01027P1 PIN 2
　 2-2 LS60D01018P1 BOLT 188
　 2-3 LS60D01019P1 NUT 188
　 2-5 LS60D00045P1 SHOE 47
2 LS60D00008F2 SHOE ASSY 2
　 2-1 LS62D00004F1 TRACK LINK ASSY 1
　 2-1A LS62D00001P1 TRACK LINK 45
　 2-1B LS62D00002P1 TRACK LINK 45
　 2-1C LS62D01001P1 LINK, MASTER 2
　 2-1D LS62D01002P1 LINK, MASTER 2
　 2-1E LS62D01005P1 BUSHING 45
　 2-1F 2419P3563 PIN 45
　 2-1G 2405P730 BUSHING 2
　 2-1H 2419P3564 PIN, MASTER 2
　 2-1J 2418T23196 COLLAR 4
　 2-1K LS62D01006P1 SEAL 90
　 2-1L 2419T1884 PIN 2
　 2-2 LS60D01004P1 BOLT 188
　 2-3 LS60D01002P1 NUT 188
　 2-5 2424N233D1 SHOE 47

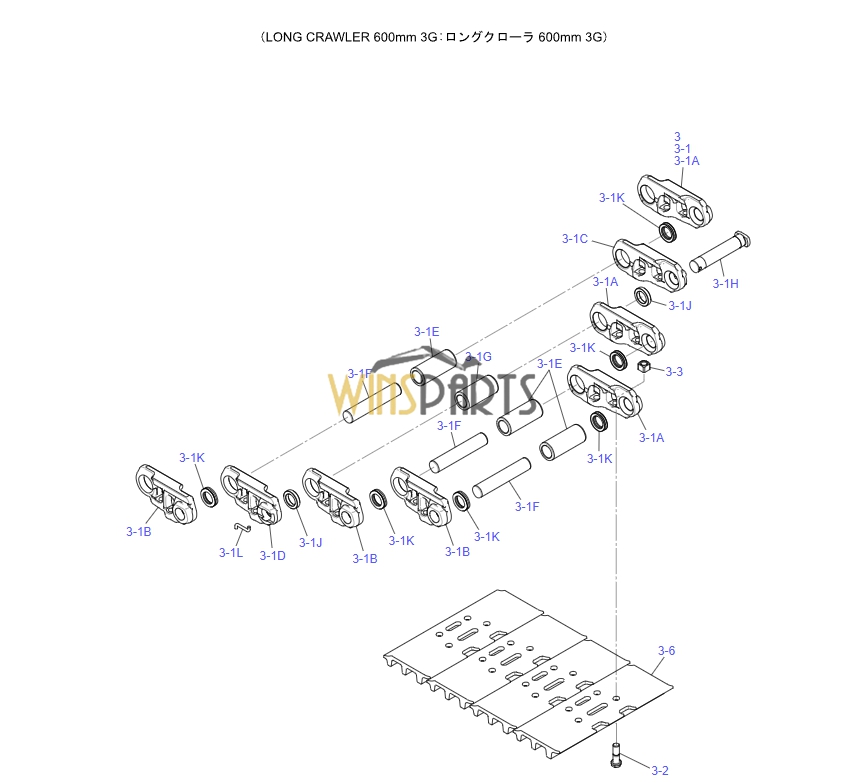

LS60D00009F1 LS60D00043F3 TRACK LINK ASSY KOBELCO SK470 SK500LC
　 LS60D00010F1 SHOE ASSY Not Service
　 . (LONG CRAWLER 600mm 3G)
　 .
　 1 LS60D00009F1 SHOE ASSY 2
　 1-1 LS62D00004F2 TRACK LINK ASSY 1
　 1-1A LS62D00001P1 TRACK LINK 48
　 1-1B LS62D00002P1 TRACK LINK 48
　 1-1C LS62D01001P1 LINK, MASTER 2
　 1-1D LS62D01002P1 LINK, MASTER 2
　 1-1E LS62D01005P1 BUSHING 48
　 1-1F 2419P3563 PIN 48
　 1-1G 2405P730 BUSHING 2
　 1-1H 2419P3564 PIN, MASTER 2
　 1-1J 2418T23196 COLLAR 4
　 1-1K LS62D01006P1 SEAL 96
　 1-1L 2419T1884 PIN 2
　 1-2 LS60D01004P1 BOLT 200
　 1-3 LS60D01002P1 NUT 200
　 1-4 2424N245 SHOE 50
　 LS60D00033F3 SHOE ASSY Not Service
　 . (LONG CRAWLER 600mm 3G)
　 .
　 3 LS60D00043F3 SHOE ASSY 2
　 3-1 LS62D00009F1 TRACK LINK ASSY 1
　 3-1A LS62D01016P1 LINK 48
　 3-1B LS62D01017P1 LINK 48
　 3-1C LS62D01024P1 LINK 2
　 3-1D LS62D01025P1 LINK 2
　 3-1E LS62D01018P1 BUSHING 48
　 3-1F LS62D01019P1 PIN 48
　 3-1G LS62D01020P1 BUSHING 2
　 3-1H LS62D01026P1 PIN 2
　 3-1J LS62D01022P1 COLLAR 4
　 3-1K LS62D01023P1 SEAL 96
　 3-1L LS62D01027P1 PIN 2
　 3-2 LS60D01018P1 BOLT 200
　 3-3 LS60D01019P1 NUT 200
　 3-6 LS60D00045P1 SHOE 50
2 LS60D00009F2 SHOE ASSY 2
　 2-1 LS62D00004F2 TRACK LINK ASSY 1
　 2-1A LS62D00001P1 TRACK LINK 48
　 2-1B LS62D00002P1 TRACK LINK 48
　 2-1C LS62D01001P1 LINK, MASTER 2
　 2-1D LS62D01002P1 LINK, MASTER 2

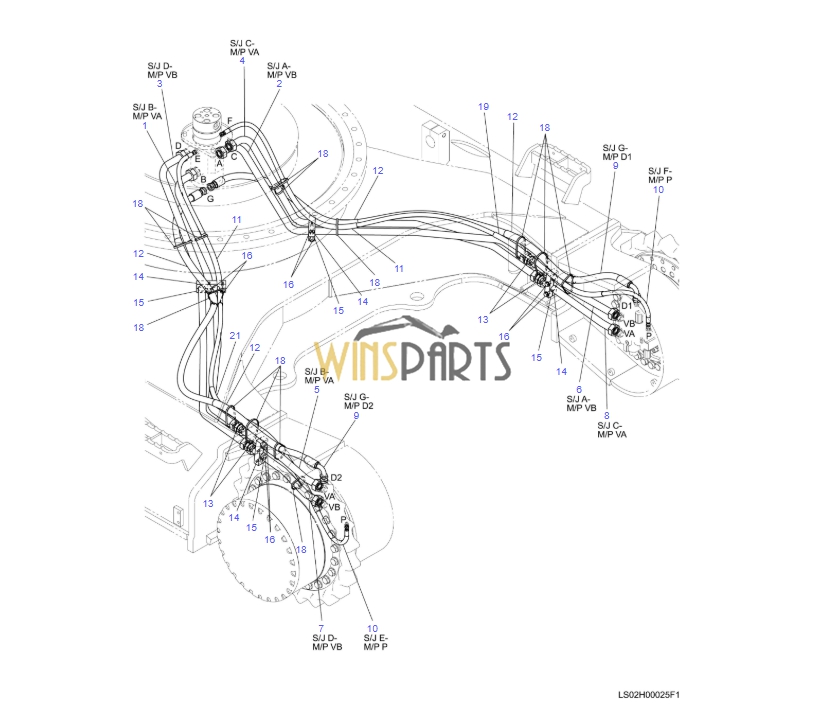

LS02H01147P1 LS02H01147P1 ZX32M12270 HYD LINES LOW TUBE HOSE ASSY KOBELCO SK470
　 LS02H00025F1 HYD LINES, LOW Not Service
　 .
　 1 LS02H01147P1 TUBE 1
　 2 LS02H01148P1 TUBE 1
　 3 LS02H01149P1 TUBE 1
　 4 LS02H01150P1 TUBE 1
　 5 LS02H01104P1 TUBE 1
　 6 LS02H01105P1 TUBE 1
　 7 LS02H01106P1 TUBE 1
　 8 LS02H01107P1 TUBE 1
　 9 ZX32M12270 HOSE ASSY 2
　 10 ZX23M04300 HOSE 2
　 11 2420Z1224D9 HOSE 2
　 12 2414Z199D100 GUARD 4
　 13 ZA23B35000 CONNECTOR 4
　 14 LC02H01116P1 CLAMP 4
　 15 LC02H01117P1 CLAMP 4
　 16 ZM73C12045 SEMS-BOLT 8
　 18 PY01P01043D8 CLIP 13
　 19 2420Z1224 HOSE 1
　 21 2420Z1224D5 HOSE 1
　 LS12H00006F1 HYD LINES, PROPEL Not Service
　 .
　 1 ZA23F35016 CONNECTOR 4
　 2 2444R402D2 CONNECTOR 2
　 3 ZH22X04000 CONNECTOR 2
　 4 ZD12P02900 O-RING 4
