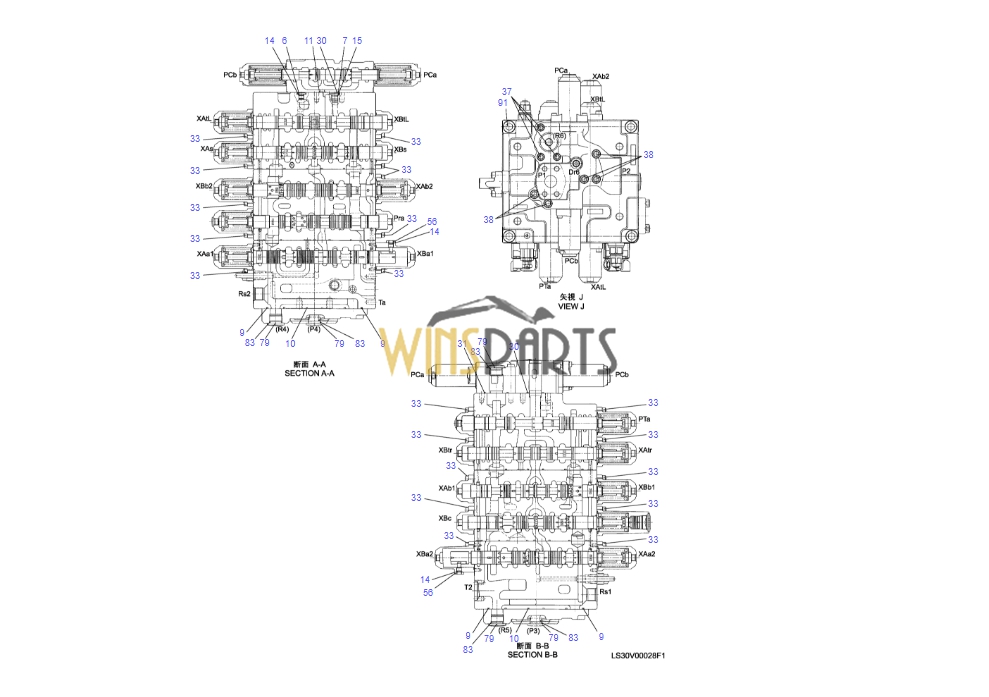

LS30V00028F1 CONTROL VALVE ASSY KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10
.
1 NO P/No BODY 1
2 NO P/No BODY 1
3 NO P/No BODY 1
4 NO P/No BODY 1
5 YN30V00001S158 PLUG 2
6 YW30V00001S157 PLUG 2
7 YW30V00001S156 PLUG 4
8 ZD12P05000 O-RING 3
9 ZD12P04400 O-RING 10
10 ZD12P03800 O-RING 10
11 ZD12P01500 O-RING 8
12 ZD12P01000 O-RING 9
13 ZD12P00800 O-RING 2
14 ZD12P01100 O-RING 4
15 ZD12P01400 O-RING 4
16 LS30V00030S201 COVER 10
17 LS30V00030S203 COVER 7
18 LS30V00028S204 COVER 1
19 LS30V00028S205 COVER 2
20 YF30V00011S202 COVER 2
21 LS30V00031F1 VALVE, CONTROL 1
21-5 2436U1832S651 PLUG 1
21-6 ZD12P03400 O-RING 1
21-7 ZD12P01600 O-RING 1
21-8 ZD12P01000 O-RING 1
21-9 ZS28C10030 CAPSCREW 4
22 LS30V00028S211 PLATE 2
23 2436U2670S771 FLANGE 3
24 LS30V00028S215 PLATE 2
25 LS30V00028S216 PLATE 1
26 LS30V00032F1 VALVE, CONTROL 2
26-2 YN30V00101S266 RING 4
26-3 ZD12P01600 O-RING 1
26-4 ZD12A01200 O-RING 1
26-5 YN35V00004S362 O-RING 1
26-6 ZS23C06035 CAPSCREW 3
27 LS30V00033F1 VALVE, CONTROL 1
27-2 YN30V00101S266 RING 4
27-3 ZD12P01600 O-RING 1
27-4 ZD12A01200 O-RING 1
27-5 YN35V00004S362 O-RING 1
27-6 ZS23C06035 CAPSCREW 3
28 ZD12G05500 O-RING 13
29 ZD12G04500 O-RING 7
30 YN30V00101S264 RING 5
31 ZD12G06000 O-RING 1
32 ZD12G05000 O-RING 2
33 ZS28C10025 CAPSCREW 40
34 ZS23C14030 CAPSCREW 12
35 ZS23C16040 CAPSCREW 8
36 ZS23C08025 CAPSCREW 4
37 ZS23C12080 CAPSCREW 3
38 ZS23C14080 CAPSCREW 5
39 NO P/No SPOOL 1 R1
40 NO P/No SPOOL 1 R2
41 NO P/No SPOOL 1 R3
42 NO P/No SPOOL 1 R4
43 NO P/No SPOOL 1 R5
44 NO P/No SPOOL 2 R6
45 NO P/No SPOOL 1 R7
46 NO P/No SPOOL 1 R8
47 NO P/No SPOOL 1 R9
48 NO P/No SPOOL 1 R10
49 NO P/No SPOOL 2 R11
50 LS30V00030S332 SEAT, SPRING 22 R1, R2, R3, R4, R5, R6, R7, R8, R9, R10
51 2436U1443S332 SPRING 4 R11
52 2436U1165S336 BOLT 2 R11
53 2436U1165S335 STOPPER 2 R11
54 LS30V00030S336 BOLT 11 R1, R2, R3, R4, R5, R6, R7, R8, R9, R10
55 LS30V00030S337 STOPPER 11 R1, R2, R3, R4, R5, R6, R7, R8, R9, R10
56 LS30V00028S341 PLUG 2
57 LS30V00028S342 PISTON 1
58 LS30V00028S343 PLUG 1 R2
59 LS30V00030S371 SPRING 2 R6
60 LS30V00028S372 SPRING 1 R7
61 LS30V00028S373 SPRING 1 R8
62 LS30V00028S374 SPRING 5 R1, R2, R3, R4, R5
63 LS30V00028S375 SPRING 2 R9, R10
64 YN30V00101S327 SPRING 2 R11
65 YN30V00101S329 SPRING 2 R11
66 LS30V00028S511 POPPET 11
67 LS30V00028S512 POPPET 2
68 LS30V00028S513 POPPET 3
69 LS30V00028S515 POPPET 1
70 LS30V00028S517 POPPET 1
71 YN30V00101S341 POPPET 1
72 YM30V00008S515 POPPET 1
73 LS30V00034F1 VALVE, CONTROL 1
73-3 LS30V00034S103 SEAT, SPRING 1
73-5 LS30V00034S106 SPRING 1
74 2436U1345S522 SPRING 11
75 2436U1165S521 SPRING 4
76 LS30V00028S523 SPRING 3
77 LS30V00028S524 SPRING 1
78 2436U1265S521 SPRING 1
79 LS28V00003S205 PLUG 17
80 YN30V00001S551 PLUG 4
81 LC15V00003S469 PLUG 1
82 YN30V00021S552 PLUG 1
83 ZD12P02900 O-RING 17
84 ZD12P02400 O-RING 4
85 ZD12P03400 O-RING 1
86 ZD12P02000 O-RING 1
87 LS22V00024F1 VALVE, RELIEF 1
87-4 LS22V00024S161 O-RING 1
87-5 ZD12P03200 O-RING 1
88 LS22V00025F1 VALVE ASSY, OVERLOAD 3
88-6 ZD12P03000 O-RING 1
88-7 ZD12P02240 O-RING 1
88-8 ZD12P02290 O-RING 1
88-9 ZD85P02290 RING, BACK-UP 1
88-12 YN22V00001S521 SPRING 1
88-13 LS22V00025S522 SPRING 1
88-15 YN22V00001S561 O-RING 1
88-16 YN22V00001S562 RING, BACK UP 1
88-17 YN22V00002S563 O-RING 1
88-18 YN22V00002S564 RING, BACK UP 1
89 LS22V00025F2 VALVE ASSY, OVERLOAD 3
89-6 ZD12P03000 O-RING 1
89-7 ZD12P02240 O-RING 1
89-8 ZD12P02290 O-RING 1
89-9 ZD85P02290 RING, BACK-UP 1
89-12 YN22V00001S521 SPRING 1
89-13 LS22V00025S522 SPRING 1
89-15 YN22V00001S561 O-RING 1
89-16 YN22V00001S562 RING, BACK UP 1
89-17 YN22V00002S563 O-RING 1
89-18 YN22V00002S564 RING, BACK UP 1
90 LS30V00035F1 VALVE, CONTROL 2
90-2 ZD12P01100 O-RING 1
90-4 ZD12P02200 O-RING 1
90-5 LS30V00035S301 LOCK NUT 1
91 LS30V00028S971 CAPSCREW 12
92 NO P/No NAME PLATE 1
93 NO P/No PIN 2
.
LS30V00028R100 REPAIR KIT 1 RK1
. (39, 54, 55, 62)X1
. (50)X2
.
LS30V00028R110 REPAIR KIT 1 RK2
. (40, 54, 55, 58, 62)X1
. (50)X2
.
LS30V00028R120 REPAIR KIT 1 RK3
. (41, 54, 55, 62)X1
. (50)X2
.
LS30V00028R130 REPAIR KIT 1 RK4
. (42, 54, 55, 62)X1
. (50)X2
.
LS30V00028R140 REPAIR KIT 1 RK5
. (43, 54, 55, 62)X1
. (50)X2
.
LS30V00028R150 REPAIR KIT 1 RK6
. (44, 54, 55, 59)X1
. (50)X2
.
LS30V00028R160 REPAIR KIT 1 RK7
. (45, 54, 55, 60)X1
. (50)X2
.
LS30V00028R170 REPAIR KIT 1 RK8
. (46, 54, 55, 61)X1
. (50)X2
.
LS30V00028R180 REPAIR KIT 1 RK9
. (47, 54, 55, 63)X1
. (50)X2
.
LS30V00028R190 REPAIR KIT 1 RK10
. (48, 54, 55, 63)X1
. (50)X2
.
LS30V00028R200 REPAIR KIT 1 RK11
. (49, 52, 53, 64, 65)X1
. (51)X2
LS64H00342F1 VALVE INSTAL Not Service
. (NIBBLER & BREAKER)
HC102-00_LS30V00030F1_KCMU_X_D0002346064_1 1 LS30V00030F1 VALVE, CONTROL 1 HC 102-00 LS14-03501–03514
. LS14005001–05007
. YS14-05001–05210
. YS14010001–10123
HC103-00_LS30V00042F1_INDIA_D0003840815_1 1 LS30V00042F1 VALVE, CONTROL 1 HC 103-00 LS14005008-
. YS14010124-
2 PX64H01010D1 CAP 2
3 ZS28C16130 CAPSCREW 4 LS14005008-
. YS14010124-

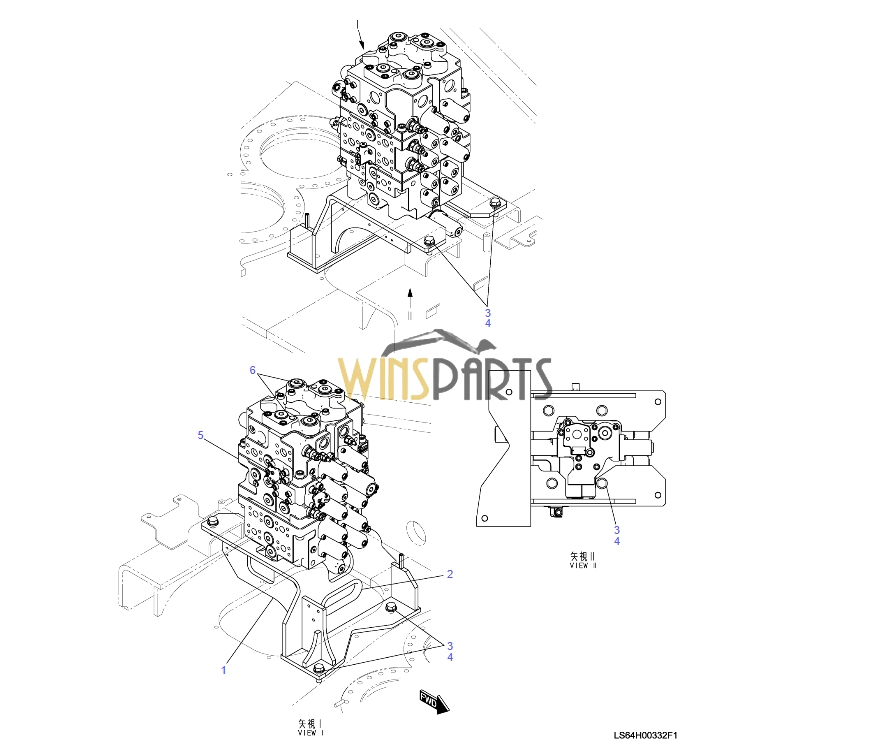

LS64H00332F1 VALVE INSTAL Not Service
.
1 LS64H01191P2 BRACKET 1 LS14-03501–03514
. LS14005001–05006
. YS14-05001–05210
. YS14010001–10121
1 LS64H01191P3 BRACKET 1 LS14005007-
. YS14010122-
2 LC64H01021P1 GROMMET 1
3 ZW16H20000 WASHER 8
4 ZS18C20055 CAPSCREW 8
5 LS30V00028F1 VALVE ASSY, CONTROL 1 HC 100-00
6 YN64H01392D1 CAP 2

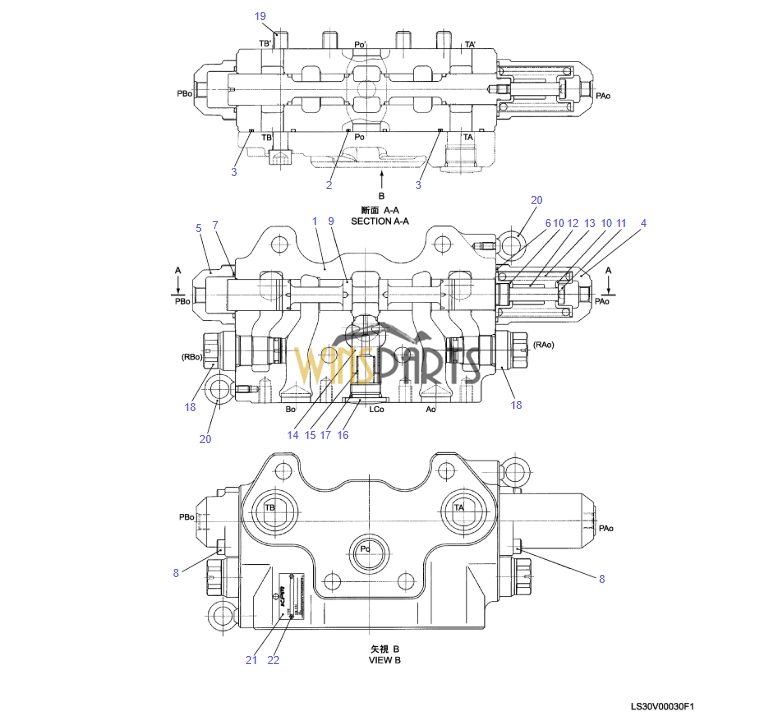

LS30V00042F1 VALVE, CONTROL
2 ZD12P03800 O-RING 1
3 ZD12P04400 O-RING 2
4 LS30V00030S201 COVER 1
5 LS30V00030S203 COVER 1
6 ZD12G05500 O-RING 1
7 ZD12G04500 O-RING 1
8 ZS28C10025 CAPSCREW 4
9 LS30V00030S301 SPOOL 1 R1
10 LS30V00030S332 SEAT, SPRING 2 R1
11 LS30V00030S336 BOLT 1 R1
12 LS30V00030S337 STOPPER 1 R1
13 LS30V00030S371 SPRING 1 R1
14 LS30V00030S511 POPPET 1
15 2436U1345S522 SPRING 1
16 LS28V00003S205 PLUG 1
17 ZD12P02900 O-RING 1
18 LS30V01003P1 PLUG ASSY 2
19 ZS23C16130 CAPSCREW 4
20 PY10V00003S901 BOLT 2
21 NO P/No NAME PLATE 1
22 NO P/No PIN 2
.
LS30V00030R100 REPAIR KIT 1 RK1
. (9, 11, 12, 13)X1
.

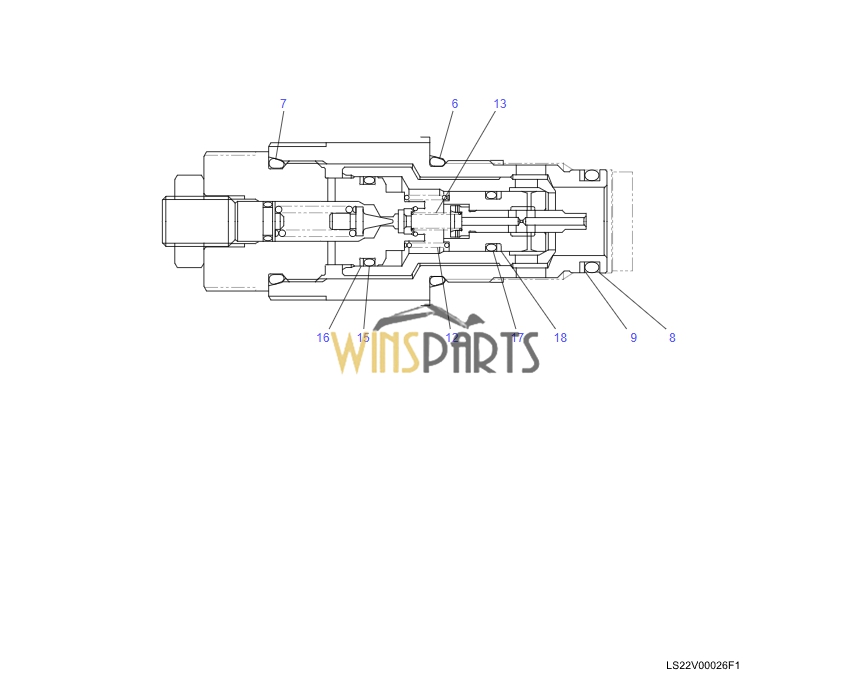

6 ZD12P03000 O-RING 1
7 ZD12P02900 O-RING 1
8 ZD12P02290 O-RING 1
9 ZD85P02290 RING, BACK UP 1
12 LS22V00026S521 SPRING 1
13 LS22V00025S522 SPRING 1
15 ZD11P02000 O-RING 1
16 LS22V00026S562 RING, BACK UP 1
17 ZD11P01200 O-RING 1
18 LS22V00026S564 RING, BACK UP 1
