YN61B00331F1 YN61B00312F1 0.8M3 BUCKET ASSY Kobelco SK200-8 SK210LC-8 (SIDE TYPE PIN) 1 YN61B00331F1 BUCKET ASSY 1 1-1 YN61B00328P1 BUCKET 1 …
LS21P01036P1 LV21P01068DG HX81X22480DX FUEL LINES HOSE TUBE KOBELCO SK470-10 SK500LC-10

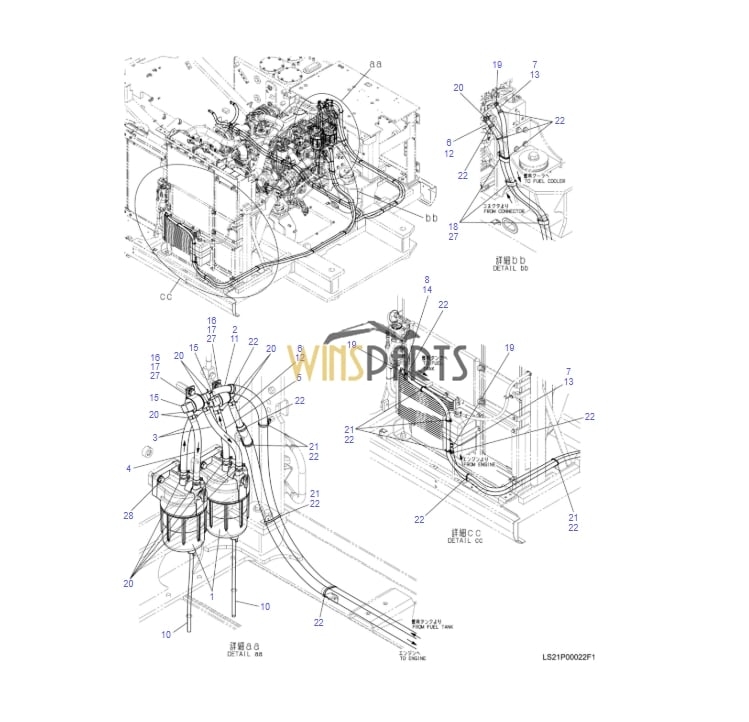

LS21P00022F1 FUEL LINES Not Service
.

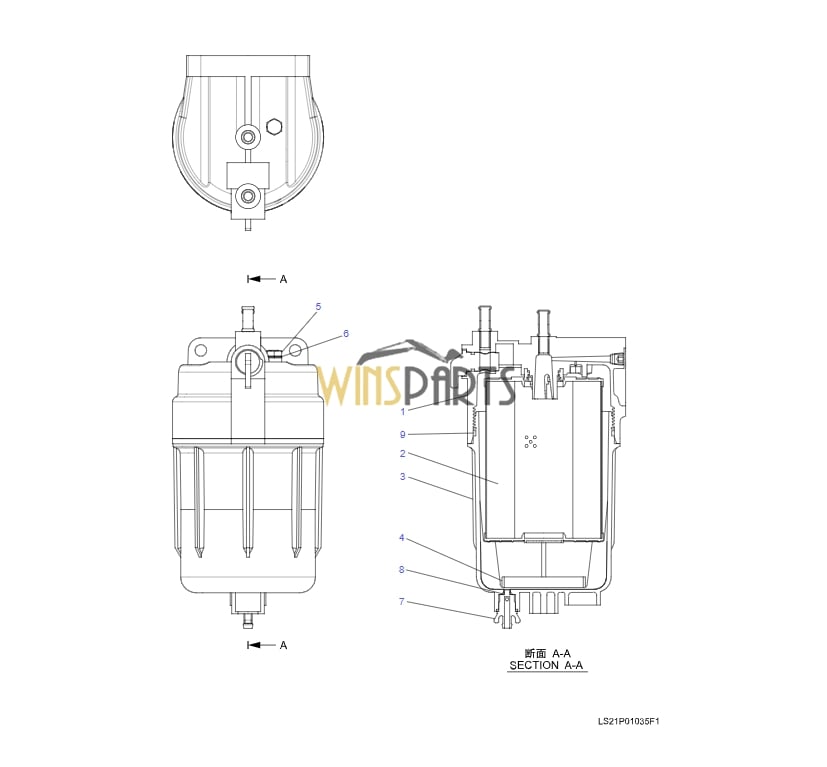

065-01_LS21P01035F1_KCMU_D0002346046_1 1 LS21P01035F1 FILTER, FUEL 2 P.065-01
2 LV21P01068DG HOSE 1
3 LV21P01068DH HOSE 2
4 LV21P01068DJ HOSE 1
5 LV21P01068DK HOSE 1
6 LV21P01068DL HOSE 1
7 HX11F06330CY HOSE 1
8 LS21P01036P1 HOSE 1
10 HX11Y05029DY HOSE 2
11 HX81X22480DX TUBE 1
12 HX81X22300DX TUBE 1
13 HX81X19320DX TUBE 1
14 HX81X19550DX TUBE 1
15 LS21P01026P1 CONNECTOR 2
16 LS21P01022P1 GROMMET 2
17 ZC45X38014 CLIP 2
18 2432R226D13 CLIP 3
19 PH05P01088D8 CLIP 4
20 PH05P01088DA CLIP 12
21 YN13E01375P1 CLIP 10
22 PY01P01043D3 CLIP 28 YS14-05001–05012
22 PY01P01043D3 CLIP 30 YS14-05013–05035
22 PY01P01043D3 CLIP 29 LS14-03501-
. YS14-05036-
27 ZM73C10020 SEMS-BOLT 5
28 ZM73C10035 SEMS-BOLT 4
.
1 LS21P01035S001 COVER 1
2 LS21P01035S002 ELEMENT, FILTER 1 R1
3 YN21P01157S003 CASE 1
4 YN21P01157S004 RING 1
5 YN21P01036S005 PLUG 1
6 2446U287S3 GASKET 1
7 YN21P01157S007 PLUG 1
8 YN21P01157S008 O-RING 1
9 YN21P01157S009 GASKET 1 R1
.
LS21P01035R100 REPAIR KIT 1 RK1
. (2, 9)X1

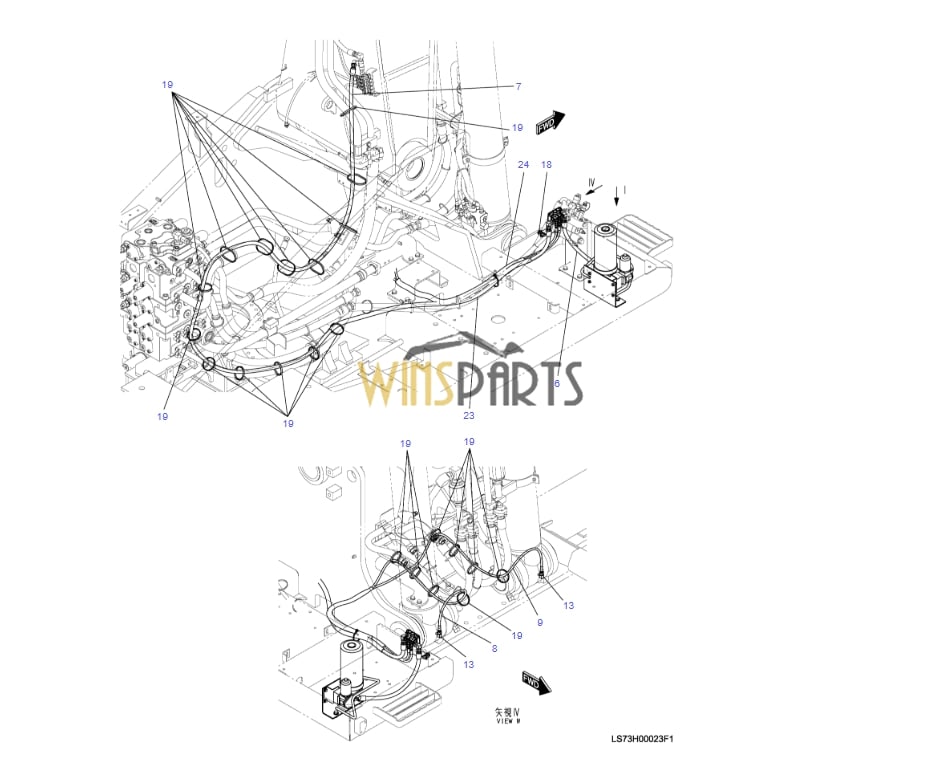

LS73H00031F1 LUB LINES, UPP
1 LS73H01020P1 BRACKET 1
2 LC73H01008P1 BRACKET 1
3 LC71V00002F1 PUMP ASSY, GREASE 1
3-1 LC71V00002S001 PUMP ASSY, GREASE 1
3-2 LC71V00002S002 TANK, GREASE 1
3-3 24100N8530S3 TOOL ASSY 1
4 2421Z512 LUB KIT 1
5 YN72V00001D2 VALVE, GREASE 1
6 ZX25M06056 HOSE 1
7 ZX25M06575 HOSE 1
8 LQ02B01760D2 HOSE 1
9 YN02B02387DB HOSE 1
10 2444Z3406 CONNECTOR 2
11 2444T2470 ELBOW 2
12 ZH32Z06000 ELBOW 1
13 ZH32Z04002 ELBOW, 90 2
14 2444T4679 NIPPLE, GREASE 2
15 ZM73C08020 SEMS-BOLT 4
16 ZM73C08030 SEMS-BOLT 2
17 ZM73C12025 SEMS-BOLT 2
18 ZM73C12035 SEMS-BOLT 2
19 PY01P01043D8 CLIP 22
20 PY01P01043D3 CLIP 1
21 YN13E01375P1 CLIP 1
23 2414Z199D165 GUARD 1
24 2414Z199D110 GUARD 1

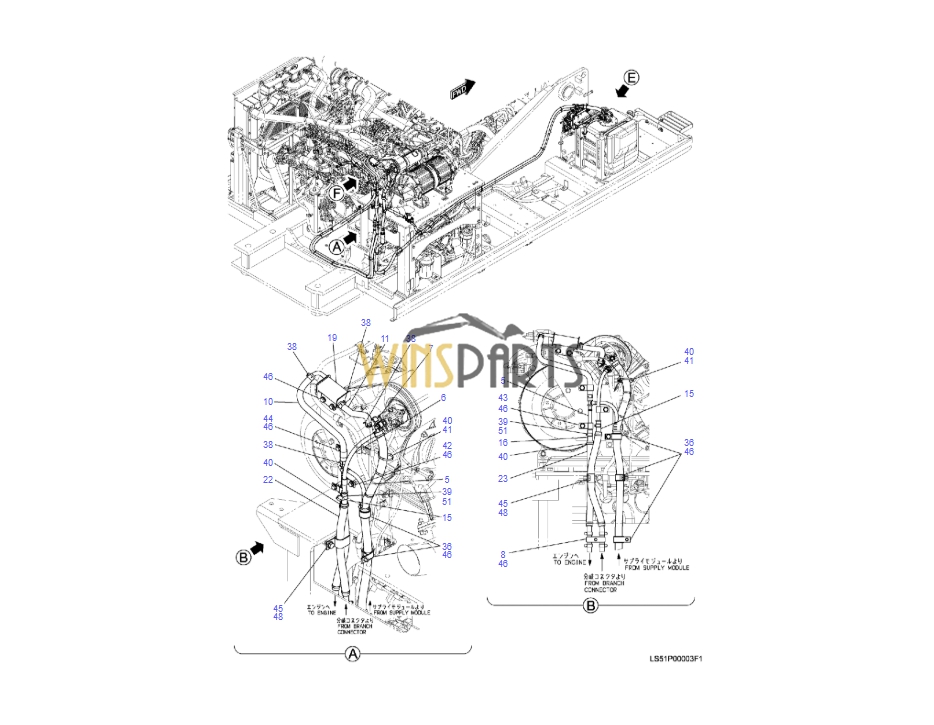

LS51P00003F1 UREA LINES Not Service
.
1 YF51P01039F1 PUMP, UREA 1 YS14-05196–05210
. YS14010001–10198
1 YF51P01039F2 PUMP, UREA 1 YS14010199-
2 YF02P00018F1 VALVE, SHUT OFF 1
3 LS51P01067P1 HOSE ASSY 1
4 LS51P01068P1 HOSE ASSY 1 YS14-05001–05040
4 LS51P01093F1 HOSE ASSY 1 LS14-03501-
. YS14-05041-
4-1 LS51P01068P1 HOSE ASSY 1
4-2 LS51P01078P1 INSULATION 1
4-3 PY01P01043D3 CLIP 2
5 LS51P01069P1 HOSE ASSY 1 YS14-05001–05040
5 LS51P01094F1 HOSE ASSY 1 LS14-03501-
. YS14-05041-
5-1 LS51P01069P1 HOSE ASSY 1
5-2 LS51P01095P1 INSULATION 1
5-3 PY01P01043D3 CLIP 5
6 LQ51P01003P1 HOSE ASSY 1
7 LC51P01044P1 CONNECTOR 1
8 LS51P01016P1 CONNECTOR 1
9 LS51P01076P1 CONNECTOR 1
10 YN51P01057P1 HOSE 1
11 YN51P01030P1 HOSE 1
12 YN51P01023P1 HOSE 1
13 LS51P01065DD HOSE 1
14 LC51P01014DU HOSE 1
15 LC51P01014D7 HOSE 2
16 LS51P01065DE HOSE 1
17 LS51P01065DF HOSE 1
18 LS51P01065DG HOSE 1
19 YN51P01056P1 TUBE 1
20 HX81X19068DX TUBE 1
21 HX81X19250DX TUBE 1
22 HX81X19036DX TUBE 2
23 HX81X19032DX TUBE 1
24 HX81X19320DX TUBE 1
25 HX81X19260DX TUBE 1
26 HX81X15030DX TUBE 1
27 LC51P01060P1 PLATE 1
28 LS51P01072P1 BRACKET 1
29 LS51P01087P2 BRACKET 1
31 LS51P01011P1 PLATE 1
32 LS12P01438P1 MOUNT, RUBBER 4
33 LS51P01077P1 INSULATION 1 YS14-05001–05040
34 LS51P01078P1 INSULATION 1 YS14-05001–05040
35 YY51P01016P1 INSULATION 1
36 EW02E01015DA CLIP 4
37 PH05P01088D4 CLIP 1
38 PH05P01088D9 CLIP 4
39 PH05P01088DB CLIP 14 LS14-03501–03514
. YS14-05001–05210
. LS14005001–05005
. YS14010001–10114
39 PH05P01088DB CLIP 3 LS14005006-
. YS14010115-
40 PY01P01043D3 CLIP 43 YS14-05001–05040
40 PY01P01043D3 CLIP 36 LS14-03501-
. YS14-05041-
41 YN13E01375P1 CLIP 4
42 ZC46X12011 CLIP 1
43 ZC46X16011 CLIP 1
44 ZC46X19011 CLIP 1
45 ZC48X24014 CLIP 3
46 ZM73C08016 SEMS-BOLT 11
47 ZM73C08020 SEMS-BOLT 7
48 ZM73C10020 SEMS-BOLT 4
49 ZS18C08090 CAPSCREW 3
50 ZW16P08000 WASHER 3
51 ZC16X01800 CLIP 11 LS14005006-
LS73H00022F1 LUB LINES, UPP Not Service
. (WITH AUTOMATIC GREASING SYSTEM)
.
069-01_LS73H00023F1_JP-01_D0003574310_1 1 LS73H00023F1 LUB LINES, UPP 1 P.069-01
069-02_LS11E00087F1_JP_D0002417895_1 2 LS11E00087F1 HARNESS ASSY 1 P.069-02
