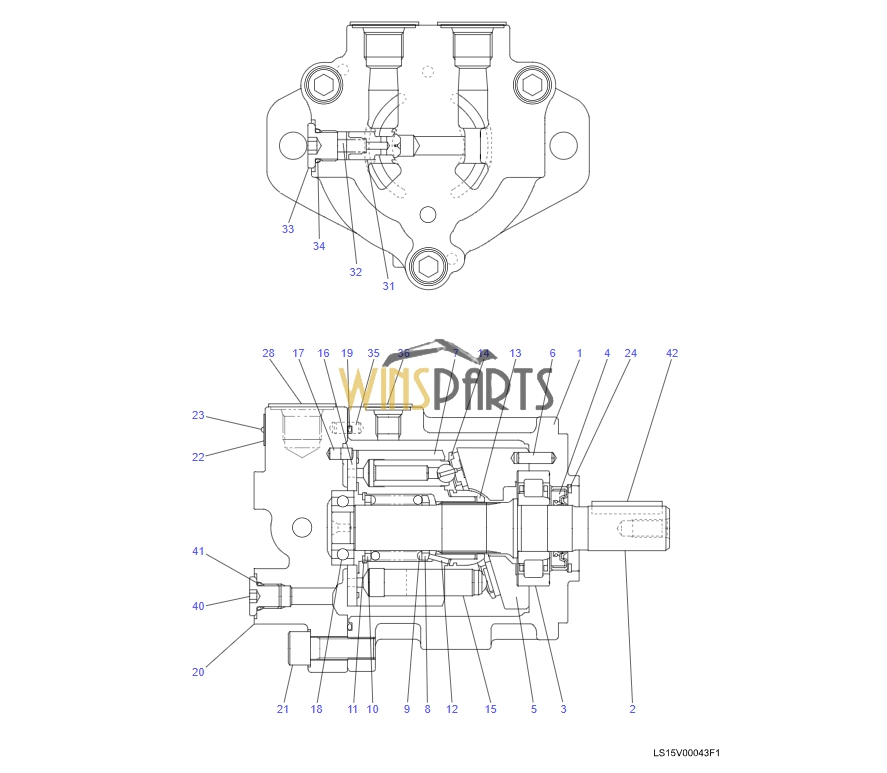

LS15V00043F1 FAN MOTOR ASSY KOBELCO SK470-10 SK500LC-10

LS15V00043F1 FAN MOTOR ASSY KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 Excavator
　 .
　 2 LS15V00043S002 SHAFT 1
　 3 LS15V00043S003 BEARING, ROLLER 1
　 4 LS15V00043S004 OIL SEAL 1 R1
　 5 LS15V00043S005 PLATE 1
　 6 2441U912S14 PIN 1
　 7 NO P/No BLOCK, CYLINDER 1 R2
　 8 NO P/No HOLDER, SPRING 1 R2
　 9 NO P/No SPRING 1 R2
　 10 NO P/No HOLDER, SPRING 1 R2
　 11 NO P/No RING, SNAP 1 R2
　 12 NO P/No PIN 3 R2
　 13 NO P/No HOLDER, RETAINER 1 R2
　 14 NO P/No PLATE, RETAINER 1 R2
　 15 NO P/No PISTON ASSY 9 R2
　 16 LS15V00043S016 PLATE, VALVE 1
　 17 LS15V00043S017 PIN 1
　 18 LS15V00043S018 BEARING, BALL 1
　 19 NO P/No O-RING 1 R1
　 20 NO P/No BLOCK, PORT 1
　 21 ZS23C12035 CAPSCREW 3
　 22 NO P/No NAME PLATE 1
　 23 NO P/No SCREW 2
　 24 2441U901S15 RING, SNAP 1
　 28 NO P/No PLUG 2
　 31 PX15V01005S202 VALVE, CHECK 1
　 32 PX15V01005S203 SPRING 1
　 33 2441U802S58 PLUG 1
　 34 ZD12P01400 O-RING 1 R1
　 35 2441U910S116 PIN 2
　 36 NO P/No PLUG 1
　 40 2441U984S35 PLUG 1
　 41 ZD12P01100 O-RING 1 R1
　 42 LS15V00043S042 KEY 1
　 .
　 LS15V00043R100 REPAIR KIT 1 RK1
　 . (4, 19, 34, 41)X1
　 .
　 LS15V00043R200 REPAIR KIT 1 RK2
　 . (7, 8, 9, 10, 11, 13, 14)X1
　 . (12)X3
　 . (15)X9

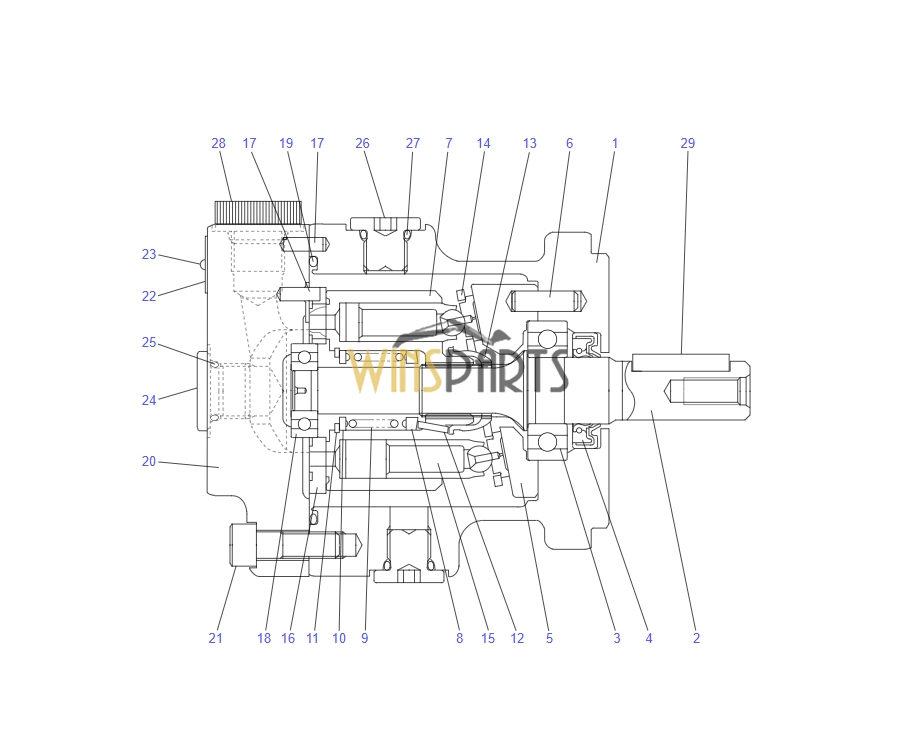

LS15V00039F1 HYD MOTOR ASSY KOBELCO SK470-10 SK500LC-10
　 .
　 1 NO P/No BODY 1
　 2 LS15V00039S002 SHAFT 1
　 3 LS15V00039S003 BEARING, BALL 1
　 4 LS15V00039S004 OIL SEAL 1 R1
　 5 LS15V00039S005 PLATE 1
　 6 2441U912S14 PIN 1
　 7 NO P/No BLOCK, CYLINDER 1 R2
　 8 NO P/No HOLDER, SPRING 1 R2
　 9 NO P/No SPRING 1 R2
　 10 NO P/No WASHER 1 R2
　 11 NO P/No RING, SNAP 1 R2
　 12 NO P/No PIN 3 R2
　 13 NO P/No HOLDER, RETAINER 1 R2
　 14 NO P/No PLATE, RETAINER 1 R2
　 15 NO P/No PISTON ASSY 9 R2
　 16 PU15V00003S025 PLATE, VALVE 1
　 17 2441U901S19 PIN 3
　 18 LS15V00039S018 BEARING, BALL 1
　 19 ZD11G07500 O-RING 1 R1
　 20 NO P/No BLOCK, PORT 1
　 21 ZS23C08025 CAPSCREW 3
　 22 NO P/No NAME PLATE 1
　 23 NO P/No SCREW 2
　 24 2441U802S58 PLUG 2
　 25 ZD12P01400 O-RING 2 R1
　 26 2441U984S35 PLUG 2
　 27 ZD12P01100 O-RING 2 R1
　 28 LS15V00039S028 PLUG 2
　 29 LS15V00039S029 KEY 1
　 .
　 LS15V00039R100 REPAIR KIT 1 RK1
　 . (4, 19)X1
　 . (25, 27)X2
　 .
　 LS15V00039R200 REPAIR KIT 1 RK2
　 . (7, 8, 9, 10, 11, 13, 14)X1
　 . (12)X2
　 . (15)X9
