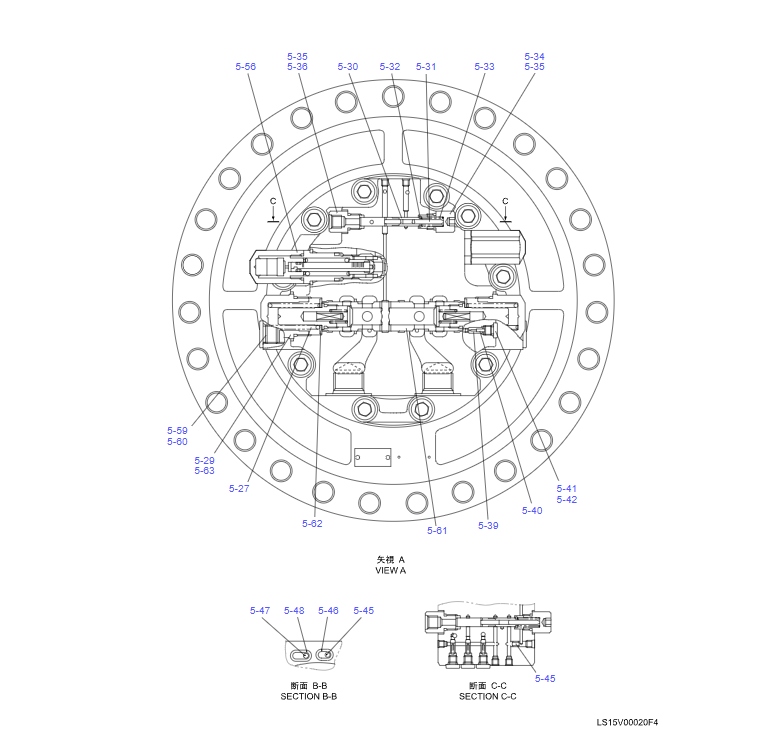

LS15V00020F4 LS15V00022F4 PROPEL MOTOR ASSY KOBELCO SK470-10 SK500LC-10
LS15V00020F4 MOTOR ASSY, PROPEL
LS15V00020F1 MOTOR ASSY, PROPEL
LS15V00020F3 MOTOR ASSY, PROPEL
LS15V00020F5 MOTOR ASSY, PROPEL .

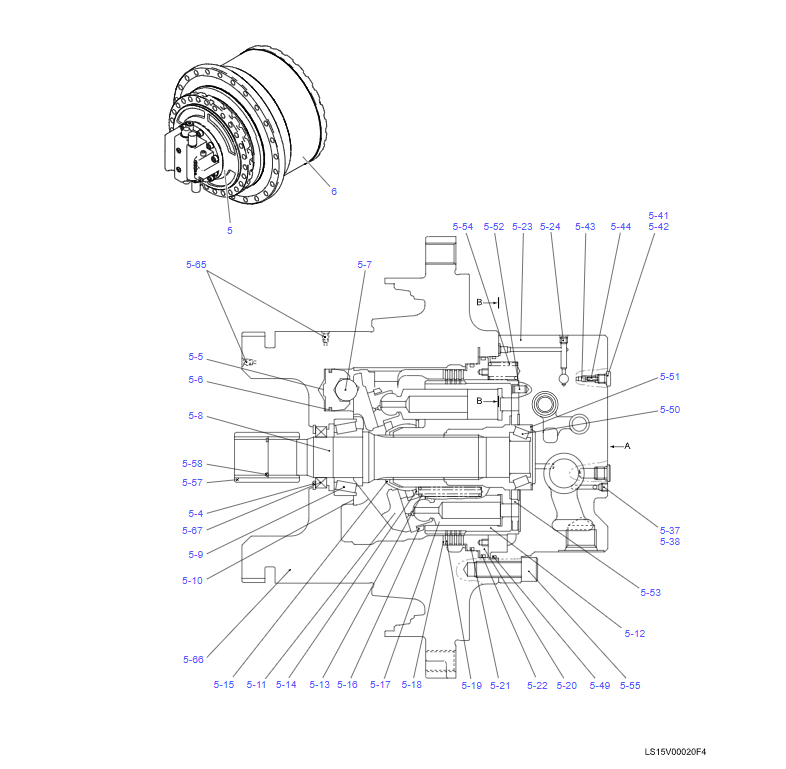

5 LS15V00022F4 MOTOR ASSY, HYD 1 R1
5 LS15V00022F5 MOTOR ASSY, HYD 1 R1
5 LS15V00022F6 MOTOR ASSY, HYD 1 R1
5 LS15V00022F2 MOTOR ASSY, HYD 1 R1
5-4 2441U1040S19 RING, RETAINING 1
5-5 NO P/No PISTON 1 R2
5-6 NO P/No SEAL, PISTON 1 R2
5-7 LC15V00023S035 BALL 1
5-8 LS15V00022S008 SHAFT 1
5-9 LS15V00022S009 BEARING 1
5-10 NO P/No SPOOL 2 R3
5-11 NO P/No PLATE 1 R3
5-12 LC15V00023S040 BLOCK 1
5-13 2441U1030S29 SPRING 9
5-14 LC15V00023S042 HOLDER 1
5-15 LC15V00021S024 JOINT, BALL 1
5-16 LC15V00021S004 RETAINER 1
5-17 NO P/No PISTON ASSY 9 R7
5-18 2441U1040S7 PLATE 5 R5
5-19 2441U1040S5 PLATE 4 R5
5-20 2441U1040S6 PISTON 1
5-21 LS15V00004S052 RING 1
5-22 LS15V00004S053 RING 1
5-23 LS15V00022S023 COVER 1
5-24 2436U1427S25 PLUG 14
5-27 YN15V00017S053 SPRING 2
5-29 ZD12G04000 O-RING 2 R6
5-30 LC15V00023S058 SPOOL 1
5-31 2436R874S6 PIN 1
5-32 2436R874S5 SEAT, SPRING 1
5-33 2436R874S7 SPRING 1
5-34 LC15V00023S062 PLUG 1
5-35 ZD12P01400 O-RING 2
5-36 2436R874S3 JOINT 1
5-37 2436U1317S13 PLUG 2
5-38 ZD12P01100 O-RING 2
5-39 LC15V00023S067 ORIFICE 2
5-40 LC15V00023S068 SPRING 2
5-41 YN15V00017S038 PLUG 5
5-42 ZD12P00800 O-RING 5
5-43 YN15V00017S017 VALVE, CHECK 3
5-44 YN15V00017S026 SPRING 3
5-45 YN15V00037S376 ORIFICE 2
5-46 ZD12P01250 O-RING 1
5-47 GN15V00010S025 ORIFICE 1
5-48 ZD12P01500 O-RING 1
5-49 2441U1040S40 O-RING 1
5-50 2441U1040S32 BEARING 1
5-51 LS15V00014S033 SHIM 2 R4
5-52 2441U1040S35 PIN 1
5-53 LS15V00014S008 PLATE 1
5-54 YN15V00003S030 SPRING 14
5-55 ZS23C18050 CAPSCREW 10
5-56 LC22V00006F1 VALVE ASSY, OVERLOAD 2
5-56K ZD12P00700 O-RING 1
5-56L ZD85P00700 RING, BACK-UP 2
5-56M ZD12G02500 O-RING 2
5-56N ZD85G02500 RING, BACK-UP 1
5-57 2441U1040S10 COUPLING 1
5-58 ZR26X04000 RING, SNAP 1
5-59 YR30V00001S115 PLUG 2
5-60 ZD12P01800 O-RING 2
5-61 LC15V00023S089 SPOOL 1 R6
5-62 LC15V00023S090 HOLDER 2 R6
5-63 LC15V00023S091 PLUG 2 R6
5-65 2436U279S3 PLUG 2
5-66 NO P/No BODY 1 R8
5-67 LS15V00022S003 OIL SEAL 1

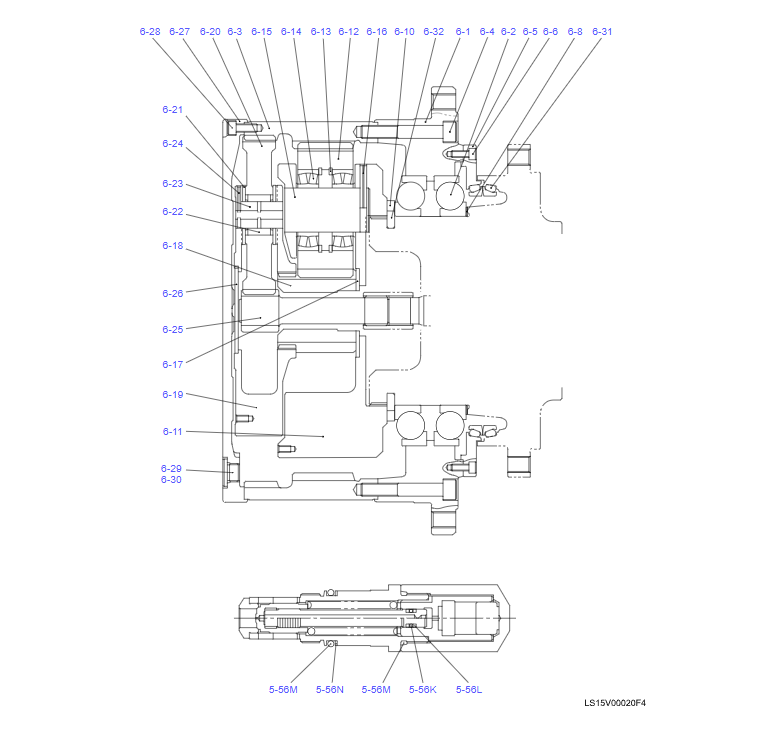

6 LS53D00007F2 REDUCT ASSY, PROPEL 1
6-1 LS53D00007S001 HOUSING 1
6-2 LS53D00007S002 BEARING 2
6-3 LS53D00007S003 GEAR, RING 1
6-4 ZS23C20120 CAPSCREW 26
6-5 LS53D00007S005 COVER 1
6-6 ZS28C10025 CAPSCREW 16
6-8 LS53D00007S008 SHIM 1
6-10 LS53D00007S010 SUPPORT 1
6-11 LS53D00007S011 SPIDER 1
6-12 24100U1743S14 PINION 3
6-13 ZR26X12000 RING, SNAP 6
6-14 LS53D00007S014 BEARING 6
6-15 LS53D00003S012 PIN 3
6-16 ZP26D10063 SPRING PIN 3
6-17 LS53D00007S017 SPACER 1
6-18 24100U1743S10 GEAR, SUN 1
6-19 LS53D00003S002 SPIDER 1
6-20 LS53D00003S006 GEAR 3
6-21 LS53D00003S005 PLATE 6
6-22 LS53D00007S022 BEARING, NEEDLE 3
6-23 LC53D00007S003 SHAFT 3
6-24 ZP26D06036 PIN, SPRING 3
6-25 LS53D00007S025 GEAR, SUN 1
6-26 LQ15V00005S008 PLATE 1
6-27 LS53D00007S027 COVER 1
6-28 ZS23C12030 CAPSCREW 25
6-29 YR30V00001S116 PLUG 2
6-30 ZD12P02400 O-RING 2
6-31 LS53D00007S007 SEAL, FLOATING 1
6-32 LS53D00007S032 LOCK WASHER 2 R1, R8
LS15V00020R200 REPAIR KIT 1 RK1
. (5)X1
. (6-32)X2
.
LC15V00023R100 REPAIR KIT 1 RK2
. (5-5, 5-6)X1
.
LC15V00023R200 REPAIR KIT 1 RK3
. (5-10)X2
. (5-11)X1
.
LC15V00021R300 REPAIR KIT 1 RK4
. (5-51)X6
.
LC15V00007R100 REPAIR KIT 1 RK5
. (5-18)X5
. (5-19)X4
.
LC15V00023R400 REPAIR KIT 1 RK6
. (5-61)X1
. (5-19, 5-62, 5-63)X2
.
LS15V00022R700 REPAIR KIT 1 RK7
. (5-17)X9
.
LS15V00022R800 REPAIR KIT 1 RK8
. (5-66)X1
. (6-32)X2
.

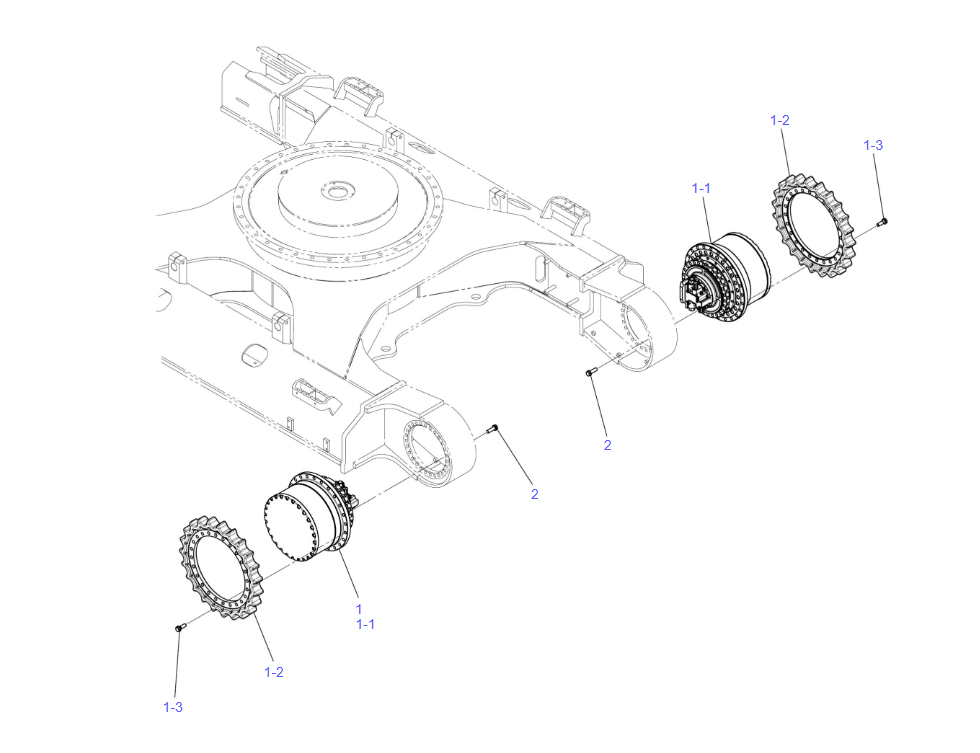

1 LS53D00012F1 MOTOR ASSY, PROPEL 2
HC545-00_LS15V00020F4_KCMU_D0002346185_1 1-1 LS15V00020F4 MOTOR ASSY, PROPEL 1 HC 545-00
1-2 LS51D01016P1 SPROCKET 1
1-3 2420P1613D2 CAPSCREW 24
2 2420P1613D5 CAPSCREW 54
