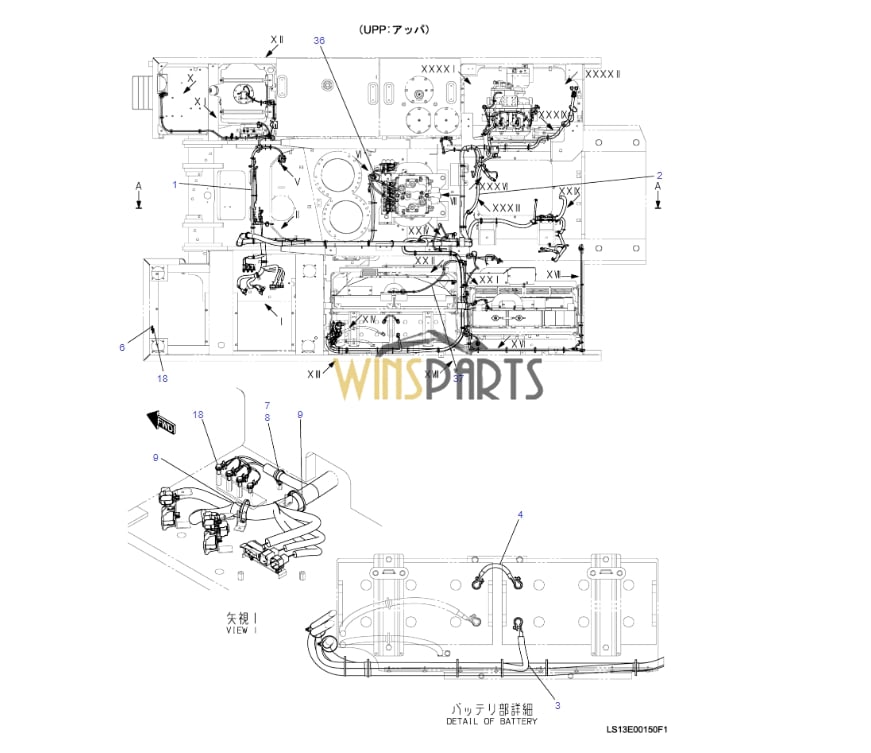

LS13E00150F1 LS13E01472P1 LS13E01401P1 HARNESS ASSY, UPP KOBELCO SK470-10 SK500LC-10
.
1 LS13E01401P1 HARNESS 1 YS14-05001–05015
1 LS13E01401P2 HARNESS 1 LS14-03501–03514
. LS14005001–05001
. YS14-05016–05210
. YS14010001–10004
1 LS13E01472P1 HARNESS 1 LS14005001–05014
. YS14010005–10240
1 LS13E01502P1 HARNESS 1 LS14005015-
. YS14010241–10257
1 LS13E01502P2 HARNESS 1 YS14010258-
2 LS13E01420P1 CABLE 1 YS14-05001–05015
2 LS13E01420P2 CABLE 1 LS14-03501-
. YS14-05027-
3 LS13E01407P1 CABLE 1
4 LC13E01577P1 CABLE 1
5 LS13E01408P1 CABLE 1
6 LE13E01006P1 CABLE 1
7 YN13E01375P1 CLIP 50 LS14-03501–03504
. YS14-05001–05107
7 YN13E01375P1 CLIP 55 LS14-03505-
. YS14-05108-
8 PY01P01043D3 CLIP 123 LS14-03501–03504
. YS14-05001–05107
8 PY01P01043D3 CLIP 127 LS14-03505-
. YS14-05108-
9 PY01P01043D5 CLIP 28
10 PY01P01043D8 CLIP 1
11 PY01P01043DA CLIP 23
12 EW02E01015D4 CLIP 4
13 EW02E01015D6 CLIP 3
14 EW02E01015D8 CLIP 4
15 EW02E01015DF CLIP 5
16 EW02E01016DB CLIP 1
17 ZM73C08016 SEMS-BOLT 6
18 ZM73C08020 SEMS-BOLT 18
19 ZM73C10016 SEMS-BOLT 4
20 ZM73C10020 SEMS-BOLT 5
21 ZS18C06012 CAPSCREW 1
23 ZN18F10008 NUT 1
24 ZW16P06000 WASHER 1
26 ZW16P10000 WASHER 1
27 LS21C01410P1 WASHER 1
28 LS13E01402P1 INSULATION 1
29 LS52F01685P1 INSULATION 1
30 LS13E01403P1 BRACKET 1 YS14-05001–05009
30 LS13E01403P2 BRACKET 1 LS14-03501-
. YS14-05010-
31 LS13E01421P1 BRACKET 1
32 LC16E01026P1 BRACKET 1
33 LS13E01413P1 BRACKET 1
34 LQ13E01329P1 BRACKET 1
35 LS13E01416P1 RUBBER 1
36 LS13E01418P1 HARNESS 1 LS14-03501–03510
. YS14-05001–05156
36 LS13E01459P1 HARNESS 1 LS14-03511–03511
. YS14-05157–05185
36 LS13E01459P2 HARNESS 1 LS14-03512-
. YS14-05186-
37 LS13E01428P1 HARNESS 1

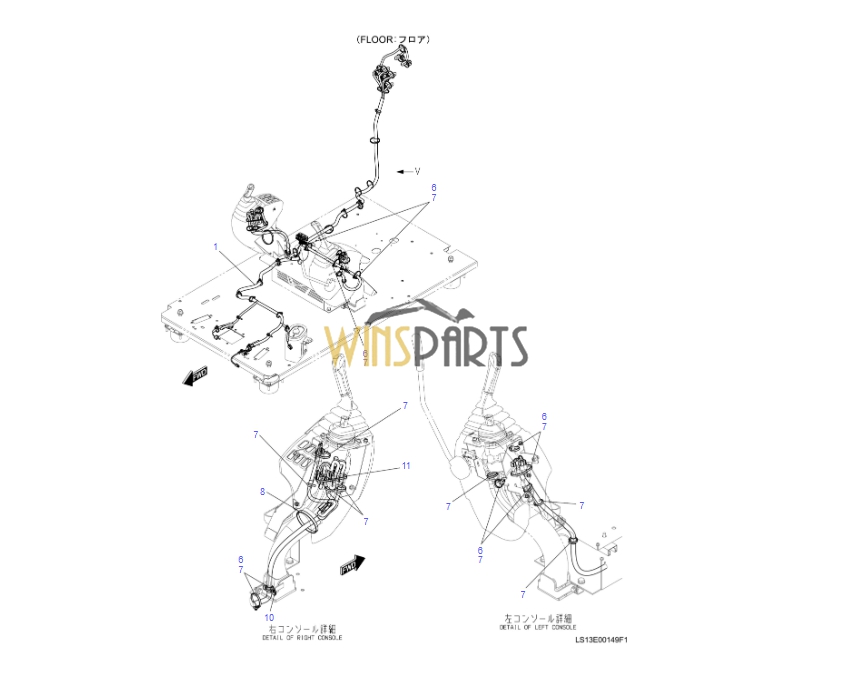

. (FLOOR)
.
1 LS13E01400P1 HARNESS 1
2 LE13E01005P1 CABLE 1
3 ZW16P08000 WASHER 1
4 ZW26X08000 LOCK WASHER 1
5 ZN18C08007 NUT 1
6 YN13E01375P1 CLIP 22
7 PY01P01043D3 CLIP 37
8 PY01P01043D8 CLIP 1
9 PY01P01043DA CLIP 9
10 PM22C01020DR TRIM 1
11 PY01P01043D5 CLIP 2

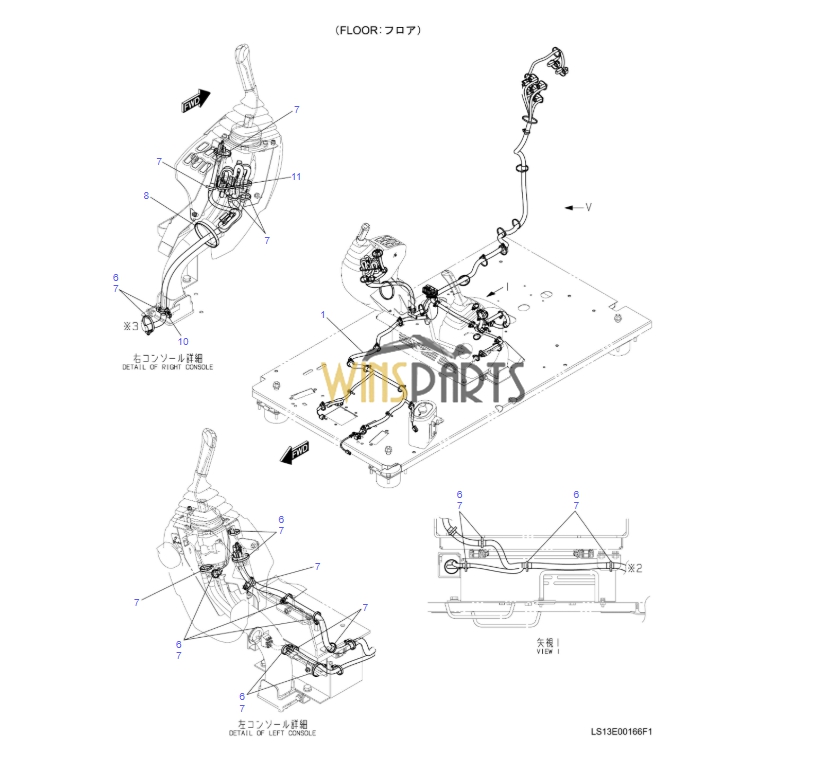

. (FLOOR)
.
1 LS13E01456P1 HARNESS 1 YS14-05094–05116
1 LS13E01456P3 HARNESS 1 LS14-03505-
. YS14-05117-
2 LE13E01005P1 CABLE 1
3 ZW16P08000 WASHER 1
4 ZW26X08000 LOCK WASHER 1
5 ZN18C08007 NUT 1
6 YN13E01375P1 CLIP 26
7 PY01P01043D3 CLIP 41
8 PY01P01043D8 CLIP 1
9 PY01P01043DA CLIP 9
10 PM22C01020DR TRIM 1
11 PY01P01043D5 CLIP 2

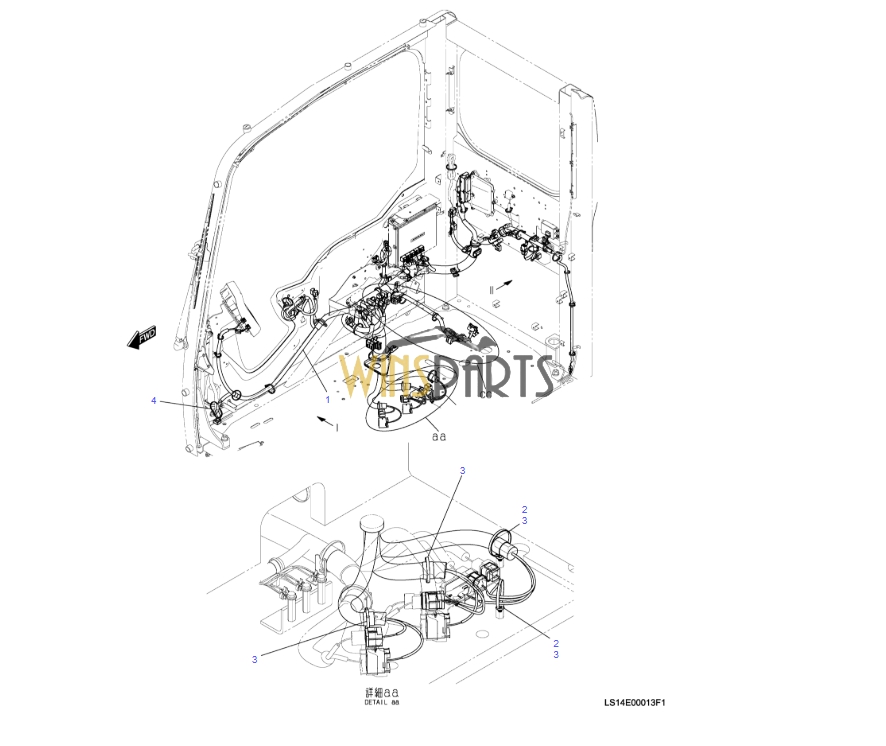

LS14E00013F1 HARNESS ASSY, CAB Not Service
.
1 LS14E01019P2 HARNESS 1 LS14-03501–03504
. YS14-05001–05089
1 LS14E01019P3 HARNESS 1 YS14-05090–05109
1 LS14E01019P4 HARNESS 1 LS14-03505–03513
. YS14-05110–05197
1 LS14E01019P5 HARNESS 1 LS14-03514-
. YS14-05198-
2 YN13E01375P1 CLIP 16 LS14-03501–03504
. YS14-05001–05109
2 YN13E01375P1 CLIP 17 LS14-03505-
. YS14-05110-
3 PY01P01043D3 CLIP 29 LS14-03501–03504
. YS14-05001–05109
3 PY01P01043D3 CLIP 30 LS14-03505-
. YS14-05110-
4 PY01P01043D5 CLIP 8 LS14-03501–03504
. YS14-05001–05109
4 PY01P01043D5 CLIP 7 LS14-03505-
. YS14-05110-
5 PY01P01043D8 CLIP 1
6 LC13E01564P1 PLATE 1
7 LQ13E01366P1 GROMMET 1
8 ZM73C06016 SEMS-BOLT 4
9 ZS18C06030 CAPSCREW 1
10 LQ14E01037P1 HARNESS 1
11 EN24S00008P1 RELAY 1
12 2418T15555 SPACER 1
13 ZW16P06000 WASHER 1
.

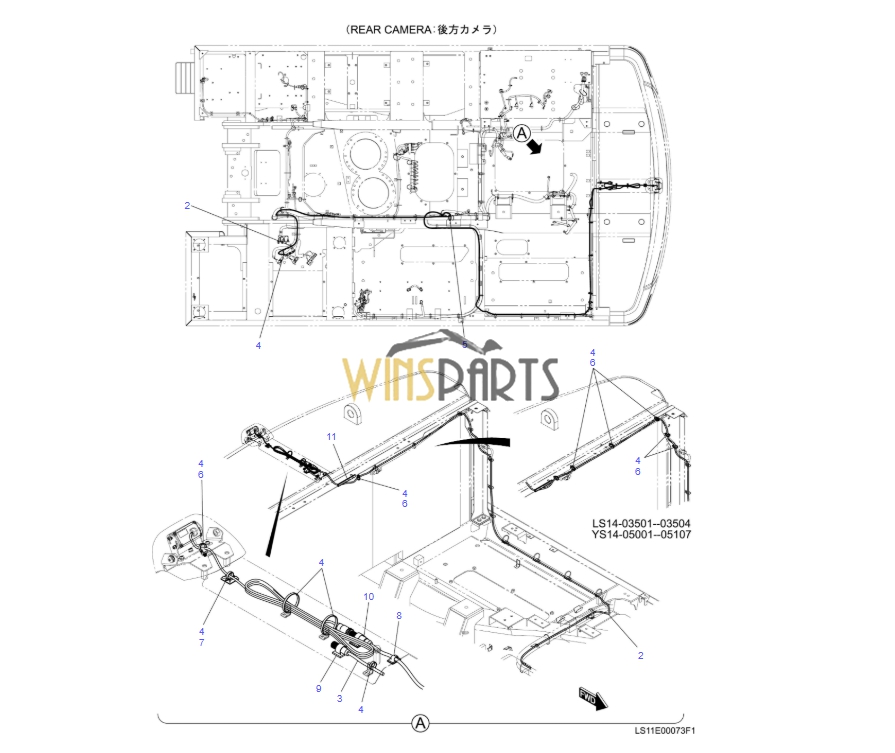

1 LC55E01012P1 CABLE 1
2 LS55E01200P2 CABLE 1
3 LS55E01017P1 CABLE 1
4 PY01P01043D3 CLIP 14 LS14-03501–03504
. YS14-05001–05107
4 PY01P01043D3 CLIP 9 LS14-03505-
. YS14-05108-
5 PY01P01043D5 CLIP 2
6 YN13E01375P1 CLIP 7 LS14-03501–03504
. YS14-05001–05107
6 YN13E01375P1 CLIP 2 LS14-03505-
. YS14-05108-
7 YT11E01043P1 CLIP 1
8 2432Z478D2 CLIP 1
9 2432Z478D4 CLIP 1
10 2432Z478D5 CLIP 1
11 YA21C01019D5 TRIM 1

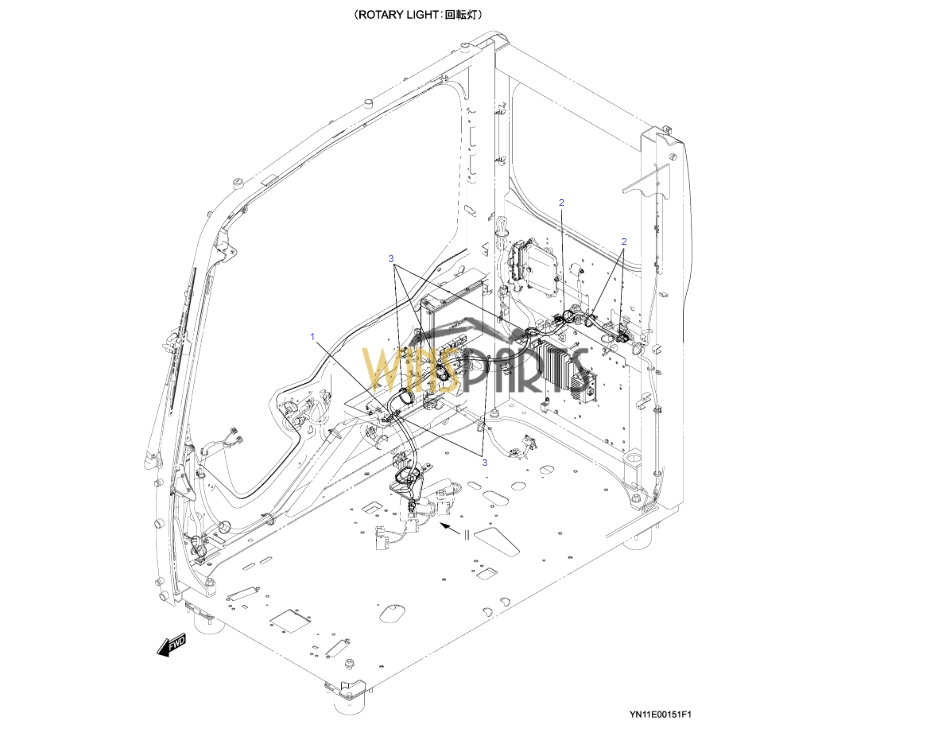

1 YN11E01277P1 HARNESS 1
2 PY01P01043D3 CLIP 7
3 PY01P01043D5 CLIP 6
4 PY01P01043D8 CLIP 1
