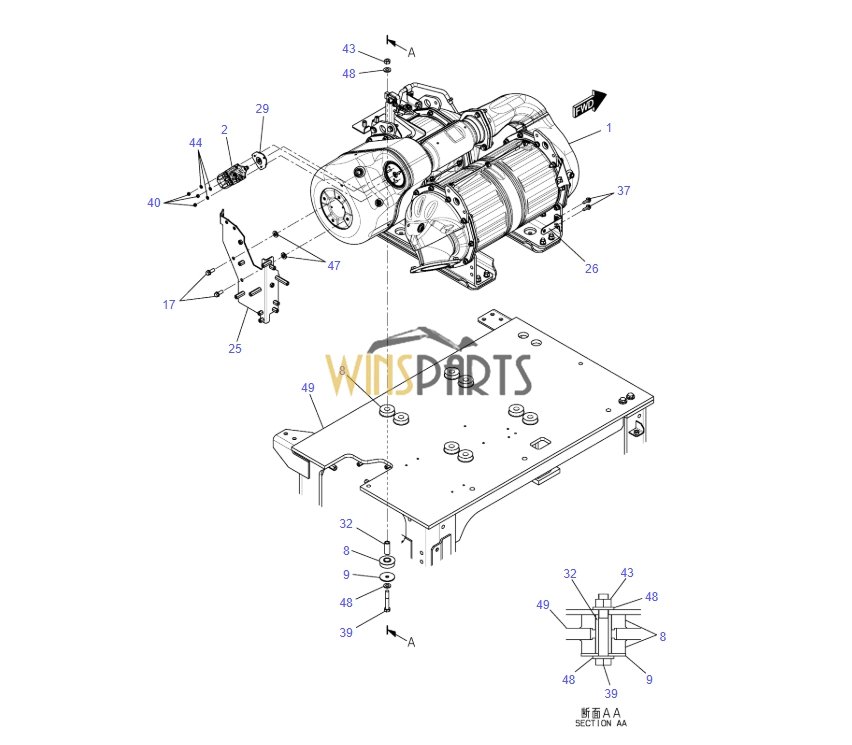

LS12P00048F1 MUFFLER ASSY KOBELCO SK470-10 SK500LC-10

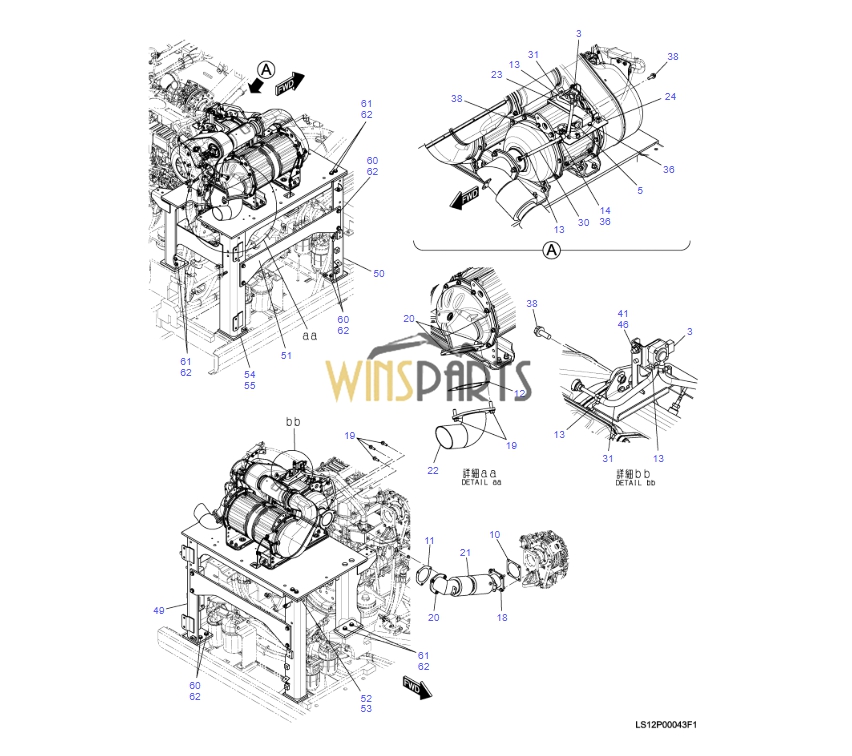

LS12P00043F1 MUFFLER ASSY Not Service
.
1 LS12P00048F1 MUFFLER 1
2 YF02P01025F1 INJECTOR ASSY 1
3 YF52S00010P1 SENSOR 1
4 YF52S00011P1 SENSOR 2
5 YF52S00013P1 SENSOR, TEMP 1
6 LS52S00064P1 SENSOR, TEMP 1
7 YF52S00014P1 SENSOR, TEMP 1
8 YF12P01099P1 MOUNT, RUBBER 16
9 YF12P01100P1 PLATE 8
10 LS12P01478P1 GASKET 1
11 LC12P01382P1 GASKET 1
12 YF12P01103P1 GASKET 1
13 YF12P01104P1 CLIP 4
14 YF12P01105P1 CLIP 1
15 YF12P01098P1 CLIP 9
16 YF12P01106P1 CLIP 8
17 YF12P01108P1 CAPSCREW 2
18 LS12P01477P1 CAPSCREW 4
19 YF12P01107P1 CAPSCREW 5
20 YF12P01109P1 NUT 5
21 LS12P01393P1 TUBE, EXHAUST 1 LS14-03501–03514
. YS14-05001–05210
21 LS12P01479P1 TUBE, EXHAUST 1 LS14005001-
. YS14010001-
22 LS12P01451P1 TUBE, EXHAUST 1
23 LB12P01059P1 BRACKET 1
24 LS12P01395P1 BRACKET 1
25 YN12P01341P1 BRACKET 1
26 YN12P01307P1 BRACKET 1
27 LS12P01464P1 BRACKET 1
28 LS12P01467P1 BRACKET 1
29 YN12P01354P1 GASKET 1
30 LC12P01285P1 HOSE 1
31 LC12P01286P1 HOSE 1
32 LS12P01403P1 SPACER 8
33 LS12P01438P1 MOUNT, RUBBER 4
34 PY01P01043DA CLIP 2
35 ZM73C06016 SEMS-BOLT 4
36 ZM73C08016 SEMS-BOLT 13
37 ZM73C08025 SEMS-BOLT 8
38 ZM73C10030 SEMS-BOLT 3
39 ZS18C12080 CAPSCREW 8
40 ZN18C06005 NUT 3
41 ZN18C08007 NUT 2
43 ZN18C12010 NUT 8
44 ZW16P06000 WASHER 3
45 ZW16P08000 WASHER 1
46 ZW16H08000 WASHER 1
47 ZW16H10000 WASHER 2
48 ZW16H12000 WASHER 16
49 LS52F01900P2 BRACKET 1
50 LS52F01899P1 BRACKET 1
51 LS52F02006P1 PLATE 1
52 LS52F02047P1 SHIM (1.0) 3
53 LS52F02048P1 SHIM (2.0) 1
54 LS52F02049P1 SHIM (1.0) 1
55 LS52F02050P1 SHIM (2.0) 1
56 LS12P01439P1 GUARD 1
57 LS12P01419P1 GUARD 1
58 ZM73C12025 SEMS-BOLT 3
59 ZM73C12035 SEMS-BOLT 2
60 ZS18C12045 CAPSCREW 8
61 ZS18C12055 CAPSCREW 6
62 LS12P01461P1 WASHER 14
