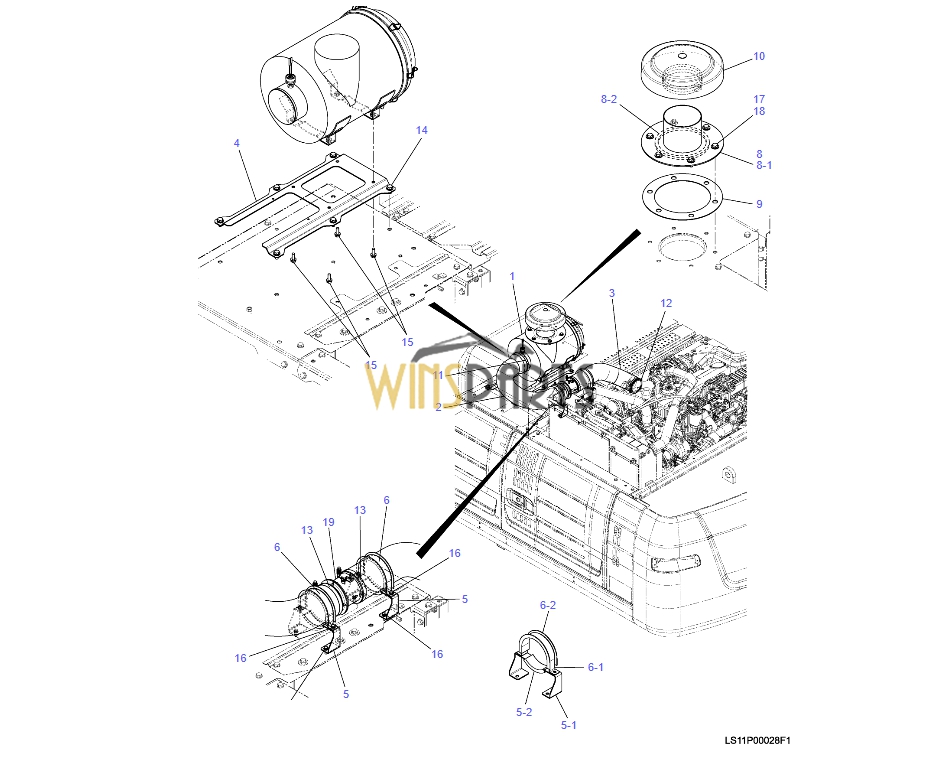

LS11P00029F1 CLEANER ASSY, AIR KOBELCO SK470-10 SK500LC-10 SK500DLC-10
LS11P00028F1 CLEANER ASSY, AIR Not Service
.
055-01_LS11P00029F1_KCMU_D0002346049_1 1 LS11P00029F1 CLEANER, AIR 1 P.055-01
2 LS11P01129P1 HOSE, AIR 1
3 LS11P01188P1 HOSE, AIR 1
4 LS11P01140P1 BRACKET 1
5 LS11P01179F1 BRACKET ASSY 2
5-1 LS11P01180P1 BRACKET 1
5-2 LS11P01174D1 RUBBER 1
6 LS11P01175F1 CLAMP ASSY 2
6-1 LS11P01143P1 CLAMP 1
6-2 LS11P01174D2 RUBBER 1
8 LS11P01170F1 TUBE ASSY, INTAKE 1
8-1 LS11P01171P1 TUBE, INTAKE, AIR 1
8-2 LV11P01369P1 RUBBER 1
9 LS11P01191P1 PLATE 1
10 YN11P01198F1 CAP, RAIN 1
11 LS11P01144P1 CLIP 1
12 LV05P01380P1 CLIP 1
13 LS11P01178P1 CLIP 2
14 ZM73C12025 SEMS-BOLT 6
15 ZM73C10030 SEMS-BOLT 4
16 ZM73C08025 SEMS-BOLT 8
17 ZS18C12030 CAPSCREW 6
18 2418T10357 WASHER 6
19 LS11P00041P1 SENSOR,AIR FLOW 1 LS14005002-
. YS14010048-
.

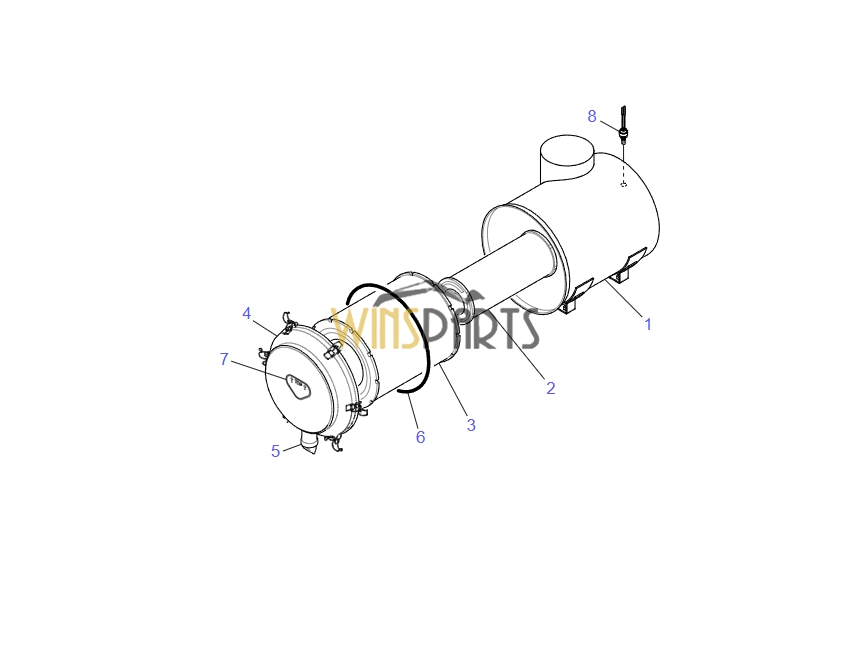

1 NO P/No BODY ASSY 1
2 YZ11P00001S002 ELEMENT, FILTER 1
3 YZ11P00001S003 ELEMENT, FILTER 1
4 LS11P00022S004 COVER ASSY 1
5 YW11P00004S004 VALVE ASSY 1
6 LS11P00014S006 O-RING 1
7 EB11P00001S008 LABEL 1
8 LV11P01017F1 INDICATOR 1
