YN61B00331F1 YN61B00312F1 0.8M3 BUCKET ASSY Kobelco SK200-8 SK210LC-8 (SIDE TYPE PIN) 1 YN61B00331F1 BUCKET ASSY 1 1-1 YN61B00328P1 BUCKET 1 …
LS02C00076F1 LS02C00083F1 LS02C00074P1 CAB ASSY KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10
1 LS02C00041S001 HANDLE 1
2 LQ02C00031S002 HANDLE 1
3 LQ02C00113S003 LEVER ASSY 1
4 LQ02C00031S005 LABEL 1
5 LQ02C00031S006 CABLE ASSY 1
6 LQ02C01481P1 STOPPER 2
7 LQ02C00031S008 COVER 1
8 LQ02C00031S009 TRIM 1
9 LQ02C00031S010 HOLDER 1
10 LQ02C00031S011 HOLDER 1
11 LQ02C00031S012 HOLDER 1
12 LQ02C00031S013 HOLDER 1
13 LQ02C00031S014 STRIKER 1
14 LQ02C00113S014 CATCH ASSY, DOOR 1
15 LQ02C00031S016 COVER 1
16 LQ02C00031S017 SEAL 1
17 LQ02C00031S018 GROMMET 1
19 LQ02C00031S020 LIGHT, ROOM 1
21 LQ02C00031S022 WASHER 2
22 LQ02C00031S023 WASHER 2
23 LQ02C00031S024 NUT 2
24 LQ02C00031S025 BOLT 2
25 LQ02C00113S025 BOLT 3
27 LQ02C00031S030 SCREW 5
28 LQ02C00031S031 BOLT 2
29 LQ02C00031S032 BOLT 2
30 LQ02C00031S033 SCREW 2
31 LQ02C00031S034 SCREW 2
32 LQ02C00031S035 BOLT 4
33 LQ02C00031S037 SCREW, TAPPING 2
34 LQ02C00113S034 SEAL 4

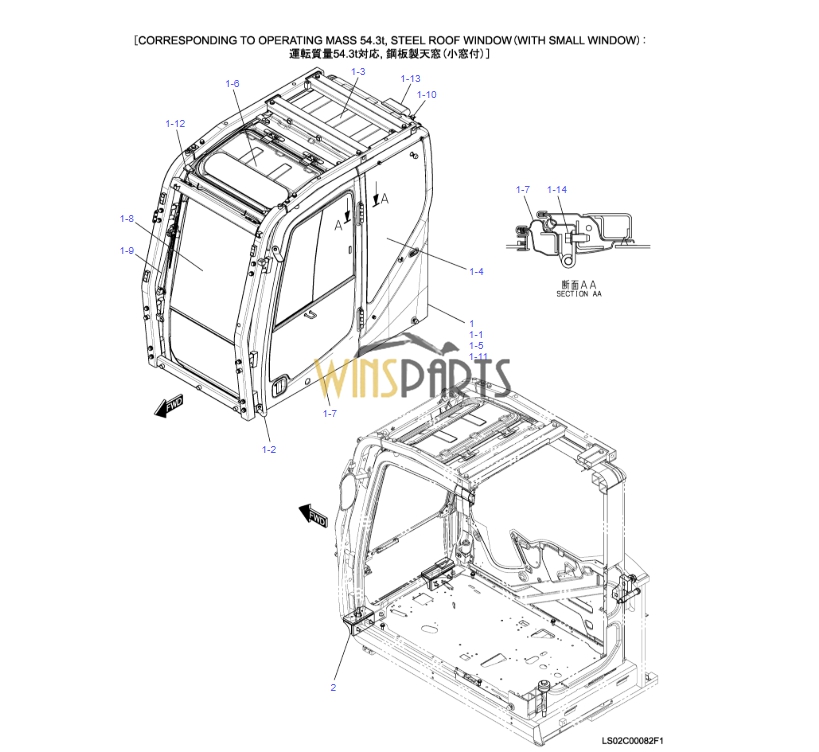

LS02C00082F1 CAB INSTAL Not Service. [CORRESPONDING TO OPERATING MASS 54.3t, STEEL ROOF WINDOW (WITH SMALL WINDOW)]
.
1 LS02C00083F1 CAB ASSY 1
1-1 LS02C00074P1 CAB ASSY 1
320-05_LS02C00076F1_JP_D0002416723_1 1-2 LS02C00076F1 CAB ASSY 1 P.320-05
320-02_CKCM_D0002416526_1 1-3 LQ02C01554F1 COVER ASSY 1 P.320-02
320-03_LQ02C01555F1_ASIA-03_D0002416527_1 1-4 LQ02C01555F1 GLASS 1 P.320-03
320-04_LQ14E00027F1_CKCM-01_D0002416528_1 1-5 LQ14E00027F1 HARNESS ASSY, CAB 1 P.320-04
320-01_LQ02C01320F1_LA-01_D0002416529_1 1-6 LQ02C01320F1 WINDOW, ROOF 1 P.320-01
320-07_LQ51C00008F1_JP-03_D0002416530_1 1-7 LQ51C00008F1 DOOR ASSY, CAB 1 P.320-07
320-11_LQ50C00001F1_KCMU-01_D0002416531_1 1-8 LQ50C00001F1 WINDOW ASSY, FR. 1 P.320-11
320-09_YT53C00015F1_CKCM_D0002416532_1 1-9 YT53C00015F1 WIPER INSTAL 1 P.320-09
320-10_LQ54S00003F1_CKCM-02_D0002416533_1 1-10 LQ54S00003F1 RADIO 1 P.320-10
320-11_YY02C01165F1_JP-02_D0002416545_1 1-11 YY02C01165F1 SEAL ASSY 1 P.320-06
320-12_LQ80E00031F1_CKCM-02_D0002416534_1 1-12 LQ80E00031F1 LIGHT INSTAL 1 P.320-12
320-13_LQ11E00074F1_KCMU-05_D0002416535_1 1-13 LQ11E00074F1 HARNESS ASSY 1 P.320-13
1-14 LQ50C00001S014 BOLT 6
320-01_LS02C00066F1_KCMU-03_D0002346146_1 2 LS02C00066F1 CAB INSTAL 1 P.320-01
.
1 LQ02C01323S001 COVER ASSY 1
2 LQ02C01323S002 COVER ASSY 1
3 LQ02C00032S001 PANEL 1
4 LQ02C00032S002 PAD 1
5 LQ02C00032S004 PAD 1
6 LQ02C00032S005 PAD 1
9 LQ02C00032S010 COVER 1
10 LQ02C00032S011 COVER 1
12 LQ02C00032S013 SCREW 6
13 LQ02C00032S014 CLIP 19
14 LQ02C00032S015 CLIP 4
16 LQ02C00032S017 BRACKET 1
17 LQ02C00031S031 BOLT 2
.
1 LQ02C01301S001 GLASS 1
2 LQ02C01301S002 GLASS 1 LS14-03501–03514
. LS14005001–05009
. YS14010068–10156
2 LS02C01840S002 GLASS 1 LS14005010-
. YS14010157-
3 LQ02C01301S003 GLASS 1
4 YT02C01705S004 GLASS 1
5 LQ02C01301S005 STRIP, WEATHER 1
6 LQ02C01301S006 SEAL 2 LS14-03501–03514
. LS14005001–05002
. YS14-05001–05210
. YS14010001–10067
6 YY02C01242S005 SEAL 2 LS14005003-
. YS14010068-
7 LQ02C01301S007 STOPPER 2
8 LQ02C01301S008 SPACER 3
9 LQ02C01301S009 SPACER 6
10 LQ02C01301S010 SPACER 9
11 LQ02C01555S011 SEAL 2
