LS01V00093F1 BUCKET CYLINDER ASSY KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10

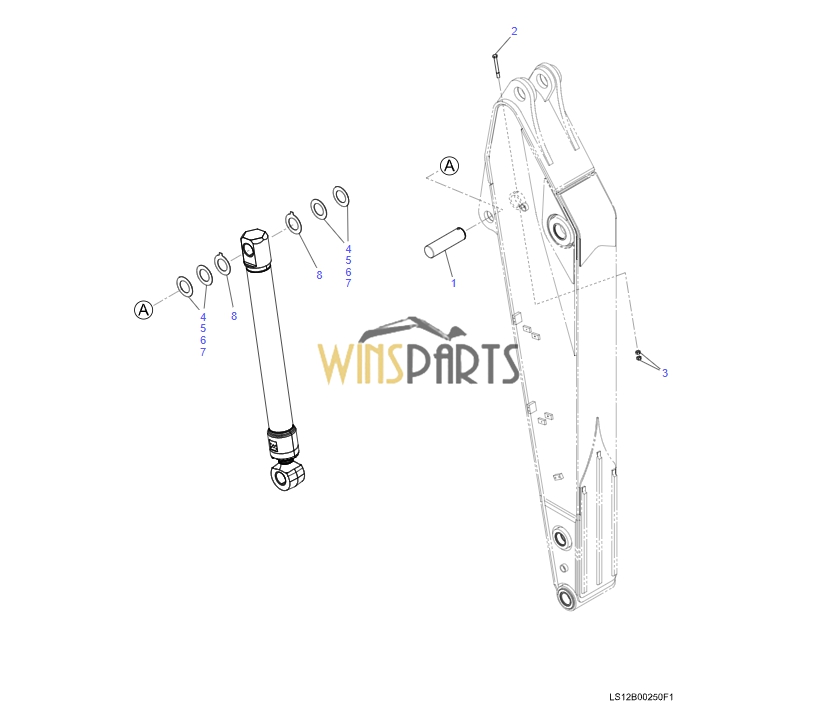

LS12B00250F1 CYLINDER INSTAL
.
1 LS12B02465P1 PIN 1
2 HS18C20180G2 CAPSCREW 1
3 ZN18C20016 NUT 2
4 2420T2747D19 SHIM (0.9) 1
5 2420T2747D2 SHIM (1.2) 1
6 2420T2747D3 SHIM (1.6) 1
7 2420T2747D4 SHIM (2.3) 1
8 LB02B01043D1 SHIM (2.0) 2
LS12B00249F1 CYLINDER INSTAL Not Service. (BUCKET)
.
730-01_LS12B00250F1_KCMU_D0002346246_1 1 LS12B00250F1 CYLINDER INSTAL 1 P.730-01

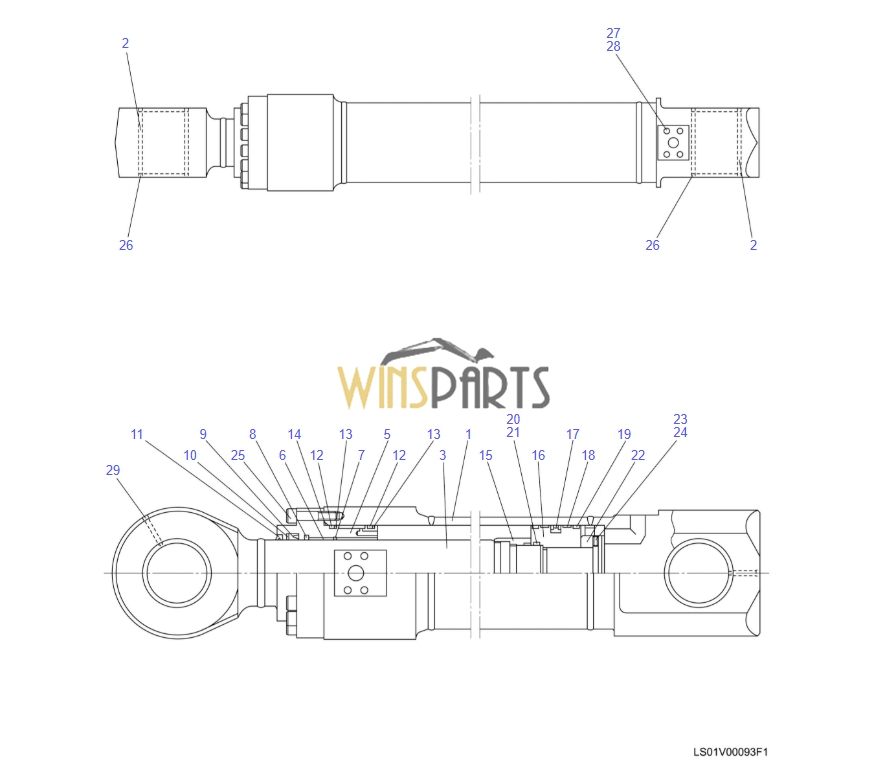

HC730-00_LS01V00093F1_KCMU_D0002346245_1 2 LS01V00093F1 CYLINDER, BUCKET 1 HC 730-00
.
1 LS01V00093F1 ASSY 1 R4
2 LS01V01022P1 BUSHING 4 R4, R5
3 NO P/No ROD, PISTON 1 R5
5 LS01V00057S005 COVER 1
6 LS01V00057S029 BUSHING 1
7 LS01V00057S007 RING, RETAINING 1
8 LS01V00057S008 SEAL 1 R1, R3
9 LS01V00057S009 SEAL 1 R1, R3
10 LS01V00057S010 RING, BACK UP 1 R1, R3
11 LS01V00057S011 SEAL, DUST 1 R1, R3
12 ZD12G15000 O-RING 2 R1, R3
13 LS01V00057S013 RING, BACK UP 2 R1, R3
14 LS01V00057S014 O-RING 1 R1, R3
15 LS01V00057S015 RING 1
16 LS01V00057S016 PISTON 1
17 LS01V00057S017 SEAL, PISTON 1 R2, R3
18 LS01V00057S018 RING, WEAR 2 R2, R3
19 LS01V00057S030 RING 2 R2, R3
20 ZD12G09500 O-RING 1 R2, R3
21 LS01V00057S021 RING, BACK UP 2 R2, R3
22 LS01V00093S022 NUT 1
23 LC01V00072S023 BALL 1
24 LC01V00070S024 SETSCREW 1
25 LS01V00055S024 CAPSCREW 16
26 LS01V00057S025 SEAL 4 R4, R5
27 NO P/No COVER, DUST 2
28 NO P/No CAPSCREW 8
29 NO P/No CAP 2
.
LS01V00057R100 REPAIR KIT 1 RK1
. (8, 9, 10, 11, 14)X1
. (12, 13)X2
.
LS01V00093R200 REPAIR KIT 1 RK2
. (17, 20)X1
. (18, 19, 21)X2
.
LS01V00057R600 REPAIR KIT 1 RK3
. (8, 9, 10, 11, 14, 17, 20)X1
. (12, 13, 18, 19, 21)X2
.
LS01V00093R400 REPAIR KIT 1 RK4
. (1)X1
. (2, 26)X2
.
LS01V00093R500 REPAIR KIT 1 RK5
. (3)X1
. (2, 26)X2
