LQ64H00454F1 YN30V00138F1 VALVE, PILOT

LQ64H00454F1 YN30V00138F1 VALVE, PILOT
　 .
HC270-03 YN30V00138F1 CKCM-01 D0002495067 1 1 YN30V00138F1 VALVE, PILOT 1 HC 270-03
　 2 HM83C10030G1 SEMS-BOLT

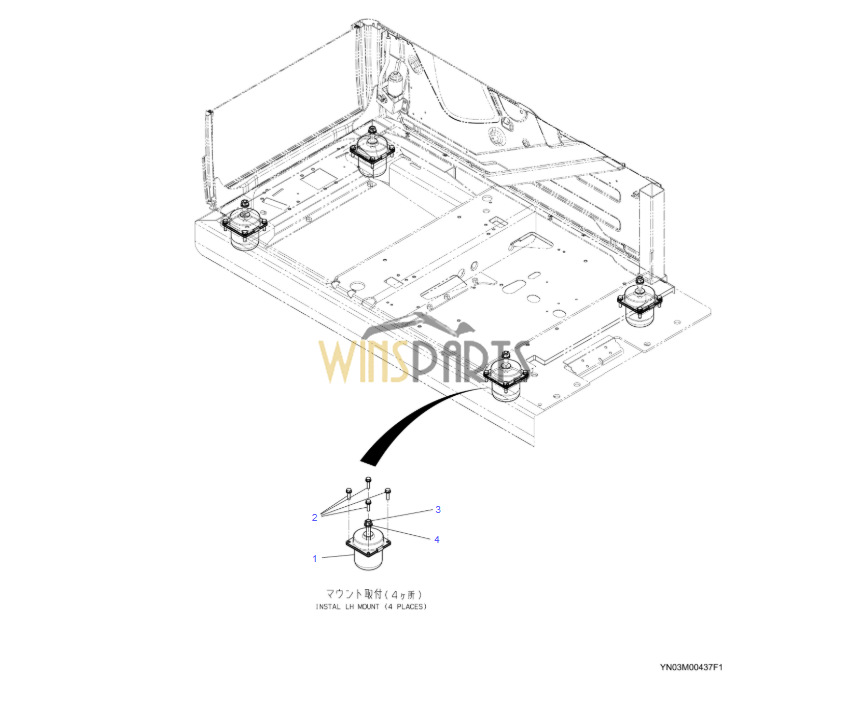

YN03M00437F1 PLATE INSTAL, FLOOR YN03M02126P1 MOUNT, RUBBER
　 .
　 1 YN03M02126P1 MOUNT, RUBBER 4
　 2 ZM73C10040 SEMS-BOLT 16
　 3 ZN18C16013 NUT 4
　 4 ZW16H16000 WASHER 4

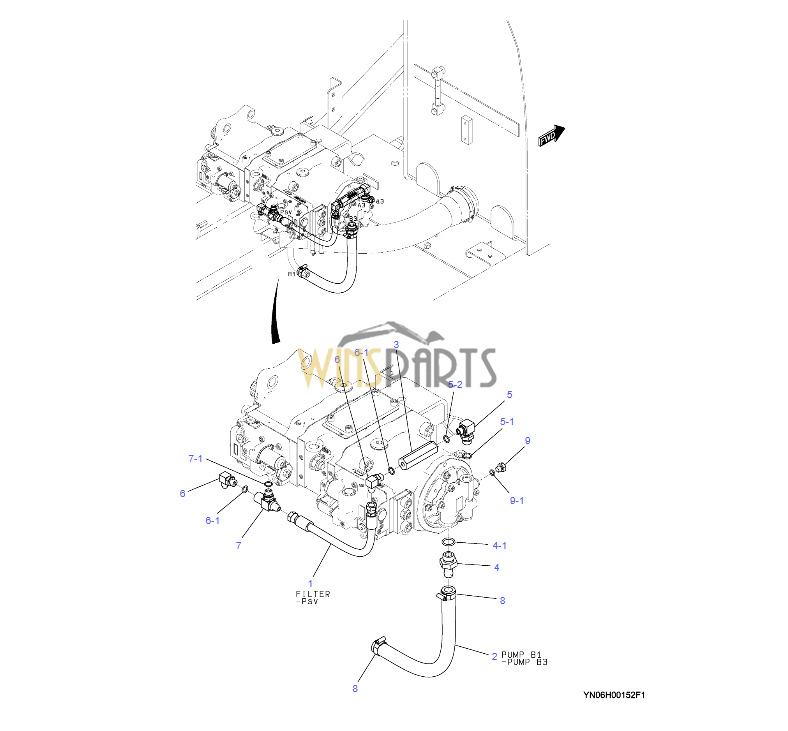

YN06H00152F1 CONTROL LINES, PUMP
　 .
　 1 ZX23M06044 HOSE ASSY 1
　 2 PW32H01026DN HOSE 1
　 3 YN50V00020F1 FILTER, INLINE 1
　 4 LQ06H01017P1 CONNECTOR 1
　 4-1 ZD12P02400 O-RING 1
　 5 2444Z2345 ELBOW 1
　 5-1 ZD12P01800 O-RING 1
　 5-2 ZD12P01400 O-RING 1
　 6 ZH32X06000 ELBOW, 90 2
　 6-1 ZD12P01400 O-RING 1
　 7 LC06H01025P1 TEE 1
　 7-1 ZD12P01400 O-RING 1
　 8 ZC16X02800 CLIP 2
　 9 ZE72X04000 PLUG 1
　 9-1 ZD12P01100 O-RING 1

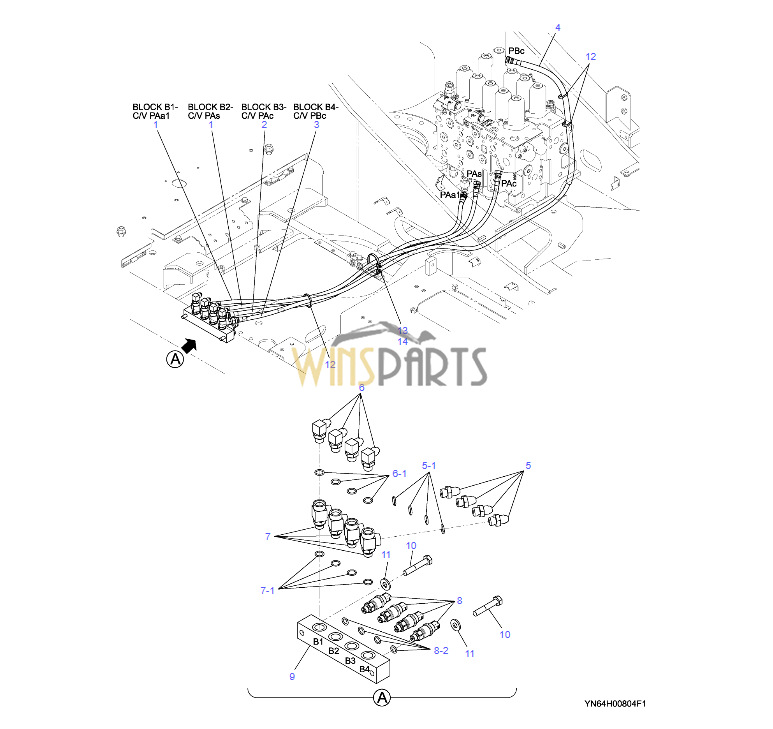

YN64H00804F1 CONTROL LINES, BLOCK Not Service
　 .
　 1 2420R537D130 HOSE 2
　 2 2420R537D140 HOSE 1
　 3 2420R537D220 HOSE 1
　 4 PU13E01010DJ TUBE 1
　 5 ZH22X06000 CONNECTOR 4
　 5-1 ZD12P01400 O-RING 1
　 6 ZH32X06000 ELBOW, 90 4
　 6-1 ZD12P01400 O-RING 1
　 7 HH55Q06006G1 TEE 4
　 7-1 ZD12P01400 O-RING 1
　 8 YN52S00102P1 SENSOR, PRESS 4
　 8-2 ZD12P01100 O-RING 1
　 9 LQ64H01116P1 BLOCK 1
　 10 ZS18C10060 CAPSCREW 2
　 11 ZW16H10000 WASHER 2
　 12 PY01P01043D3 CLIP 3
　 13 PY01P01043D8 CLIP 1
　 14 YN13E01375P1 CLIP 2

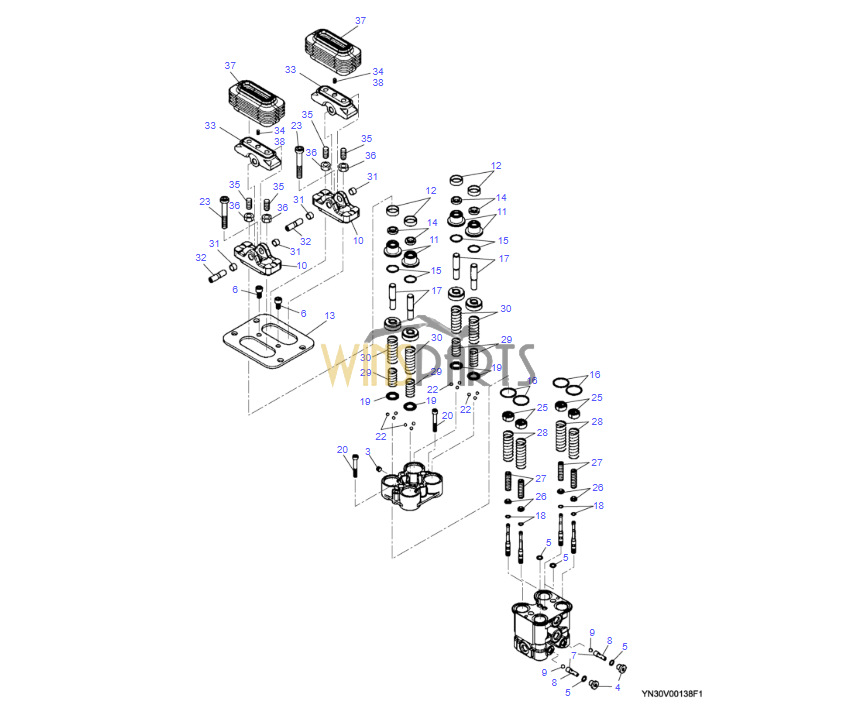

YN30V00138F1 VALVE, PILOT
　 .
　 3 2441U722S490 PLUG 1
　 4 YN30V00138S153 PLUG 2
　 5 ZD12P00800 O-RING 4
　 6 ZS28C08016 CAPSCREW 2
　 7 YN30V00138S191 SEAT 2
　 8 YN30V00138S192 SEAT 2
　 9 2441U729S511 BALL 2
　 10 YN30V00138S201 COVER 2
　 11 YN30V00138S202 PLUG 4
　 12 YT30V00009S203 COLLAR 4
　 13 YN30V00138S204 COVER 1
　 14 YT30V00009S210 PACKING 4
　 15 YT30V00009S212 O-RING 4
　 16 2436U1345S162 O-RING 4
　 17 YN30V00138S214 ROD, PUSH 4
　 18 2436U1277S217 WASHER 4
　 19 YT30V00009S218 SEAT 4
　 20 ZS28C06045 CAPSCREW 2
　 22 2436U625S232 BALL 12
　 23 YN30V00138S271 CAPSCREW 2
　 25 YN30V00138S311 SEAT, SPRING 4
　 26 YR30V00003S313 WASHER 4
　 27 YN30V00138S324 SPRING 4
　 28 YN30V00138S335 SPRING 4
　 29 YT30V00009S336 SPRING 4
　 30 YT30V00009S337 SPRING 4
　 31 YR30V00003S412 BUSHING 4
　 32 YR30V00003S413 SHAFT 2
　 33 YR30V00003S420 CAM 2
　 34 YR30V00003S423 SETSCREW 2
　 35 YR30V00003S471 SETSCREW 4
　 36 YR30V00003S472 LOCK NUT 4
　 37 YN30V00138S501 BELLOWS 2
　 38 YT30V00117S423 SETSCREW 2
