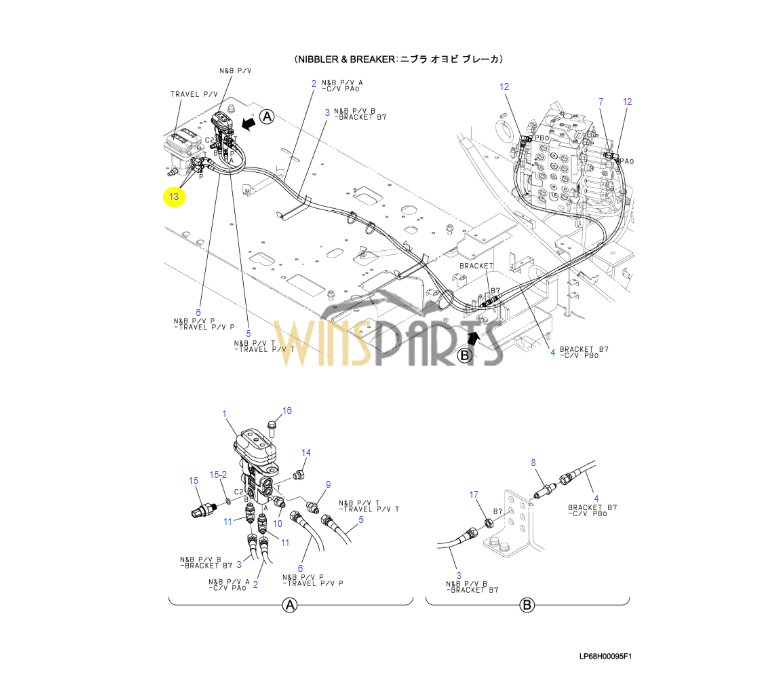

LP68H00095F1 YN30V00080F1 VALVE, PILOT CONTROL LINES

LP68H00095F1 YN30V00080F1 VALVE, PILOT CONTROL LINES
　 .
1 YN30V00080F1 VALVE, PILOT 1 HC 231-00
　 2 2420R349D305 HOSE 1
　 3 2420R349D190 HOSE ASSY 1
　 4 2420R349D150 HOSE 1
　 5 HX33L04040DY HOSE 1
　 6 HX33L04040CD HOSE 1
　 7 2444Z2891 CONNECTOR 1
　 8 YY42H01310P1 CONNECTOR 1
　 9 ZH22X04000 CONNECTOR 1
　 10 HH25X04004G7 CONNECTOR 1
　 11 ZH32X04000 ELBOW, 90 2
　 12 ZH32X04006 ELBOW 2
　 13 2444Z2544 TEE 2
　 14 ZE72X04000 PLUG 1
　 15 YN52S00102P1 SENSOR, PRESS 1 LP10030520–30294
　 15-2 ZD12P01100 O-RING 1
　 15 YN52S00214P1 SENSOR, PRESS 1 LP10030925-
　 15-2 ZD12P01100 O-RING 1
　 16 HM83C10030G1 SEMS-BOLT 2
　 17 PA42H01004P1 NUT 1

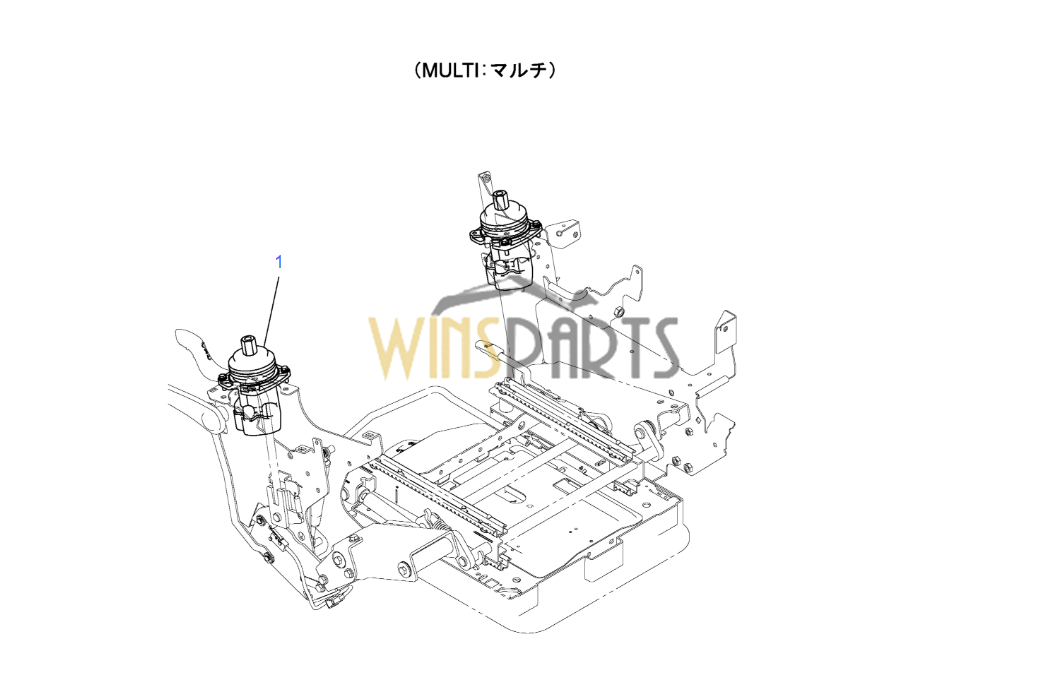

YY68H00328F1 YY64H00850F1 CONTROL LINES,REMOTE Not Service
　 .
1 YY64H00850F1 VALVE INSTAL 1 P.230-03
2 YY68H00325F1 CONTROL LINES,REMOTE 1 P.230-01
YY64H00850F1 VALVE INSTAL Not Service
　 .
HC230-03_YY30V00094F1_KCM-EUR_D0003588791_1 1 YY30V00094F1 VALVE, PILOT 2 HC 230-03
　 2 ZM73C06025 SEMS-BOLT 6

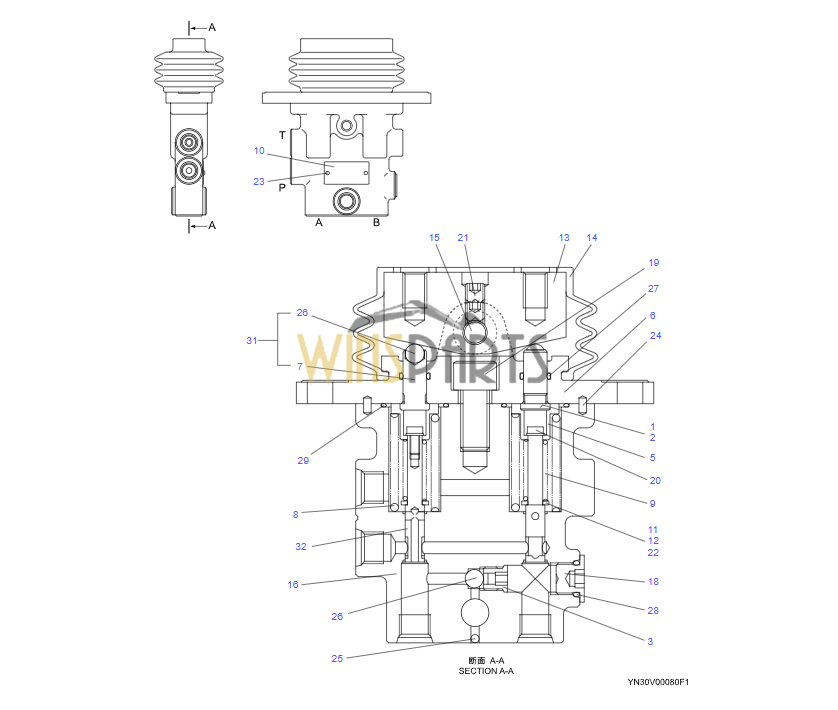

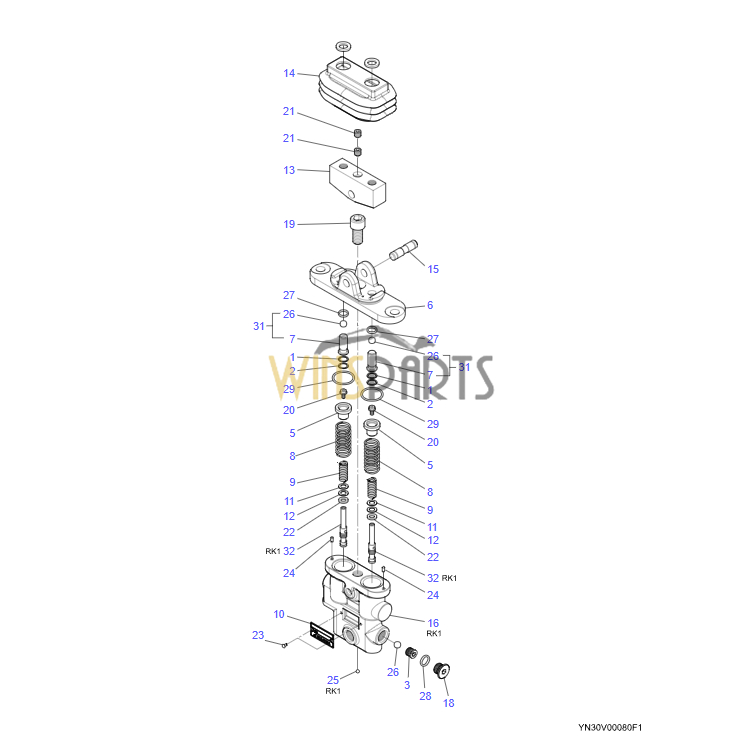

YN30V00080F1 PILOT VALVE KOBELCO SK130LC-11 SK140LC-11 SK125SR-5 SK130SR-7
　 .
　 1 2436U1142S13 SHIM (0.1) 2
　 2 2436U1487S7 SHIM (0.2) 2
　 3 2436U2755S4 SEAT 1
　 5 2436U1354S5 SLEEVE 2
　 6 2436U1354S6 COVER 1
　 7 NO P/No PISTON 2
　 8 YR30V00004S012 SPRING 1
　 9 YR30V00013S009 SPRING 2
　 10 NO P/No NAME PLATE 1
　 11 2436U1354S25 SHIM (0.2) 2
　 12 YR30V00013S012 SHIM (0.1) 1
　 13 YN30V00022S015 CAM 1
　 14 YN30V00022S016 BOOT 1
　 15 YN30V00022S017 PIN 1
　 16 NO P/No BODY 2 R1
　 18 2436U2412S26 PLUG 1
　 19 ZS23C12025 CAPSCREW 1
　 20 2436U1354S15 BOLT 2
　 21 ZS83C08008 SETSCREW 2
　 22 2436U1354S16 WASHER 2
　 23 YN30V00080S023 SCREW 2
　 24 2436U2888S24 PIN 2
　 25 NO P/No BALL 1 R1
　 26 2436U1487S37 BALL 3
　 27 ZD11P01000 O-RING 2
　 28 ZD12P01100 O-RING 1
　 29 YN30V00080S029 O-RING 2
　 31 2436U1354S26 PISTON ASSY 2
　 32 NO P/No SPOOL 2 R1
　 .
　 YN30V00080R200 REPAIR KIT 1 RK1

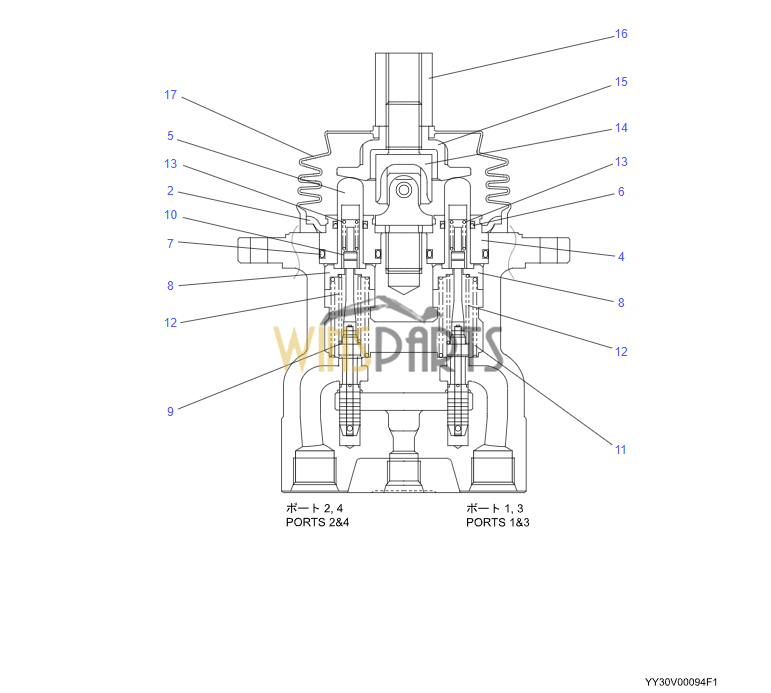

YY30V00094F1 PILOT VALVE KOBELCO SK125SR-5 SK130SR-5 SK130UR-5 SK135SRD-5 SK135SRLC-5
　 .
　 2 YT30V00008S151 PLATE 1
　 4 2436U1277S211 PLUG 4
　 5 2436U1277S212 ROD 4
　 6 2436U1277S213 SEAL 4
　 7 ZD12P02000 O-RING 4
　 8 YT30V00008S216 SEAT 4
　 9 2436U1277S217 WASHER 4
　 10 LQ30V00033S218 SEAT 4
　 11 LQ30V00043S221 SPRING 4
　 12 YY30V00094S241 SPRING 4
　 13 LQ30V00033S246 SPRING 4
　 14 2436U2581S301 JOINT 1
　 15 YT30V00008S302 PLATE 1
　 16 YT30V00008S312 NUT 1
　 17 YY30V00094S501 COVER 1

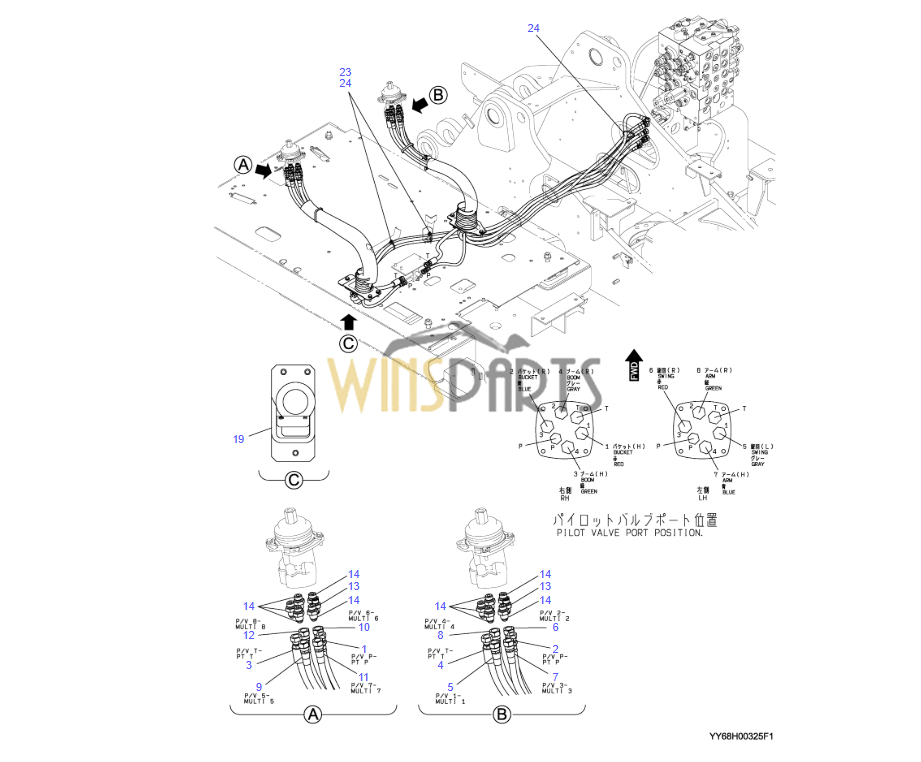

YY68H00325F1 CONTROL LINES, REMOTE HOSE KOBELCO SK135SRLC-5 SK140SRL-5 SK140SRLC-5 ED160(BR)-5
　 .
　 1 LS68H01016D7 HOSE 1
　 2 LC68H01120DN HOSE 1
　 3 LQ68H01032D2 HOSE 1
　 4 LQ68H01032DB HOSE 1
　 5 HX23L06210CR HOSE 1
　 6 HX23L06210CB HOSE 1
　 7 HX23L06210CG HOSE 1
　 7 HX23L06205CG HOSE 1
　 8 HX23L06210CH HOSE 1
　 9 YN68H01128D3 HOSE 1 YY09045001–45002
　 9 HX23H06295CH HOSE 1
　 9 HX23L06305CH HOSE 1
　 10 HX23L06290CR HOSE 1
　 11 HX23H06290CB HOSE 1
　 11 HX23L06285CB HOSE 1
　 12 YN68H01127D2 HOSE 1
　 13 HH25X04004G2 CONNECTOR 2
　 14 ZH22X06000 CONNECTOR 10
　 15 PH03M01250P1 BOOT 1
　 16 YY03M01046P1 BOOT 1
　 17 YN68H01106P1 COVER 1
　 19 YT68H01066P1 RUBBER 1
　 20 YT68H01057P1 SUPPORT 1
　 21 YT68H01060P1 SUPPORT 1
　 22 ZM73C08020 SEMS-BOLT 5
　 22 ZM73C08025 SEMS-BOLT 5
　 23 YN13E01375P1 CLIP 2
　 24 PY01P01043D5 CLIP 2
　 24 PY01P01043D5 CLIP 3
　 25 PY01P01043D8 CLIP 4
　 26 LQ68H01030D2 COVER 1
　 27 YY12P01039F1 CLAMP 1
　 27-1 YY12P01040P1 PLATE 1
　 27-2 YN12P01175P1 RUBBER 1
　 28 YN12P01164F1 CLAMP 2
　 28-1 YN12P01165P1 PLATE 1
　 28-2 YN12P01166P1 RUBBER 1
　 29 ZS28C06020 CAPSCREW 3

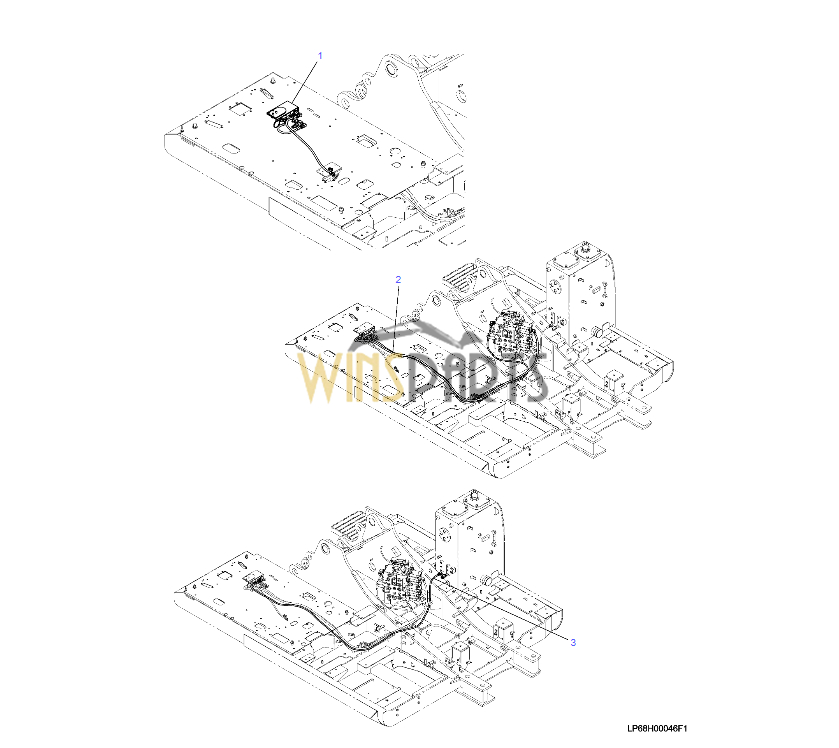

LP68H00046F1 YY68H00320F1 CONTROL LINES,REMOTE KOBELCO SK130LC-11 SK140LC-11
　 .
230-01_YY68H00320F1_KCM-EUR-02_D0003591662_1 1 YY68H00320F1 CONTROL LINES,REMOTE 1 P.230-01
230-02_LP68H00040F1_NA-01_D0003591496_1 2 LP68H00040F1 CONTROL LINES,REMOTE 1 P.230-02
230-03_LP68H00045F1_NA_D0003591497_1 3 LP68H00045F1 CONTROL LINES,REMOTE 1 P.230-03

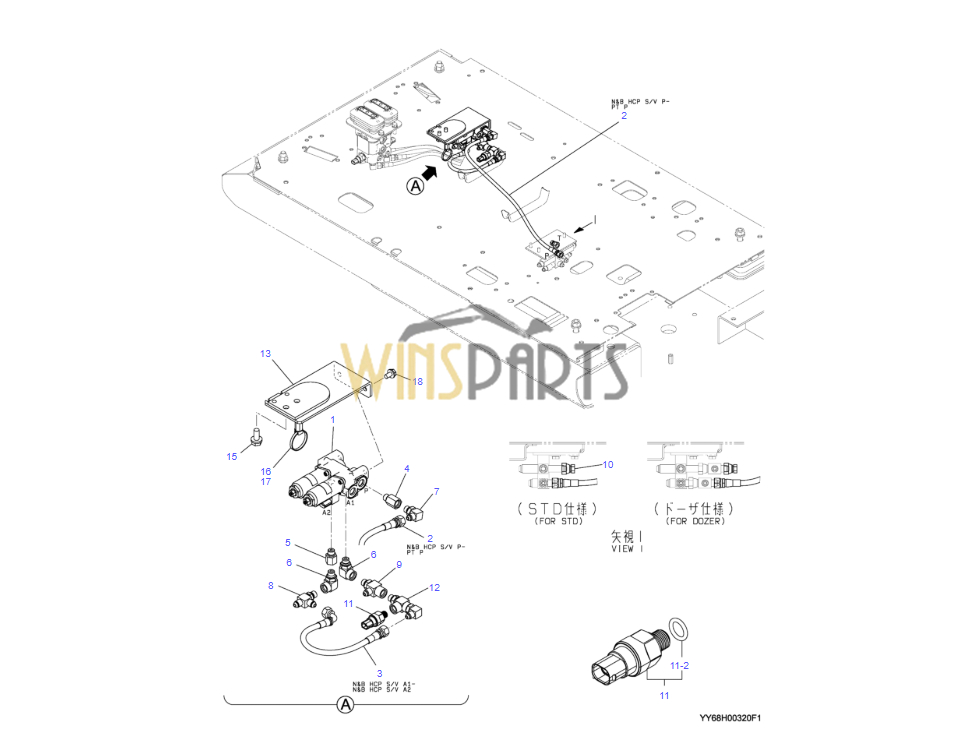

YY68H00320F1 HH25R04004G5 YX42H01085P1 CONTROL LINES,REMOTE
　 .
HC230-01_YY35V00024F1_KCM-EUR_D0003591643_1 1 YY35V00024F1 VALVE ASSY, SOLENOID 1 HC 230-01
　 2 HX23L04076CD HOSE 1
　 3 HX33L04034DY HOSE 1
　 4 HH25R04004G5 CONNECTOR 1
　 5 YX42H01085P1 CONNECTOR 1
　 6 2444Z2894 ELBOW 2
　 7 ZH32X04000 ELBOW, 90 1
　 8 2444Z2336 TEE 1
　 9 2444Z2461 TEE 1
　 10 2444Z2729D1 PLUG 1
　 11 YN52S00102P1 SENSOR, PRESS 1 LP10030520–30912
　 11-2 ZD12P01100 O-RING 1
　 11 YN52S00214P1 SENSOR, PRESS 1 LP10030913-
　 11-2 ZD12P01100 O-RING 1
　 12 YY26V00002F1 VALVE, SHUTTLE 1
　 13 YY64H01439P2 BRACKET 1
　 15 ZM73C10025 SEMS-BOLT 2
　 16 PY01P01043D5 CLIP 1
　 17 YN13E01375P1 CLIP 1
　 18 ZM73C08016 SEMS-BOLT 2

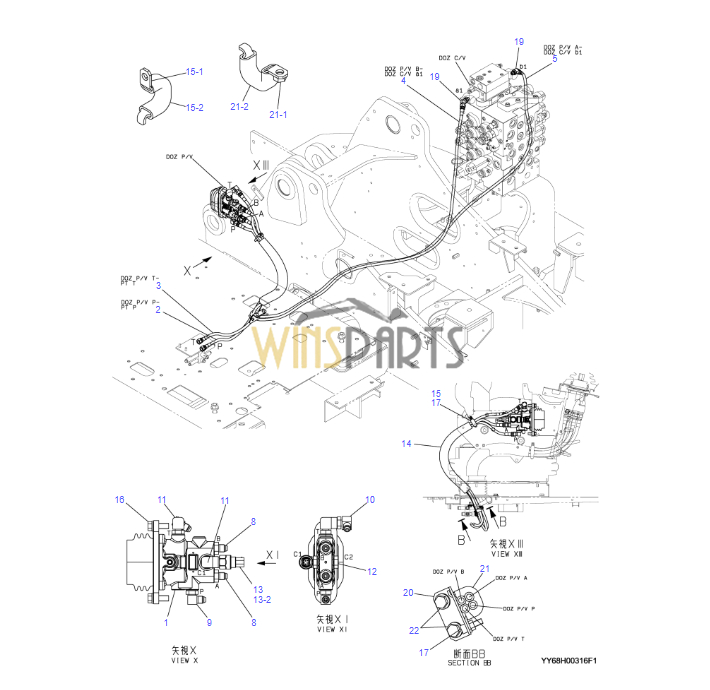

YY68H00316F1 CONTROL LINES, REMOTE
　 .
HC233-00_YY30V00061F2_KCM-EUR-01_D0003623268_1 1 YY30V00061F2 VALVE, PILOT 1 HC 233-00
　 2 HX23L04115CD HOSE 1
　 3 2420R349D120 HOSE 1
　 4 2420R349D245 HOSE 1
　 5 2420R349D280 HOSE 1
　 8 ZH22X04000 CONNECTOR 2
　 9 HH35X04004G3 ELBOW 1 LH04006001-
　 . YV09020003–20178
　 . YY09045001–47657
　 9 HH35X04004G9 ELBOW 1 YV09020179-
　 . YY09047658-
　 10 ZH32X04000 ELBOW, 90 1
　 11 2444Z2894 ELBOW 2
　 12 ZE72X04000 PLUG 1
　 13 YN52S00102P1 SENSOR, PRESS 1
　 13-2 ZD12P01100 O-RING 1
　 14 YN68H01106P1 COVER 1
　 15 YY68H01079F1 CLAMP 1
　 15-1 YY68H01080P1 PLATE 1
　 15-2 YY12P01051P1 RUBBER 1
　 16 HM83C10030G1 SEMS-BOLT 2
　 17 ZS28C06020 CAPSCREW 2
　 19 ZH42X04000 ELBOW, 45 2
　 20 YY68H01073P1 PLATE 1
　 21 YY68H01091F1 CLAMP 1
　 21-1 YY68H01092P1 PLATE 1
　 21-2 YY12P01051P1 RUBBER 1
　 22 ZM73C08016 SEMS-BOLT 2 YY09045001–45014
　 22 ZM73C08020 SEMS-BOLT 2 LH04006001-

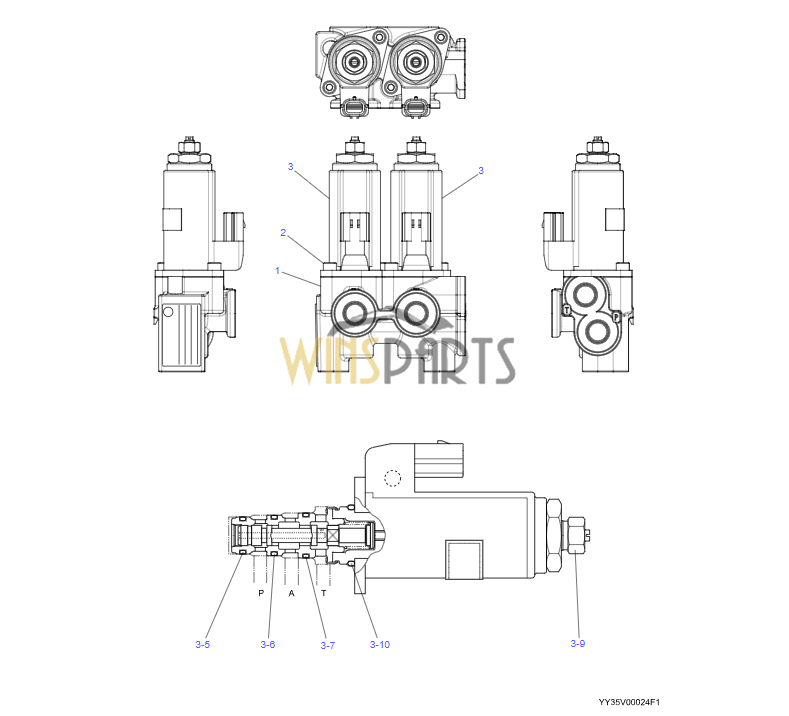

YY35V00024F1 YN35V00048F2 VALVE ASSY, SOLENOID
　 .
　 1 LQ35V00005S101 BODY 1
　 2 ZS23C05012 BOLT 4
　 3 YN35V00048F2 VALVE, SOLENOID 2
　 3-5 YN35V00004S361 O-RING 1
　 3-6 YN35V00004S362 O-RING 1
　 3-7 YN35V00004S363 O-RING 1
　 3-9 YN35V00018S802 NUT 1
　 3-10 ZD12P02000 O-RING 1

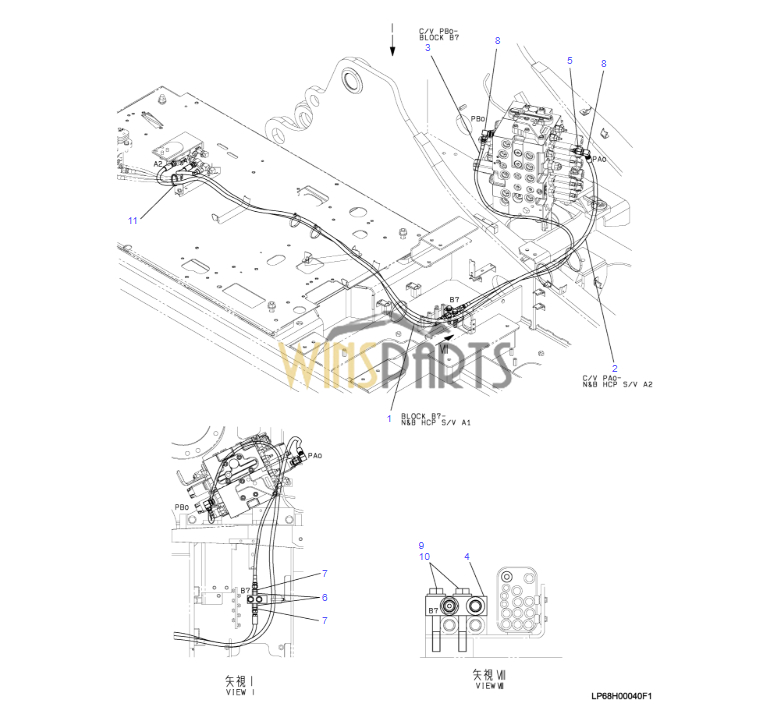

LP68H00040F1 YX42H01085P1 YX42H01085P1 CONTROL LINES CONNECTOR KOBELCO SK130LC-11 SK140LC-11 SK125SR-5
　 .
　 1 ZX23M04175 HOSE 1
　 2 YF68H01017D3 HOSE 1
　 3 2420R349D145 HOSE 1
　 4 LQ64H01125P1 BLOCK 1
　 5 2444Z2891 CONNECTOR 1
　 6 YX42H01085P1 CONNECTOR 2
　 7 ZH22X04000 CONNECTOR 2
　 8 ZH32X04006 ELBOW 2
　 9 ZS18C10075 CAPSCREW 2
　 10 ZW16H10000 WASHER 2
　 11 PY01P01043D5 CLIP 1 LP10030164-
LP68H00094F1 CONTROL LINES,REMOTE Not Service
　 .
　 1 ZX23M04175 HOSE 1
　 2 YF68H01017D3 HOSE 1
　 3 2420R349D150 HOSE 1
　 4 YY42H01310P1 CONNECTOR 1
　 5 2444Z2891 CONNECTOR 1
　 6 ZH32X04006 ELBOW 2
　 7 PY01P01043D5 CLIP 1
　 8 PA42H01004P1 NUT 1
LP68H00045F1 CONTROL LINES,REMOTE Not Service
　 .
　 1 2420R349D305 HOSE 1
　 2 ZH32X04000 ELBOW, 90 1
　 3 ZH32X04006 ELBOW 1
　 4 HH55Q06006G1 TEE 1
LP68H00044F1 CONTROL LINES,REMOTE Not Service
　 . (NIBBLER & BREAKER HAND CONTROL PROPORTIONAL + DOZER, VALVE OF NISHINA INDUSTRIAL)
　 .
1 LP68H00043F1 CONTROL LINES,REMOTE 1 P.230-01
2 LP68H00034F1 CONTROL LINES,REMOTE 1 P.230-02
3 YT68H00162F1 CONTROL LINES,REMOTE 1 P.230-03

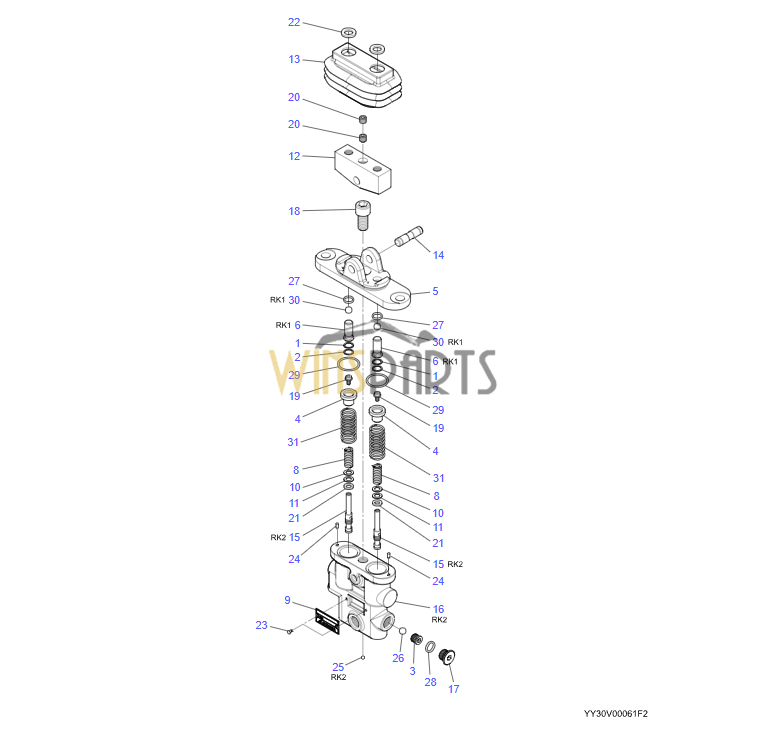

YY30V00061F2 PILOT VALVE KOBELCO SK130LC-11 SK140LC-11 SK125SR-5 SK130SR-7 SK140SRLC-7
　 .
　 1 2436U1142S13 SHIM (0.1) 2
　 2 2436U1487S7 SHIM (0.2) 2
　 3 2436U2755S4 SEAT 1
　 4 2436U1354S5 SLEEVE 2
　 5 2436U1354S6 COVER 1
　 6 NO P/No PISTON 2 R1
　 8 YR30V00013S009 SPRING 2
　 9 NO P/No NAME PLATE 1
　 10 2436U1354S25 SHIM (0.2) 2
　 11 YR30V00013S012 SHIM (0.1) 2
　 12 YN30V00022S015 CAM 1
　 13 YN30V00022S016 BOOT 1
　 14 YN30V00022S017 PIN 1
　 15 NO P/No SPOOL 2 R2
　 16 NO P/No BODY 1 R2
　 17 2436U2412S26 PLUG 1
　 18 ZS23C12025 CAPSCREW 1
　 19 2436U1354S15 BOLT 2
　 20 ZS83C08008 SETSCREW 2
　 21 2436U1354S16 WASHER 2
　 22 NO P/No WASHER 2
　 23 YN30V00080S023 SCREW 2
　 24 2436U2888S24 PIN 2
　 25 NO P/No BALL 1 R2
　 26 2436U1487S37 BALL 1
　 27 ZD11P01000 O-RING 2
　 28 ZD12P01100 O-RING 1
　 29 YN30V00080S029 O-RING 2
　 30 NO P/No BALL 2 R1
　 31 YY30V00061S031 SPRING 2
　 .
　 2436U1354S26 PISTON KIT 2 RK1
　 . (6, 30)X1
　 .
　 YY30V00061R200 SPOOL KIT 1 RK2

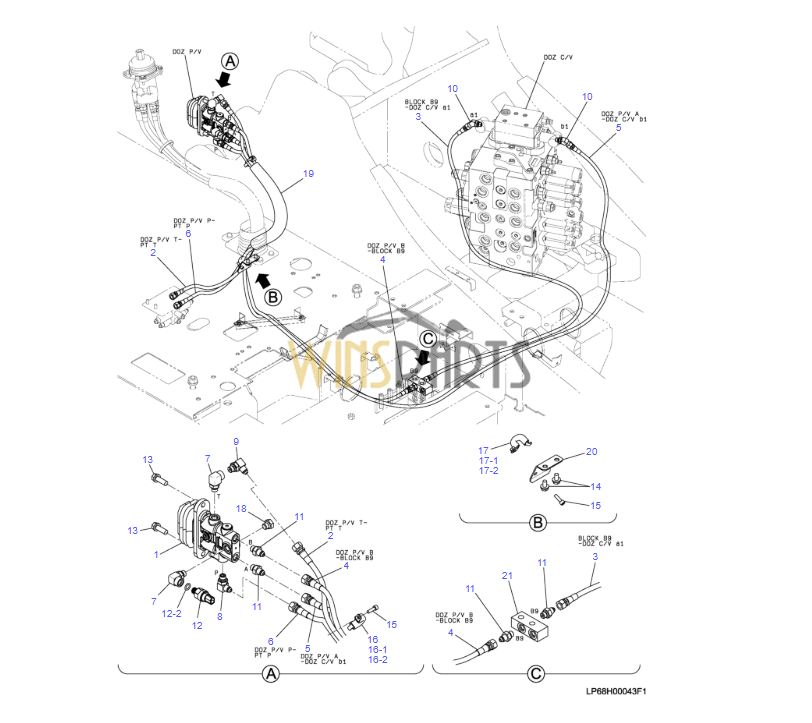

LP68H00043F1 2420R349D120 YY30V00061F2 VALVE, PILOT CONTROL LINES,REMOTE KOBELCO
　 .
1 YY30V00061F2 VALVE, PILOT 1 HC 233-00
　 2 2420R349D120 HOSE 1
　 3 2420R349D165 HOSE 1
　 4 2420R349D185 HOSE 1
　 5 2420R349D335 HOSE 1
　 6 HX23L04115CD HOSE 1
　 7 2444Z2894 ELBOW 2
　 8 HH35X04004G3 ELBOW 1
　 9 ZH32X04000 ELBOW, 90 1
　 10 ZH42X04000 ELBOW, 45 2
　 11 ZH22X04000 CONNECTOR 4
　 12 YN52S00102P1 SENSOR, PRESS 1
　 12-2 ZD12P01100 O-RING 1
　 13 HM83C10030G1 SEMS-BOLT 2
　 14 ZM73C08016 SEMS-BOLT 2 LP10030001–30114
　 14 ZM73C08020 SEMS-BOLT 2 LP10030115-
　 15 ZS28C06020 CAPSCREW 2
　 16 YY68H01079F1 CLAMP 1
　 16-1 YY68H01080P1 PLATE 1
　 16-2 YY12P01051P1 RUBBER 1
　 17 YY68H01091F1 CLAMP 1
　 17-1 YY68H01092P1 PLATE 1
　 17-2 YY12P01051P1 RUBBER 1
　 18 ZE72X04000 PLUG 1
　 19 YN68H01106P1 COVER 1
　 20 YY68H01073P1 PLATE 1
　 21 LQ64H01125P1 BLOCK 1
YN30V00080R200 YN30V00080F1 PILOT VALVE KOBELCO SK130LC-11 SK140LC-11 SK125SR-5
　 1 2436U1142S13 SHIM (0.1) 2
　 2 2436U1487S7 SHIM (0.2) 2
　 3 2436U2755S4 SEAT 1
　 5 2436U1354S5 SLEEVE 2
　 6 2436U1354S6 COVER 1
　 7 NO P/No PISTON 2
　 8 YR30V00004S012 SPRING 1
　 9 YR30V00013S009 SPRING 2
　 10 NO P/No NAME PLATE 1
　 11 2436U1354S25 SHIM (0.2) 2
　 12 YR30V00013S012 SHIM (0.1) 1
　 13 YN30V00022S015 CAM 1
　 14 YN30V00022S016 BOOT 1
　 15 YN30V00022S017 PIN 1
　 16 NO P/No BODY 2 R1
　 18 2436U2412S26 PLUG 1
　 19 ZS23C12025 CAPSCREW 1
　 20 2436U1354S15 BOLT 2
　 21 ZS83C08008 SETSCREW 2
　 22 2436U1354S16 WASHER 2
　 23 YN30V00080S023 SCREW 2
　 24 2436U2888S24 PIN 2
　 25 NO P/No BALL 1 R1
　 26 2436U1487S37 BALL 3
　 27 ZD11P01000 O-RING 2
　 28 ZD12P01100 O-RING 1
　 29 YN30V00080S029 O-RING 2
　 31 2436U1354S26 PISTON ASSY 2
　 32 NO P/No SPOOL 2 R1
　 .
　 YN30V00080R200 SPOOL KIT 1 RK1
　 . (16, 25)X1
　 . (32)X2

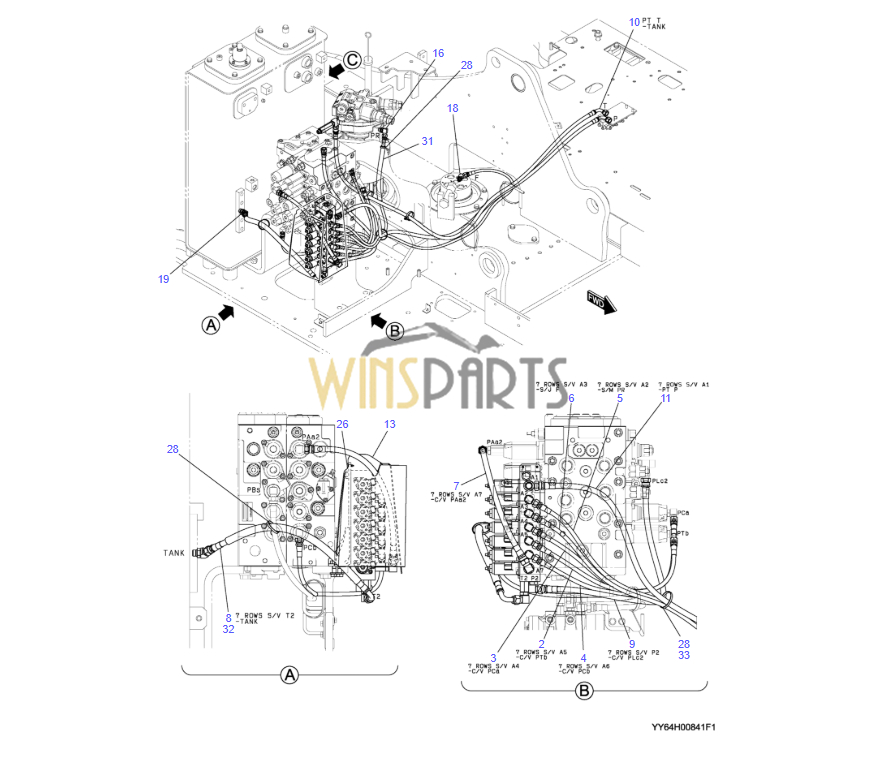

LP64H00074F1 YY35V00019F1 CONTROL LINES SOLENOID VALVE
HC251-01_YY35V00019F1_KCM-EUR_D0003591622_1 1 YY35V00019F1 VALVE ASSY, SOLENOID 1 HC 251-01
　 2 HX33L06210CD HOSE 1
　 3 HX33L06230DX HOSE 1
　 4 HX33L06165DX HOSE 1
　 5 2420R537D170 HOSE 1
　 6 2420R537D032 HOSE 1 LP10030001–30002
　 6 ZX33M06030 HOSE 1 LP10030003-
　 7 2420R349D150 HOSE 1
　 8 2420R349D140 HOSE 1
　 9 2420R349D115 HOSE 1
　 10 2420R349D080 HOSE 1
　 11 2420R349D076 HOSE 1
　 12 HH25R06006GE CONNECTOR 1
　 13 HH25R06006GD CONNECTOR 1
　 14 2444Z2891 CONNECTOR 1
　 15 ZH22X06000 CONNECTOR 2
　 16 HH35X06006G3 ELBOW 1
　 17 ZH32X04000 ELBOW, 90 1
　 18 ZH32X06000 ELBOW, 90 3
　 18-1 ZD12P01400 O-RING 1
　 19 ZH42X04000 ELBOW, 45 6
　 20 ZS18C10090 CAPSCREW 1
　 21 ZM73C10030 SEMS-BOLT 1
　 22 ZW16H10000 WASHER 1
　 23 YN13E01375P1 CLIP 2
　 24 HX80X15076DX TUBE 1
　 25 PY01P01043D3 CLIP 7 LP10030001–30002
　 25 PY01P01043D3 CLIP 6 LP10030003–30014
　 25 PY01P01043D3 CLIP 7 LP10030015-
　 26 PY01P01043D8 CLIP 8 LP10030001–30002
　 26 PY01P01043D8 CLIP 9 LP10030003–30014
　 26 PY01P01043D8 CLIP 8 LP10030015-
　 27 HX80X13020DX TUBE 3
　 28 HX80X15020DX TUBE 1 LP10030001–30002
YY64H00841F1 CONTROL LINES, VALVE Not Service
　 .
HC251-01_YY35V00019F1_KCM-EUR_X1_D0003588793_1 1 YY35V00019F1 VALVE ASSY, SOLENOID 1 HC 251-01
　 2 2420R349D058 HOSE 1
　 3 2420R349D068 HOSE 1
　 4 2420R349D088 HOSE 1
　 5 2420R349D125 HOSE 1
　 6 2420R349D170 HOSE ASSY 1
　 7 2420R537D048 HOSE 1
　 8 HX33L06052DX HOSE 1 LK09006001–06001
　 . YV09020001–20002
　 . YY09045001–45257
　 8 HX33L06056DX HOSE 1 LK09006002-
　 . YV09020003-
　 . YY09045258-
　 9 2420R537D088 HOSE 1
　 10 HX33H06200DX HOSE 1 LK09006001–06004
　 . YV09020001–20002
　 . YY09045001–46176
　 10 HX33L06200DX HOSE 1 LK09006005-
　 . YV09020003-
　 . YY09046177-
　 11 YY64H01425D1 HOSE 1
　 12 YY64H01461P1 BRACKET 1
　 13 YY64H01453P1 RUBBER 1
　 14 HH35X06006G3 ELBOW 1
　 15 YT42H01128P1 ELBOW 1 LK09006001–06004
　 . YV09020001–20002
　 . YY09045001–46176
　 16 ZH32X04000 ELBOW, 90 6
　 17 ZH32X06000 ELBOW, 90 2 LK09006001–06004
　 . YV09020001–20002
　 . YY09045001–46176
　 17-1 ZD12P01400 O-RING 1
　 17 ZH32X06000 ELBOW, 90 3 LK09006005-
　 . YV09020003-
　 . YY09046177-
　 17-1 ZD12P01400 O-RING 1
　 18 ZH42X04000 ELBOW, 45 1
　 19 ZH42X06000 ELBOW 1
　 20 HH25R06006G1 CONNECTOR 2 LK09006001–06009
　 . YV09020001–20218
　 . YY09045001–48039
　 20 HH25R06006G1 CONNECTOR 1 LK09006010-
　 . YV09020219-
　 . YY09048040-
　 21 YN64H01559P1 CONNECTOR 1 LK09006001–06004
　 . YV09020001–20002
　 . YY09045001–46176
　 22 2444Z3502 CONNECTOR 1 LK09006001–06004
　 . YV09020001–20002
　 . YY09045001–46176
　 23 ZM73C10025 SEMS-BOLT 1
　 24 ZS18C10085 CAPSCREW 1
　 25 ZW16H10000 WASHER 1
　 26 YY21C01070P1 CLIP 2
　 27 YN13E01375P1 CLIP 2
　 28 PY01P01043D3 CLIP 2
　 29 PY01P01043D8 CLIP 2
　 30 ZM73C10040 SEMS-BOLT 2
　 31 HX80X13025DX TUBE 1
　 32 HX80X15042DX TUBE 1 LK09006002-
　 . YV09020003-
　 . YY09045258-
　 33 PY01P01043D5 CLIP 1 LK09006002-
　 . YV09020003-
　 . YY09045258-
　 34 2444Z2891 CONNECTOR 1 LK09006010-

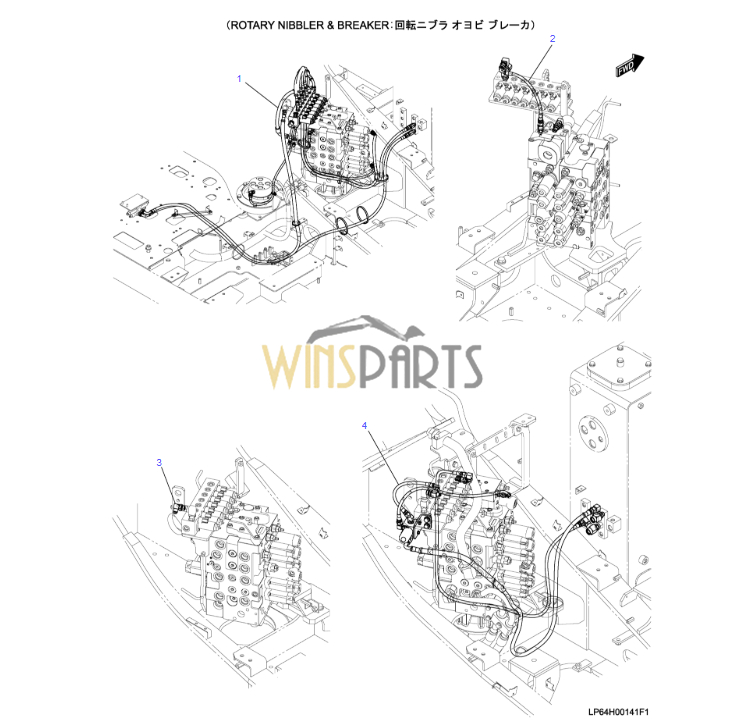

LP64H00141F1 CONTROL LINES, VALVE
　 .
250-01_LP64H00098F1_NA-01_D0005555008_1 1 LP64H00098F1 CONTROL LINES, VALVE 1 P.250-01
250-02_LP64H00099F1_NA-02_D0005555009_1 2 LP64H00099F1 CONTROL LINES, VALVE 1 P.250-02
250-03_LP64H00071F1_NA-01_D0003591501_1 3 LP64H00071F1 CONTROL LINES, VALVE 1 P.250-03
250-04_LP64H00101F1_NA-01_D0005584905_1 4 LP64H00101F1 CONTROL LINES, VALVE 1 P.250-04
LP64H00098F1 CONTROL LINES, VALVE Not Service
　 .
HC251-01_YY35V00019F1_KCM-EUR_D0003591622_1 1 YY35V00019F1 VALVE ASSY, SOLENOID 1 HC 251-01
　 2 HX33L06210CD HOSE 1
　 3 HX33L06230DX HOSE 1
　 4 HX33L06170DX HOSE 1
　 5 2420R537D170 HOSE 1
　 6 ZX33M06040 HOSE 1
　 7 2420R349D155 HOSE 1
　 8 2420R349D145 HOSE 1
　 9 2420R349D120 HOSE 1
　 10 2420R349D082 HOSE 1
　 11 2420R349D080 HOSE 1
　 12 HH25R06006GE CONNECTOR 1
　 13 HH25R06006GD CONNECTOR 1
　 14 2444Z2891 CONNECTOR 1
　 15 ZH22X06000 CONNECTOR 2
　 16 HH35X06006G3 ELBOW 1
　 17 ZH32X04000 ELBOW, 90 1
　 18 ZH32X06000 ELBOW, 90 2
　 18-1 ZD12P01400 O-RING 1
　 19 ZH42X04000 ELBOW, 45 6
　 20 ZH42X06000 ELBOW 1
　 21 YT42H01128P1 ELBOW 1
　 22 ZS18C10090 CAPSCREW 1
　 23 ZM73C10030 SEMS-BOLT 1
　 24 ZW16H10000 WASHER 1
　 25 YN13E01375P1 CLIP 2
　 26 HX80X15076DX TUBE 1
　 27 HX80X13025DX TUBE 3
　 28 PY01P01043D3 CLIP 7
　 29 PY01P01043D8 CLIP 7
LP64H00075F1 CONTROL LINES, VALVE Not Service
　 .
　 1 HX33L04034DY HOSE 1
　 2 2444Z2891 CONNECTOR 1
　 3 HH25R04004G5 CONNECTOR 1
　 4 2444Z2894 ELBOW 2
　 5 YT42H01128P1 ELBOW 1
　 6 ZH32X04000 ELBOW, 90 1
　 7 HH55Q06006G1 TEE 1
　 8 YN52S00102P1 SENSOR, PRESS 1
　 8-2 ZD12P01100 O-RING 1
LP64H00099F1 CONTROL LINES, VALVE Not Service
　 .
　 1 HX33L04032DY HOSE 1
　 2 2444Z2891 CONNECTOR 1
　 3 HH25R04004G5 CONNECTOR 1
　 4 2444Z2894 ELBOW 2
　 5 YT42H01128P1 ELBOW 1
　 6 ZH32X04000 ELBOW, 90 1
　 7 HH55Q06006G1 TEE 1
　 8 YN52S00102P1 SENSOR, PRESS 1 LP10030194–30924
　 8-2 ZD12P01100 O-RING 1
　 8 YN52S00214P1 SENSOR, PRESS 1 LP10030925-
　 8-2 ZD12P01100 O-RING 1
LP64H00071F1 CONTROL LINES, VALVE Not Service
　 .
　 1 ZH32X06000 ELBOW, 90 1
　 1-1 ZD12P01400 O-RING 1
LP62H00004F1 CONTROL LINES,PROPEL
　 .
　 1 2420R349D120 HOSE 1
　 2 2420R349D195 HOSE 1
　 3 2420R349D205 HOSE 1 LP10030001–30002
　 3 2420R349D200 HOSE 1 LP10030003-
　 4 2420R349D290 HOSE 1
　 5 2420R349D300 HOSE 1
　 6 HX33L04125DY HOSE 1
　 7 LC64H01214P1 SUPPORT 1
　 8 LQ64H01125P1 BLOCK 1
　 9 2444T2524D2 CONNECTOR 4
　 10 ZH22X04000 CONNECTOR 5
　 11 ZW16H10000 WASHER 2
　 12 ZS18C10050 CAPSCREW 2
　 13 PY01P01043D8 CLIP 5
　 14 YN13E01375P1 CLIP 4
　 15 LP64H01072P1 RUBBER 1
　 16 2420R349D082 HOSE 1
　 17 HX23L04088CD HOSE 1 LP10030001–30002
　 17 HX23L04086CD HOSE 1 LP10030003-
　 19 HH25X04004G2 CONNECTOR 1
　 20 ZH32X04000 ELBOW, 90 4
　 21 YN52S00102P1 SENSOR, PRESS 2
　 21-2 ZD12P01100 O-RING 1
　 22 PY01P01043D3 CLIP 1 LP10030001–30002
　 23 LP62H01008P1 PLATE 1 LP10030001–30002
　 23 LP62H01008P2 PLATE 2 LP10030003-
　 24 LP03H01515P1 SUPPORT 1 LP10030001–30002
　 24 LP62H01010P1 SUPPORT 1 LP10030003-
　 25 ZM73C08020 SEMS-BOLT 2 LP10030001–30002
　 25 ZM73C08020 SEMS-BOLT 4 LP10030003-
　 26 ZM73C10025 SEMS-BOLT 2
YY62H00042F1 CONTROL LINES,PROPEL Not Service
　 .
270-02_YY62H00043F1_NA-05_D0003588612_1 1 YY62H00043F1 CONTROL LINES,PROPEL 1 P.270-02
270-01_YT64H00306F1_KCM-EUR-03_D0003588822_1 2 YT64H00306F1 VALVE INSTAL 1 P.270-01
YY62H00043F1 CONTROL LINES, PROPEL Not Service
　 .
　 2 HX23H04225DY HOSE 2
　 3 2420R349D260 HOSE 2
　 4 2420R349D082 HOSE 1
　 5 HX23L04088CD HOSE 1 YY09045001–45002
　 5 HX23L04086CD HOSE 1 LH04006001-
　 . LK09006001-
　 . YV09020001-
　 . YY09045003-
　 6 ZH32X04000 ELBOW, 90 4
　 7 ZH22X04000 CONNECTOR 1
　 8 HH25X04004G2 CONNECTOR 1
　 9 YF62H01001P1 RUBBER 1 YY09045001–45007
　 10 YN52S00102P1 SENSOR, PRESS 2
　 10-2 ZD12P01100 O-RING 1
　 11 PY01P01043D8 CLIP 3 YY09045001–45002
　 11 PY01P01043D8 CLIP 4 LH04006001-
　 . LK09006001-
　 . YV09020001-
　 . YY09045003-
　 12 PY01P01043D3 CLIP 1 YY09045001–45002
　 13 LP62H01008P2 PLATE 1 LK09006001-
　 . YV09020001-
　 . YY09045008-
　 14 YY62H01003P1 PLATE 1 LK09006001-
　 . YV09020001-
　 . YY09045008-
　 15 ZM73C08020 SEMS-BOLT 4 LK09006001-
　 . YV09020001-
　 . YY09045008-

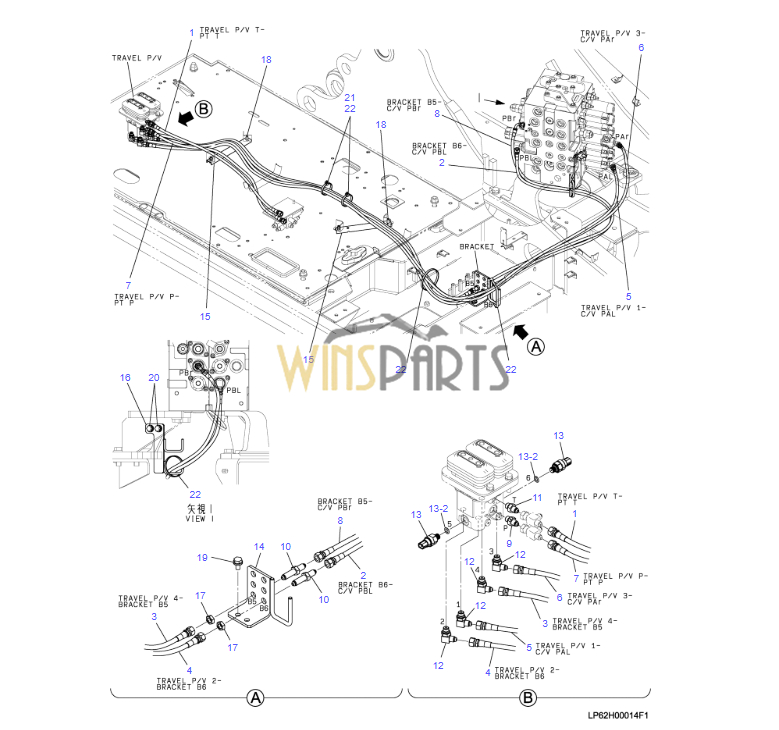

LP62H00014F1 CONTROL LINES,PROPEL
　 .
　 1 2420R349D082 HOSE 1
　 2 2420R349D130 HOSE 1
　 3 2420R349D195 HOSE 1
　 4 2420R349D200 HOSE 1
　 5 2420R349D290 HOSE 1
　 6 2420R349D300 HOSE 1
　 7 HX23L04086CD HOSE 1
　 8 HX33L04140DY HOSE 1
　 9 HH25X04004G2 CONNECTOR 1
　 10 LQ68H01083P1 CONNECTOR 2
　 11 ZH22X04000 CONNECTOR 1
　 12 ZH32X04000 ELBOW, 90 4
　 13 YN52S00102P1 SENSOR, PRESS 2 LP10030520–30924
　 13-2 ZD12P01100 O-RING 1
　 13 YN52S00214P1 SENSOR, PRESS 2 LP10030925-
　 13-2 ZD12P01100 O-RING 1
　 14 LP62H01016P1 BRACKET 1
　 15 LP62H01008P2 PLATE 2
　 16 LP62H01010P1 SUPPORT 1
　 17 PA42H01004P1 NUT 2
　 18 ZM73C08020 SEMS-BOLT 4
　 19 ZM73C10020 SEMS-BOLT 2
　 20 ZM73C10025 SEMS-BOLT 2
　 21 YN13E01375P1 CLIP 2
　 22 PY01P01043D8 CLIP 5
YT64H00307F1 CONTROL LINES, BLOCK
　 1 YT64H01274P1 BLOCK 1
　 2 ZM73C08020 SEMS-BOLT 3

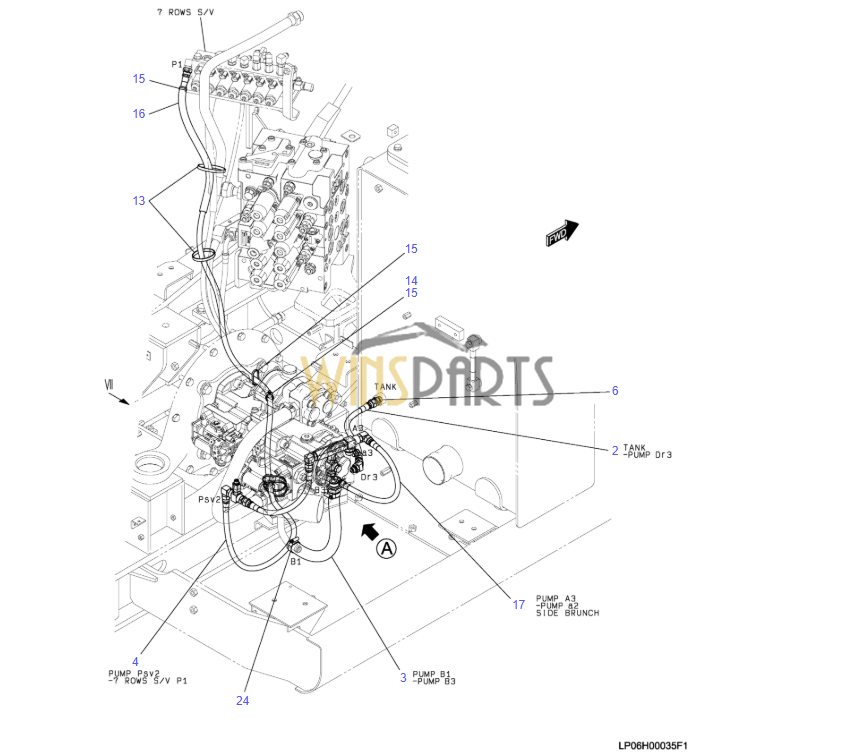

LP06H00035F1 YN50V00020F1 CONTROL LINES, PUMP HOSE
　 .
　 1 2420R537D032 HOSE 1
　 2 2420R537D042 HOSE 1
　 3 PW32H01038DU HOSE 1
　 4 2420R537D220 HOSE 1
　 5 YN50V00020F1 FILTER, INLINE 1
　 6 ZH22X06000 CONNECTOR 2
　 7 LQ06H01017P1 CONNECTOR 1
　 8 HH25R04004G5 CONNECTOR 1
　 9 ZH42X06000 ELBOW 1
　 10 ZH32X06000 ELBOW, 90 3
　 10-1 ZD12P01400 O-RING 1
　 11 HH55Q04006G1 TEE 1
　 12 ZE72X04000 PLUG 2
　 13 PY01P01043D8 CLIP 2
　 14 YN13E01375P1 CLIP 1
　 15 PY01P01043D3 CLIP 3
　 16 HX80X15038DX TUBE 1
　 17 2420R537D052 HOSE 1
　 18 2444Z2516 CONNECTOR 1
　 19 LC06H01018P1 TEE 1
　 20 PH03H01066P1 TEE 1
　 21 LC06H01020P1 ELBOW 1
　 22 YF64H01069P1 BUSHING 1
　 23 PY01P01043D5 CLIP 2
　 24 ZC17X02800 CLIP 2

LP06H00015F1 CONTROL LINES, PUMP Not Service
　 .
　 1 2420R537D032 HOSE 1
　 2 2420R537D042 HOSE 1
　 3 ZX22M12044 HOSE 1
　 4 2420R537D220 HOSE 1
　 5 YN50V00020F1 FILTER, INLINE 1
　 6 ZH22X06000 CONNECTOR 2
　 7 ZH22X12000 CONNECTOR 1
　 8 HH25R04004G5 CONNECTOR 1
　 9 ZH42X06000 ELBOW 1
　 10 ZH32X06000 ELBOW, 90 2 LP10030001–30002
　 10-1 ZD12P01400 O-RING 1
　 10 ZH32X06000 ELBOW, 90 3 LP10030003-
　 10-1 ZD12P01400 O-RING 1
　 11 2444Z2345 ELBOW 1 LP10030001–30002
　 12 ZH32X12000 ELBOW, 90 1
　 14 HH55Q04006G1 TEE 1
　 15 ZE72X04000 PLUG 1 LP10030001–30002
　 15 ZE72X04000 PLUG 2 LP10030003-
　 16 PY01P01043D8 CLIP 3 LP10030001–30002
　 16 PY01P01043D8 CLIP 4 LP10030003–30009
　 16 PY01P01043D8 CLIP 2 LP10030010-
　 17 YN13E01375P1 CLIP 1
　 18 PY01P01043D3 CLIP 1 LP10030001–30009
　 18 PY01P01043D3 CLIP 3 LP10030010-
　 19 HX80X15038DX TUBE 1
　 20 2420R537D052 HOSE 1 LP10030003-
　 21 2444Z2516 CONNECTOR 1 LP10030003-
　 22 LC06H01018P1 TEE 1 LP10030003-
　 23 PH03H01066P1 TEE 1 LP10030003-
　 24 LC06H01020P1 ELBOW 1 LP10030003-
　 25 YF64H01069P1 BUSHING 1 LP10030010-
　 26 PY01P01043D5 CLIP 2 LP10030010-

Related Posts
