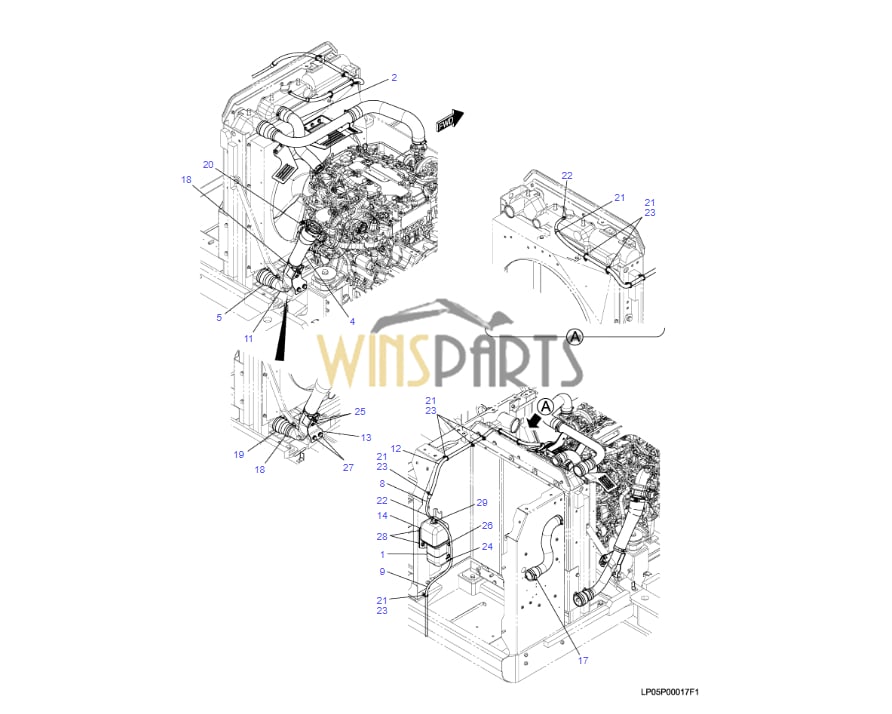

LP05P00017F1 YN05P01496F1 LP05P01068P1 RADIATOR KOBELCO SK130LC-11 SK140LC-11

LP05P00017F1 YN05P01496F1 LP05P01068P1 RADIATOR KOBELCO SK130LC-11 SK140LC-11
　 .
　 1 YN05P01496F1 TANK ASSY, WATER,SUB 1
　 2 LP05P01068P1 HOSE, RADIATOR 1
　 3 YY05P01751P1 HOSE, RADIATOR 1 LP10030001–30002
　 3 YY05P01751P2 HOSE, RADIATOR 1 LP10030003–30519
　 3 LP05P01069P1 HOSE, RADIATOR 1 LP10030520-
　 4 YY05P01640P1 HOSE 1
　 5 YY05P01442P1 HOSE 1
　 6 YY05P01720P1 HOSE 1
　 7 YY05P01522P1 HOSE 1
　 8 PV21M01001DD HOSE 1
　 9 HX11Y05100DX HOSE 1
　 10 LP05P01184P1 TUBE 1 LP10030001–30519
　 10 LP05P01292P1 TUBE 1 LP10030520-
　 11 LP05P01073P1 TUBE 1
　 12 HX81X13110DX TUBE 1
　 1 YN05P01496F1 TANK ASSY, WATER,SUB 1
　 2 LP05P01068P1 HOSE, RADIATOR 1
　 3 YY05P01751P1 HOSE, RADIATOR 1 LP10030001–30002
　 3 YY05P01751P2 HOSE, RADIATOR 1 LP10030003–30519
　 3 LP05P01069P1 HOSE, RADIATOR 1 LP10030520-
　 4 YY05P01640P1 HOSE 1
　 5 YY05P01442P1 HOSE 1
　 6 YY05P01720P1 HOSE 1
　 7 YY05P01522P1 HOSE 1
　 8 PV21M01001DD HOSE 1
　 9 HX11Y05100DX HOSE 1
　 10 LP05P01184P1 TUBE 1 LP10030001–30519
　 10 LP05P01292P1 TUBE 1 LP10030520-
　 11 LP05P01073P1 TUBE 1
　 12 HX81X13110DX TUBE 1
　 13 LP05P01136P1 BRACKET 1
　 14 YM05P01182P1 BRACKET 1
　 15 YY05P01704P1 GUARD 1
　 16 ZC16X05000 CLIP 2
　 17 ZC16X05800 CLIP 5
　 18 ZC16X06100 CLIP 2
　 19 ZC16X07000 CLIP 2
　 20 LS05P01413P1 CLIP 1
　 21 PY01P01043D3 CLIP 8
　 22 PH05P01088D5 CLIP 2
　 23 YN13E01375P1 CLIP 7
　 24 2432R233D2 CLIP 1
　 25 ZM73C08016 SEMS-BOLT 9
　 26 ZM73C08020 SEMS-BOLT 4
　 27 ZM73C10030 SEMS-BOLT 2
　 28 ZM73C12025 SEMS-BOLT 2
　 29 PH05P01088D6 CLIP 1
　 30 LP05P01142P1 GUARD 1 LP10030001–30519
　 30 LP05P01274P1 GUARD 1 LP10030520-
YY05P00113F1 RADIATOR GROUP
　 1 YN05P01496F1 TANK ASSY, WATER,SUB 1
　 2 YY05P01750P1 HOSE, RADIATOR 1
　 3 YY05P01751P2 HOSE, RADIATOR 1
　 4 YY05P01640P1 HOSE 1
　 5 YY05P01442P1 HOSE 1
　 6 YY05P01720P1 HOSE 1
　 7 YY05P01522P1 HOSE 1
　 8 HX11Y05094DX HOSE 1
　 9 PV21M01001DH HOSE 1
　 10 LP05P01073P1 TUBE 1
　 11 YY05P01753P1 TUBE 1
　 12 PU13E01002DA TUBE 1
　 13 YY05P01704P1 GUARD 1
　 14 YY05P01774P1 BRACKET 1
　 15 ZC16X05000 CLIP 2
　 16 ZC16X05800 CLIP 5
　 17 ZC16X06100 CLIP 2
　 18 ZC16X07000 CLIP 2
　 19 LS05P01413P1 CLIP 1
　 20 YN13E01375P1 CLIP 3
　 21 2432R233D2 CLIP 1
　 22 PH05P01088D5 CLIP 2
　 23 PY01P01043D3 CLIP 4
　 24 ZM73C08016 SEMS-BOLT 9
　 25 ZM73C08020 SEMS-BOLT 4
　 26 ZM73C10020 SEMS-BOLT 2
　 27 PH05P01088D6 CLIP 1
　 28 YY05P01890P1 GUARD 1
LP05P00018F1 RADIATOR INSTAL
050-01_LP05P00019F1_NA-04_D0003591543_1 1 LP05P00019F1 RADIATOR ASSY
050-02_LP05P00020F1_NA_D0003591561_1 2 LP05P00020F1 RADIATOR INSTAL

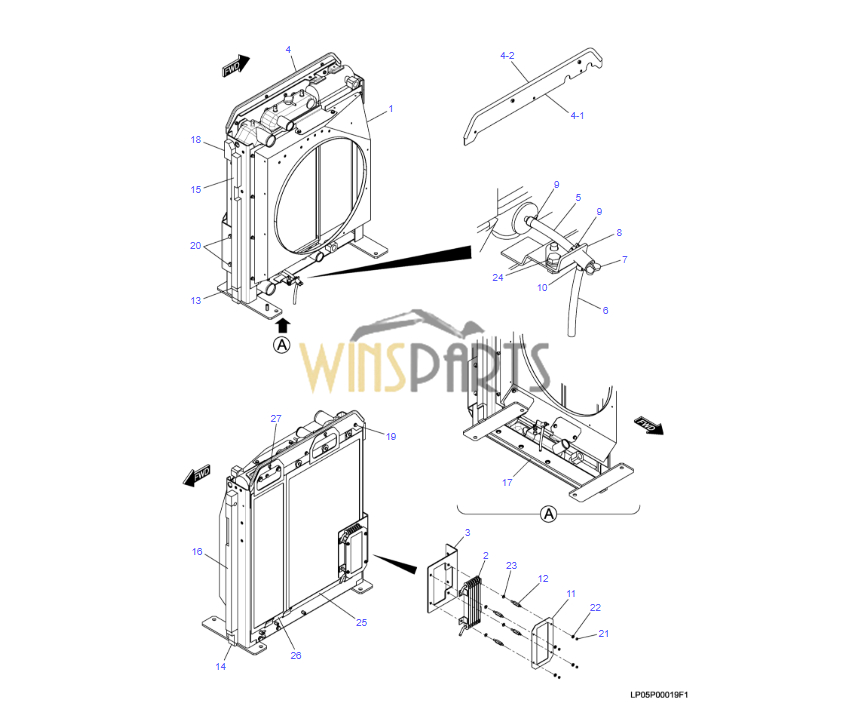

LP05P00035F1 LP05P00019F1 LP05P00035S003 LP05P00035S004 RADIATOR ASSY KOBELCO SK130LC-11 SK140LC-11
　 .
　 1 LP05P00035F1 RADIATOR ASSY 1 LP10030001–30084
　 1-1 LP05P00035S001 FRAME ASSY 1
　 1-2 LP05P00035S002 SHROUD 1
　 1-3 LP05P00035S003 COOLER, AIR 1
　 1-4 LP05P00035S004 RADIATOR 1 R1
　 1-5 YY05P00061S005 CAP 1 R1
　 1-6 YY05P00076S006 NUT 2
　 1-7 LP05P00035S007 COOLER, OIL 1
　 1-8 YY05P00076S008 BOLT 12
　 1-9 YY05P00061S009 MOUNT, RUBBER 3
　 1-10 YY05P00061S010 MOUNT, RUBBER 3
　 1-11 YY05P00061S011 COLLAR 3
　 1-12 YY05P00061S012 BOLT 3
　 1-13 YY05P00076S013 BOLT 4
　 1-15 LQ05P00005S017 PACKING 2
　 1-16 YY05P00076S016 INSULATION 1
　 1-17 YY05P00097S017 INSULATION 1
　 1-18 YY05P00076S019 INSULATION 1
　 1-19 YY05P00076S040 INSULATION 2
　 1-20 YY05P00061S024 INSULATION 2
　 1-21 YY05P00061S025 INSULATION 1
　 1-22 YY05P00076S023 INSULATION 1
　 1-23 YY05P00076S024 RUBBER 1
　 1-24 YY05P00076S028 RUBBER 1
　 1-25 YY05P00076S027 RUBBER 1
　 1-26 YY05P00076S039 RUBBER 2
　 1-27 YY05P00076S029 RUBBER 1
　 1-28 YY05P00076S030 RUBBER 1
　 1-29 YY05P00076S031 RUBBER 2
　 1-30 YY05P00076S032 INSULATION 1
　 1-31 YY05P00076S033 INSULATION 1
　 1-32 YY05P00097S032 PLATE 1
　 1-33 YY05P00097S033 PLATE 1
　 1-34 YY05P00097S034 PLATE 1
　 1-35 YY05P00076S036 INSULATION 1
　 1-36 YY05P00076S045 INSULATION 1
　 1-37 YY05P00086S038 RUBBER 2
　 1-38 YY05P00076S044 RUBBER 2
　 1-39 YY05P00086S043 RUBBER 4
　 1-40 YY05P00086S044 RUBBER 2
　 1-41 YY05P00076S042 RUBBER 1
　 1-44 YY05P00097S042 RUBBER 1
　 1-45 YY05P00076S025 RUBBER 1
　 1-46 YY05P00086S041 RUBBER 2
　 1-47 YY05P00097S045 RUBBER 1
　 1-48 YY05P00097S046 RUBBER 1
　 1 LP05P00035F2 RADIATOR ASSY 1 LP10030085-
　 1-1 LP05P00035S001 FRAME ASSY 1
　 1-2 LP05P00035S002 SHROUD 1
　 1-3 LP05P00035S003 COOLER, AIR 1
　 1-4 LP05P00035S004 RADIATOR 1 R1
　 1-5 YY05P00061S005 CAP 1 R1
　 1-6 YY05P00076S006 NUT 2
　 1-8 YY05P00076S008 BOLT 12
　 1-9 YY05P00061S009 MOUNT, RUBBER 3
　 1-10 YY05P00061S010 MOUNT, RUBBER 3
　 1-11 YY05P00061S011 COLLAR 3
　 1-12 YY05P00061S012 BOLT 3
　 1-13 YY05P00076S013 BOLT 4
　 1-15 LQ05P00005S017 PACKING 2
　 1-16 YY05P00076S016 INSULATION 1
　 1-17 YY05P00097S017 INSULATION 1
　 1-18 YY05P00076S019 INSULATION 1
　 1-19 YY05P00076S040 INSULATION 2
　 1-20 YY05P00061S024 INSULATION 2
　 1-21 YY05P00061S025 INSULATION 1
　 1-22 YY05P00076S023 INSULATION 1
　 1-23 YY05P00076S024 RUBBER 1
　 1-24 YY05P00076S028 RUBBER 1
　 1-25 YY05P00076S027 RUBBER 1
　 1-26 YY05P00076S039 RUBBER 2
　 1-27 YY05P00076S029 RUBBER 1
　 1-28 YY05P00076S030 RUBBER 1
　 1-29 YY05P00076S031 RUBBER 2
　 1-30 YY05P00076S032 INSULATION 1
　 1-31 YY05P00076S033 INSULATION 1
　 1-32 YY05P00097S032 PLATE 1
　 1-33 YY05P00097S033 PLATE 1
　 1-34 YY05P00097S034 PLATE 1
　 1-35 YY05P00076S036 INSULATION 1
　 1-36 YY05P00076S045 INSULATION 1
　 1-37 YY05P00086S038 RUBBER 2
　 1-38 YY05P00076S044 RUBBER 2
　 1-39 YY05P00086S043 RUBBER 4
　 1-40 YY05P00086S044 RUBBER 2
　 1-41 YY05P00076S042 RUBBER 1
　 1-44 YY05P00097S042 RUBBER 1
　 1-45 YY05P00076S025 RUBBER 1
　 1-46 YY05P00086S041 RUBBER 2
　 1-47 YY05P00097S045 RUBBER 1
　 1-48 YY05P00097S046 RUBBER 1
　 1-49 LP05P00035S049 COOLER, OIL 1
　 2 YT53V00003P1 COOLER, OIL 1
　 3 LP05P01170P1 BRACKET 1
　 4 LP05P01186F1 PLATE ASSY 1
　 4-1 LP05P01185P1 PLATE 1
　 4-2 LQ21C01041D2 TRIM 1
　 5 LV05P01726DM HOSE 1
　 6 PY20P01017P1 HOSE 1
　 7 YN05P00010S007 COCK, DRAIN 1
　 8 PM05P01046P1 BOSS 1
　 9 PH05P01088D4 CLIP 2
　 10 PH05P01088D6 CLIP 1
　 11 LP05P00028P1 NET, INSECT 1
　 12 YN05P01919P1 BOLT 4
　 13 LP05P01091P1 RUBBER 1
　 14 LP05P01092P1 RUBBER 1
　 15 LP05P01097P1 INSULATION 1
　 16 LP05P01086P1 INSULATION 1
　 17 LP05P01087P1 INSULATION 1 LP10030001–30333
　 18 LP05P01088P1 INSULATION 1
　 19 ZM73C08020 SEMS-BOLT 3
　 20 ZM73C10025 SEMS-BOLT 2
　 21 ZN16C06005 NUT 4
　 22 ZW16H06000 WASHER 4
　 23 ZW16P08000 WASHER 4
　 24 ZM73C10020 SEMS-BOLT 1
　 25 LP05P00031P1 NET, INSECT 1 LP10030001–30002
　 25 LP05P00031P2 NET, INSECT 1 LP10030003-
　 26 LP05P00033P1 NET, INSECT 1 LP10030001–30002
　 26 LP05P00033P2 NET, INSECT 1 LP10030003-
　 27 2420R585D5 BOLT, WING 2
　 .
　 LP05P00035R100 CAP KIT 1 RK1

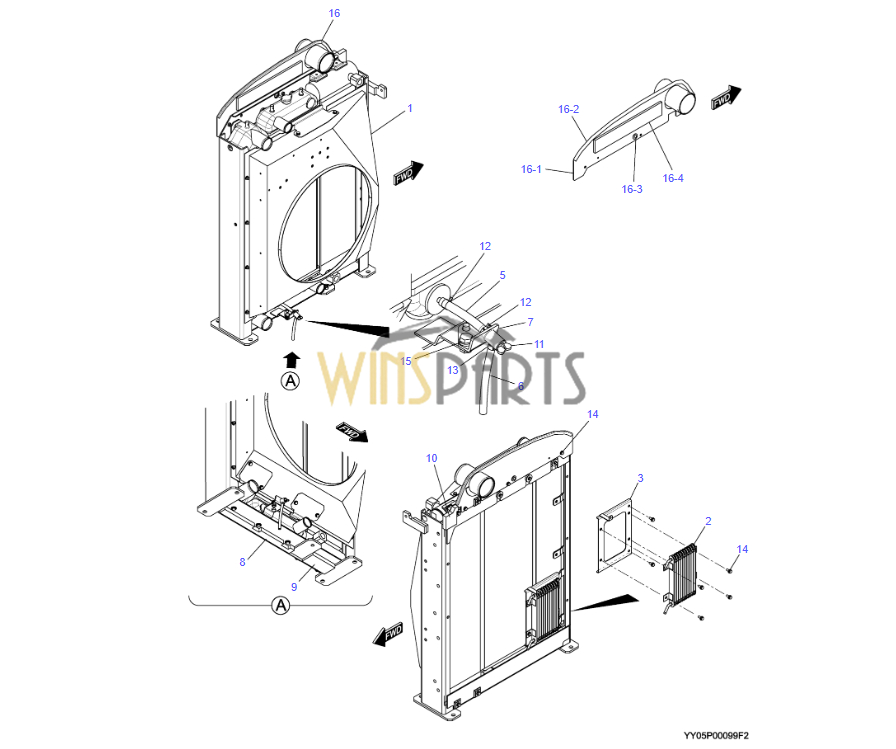

YY05P00099F2 YY05P00077F2 YY05P00077S001 RADIATOR ASSY KOBELCO SK125SR-5 SK130SR-5 SK130UR-5
　 .
　 1 YY05P00077F2 RADIATOR ASSY 1
　 1-1 YY05P00077S001 FRAME ASSY 1
　 1-2 YY05P00077S002 SHROUD 1
　 1-3 YY05P00097S003 COOLER, AIR 1
　 1-4 YY05P00097S004 RADIATOR 1 R1
　 1-5 YY05P00061S005 CAP 1 R1
　 1-6 YY05P00076S006 NUT 2
　 1-8 YY05P00076S008 BOLT 6
　 1-9 YY05P00061S009 MOUNT, RUBBER 3
　 1-10 YY05P00061S010 MOUNT, RUBBER 3
　 1-11 YY05P00061S011 COLLAR 3
　 1-12 YY05P00061S012 BOLT 3
　 1-13 YY05P00097S013 BOLT 4
　 1-15 YY05P00061S016 INSULATION 2
　 1-16 YY05P00076S016 INSULATION 1
　 1-17 YY05P00097S017 INSULATION 1
　 1-18 YY05P00076S019 INSULATION 1
　 1-19 YY05P00076S040 INSULATION 2
　 1-20 YY05P00061S024 INSULATION 2
　 1-21 YY05P00061S025 INSULATION 1
　 1-22 YY05P00076S023 INSULATION 1
　 1-23 YY05P00076S024 RUBBER 1
　 1-24 YY05P00076S028 RUBBER 1
　 1-25 YY05P00076S027 RUBBER 1
　 1-26 YY05P00076S039 RUBBER 2
　 1-27 YY05P00076S029 RUBBER 1
　 1-28 YY05P00076S030 RUBBER 1
　 1-29 YY05P00076S031 RUBBER 2
　 1-30 YY05P00097S030 RUBBER 1
　 1-31 YY05P00097S031 RUBBER 1
　 1-32 YY05P00097S032 PLATE 1
　 1-33 YY05P00097S033 PLATE 1
　 1-34 YY05P00097S034 PLATE 1
　 1-35 YY05P00076S036 INSULATION 1
　 1-36 YY05P00076S045 INSULATION 1
　 1-37 YY05P00086S038 RUBBER 2
　 1-38 YY05P00076S044 RUBBER 2
　 1-39 YY05P00086S043 RUBBER 4
　 1-40 YY05P00086S044 RUBBER 2
　 1-41 YY05P00076S042 RUBBER 1
　 1-42 YY05P00097S042 RUBBER 1
　 1-43 YY05P00076S025 RUBBER 1
　 1-44 YY05P00086S041 RUBBER 2
　 1-45 YY05P00097S045 RUBBER 1
　 1-46 YY05P00097S046 RUBBER 1
　 1-47 YW05P00009S015 BOLT 6
　 1-48 YY05P00097S048 COOLER, OIL 1
　 2 LQ53V00006P1 COOLER, OIL 1
　 3 YY05P01840P1 BRACKET 1
　 5 LV05P01726DM HOSE 1
　 6 PY20P01017P1 HOSE 1
　 7 PM05P01046P1 BOSS 1
　 8 YY05P01806P1 INSULATION 1
　 9 YY05P01807P1 INSULATION 1
　 10 YY05P01818P1 INSULATION 1
　 11 YN05P00010S007 COCK, DRAIN 1
　 12 PH05P01088D4 CLIP 2
　 13 PH05P01088D6 CLIP 1
　 14 ZM73C08020 SEMS-BOLT 9
　 15 ZM73C10020 SEMS-BOLT 1
　 16 YY05P01815F2 BRACKET ASSY 1
　 16-1 YY05P01816P1 BRACKET 1
　 16-2 LQ21C01041D6 TRIM 1
　 16-3 YN13E01431P1 GROMMET 1
　 16-4 YY05P01738P1 INSULATION 1
　 .
　 YY05P00097R100 CAP KIT 1 RK1

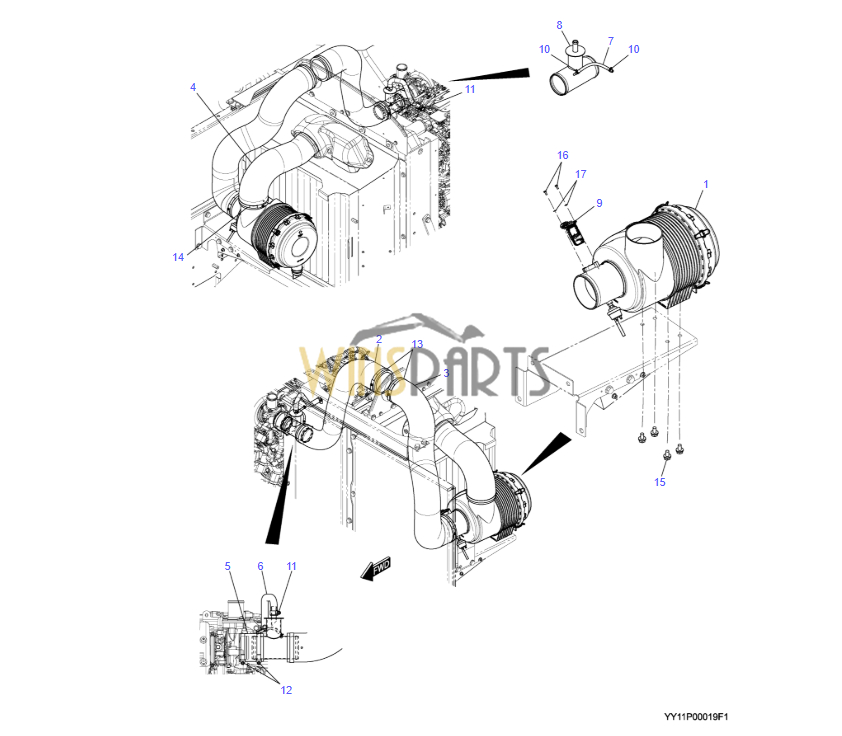

YY11P00019F1 YY11P01076P1 AIR CLEANER TUBE AIR HOSE KOBELCO SK130LC-11 SK125SR-7 SK130SR-7
　 .
055-01_LP11P00015F1_NA_D0003588491_1 1 LP11P00015F1 CLEANER, AIR 1 P.055-01
　 2 YY11P01084P1 HOSE, AIR 1
　 3 YY11P01075P1 HOSE, AIR 1
　 4 YY11P01076P1 HOSE, AIR 1
　 5 YY11P01062P1 HOSE, AIR 1
　 6 YY11P01063P1 HOSE 1
　 7 YY11P01072D2 HOSE 1
　 8 YY11P01064P1 TUBE 1
　 9 YY11P00018P1 SENSOR,AIR FLOW 1
　 10 YY11P01073P1 CLIP 2
　 11 ZC16X02000 CLIP 2
　 12 ZC16X08700 CLIP 3
　 13 ZC16X12000 CLIP 2
　 14 ZC16X12200 CLIP 2
　 15 ZM73C10020 SEMS-BOLT 4
　 16 ZS16C04010 CAPSCREW 2
　 17 ZW16P04000 WASHER 2
LP11P00015F1 LP11P00015S005 LP11P00015S006 AIR FILTER CLEANER KOBELCO SK130LC-11 SK140LC-11 SK125SR-5
　 .
　 1 LP11P00015S001 CASE 1
　 2 LP11P00015S002 GASKET 1
　 3 LP11P00015S003 CAP 1
　 4 LP11P00015S004 VALVE ASSY 1
　 5 LP11P00015S005 FILTER 1
　 6 LP11P00015S006 FILTER 1
　 7 LP11P00015S007 INDICATOR 1
　 8 PW11P00010S004 INDICATOR 1
　 9 LP11P00015S008 HOSE

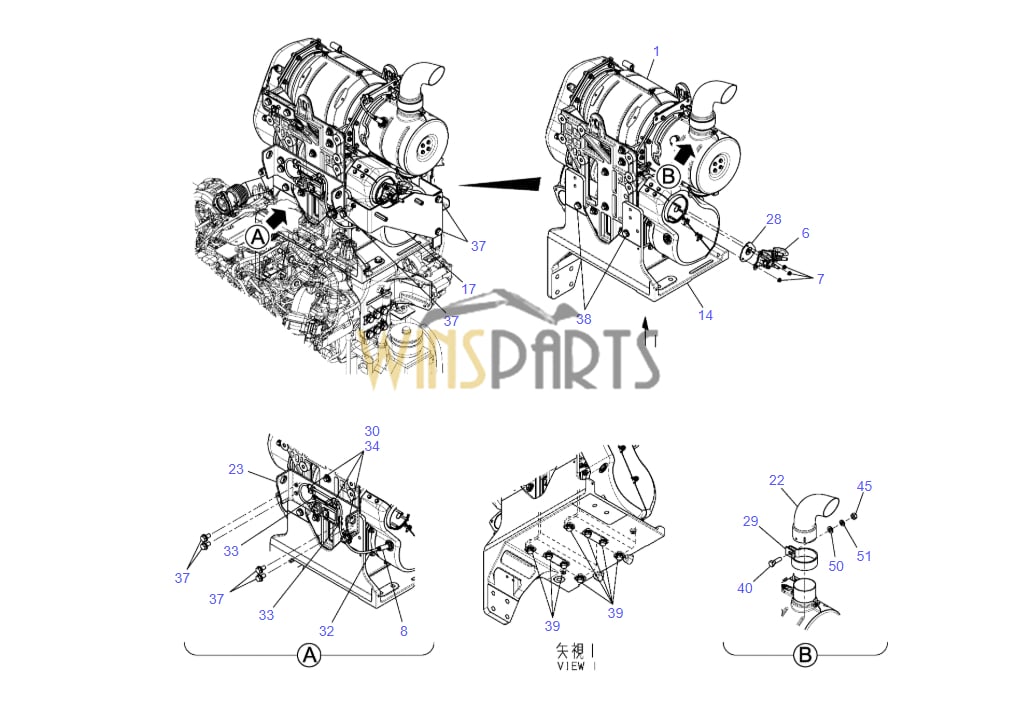

YY12P00020F2 YY12P00022F1 ENGINE MUFFLER ASSY KOBELCO SK130LC-11 SK140LC-11 SK125SR-5
YY12P00026F1 MUFFLER ASSY Not Service
　 1 YY12P00020F2 MUFFLER 1
　 6 YY02P01158F1 INJECTOR ASSY 1
　 7 YY12P01252P1 NUT 3
　 8 YY52S00051P1 SENSOR 2
　 9 YY52S00048P1 SENSOR, TEMP 1
　 10 YY52S00049P1 SENSOR, TEMP 1
　 11 YY52S00050P1 SENSOR, TEMP 1
　 12 YY12P01253P1 GASKET 1
　 13 YY12P01254P1 GASKET 1
　 14 LP12P01124P1 BRACKET 1 LP10030001–30068
　 14 LP12P01173P1 BRACKET 1 LP10030069-
　 15 LP12P01125P1 BRACKET 1
　 16 LP12P01170P1 BRACKET 1
　 17 LP12P01166P1 BRACKET 1
　 18 LP12P01159P1 COVER 1
　 19 LP12P01167P1 COVER 1
　 20 LP12P01064P1 COVER 1
　 21 LP12P01105P1 TUBE, EXHAUST 1
　 22 LP12P01110P2 TUBE, EXHAUST 1
　 23 LP12P01120P2 BRACKET 1
　 24 LP12P01015P1 BRACKET 1
　 25 LP12P01108P1 BRACKET 1
　 26 LP12P01122P1 BRACKET 1
　 28 YN12P01354P1 GASKET 1
　 29 LP12P01018P2 CLAMP 1
　 30 YY12P01228P1 CLIP 6
　 31 YY12P01229P1 CLIP 7
　 32 PY01P01043DA CLIP 2
　 33 ZM73C06020 SEMS-BOLT 4
　 34 ZM73C08020 SEMS-BOLT 14
　 35 ZM73C08035 SEMS-BOLT 3
　 37 ZM73C12025 SEMS-BOLT 15
　 38 ZM73C12035 SEMS-BOLT 2
　 39 ZM73C12045 SEMS-BOLT 11
　 40 ZS18C12040 CAPSCREW 1
　 41 ZS18C12055 CAPSCREW 4
　 42 LP12P01069P1 CAPSCREW 2
　 43 ZS18C14045 CAPSCREW 8
　 44 ZN18C08007 NUT 6
　 45 ZN18C12010 NUT 1
　 46 YN01C01010P1 WASHER 4
　 47 ZW16H08000 WASHER 6
　 48 ZW16H14000 WASHER 8
　 49 ZW16H16000 WASHER 2
　 50 ZW16P12000 WASHER 1
　 51 ZW26X12000 LOCK WASHER 1
