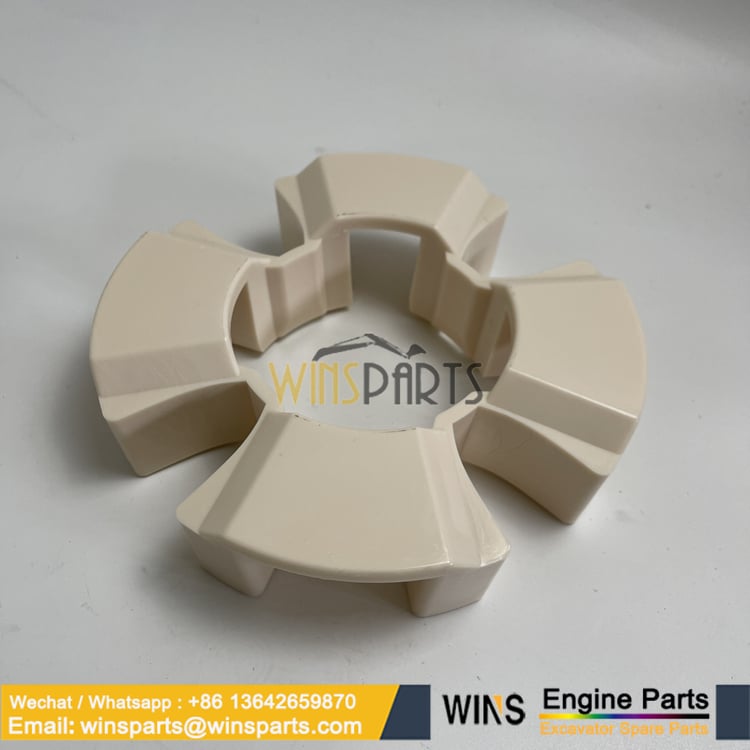

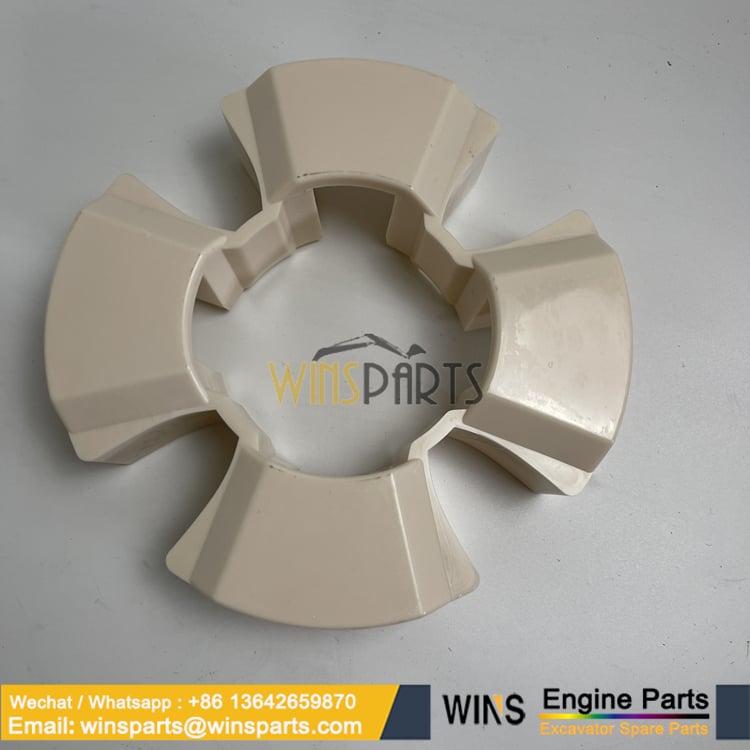

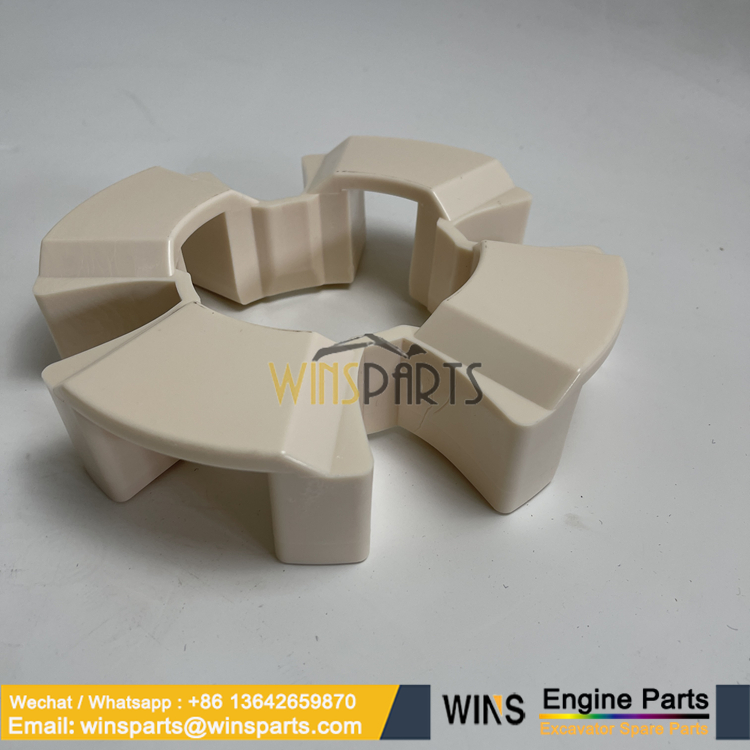

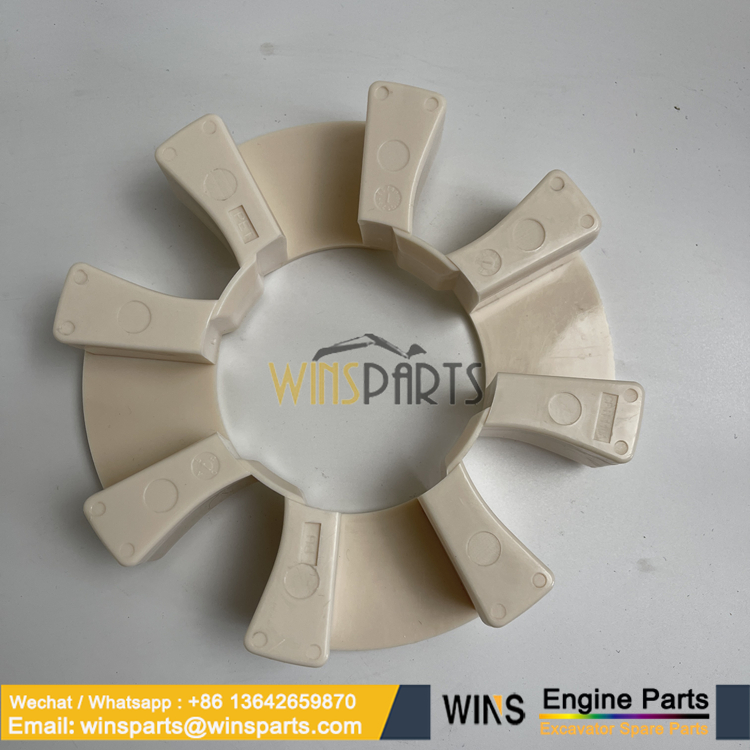

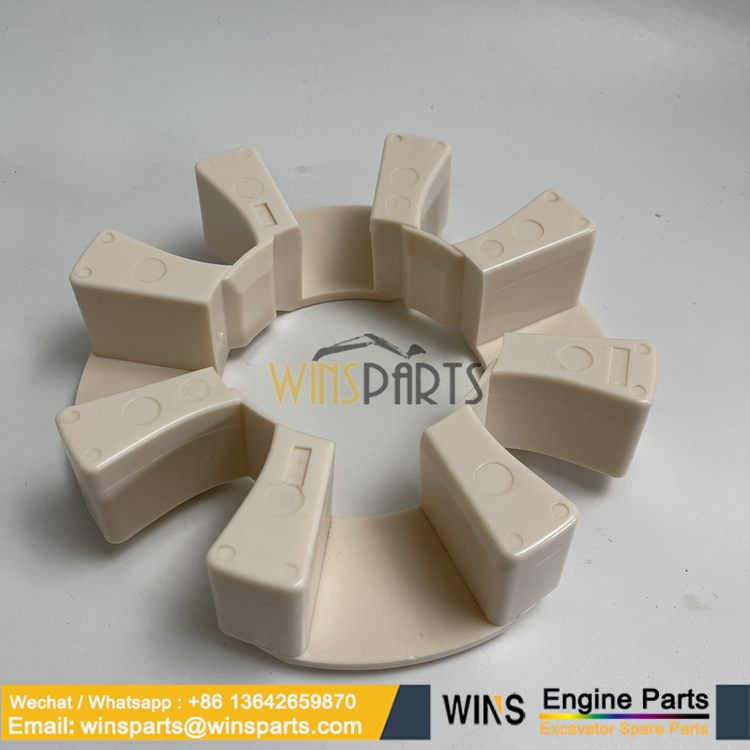

4646894 4655134 Hydraulic Pump ELEMENT Coupling Hitachi John Deere
$1.00
4646894 4655134 Hydraulic Pump ELEMENT Coupling Hitachi John Deere 300GLC 3754D 380GLC 350GLC 350DLC Excavator Spare Parts
Number:4646894 4655134
Type:Hydraulic Pump ELEMENT Coupling
Utend:Hitachi ZX350H-5G ZX350K-3 ZX350K-5G ZX350LCH-5G ZX350LCK-5G ZX400W-3 John Deere 300GLC 3754D 380GLC 350GLC 350DLC
Place of Origin:China/Japan
Packing: Fumigate Seaworthy Packing
Engine Brand: ISUZU/HINO/MISTUBISHI
Excavator Brand: New.Holland/KOBELCO/HITACHI
Pos. Part No Qty Parts name Comments
0. 9257126 John Deere PUMP Pump
2. 1033049 John Deere PUMP Housing
4. 3104554 John Deere PUMP Gear
5. 3081085 John Deere PUMP Pinion Shaft
8. M804206 John Deere PUMP Bearing SUB FOR (1) 4395453 OR (1) AT250102
9. 4720025 John Deere PUMP Ball Bearing SUB FOR 4395457
10. 40M7120 John Deere PUMP Snap Ring SUB FOR (1) TH106793 OR (1) 4191219
11. TH109453 John Deere PUMP Seal SUB FOR (1) 4179833
12. 3033593 John Deere PUMP Cover SUB FOR (1) TH109454
13. AT264339 John Deere PUMP O-Ring SUB FOR (1) 4179834 OR (1) TH100122 OR (1) A811120
14. 40M7178 John Deere PUMP Snap Ring SUB FOR (1) 991733
18. 19M8337 [2] Screw M10 X 30 SUB FOR (1) M341030
19. 9217993 John Deere PUMP Pump PILOT PUMP COMPONENTS ON SEPARATE PAGE
20. 12M6791 [2] Lock Washer 10.200 MM SUB FOR (1) 984054
22. 4114402 [2] Washer SUB FOR (1) TH102181
23. 4191974 John Deere PUMP Adapter Fitting SUB FOR (1) TH109459
23A. 4506418 John Deere PUMP O-Ring
28. 3104555 [2] Gear
29. 40M7166 [2] Snap Ring SUB FOR (1) 991345
32. 9260885 [2] Hydraulic Pump FOR NON NORTH AMERICAN APPLICATIONS ADDITIONAL COMPONENTS ON
SEPARATE PAGE
32. PG200274 [2] Hydraulic Pump
Reman
FOR NORTH AMERICAN APPLICATIONS REMAN FOR 9260885; SUB FOR (1) 9257309
AND (1) 9260886 ADDITIONAL COMPONENTS ON SEPARATE PAGES
35. 19M7489 [8] Cap Screw M16 X 45 SUB FOR (1) TH101724 OR (1) J901645
Pos. Part No Qty Parts name Comments
36. 4126090 [4] Sealing Washer
37. 12H294 [4] Lock Washer 5/8″ SUB FOR (1) A590916
42. 4379582 John Deere PUMP Cap SUB FOR (1) AT215108
43. 4646199 John Deere PUMP Adapter Fitting
44. 15H621 John Deere PUMP Elbow Fitting 3/4″ SUB FOR (1) 94-0649
45. 4645330 John Deere PUMP Plug
50. 4438889 [2] Oil Line SUB FOR (1) TH4438889
52. 4438888 John Deere PUMP Oil Line
54. 4203485 John Deere PUMP Fitting SUB FOR (1) TH109466
54A. M800650 John Deere PUMP Packing SUB FOR (1) 957366
55. 3089617 John Deere PUMP Oil Line
56. 3089618 John Deere PUMP Oil Line SUB FOR (1) TH3089618
57. 4118499 [4] Elbow Fitting SUB FOR (1) TH101821
57A. M800650 John Deere PUMP Packing SUB FOR (1) 957366
58. 4293950 [5] Fitting SUB FOR (1) AT160584
58A. M800650 John Deere PUMP Packing SUB FOR (1) 957366
59. 4179843 [2] Clamp SUB FOR (1) TH109471
60. 19M7288 John Deere PUMP Cap Screw M8 X 30 SUB FOR (1) J900830
61. 14M7273 John Deere PUMP Nut M8 SUB FOR (1) M500807
62. 12M7065 John Deere PUMP Lock Washer 8 MM SUB FOR (1) A590908
63. 4242263 John Deere PUMP Dipstick SUB FOR (1) TH112088
64. 4242262 John Deere PUMP Oil Tube SUB FOR (1) TH112089
65. 19M7647 [2] Screw M8 X 16 SUB FOR (1) AT217709 OR (1) M340816
Pos. Part No Qty Parts name Comments
66. 9742779 John Deere PUMP Gasket SUB FOR (1) AT214401
68. 37H99 [2] Screw 0.100″ X 1/4″ SUB FOR (1) TH100069 OR (1) M492564
74. 4646894 John Deere PUMP Coupling
74A. 4659040 John Deere PUMP Retainer
74B. 22M7137 [2] Set Screw M16 X 16 SUB FOR (1) 4183170 OR (1) TH4183170
74C. 34M7117 [12] Spring Pin 5 X 10 MM SUB FOR (1) 4101345 OR (1) TH4101345 OR (1) TH105991
74D. 4655136 [4] Insert
74E. 4216949 [4] Screw SUB FOR (1) TH111404
74F. 4655135 [4] Insert
74G. 4216948 [4] Screw SUB FOR (1) TH111403
74H. 4655134 John Deere PUMP Coupling
81. 15M7036 John Deere PUMP Drain Plug SUB FOR TH109285, (1) TH101813 OR (1) 4092534
81A. CH11570 John Deere PUMP O-Ring 13.800 X 2.400 MM (0.543″ X 3/32″) SUB FOR (1) 4509180
90. 4471487 John Deere PUMP Seal Kit Excavator Engine Spare Parts
Gz wins contruction engineering company is engaged in development, production, marketing and agency services.
We are a manufacturer of specialization and diversification engineering machinery parts. Our products are selling well in America, Europe, Southeast Asia, the Middle East, Africa and other countries and regions.
We Provide Original Genuine Kobelco Parts,Include the followingï¼›
Kobelco Air-conditioning System,A/C Assembly, A/C Hose,A/C Compressor,A/C Condenser,Blower Assembly,Evaporator,A/C Pipe,A/C Receiver, A/C Filter.
Kobelco Body & Stamping Parts,CAB Assy, Engine Mounting,Engine Hood, Car Body,Door Panel,Roof.
Kobelco Hydraulics System,Set plate,Piston shoe,Cylinder block,Valve plate,Drive shaft,Ball guide,Piston pump,Gear pump.
We Provide Genuine MITSUBISHI HINO ISUZU Engine Parts.
Hino：J05E, J08E, P11C.
Mitsubishi: D04FR,4M40,6D16,6D22,6D24,6D31,6D34.
Isuzu:4HK1,4JJ1,4LE1,4LE2,4JB1,4BG1,6HK1,6WG1,6BG1,6UZ1,6BD1.
KOBELCO：SK60-III SK60-5 ,SK75-8,SK120LC-III SK120-5 ,SK130LC,SK140-8 SK140SRLC ,SK150LC,SK160,SK170,SK200-3 SK200-5 SK200LC-6E? SK200SR SK200-8,SK210LC-6E SK210LC-8, SK235SR,SK250LC-6E SK250 SK250-8,SK260-8 SK260-9,SK270,SK290LC,SK300LC-2 SK300LC-3 ,SK330LC-6E SK330,SK330LC-6E SK330-8 SK330-6,SK350-8 SK350LC SK350-9 ,SK460?SK460LC-IV SK480LC-6E SK460-8 SK480-6S ,SK485LC SK485-8 .
Kobelco Engine Assy,Engine Gasket Kits,Camshaft,Sprocket Camshaft,Tensioner,Crankshaft,Crankshaft Pulley,Crankshaft Bearing,Valve,Valve Seat,Valve Arm,Rocker Cover,Valve Spring,Valve Guide,Cylinder Head,Cylinder Liner,Cylinder Block,Washer,Piston,Piston Pin,Piston Ring,Piston Liner,Flywheel,Ring Gear of Flywheel,Timing Chain/Belt,Connecting Rod,Connecting Rod Bearing,Rocker Arm Shaft,Valve Cotter,Thrust Washer.
Injection Fueling System,Air Cleaner,Air Cleaner Cover,Exhaust Muffler,Exhaust Manifold,Exhaust Pipe,Intake Manifold,EGR Tube,Radiator,Water Hose,Fan,Thermostat,Oil Pan,Oil Level Gauge,Oil Filter.
