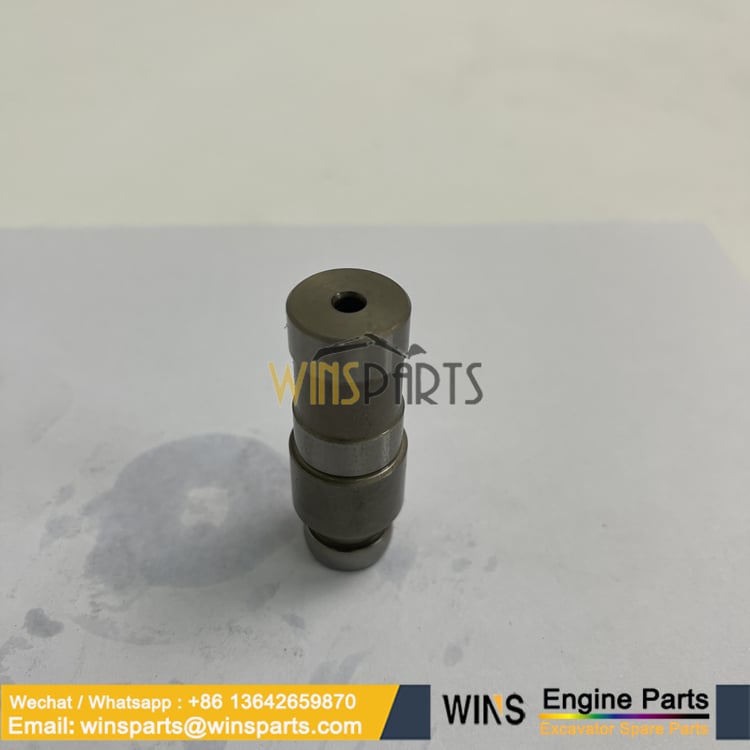

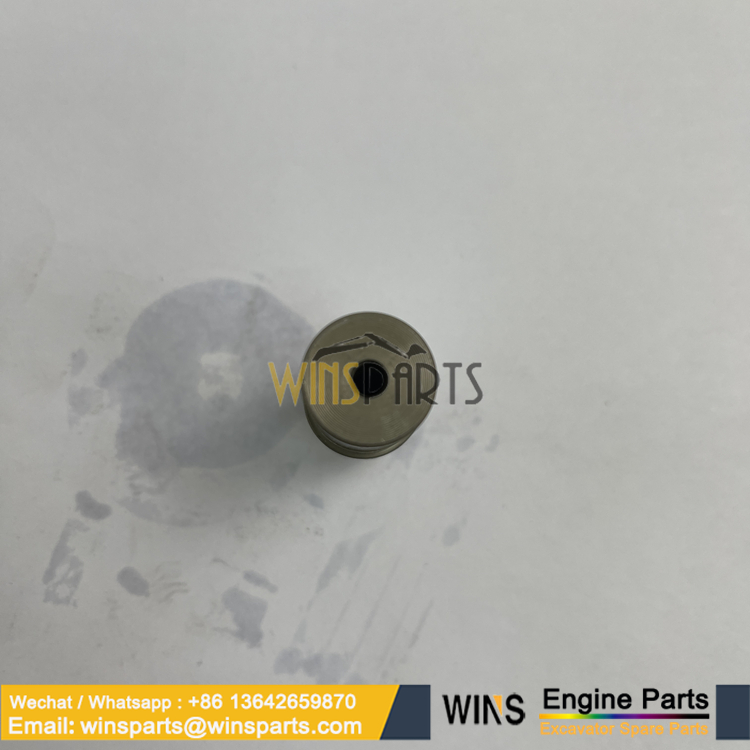

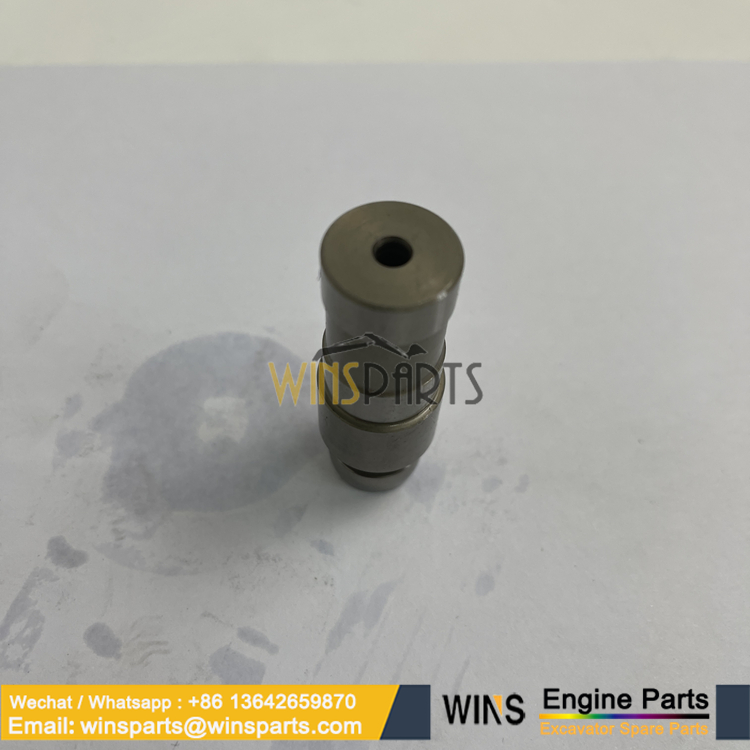

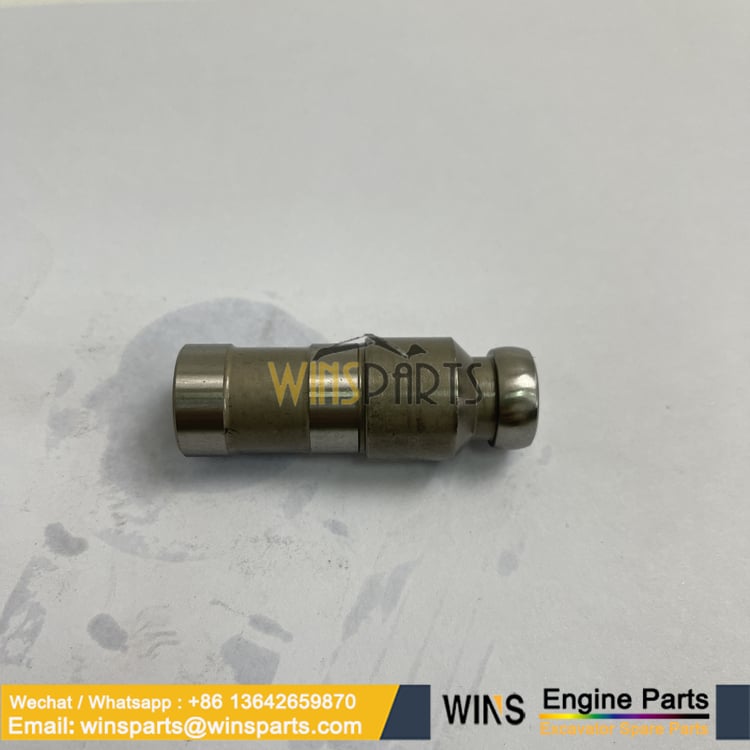

4641714 TH111254 HPV145 Hydraulic Pump Pin Fastener Hitachi
$1.00
4641714 TH111254 HPV145 Hydraulic Pump Pin Fastener Hitachi ZX330-3 ZX330-3G ZX330-5G John Deere 380GLC 350GLC 350DLC Excavator Spare Parts
Number:4641714 TH111254
Type:HPV145 Hydraulic Pump Pin Fastener
Application:Hitachi ZX330-3 ZX330-3G ZX330-5G John Deere 380GLC 350GLC 350DLC
Place of Origin:China/Japan
Packing: Fumigate Seaworthy Packing
Engine Brand: ISUZU/HINO/MITSUBISHI
Excavator Brand: New Holland/KOBELCO/HITACHI
0. 9260885 HITACHI Hydraulic Pump Hydraulic Pump FOR NON NORTH AMERICAN APPLICATIONS
0. PG200274 HITACHI Hydraulic Pump Hydraulic Pump
Reman
FOR NORTH AMERICAN APPLICATIONS REMAN FOR 9260885, SUB FOR (1)
9260886
2. 1014184 HITACHI Hydraulic Pump Housing SUB FOR (1) TH112239
3. 8068521 HITACHI Hydraulic Pump Gasket SUB FOR (1) AT250202
4. 2038877 HITACHI Hydraulic Pump Shaft ALSO ORDER (1) 3081023, SUB FOR (1) AT219590
6. TH111233 HITACHI Hydraulic Pump Tapered Roller
Bearing
SUB FOR (1) 4366256
7. JD37194 HITACHI Hydraulic Pump Tapered Roller
Bearing
SUB FOR (1) 4366356 OR (1) AT219694
8. 3035965 HITACHI Hydraulic Pump Spacer SUB FOR (1) TH111140
9. 4191665 HITACHI Hydraulic Pump Nut SUB FOR (1) TH111236
12. 8051275 [7] Piston SUB FOR (1) AT203603
14. 2022744 HITACHI Hydraulic Pump Rotor SUB FOR (1) TH111111
16. 3081023 HITACHI Hydraulic Pump Shaft
19. 4194362 HITACHI Hydraulic Pump Compression Spring SUB FOR (1) TH111266
21. 4198956 HITACHI Hydraulic Pump Pin Fastener SUB FOR (1) T107766
23. 3035966 HITACHI Hydraulic Pump Cover SUB FOR (1) TH111141
24. 4191664 HITACHI Hydraulic Pump O-Ring SUB FOR (1) TH111235
Pos. Part No Qty Parts name Comments
25. 40M7194 HITACHI Hydraulic Pump Snap Ring SUB FOR (1) TH100461 OR (1) 4094325
27. 4639126 HITACHI Hydraulic Pump Seal
29. 9749142 HITACHI Hydraulic Pump Valve STEERING SUB FOR (1) AT250274
31. 3039569 HITACHI Hydraulic Pump Link SUB FOR (1) TH111194
32. 9724756 [2] Lever SUB FOR (1) TH109873
34. 4179179 [2] Dowel Pin SUB FOR (1) TH109874
35. 4179177 [2] Dowel Pin SUB FOR (1) TH109875
36. 4200227 HITACHI Hydraulic Pump Dowel Pin SUB FOR (1) TH109878
37. 4179176 HITACHI Hydraulic Pump Dowel Pin SUB FOR (1) TH109876
38. CH17951 [6] Ring SUB FOR (1) 4146370
39. 1022441 HITACHI Hydraulic Pump Cylinder Head SUB FOR (1) AT219580
41. 3106174 HITACHI Hydraulic Pump Piston
42. 4641714 HITACHI Hydraulic Pump Pin Fastener SUB FOR (1) TH111254
43. 4337812 HITACHI Hydraulic Pump Set Screw SUB FOR (1) AT213875
46. 34M7061 [2] Spring Pin 8 X 20 MM SUB FOR (1) 4099290
48. CH11560 [10] Packing SUB FOR (1) 4180349
49. 19M8341 [8] Screw M12 X 45 SUB FOR (1) M341245
50. 12M7058 [8] Lock Washer 12 MM SUB FOR (1) TH102529 OR (1) 495841
51. 9134110 HITACHI Hydraulic Pump Fitting SUB FOR (1) AT203649
51A. M800650 HITACHI Hydraulic Pump Packing SUB FOR (1) 957366
53. 4355081 HITACHI Hydraulic Pump O-Ring SUB FOR (1) AT215931
55. 4648305 HITACHI Hydraulic Pump Stop
59. 4294621 HITACHI Hydraulic Pump O-Ring SUB FOR (1) AT219672
61. 4216295 HITACHI Hydraulic Pump Stop SUB FOR (1) TH111927
63. 19M8446 [8] Screw M8 X 20 SUB FOR (1) M340820
66. 9260887 [2] Regulator REGULATOR COMPONENTS ON SEPARATE PAGE
69. 4348665 HITACHI Hydraulic Pump O-Ring SUB FOR (1) AT213922
70. 34M3845 [2] Spring Pin 4 X 10 MM SUB FOR (1) 4515041
76. 37H99 [2] Screw 0.100″ X 1/4″ SUB FOR (1) M492564
81. 9134111
HITACHI Hydraulic Pump Fitting SUB FOR (1) AT203648
81A. CH11570 HITACHI Hydraulic Pump O-Ring SUB FOR (1) 4509180
83. 4436271 HITACHI Hydraulic Pump Sensor PRESSURE SUB FOR (1) TH4436271
83A. 4365826 HITACHI Hydraulic Pump O-Ring SUB FOR (1) AT175984
90. 4467592 HITACHI Hydraulic Pump Seal Kit
