03-011(02) CYLINDER INSTALLATION (BOOM)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 9 2 YN12B01601D1 SHIM 2.0 8 1 LP02B01060D4 SHIM 1.6 7 1 LP02B01060D2 SHIM 0.9 6 1 LP02B01060D1 SHIM 0.5 4 2 HS18C14135G2 SCREW Cap 3 2…

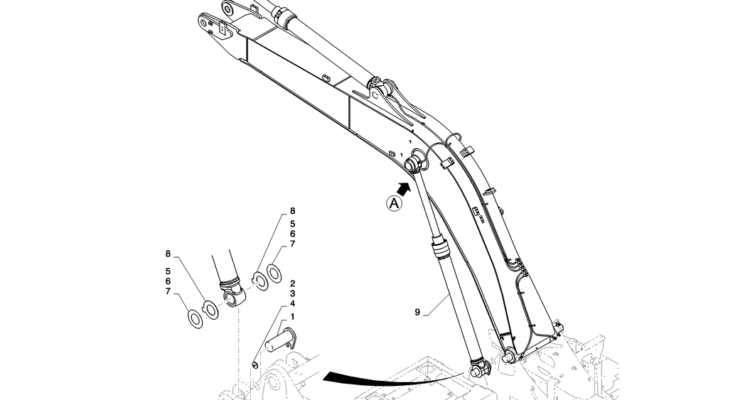

03-011(01) CYLINDER INSTALLATION (BOOM)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 9 2 YY01V00053F3 LIFT CYLINDER Boom 8 4 YN12B01602D1 SHIM 2.0 6 1 B16T0442D44 SHIM 0.9 5 1 B16T0442D2 SHIM 1.6 4 2 ZW16H10000 WASHER 3 2…

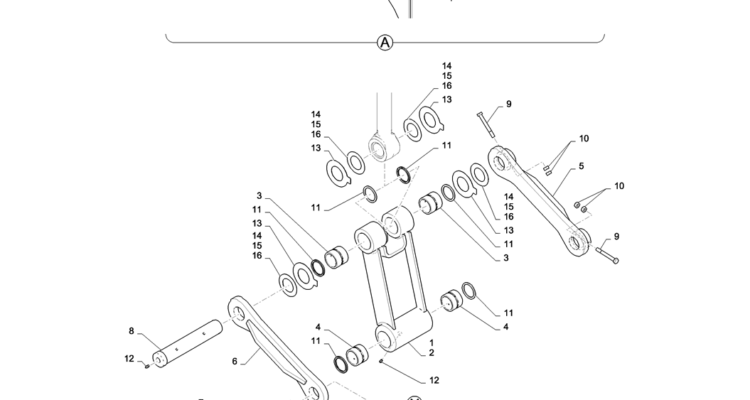

03-010(02) ARM GROUP 2.8M-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 16 2 2418T4037D5 SHIM 1.6 15 2 2418T4037D3 SHIM 0.5 14 2 2418T4037D7 SHIM 0.5 13 4 YM12B01063D1 SHIM 2.0 12 5 ZG91S02000 LUBE NIPPLE 11 6…

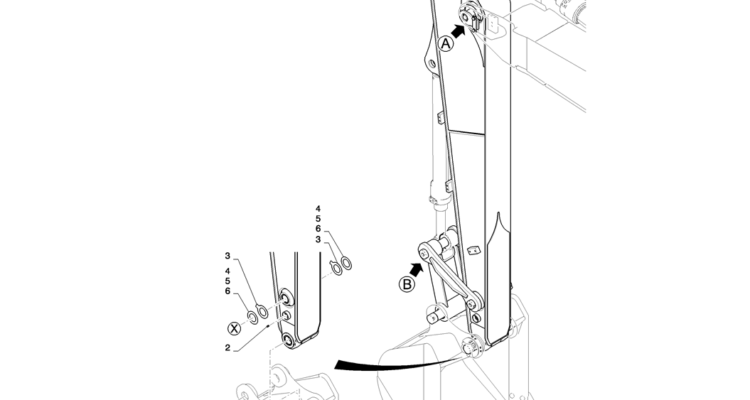

03-010(01) ARM GROUP 2.8M-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 6 1 B16T0442D19 SHIM 1.6 5 1 B16T0442D43 SHIM 0.9 4 1 B16T0442D56 SHIM 0.5 2 5 ZG91S02000 LUBE NIPPLE 1 2 YY12B01427P2 PIN AR YY12B00565F1 2.8M…

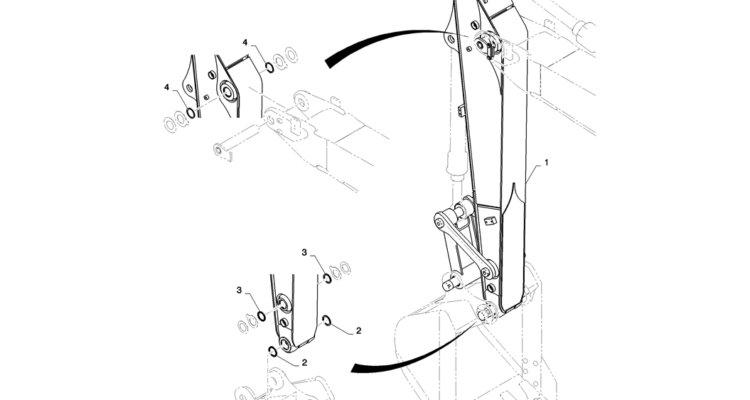

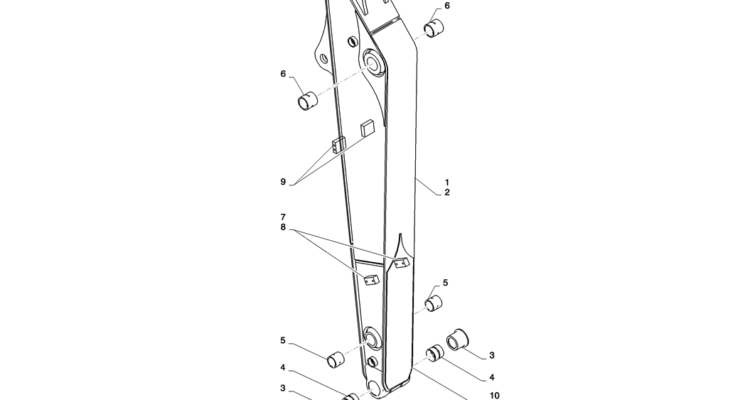

03-009(02) ARM 2.38M-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 11 1 YY12B01687P1 PLATE 10 1 YY12B00343P1 Long 9 2 YY02B01184P1 BLOCK Tapped 8 2 YN43H01051P1 BLOCK Tapped 6 2 YY12B01449P1 BUSHING 5 2 YY12B01448P1 BUSHING 4 2…

03-009(01) ARM 2.38M-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 4 2 2445R138D6 GASKET Dust 3 2 2445R220D1 SEAL Dust 1 1 YY12B00430F1 ARM AR YY12B00429F1 2.38M 2 2 2445R220D2 SEAL Dust         Kobelco Part…

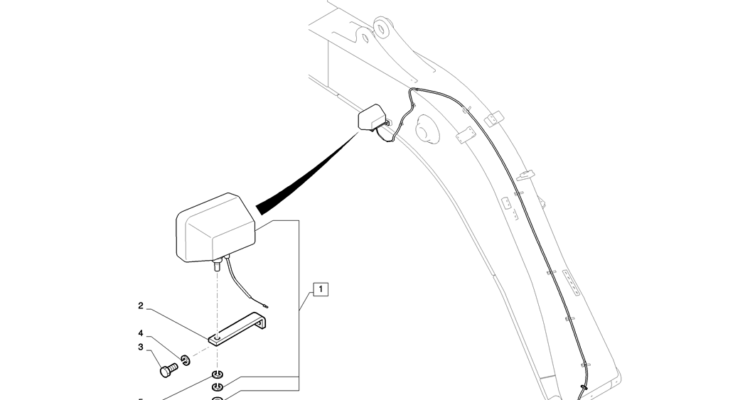

03-008(00) LIGHT INSTALLATION, BOOM-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 5 1 2418R323D13 LOCK WASHER 3 1 ZS18C10020 SCREW Cap 2 1 2416T13056 BRACKET 1 1 YW80S00001F1 LIGHT ASSY. AR YN80E00011F1 LIGHT Instal, Boom 4 1 2418R323D11…

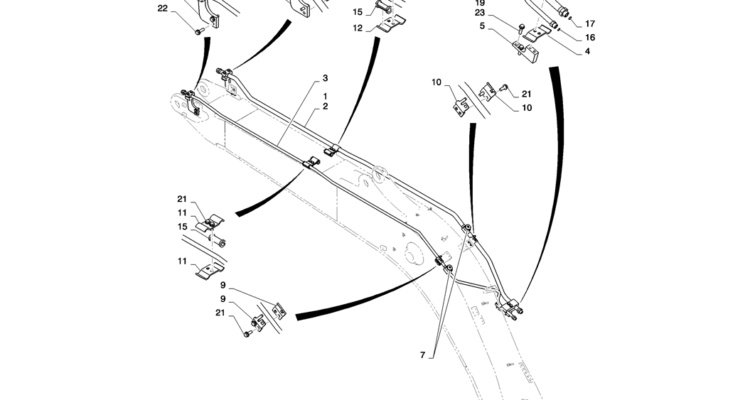

03-007(02) HYDRAULIC LINES, BOOM (NIBBLER & BREAKER)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 23 8 ZW16H12000 WASHER 22 4 ZM73C12040 BOLT Sems 21 8 ZM73C12035 BOLT Sems 20 2 ZS18C12060 SCREW Cap 19 6 ZS18C12055 SCREW Cap…

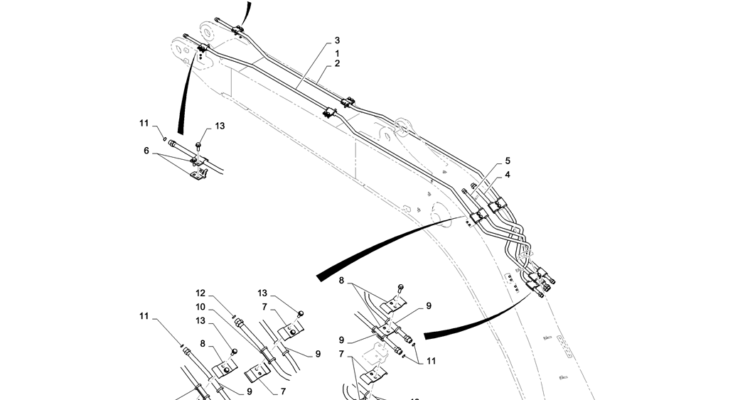

03-007(01) HYDRAULIC LINES, BOOM (NIBBLER & BREAKER)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 13 10 ZM73C12035 BOLT Sems 12 2 ZD12A01800 O-RING 11 6 ZD12A01600 O-RING 10 2 YN42H02319P1 BUSHING 9 6 YY42H01473P1 BUSHING 8 4 YN42H02349P1…

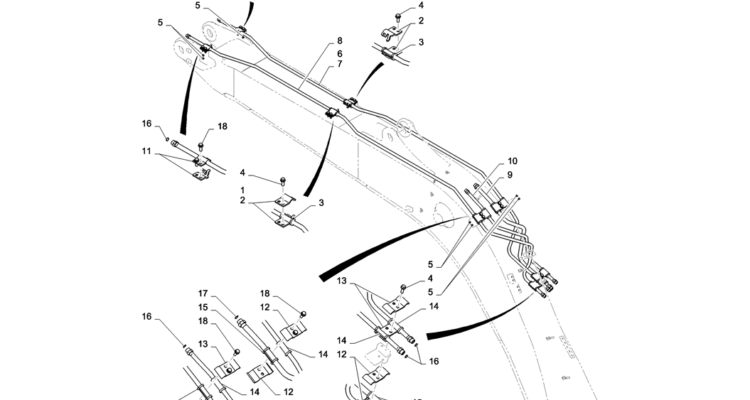

03-006(01) HYDRAULIC LINES, BOOM 4.68M-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 18 10 ZM73C12035 BOLT Sems 17 2 ZD12A01800 O-RING 16 6 ZD12A01600 O-RING 15 2 YN42H02319P1 BUSHING 14 6 YY42H01473P1 BUSHING 13 4 YN42H02349P1 CLAMP 12…
