SK140/SK130/SK135

02-013(03) MOTOR INSTALLATION, PROPEL-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 1 YY15V00015R470 REPAIR KIT Consists Of Item: 3(1), 1(2), 6(2), 7(2), 10(2) 1 YY15V00015R460 REPAIR KIT Consists Of Item: 3(1), 17(1), 18(1), 20(1) 4(2), 5(2), 6(2), 7(2),…

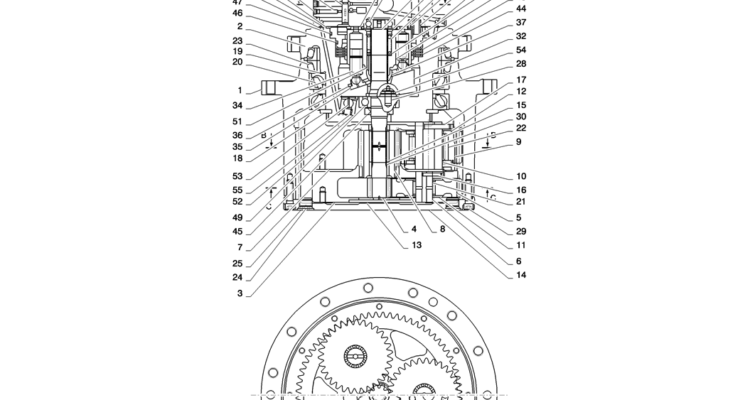

02-013(02) MOTOR INSTALLATION, PROPEL-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 1 YY15V00015R470 REPAIR KIT Consists Of Item: 56(1), 25(2) 1 YY15V00015R460 REPAIR KIT Consists Of Item: 24(1), 56(1), 59(1), 60(1), 61(1), 62(1),63(1), 25(3), 58(5) 1 YY15V00015R450 REPAIR…

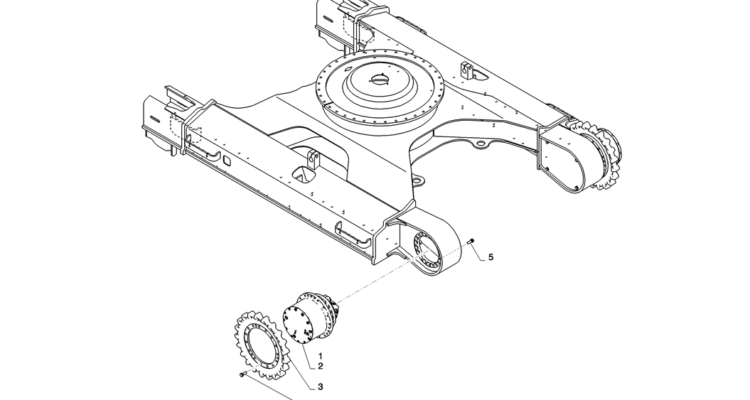

02-013(01) MOTOR INSTALLATION, PROPEL-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 5 40 LP53D01001P1 SCREW Cap 4 18 LP53D01001P1 SCREW Cap 2 1 YY15V00015F1 MOTOR Assy., Propel 1 2 YY53D00007F1 Propel AR YY53D00006F1 Propel 3 1 YY51D01006P1 SPROCKET…

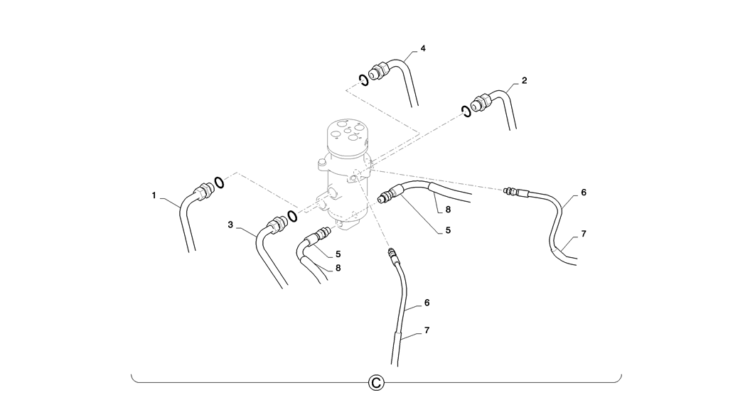

02-012(02) HYDRAULIC LINES, LOW-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 8 2 YN02H01511D2 HYDRAULIC HOSE 7 4 2420Z1224D4 HOSE 6 2 ZX33M04230 FLEXIBLE HOSE Assy. 5 2 ZX22M08180 FLEXIBLE HOSE 3 1 YY02H01279P1 TUBE 2 1 YY02H01267P1…

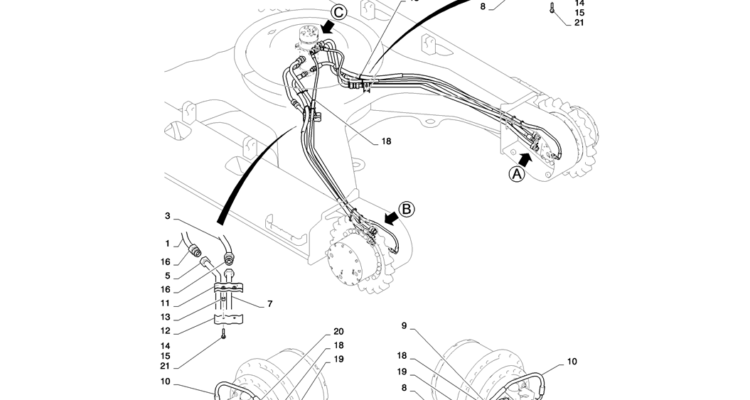

02-012(01) HYDRAULIC LINES, LOW-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 21 4 ZW26X08000 WASHER Lock 20 4 2420Z1224D4 HOSE 19 2 PY01P01043D8 CLIP 18 10 PY01P01043D5 CLIP 17 2 YN02H01511D1 HYDRAULIC HOSE 16 4 ZA23B22000 ELEC CONNECTOR…

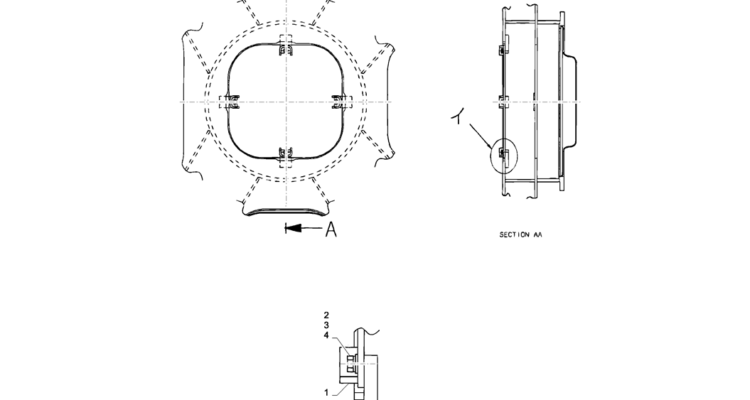

02-011(00) COVER ASSEMBLY, UNDER-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 4 4 ZW26X12000 LOCK WASHER 2 4 ZS18C12030 SCREW Cap 1 1 YV24C01012P1 COVER ASSY AR YV24C00002F1 COVER ASSY Under 3 4 ZW16H12000 WASHER      …

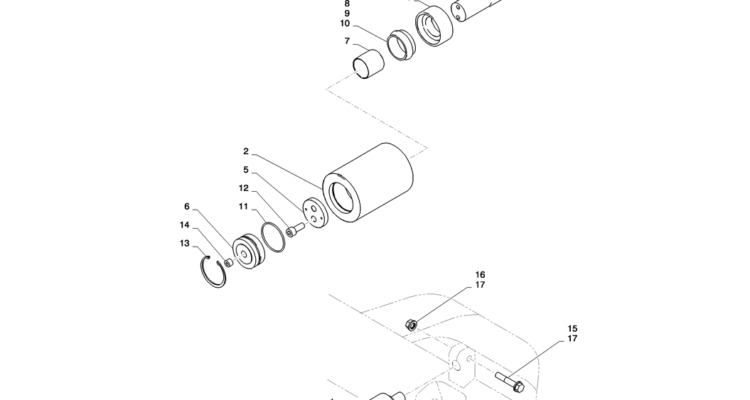

02-008(00) UPPER ROLLER ASSEMBLY-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 17 8 ZW13H20000 WASHER 16 4 ZN13C20016 NUT 15 4 ZS13C20110 SCREW Cap 14 1 YN55V01090P1 PLUG 12 2 LP64D01010P1 BOLT 11 1 ZD11G05500 O-RING 10 2…

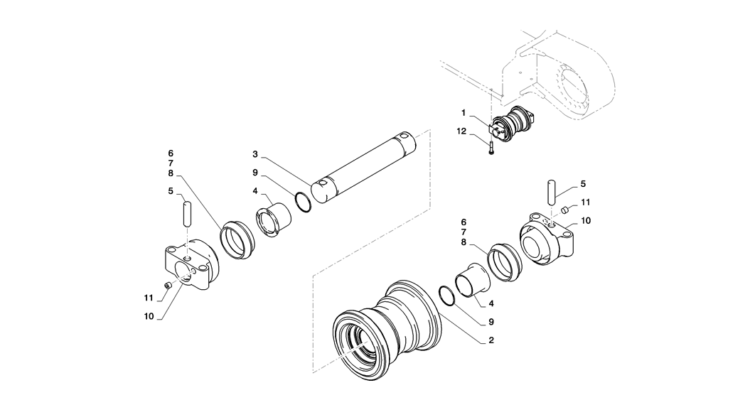

02-007(00) TRACK ROLLER ASSEMBLY-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 12 56 LP64D01004P1 SCREW Cap 11 2 ZE82T04000 PLUG 10 2 YY64D01020P1 8 2 2445R440S2 7 2 2445R440S1 6 2 2445R440F1 SEAL Floating 5 2 YY64D01018P1 PIN…

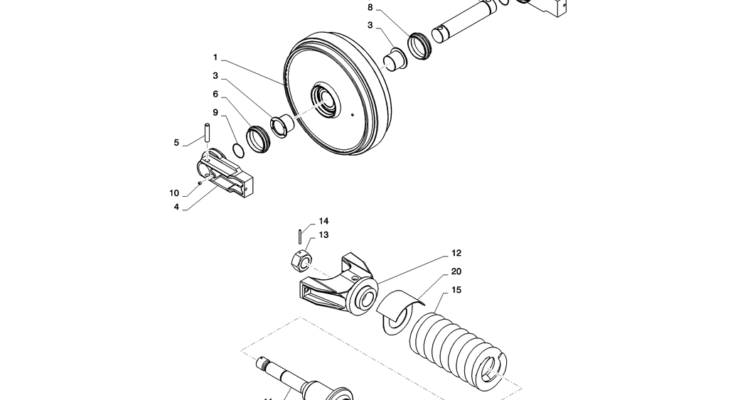

02-006(02) IDLER ASSEMBLY, CRAWLER-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 20 1 YX54D01003P1 COVER 19 2 LQ54D01023P1 PIN 18 1 2418U130D36 PACKING U 17 1 ZD12G06500 O-RING 16 1 2439P171 PIN Piston 15 1 YY54D01004P1 SPRING 14…

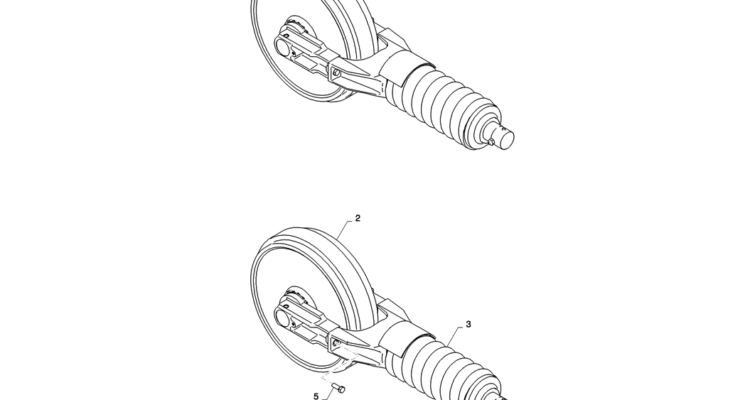

02-006(01) IDLER ASSEMBLY, CRAWLER-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 5 2 ZS13C12035 SCREW Cap 3 1 YY54D00003F1 IDLER Adjust Assy. 2 1 YY52D00014F1 IDLER Assy. 1 2 YY52D00011F1 IDLER Assy., Crawler AR YY52D00010F1 Crawler 4 1…
