03-005(00) CONNECTOR ASSEMBLY (NIBBLER & BREAKER)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 4 1 ZD12P02400 O-RING 3 1 2420T4404 PLUG 1 2 LP43H00004F1 CONNECTION Assy. AR YX43H01034F1 (Nibbler & Breaker) 2 1 2444P1744D2 CONNECTION      …

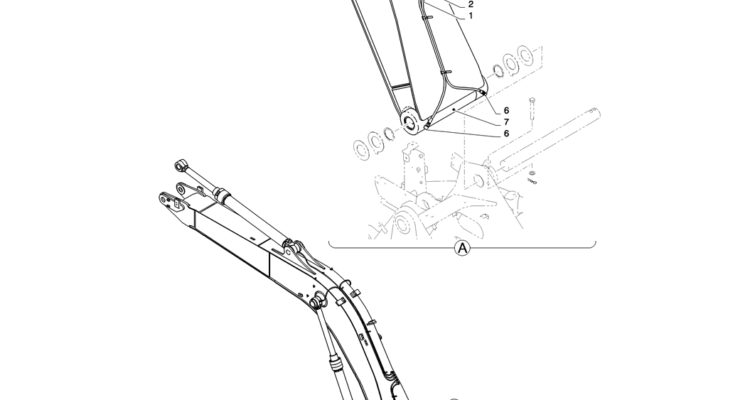

03-004(00) BOOM GROUP-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 7 6 ZG91S02000 LUBE NIPPLE 5 1 2444R1117D235 HOSE 4 1 2444R1117D200 FLEXIBLE HOSE 3 1 2444R1117D190 FLEXIBLE HOSE 2 1 2444R1117D098 HOSE 980.00 mm 1 1 2444R1117D095…

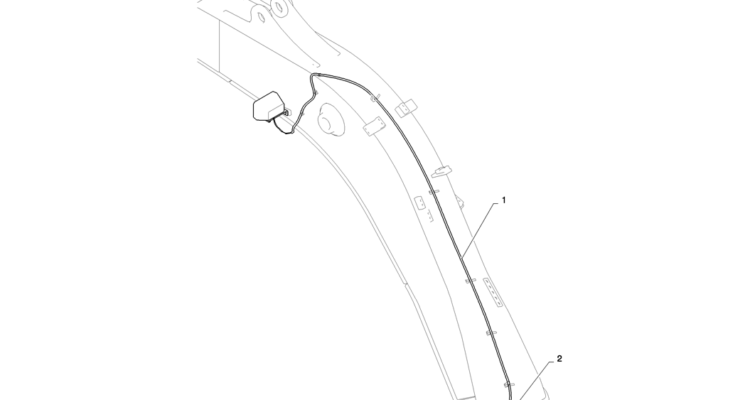

03-003(00) HARNESS ASSEMBLY, BOOM-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 2 1 PY01P01043D3 CLIP AR YY15E00009F1 Boom 1 1 YY15E01021P1 HARNESS         Kobelco Part Number Information parts manager pro is the electronic parts Catalog…

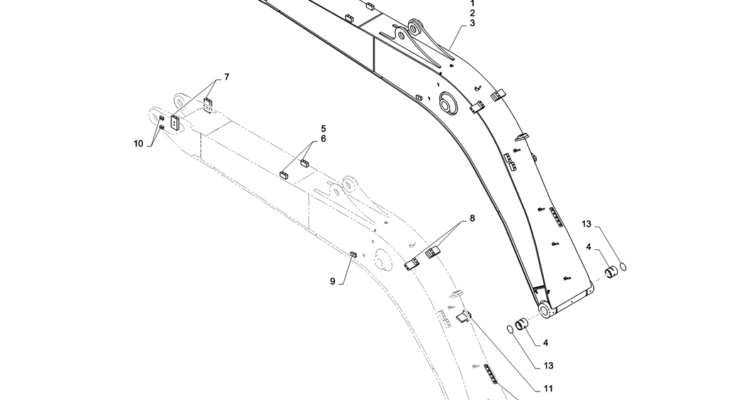

03-002(00) BOOM, HOE 4.68M-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 13 2 2445R138D6 GASKET Dust 12 1 2418T22409 PLATE 11 1 YY02B01702P1 BRACKET, SUPPORTING 10 2 2416T12922 BLOCK Tapped 9 1 2416T9878 BLOCK Tapped 8 2 YY02B01313P1…

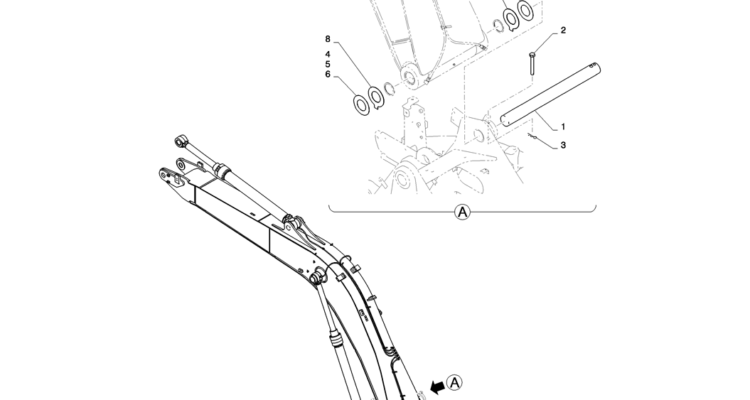

03-001(00) BOOM INSTALLATION-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 8 2 YN12B01602D1 SHIM 2.0 7 1 B16T0442D5 SHIM 2.3 6 1 B16T0442D2 SHIM 1.6 5 1 B16T0442D44 SHIM 0.9 4 1 B16T0442D57 SHIM 0.5 2 1 YX02B01003P2…

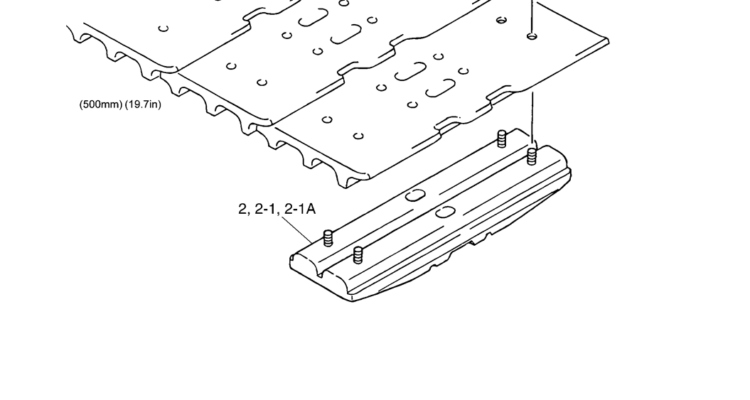

02-018(00) SHOE ASSY (RUBBER PAD)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 2-1C 4 ZW26X16000 LOCK WASHER 2-1A 1 YY62D00007P1 SHOE Rubber-Pad 2-1 46 YY62D00008F1 RUBBER PAD Shoe 2 2 YY60D00018F3 SHOE Assy. AR YY60D00054F2 2-1B 4 ZN45C16028…

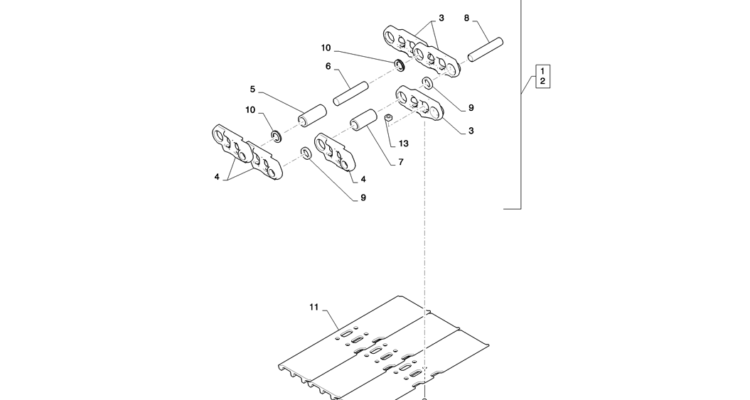

02-017(00) SHOE ASSEMBLY 700 MM-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 13 184 LP60D01002P1 NUT 12 184 YY60D01004P1 BOLT 11 46 2424N240D2 SHOE 10 90 YY62D01033P1 SEAL 8 1 YY62D01032P1 PIN 7 1 YY62D01030P1 BUSHING 6 45…

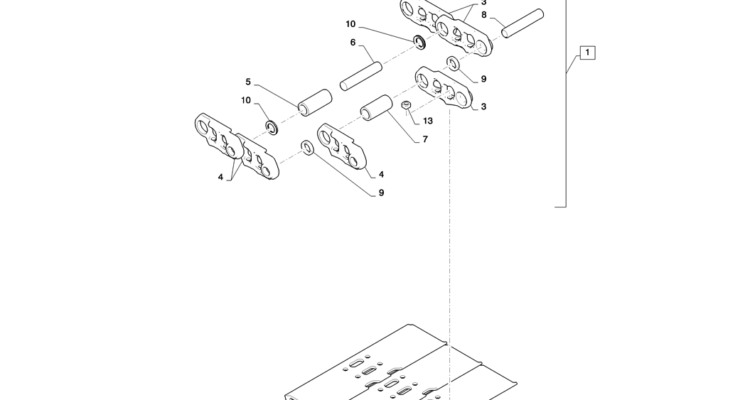

02-016(00) SHOE ASSEMBLY-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 13 184 LP60D01002P1 NUT 12 184 YY60D01004P1 BOLT 11 46 2424N240 SHOE 10 90 YY62D01033P1 SEAL 8 1 YY62D01032P1 PIN 7 1 YY62D01030P1 BUSHING 6 45 YY62D01031P1 PIN…

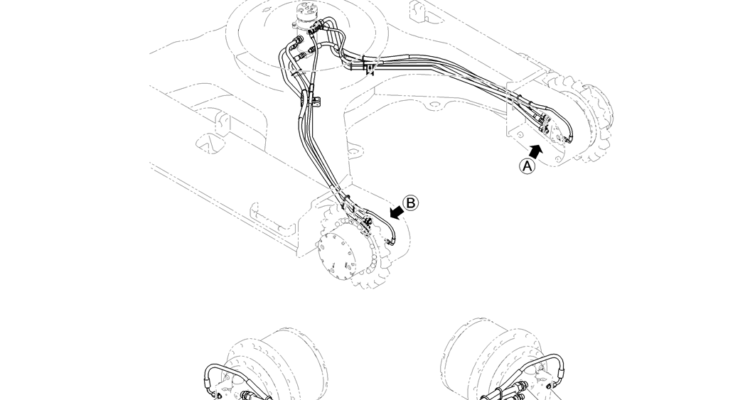

02-015(00) HYDRAULIC LINES, PROPEL-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 4 4 ZD12P02400 O-RING 3 2 ZH22X04000 HYD CONNECTOR 2 2 ZH22X08000 HYD CONNECTOR AR YY12H00004F1 Propel 1 4 ZA23F22012 HYD CONNECTOR         Kobelco…

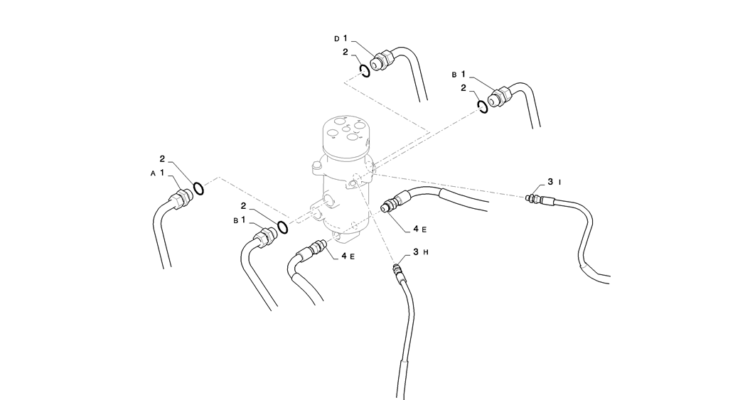

02-014(00) HYDRAULIC LINES, SWIVEL-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 4 2 ZH22X08000 HYD CONNECTOR 3 2 ZH22X04000 HYD CONNECTOR 1 4 2444Z2320 ELEC CONNECTOR AR YY19H00030F1 Swivel 2 4 ZD12P02900 O-RING         Kobelco…
