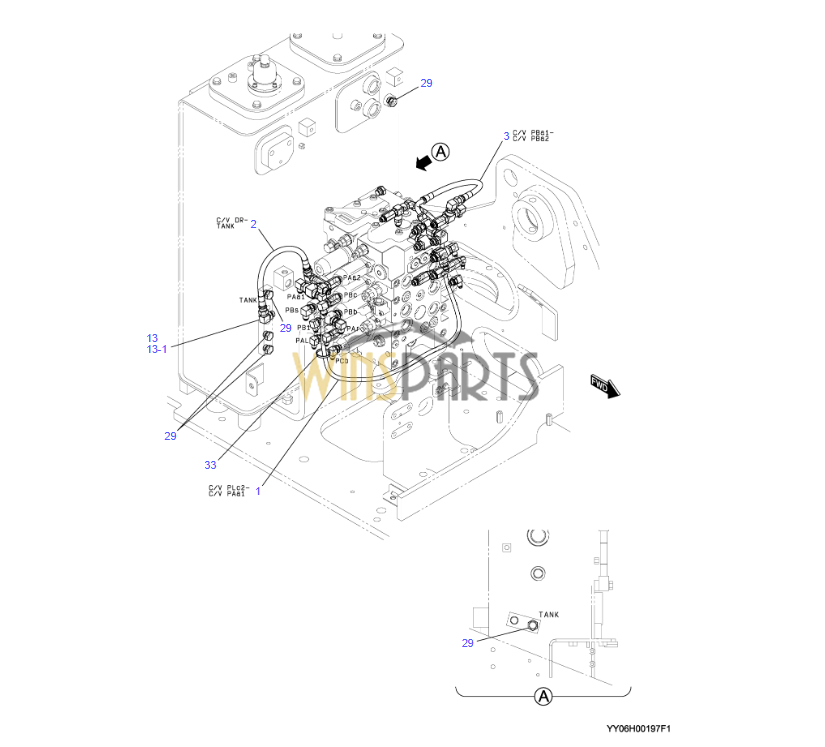

YY06H00197F1 2420R349D110 2420R537D036 MAIN CONTROL LINES HOSE KOBELCO SK130LC-11 SK140LC-11 SK125SR-5

YY06H00197F1 2420R349D110 2420R537D036 MAIN CONTROL LINES HOSE KOBELCO SK130LC-11 SK140LC-11 SK125SR-5
　 .
　 1 2420R349D110 HOSE 1
　 2 2420R537D036 HOSE 1
　 3 HX33L06036DX HOSE 1
　 4 2444R596D2 ELBOW 1
　 8 PS64H01041P1 ELBOW 2
　 10 YT42H01128P1 ELBOW 3
　 11 ZH32X04000 ELBOW, 90 7
　 12 ZH32X04006 ELBOW 1
　 13 ZH32X06000 ELBOW, 90 11
　 13-1 ZD12P01400 O-RING 1
　 15 2444Z2525 CONNECTOR 1
　 16 2444Z2337 CONNECTOR 1
　 17 2444T2524D2 CONNECTOR 1
　 18 HH25R06004G1 CONNECTOR 1
　 20 2444Z3711 CONNECTOR 1
　 21 ZH22X06000 CONNECTOR 1
　 22 HH25R06004G2 CONNECTOR 1
　 23 HH25R06006GD CONNECTOR 2
　 25 HH55Q04004G1 TEE 1
　 26 HH55Q06006G1 TEE 2
　 27 PW64H01007P1 TEE 1
　 29 ZE72X06000 PLUG 5
　 29 ZE72X06000 PLUG 4
　 30 YN52S00102P1 SENSOR, PRESS 1
　 30-2 ZD12P01100 O-RING 1
　 31 YN21V00005F2 VALVE, CHECK 1
　 31-5 ZD12P01400 O-RING 1
　 32 YN21V00024F4 VALVE, CHECK 1
　 33 PY01P01043D5 CLIP 1
　 34 ZH42X04000 ELBOW, 45 1
LP06H00014F1 2420R349D086 2420R537D110 MAIN CONTROL VALVE LINES KOBELCO SK130UR-5 SK135SRD-5 SK135SRLC-5 SK140SRL-5 SK140SRLC-5
　 .
　 1 2420R349D086 HOSE 1
　 2 2420R537D110 HOSE ASSY 1
　 3 HX33L06084DX HOSE 1
　 4 HX33L06115DX HOSE 1
　 5 YN52S00102P1 SENSOR, PRESS 1
　 5-2 ZD12P01100 O-RING 1
　 6 2444Z2516 CONNECTOR 1
　 7 HH25R06006GD CONNECTOR 1
　 9 ZH22X04006 CONNECTOR 1
　 10 ZH22X06000 CONNECTOR 4
　 11 2444Z2891 CONNECTOR 1
　 12 HH55Q06006G1 TEE 2
　 13 2444T3182 TEE 1
　 14 2444Z3421 TEE 1
　 15 ZH32X04006 ELBOW 1
　 16 ZH32X04000 ELBOW, 90 6
　 17 ZH32X06000 ELBOW, 90 8
　 17-1 ZD12P01400 O-RING 1
　 18 ZE72X06000 PLUG 3
　 19 PY01P01043D8 CLIP 4
　 20 YN13E01375P1 CLIP 2
　 21 YN21V00005F2 VALVE, CHECK 1
　 21-5 ZD12P01400 O-RING 1
　 22 YN21V00005F3 VALVE, CHECK 1
　 22-5 ZD12P01400 O-RING 1
　 23 YT42H01128P1 ELBOW 3
YY06H00212F1 CONTROL LINES, MAIN
LP06H00024F1 CONTROL LINES, MAIN
　 . (VALVE OF NISHINA INDUSTRIAL)
　 .
　 1 2420R349D086 HOSE 1
　 2 2420R537D110 HOSE ASSY 1
　 3 HX33L06084DX HOSE 1
　 4 HX33L06115DX HOSE 1
　 5 YN52S00102P1 SENSOR, PRESS 1
　 5-2 ZD12P01100 O-RING 1
　 6 2444Z2516 CONNECTOR 1
　 7 HH25R06006GD CONNECTOR 1
　 8 ZH22X04006 CONNECTOR 1
　 9 ZH22X06000 CONNECTOR 4
　 10 2444Z2891 CONNECTOR 1
　 11 HH55Q06006G1 TEE 2
　 12 YT03H01371P1 TEE 1
　 13 2444Z3421 TEE 1
　 14 ZH32X04006 ELBOW 1
　 15 ZH32X04000 ELBOW, 90 6
　 16 ZH32X06000 ELBOW, 90 8
　 16-1 ZD12P01400 O-RING 1
　 17 ZE72X06000 PLUG 3
　 18 PY01P01043D8 CLIP 4
　 19 YN13E01375P1 CLIP 2
　 20 YN21V00005F2 VALVE, CHECK 1
　 20-5 ZD12P01400 O-RING 1
　 21 YN21V00005F3 VALVE, CHECK 1
　 21-5 ZD12P01400 O-RING 1
　 22 YT42H01128P1 ELBOW 3
YY06H00212F1 CONTROL LINES, MAIN
　 1 2420R349D110 HOSE 1
　 2 2420R537D036 HOSE 1
　 3 2420R537D100 HOSE 1
　 4 PS64H01041P1 ELBOW 2
　 5 YT42H01128P1 ELBOW 5
　 6 ZH32X04000 ELBOW, 90 7
　 7 ZH32X04006 ELBOW 1
　 8 ZH32X06000 ELBOW, 90 8
　 8-1 ZD12P01400 O-RING 1
　 9 ZH42X04000 ELBOW, 45 1
　 10 2444T2524D2 CONNECTOR 1
　 11 2444Z2337 CONNECTOR 1
　 12 2444Z2525 CONNECTOR 1
　 13 2444Z2891 CONNECTOR 1
　 14 2444Z3502 CONNECTOR 1
　 15 2444Z3711 CONNECTOR 1
　 16 HH25R06004G1 CONNECTOR 1
　 17 HH25R06004G2 CONNECTOR 1
　 18 HH25R06006GD CONNECTOR 2
　 19 ZH22X06000 CONNECTOR 1
　 20 HH55Q04004G1 TEE 1
　 21 HH55Q06006G1 TEE 1
　 22 PW64H01007P1 TEE 1
　 23 ZE72X06000 PLUG 4 YY09045258–46176
　 23 ZE72X06000 PLUG 3 YY09046177-
　 24 YN52S00102P1 SENSOR, PRESS 1
　 24-2 ZD12P01100 O-RING 1
　 25 YN21V00005F2 VALVE, CHECK 1
　 25-5 ZD12P01400 O-RING 1
　 26 YN21V00005F3 VALVE, CHECK 3
　 26-5 ZD12P01400 O-RING 1
　 27 PY01P01043D3 CLIP 1
　 28 PY01P01043D5 CLIP 2
YY06H00198F1 CONTROL LINES, MAIN Not Service
　 .
　 1 2420R349D080 HOSE 1
　 2 YT42H01128P1 ELBOW 1
LP06H00041F1 CONTROL LINES, MAIN
　 1 2420R349D086 HOSE 1
　 2 2420R537D110 HOSE ASSY 1
　 3 2420R537D082 HOSE 1
　 4 HX33L06115DX HOSE 1
　 5 YN52S00214P1 SENSOR, PRESS 1
　 5-2 ZD12P01100 O-RING 1
　 6 2444Z2516 CONNECTOR 1
　 7 HH25R06006GD CONNECTOR 1
　 8 ZH22X04006 CONNECTOR 1
　 9 ZH22X06000 CONNECTOR 4
　 10 2444Z2891 CONNECTOR 1
　 11 HH55Q06006G1 TEE 2
　 12 YT03H01371P1 TEE 1
　 13 2444Z3421 TEE 1
　 14 ZH32X04006 ELBOW 1
　 15 ZH32X04000 ELBOW, 90 6
　 16 ZH32X06000 ELBOW, 90 8
　 16-1 ZD12P01400 O-RING 1
　 17 ZE72X06000 PLUG 3
　 18 PY01P01043D8 CLIP 5
　 19 YN13E01375P1 CLIP 2
　 20 YN21V00005F2 VALVE, CHECK 1
　 20-5 ZD12P01400 O-RING 1
　 21 YN21V00024F7 VALVE, CHECK 1
　 22 YT42H01128P1 ELBOW 3
　 23 HH35X06006G3 ELBOW 1
YN30V00143F1 CONTROL VALVE KOBELCO SK130LC-11 SK140LC-11 SK125SR-5
　 .
　 1 YN30V01097P1 HOUSING 1
　 2 YN30V01096P1 SPOOL 1
　 3 YF30V01019P1 COVER 1
　 4 YN30V01078P1 COVER 1
　 5 YN30V01098P1 LEVER 1
　 6 YN30V01036P1 SEAL, DUST 1
　 7 YN30V01027P1 PLUG 2
　 8 ZE82T02000 PLUG 8
　 9 YN30V01074P1 BOLT 1
　 10 2420Z1036D3 CLEVIS 2
　 11 YN22T00264P1 NAME PLATE 1
　 12 ZP26D06020 PIN, SPRING 2
　 13 ZS28C06016 CAPSCREW 2
　 14 ZS28C06020 CAPSCREW 4
　 15 ZS28C08030 CAPSCREW 4
　 16 ZW16X06000 WASHER 2
　 17 YN30V01103P1 LOCK WASHER 4
　 18 ZD11P02800 O-RING 1
　 19 ZD12G05500 O-RING 2
　 20 ZD12G09500 O-RING 1

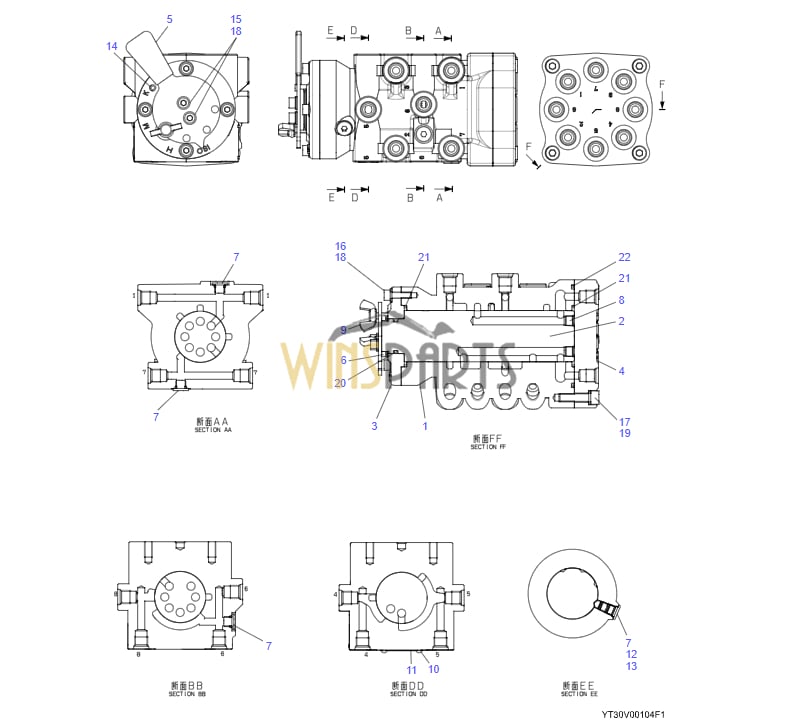

YT30V00104F1 VALVE, CONTROL KOBELCO SK125SR-5 SK130SR-5 SK130UR-5 SK135SRD-5 SK135SRLC-5
　 .
　 1 YN30V01080P1 HOUSING 1
　 2 YN30V01086P1 SPOOL 1
　 3 YN30V01057P1 COVER 1
　 4 YN30V01078P1 COVER 1
　 5 YT30V01013P1 LEVER 1
　 6 YN30V01036P1 SEAL, DUST 1
　 7 YN30V01027P1 PLUG 4
　 8 ZE82T02000 PLUG 8
　 9 YN30V01074P1 BOLT 1
　 10 2420Z1036D3 CLEVIS 2
　 11 YN22T00264P1 NAME PLATE 1
　 12 YN30V01015P1 BALL 1
　 13 YN30V01028P1 SPRING 1
　 14 ZP26D06020 PIN, SPRING 1
　 15 ZS28C06016 CAPSCREW 2
　 16 ZS28C06020 CAPSCREW 4
　 17 ZS28C08030 CAPSCREW 4
　 18 ZW16X06000 WASHER 6
　 19 YN30V01103P1 LOCK WASHER 4
　 20 ZD11P02800 O-RING 1
　 21 ZD12G05500 O-RING 2
　 22 ZD12G09500 O-RING 1
YY64H00851F1 2420R537D042 2420R537D068 CONTROL LINES, MULTI
　 .
　 1 2420R537D042 HOSE 1
　 2 2420R537D068 HOSE ASSY 1
　 3 2420R537D086 HOSE 1
　 3 2420R537D100 HOSE 1
　 4 2420R537D096 HOSE 1
　 5 2444Z2525 CONNECTOR 3
　 6 2444Z2337 CONNECTOR 6
　 6 2444Z2337 CONNECTOR 7
　 7 2444T2524D2 CONNECTOR 3
　 8 2444Z4101 CONNECTOR 1
　 10 YY64H01470P1 CONNECTOR 1 YY09045001–45002
　 10 YY64H01470P1 CONNECTOR 2
　 11 HH25R04004G3 CONNECTOR 4
　 11 HH25R04004G3 CONNECTOR 3
　 12 2444T2611 CONNECTOR 2
　 12 2444T2611 CONNECTOR 1
　 13 HH25R04004G8 CONNECTOR 2
　 14 2444Z2894 ELBOW 7 YY09045001–45002
　 14 2444Z2894 ELBOW 6
　 .
　 15 2444Z2338 ELBOW 9 YY09045001–45002
　 15 2444Z2338 ELBOW 8
　 16 ZE72X04000 PLUG 2
　 17 YN52S00102P1 SENSOR, PRESS 6
　 17-2 ZD12P01100 O-RING 1
　 17 YN52S00214P1 SENSOR, PRESS 6 YY09049601-
　 17-2 ZD12P01100 O-RING 1
　 18 ZM73C08040 SEMS-BOLT 4
　 19 PY01P01043D5 CLIP 1
　 20 PY01P01043D8 CLIP 2
　 20 PY01P01043D8 CLIP 1
　 21 2444T2524 CONNECTOR 4
　 22 HX80X15020DX TUBE 1
　 23 PY01P01043D3 CLIP 1
　 24 LV42H01048P1 CONNECTOR 1
　 25 YZ02B01020P1 CONNECTOR 1
　 26 HH45X06004G1 ELBOW, 45 1
YY64H00852F1 2420R537D050 2420R537D078 CONTROL LINES, MULTI
　 1 2420R537D050 HOSE 1
　 2 2420R537D078 HOSE 1 LK09006001–06001
　 . YV09020001–20002
　 . YY09045001–45257
　 2 2420R537D082 HOSE ASSY 1 LK09006002-
　 . YV09020003-
　 . YY09045258-
　 3 2420R537D092 HOSE 1 LK09006001–06001
　 . YV09020001–20002
　 . YY09045001–45257
　 3 2420R537D100 HOSE 1 LK09006002-
　 . YV09020003-
　 . YY09045258-
　 4 2420R537D096 HOSE 1 LK09006001–06001
　 . YV09020001–20002
　 . YY09045001–45257
　 4 2420R537D105 HOSE 1 LK09006002-
　 . YV09020003-
　 . YY09045258-
　 5 HX80X15020DX TUBE 1
　 6 PY01P01043D3 CLIP 2
　 7 PY01P01043D5 CLIP 1
YN30V00158F1 VALVE, CONTROL
　 .
　 1 YN30V01080P1 HOUSING 1
　 2 YN30V01086P1 SPOOL 1
　 3 YN30V01064P1 COVER 1
　 4 YN30V01078P1 COVER 1
　 5 YN30V01027P1 PLUG 4
　 6 ZE82T02000 PLUG 8
　 7 2420Z1036D3 CLEVIS 2
　 8 YN22T00264P1 NAME PLATE 1
　 9 YN30V01015P1 BALL 1
　 10 YN30V01028P1 SPRING 1
　 11 ZS23C06010 CAPSCREW 1
　 12 ZS28C06020 CAPSCREW 4
　 13 ZS28C08030 CAPSCREW 4
　 14 YN30V01103P1 LOCK WASHER 4
　 15 ZD11P02800 O-RING 1
　 16 ZD12G05500 O-RING 2
　 17 ZD12G09500 O-RING 1
YT30V00104F1 VALVE, CONTROL
　 .
　 1 YN30V01080P1 HOUSING 1
　 2 YN30V01086P1 SPOOL 1
　 3 YN30V01057P1 COVER 1
　 4 YN30V01078P1 COVER 1
　 5 YT30V01013P1 LEVER 1
　 6 YN30V01036P1 SEAL, DUST 1
　 7 YN30V01027P1 PLUG 4
　 8 ZE82T02000 PLUG 8
　 9 YN30V01074P1 BOLT 1
　 10 2420Z1036D3 CLEVIS 2
　 11 YN22T00264P1 NAME PLATE 1
　 12 YN30V01015P1 BALL 1
　 13 YN30V01028P1 SPRING 1
　 14 ZP26D06020 PIN, SPRING 1
　 15 ZS28C06016 CAPSCREW 2
　 16 ZS28C06020 CAPSCREW 4
　 17 ZS28C08030 CAPSCREW 4
　 18 ZW16X06000 WASHER 6
　 19 YN30V01103P1 LOCK WASHER 4
　 20 ZD11P02800 O-RING 1
　 21 ZD12G05500 O-RING 2
　 22 ZD12G09500 O-RING 1
YY64H00851F1 YY64H00852F1 CONTROL LINES, MULTI
YY64H00852F1 CONTROL LINES, MULTI Not Service
　 .
　 1 2420R537D050 HOSE 1
　 2 2420R537D078 HOSE 1 LK09006001–06001
　 . YV09020001–20002
　 . YY09045001–45257
　 2 2420R537D082 HOSE ASSY 1 LK09006002-
　 . YV09020003-
　 . YY09045258-
　 3 2420R537D092 HOSE 1 LK09006001–06001
　 . YV09020001–20002
　 . YY09045001–45257
　 3 2420R537D100 HOSE 1 LK09006002-
　 . YV09020003-
　 . YY09045258-
　 4 2420R537D096 HOSE 1 LK09006001–06001
　 . YV09020001–20002
　 . YY09045001–45257
　 4 2420R537D105 HOSE 1 LK09006002-
　 . YV09020003-
　 . YY09045258-
　 5 HX80X15020DX TUBE 1
　 6 PY01P01043D3 CLIP 2
　 7 PY01P01043D5 CLIP 1
　 .
　 1 2420R537D042 HOSE 1
　 2 2420R537D068 HOSE ASSY 1
　 3 2420R537D086 HOSE 1 LK09006001–06001
　 . YV09020001–20002
　 . YY09045001–45257
　 3 2420R537D100 HOSE 1 LH04006001-
　 . LK09006002-
　 . YV09020003-
　 . YY09045258-
　 4 2420R537D096 HOSE 1
　 5 2444Z2525 CONNECTOR 3
　 6 2444Z2337 CONNECTOR 6 LH04006001–06047
　 . LK09006001–06003
　 . YV09020001–20002
　 . YY09045001–46037
　 6 2444Z2337 CONNECTOR 7 LH04006048-
　 . LK09006004-
　 . YV09020003-
　 . YY09046038-
　 7 2444T2524D2 CONNECTOR 3
　 8 2444Z4101 CONNECTOR 1
　 10 YY64H01470P1 CONNECTOR 1 YY09045001–45002
　 10 YY64H01470P1 CONNECTOR 2 LH04006001–06047
　 . LK09006001–06003
　 . YV09020001–20002
　 . YY09045003–46037
　 11 HH25R04004G3 CONNECTOR 4 LH04006001–06047
　 . LK09006001–06003
　 . YV09020001–20002
　 . YY09045001–46037
　 11 HH25R04004G3 CONNECTOR 3 LH04006048-
　 . LK09006004-
　 . YV09020003-
　 . YY09046038-
　 12 2444T2611 CONNECTOR 2 LH04006001–06047
　 . LK09006001–06003
　 . YV09020001–20002
　 . YY09045001–46037
　 12 2444T2611 CONNECTOR 1 LH04006048-
　 . LK09006004-
　 . YV09020003-
　 . YY09046038-
　 13 HH25R04004G8 CONNECTOR 2
　 14 2444Z2894 ELBOW 7 YY09045001–45002
　 14 2444Z2894 ELBOW 6 LH04006001-
　 . LK09006001-
　 . YV09020001-
　 . YY09045003-
　 15 2444Z2338 ELBOW 9 YY09045001–45002
　 15 2444Z2338 ELBOW 8 LH04006001-
　 . LK09006001-
　 . YV09020001-
　 . YY09045003-
　 16 ZE72X04000 PLUG 2
　 17 YN52S00102P1 SENSOR, PRESS 6 LH04006001-
　 . LK09006001-
　 . YV09020001-
　 . YY09045001–49600
　 17-2 ZD12P01100 O-RING 1
　 17 YN52S00214P1 SENSOR, PRESS 6 YY09049601-
　 17-2 ZD12P01100 O-RING 1
　 18 ZM73C08040 SEMS-BOLT 4
　 19 PY01P01043D5 CLIP 1
　 20 PY01P01043D8 CLIP 2 LK09006001–06001
　 . YV09020001–20002
　 . YY09045001–45257
　 20 PY01P01043D8 CLIP 1 LH04006001-
　 . LK09006002-
　 . YV09020003-
　 . YY09045258-
　 21 2444T2524 CONNECTOR 4
　 22 HX80X15020DX TUBE 1
　 23 PY01P01043D3 CLIP 1
　 24 LV42H01048P1 CONNECTOR 1 LH04006048-
　 . LK09006004-
　 . YV09020003-
　 . YY09046038-
　 25 YZ02B01020P1 CONNECTOR 1 LH04006048-
　 . LK09006004-
　 . YV09020003-
　 . YY09046038-
　 26 HH45X06004G1 ELBOW, 45 1 LH04006048-
