Product Description

LC10V00010S113 LC10V00010S111 SHAFT HYDRAULIC PUMP Kobelco SK350-8 SK330-8 SK350-9 Excavator Spare Parts

Number:LC10V00010S113 LC10V00010S111
Type:SHAFT HYDRAULIC PUMP
Utend:Kobelco SK350-8 SK330-8 SK350-9
Place of Origin:China/Japan
Packing: Fumigate Seaworthy Packing
Engine Brand: ISUZU/HINO/MISTUBISHI
Excavator Brand: New.Holland/KOBELCO/HITACHI

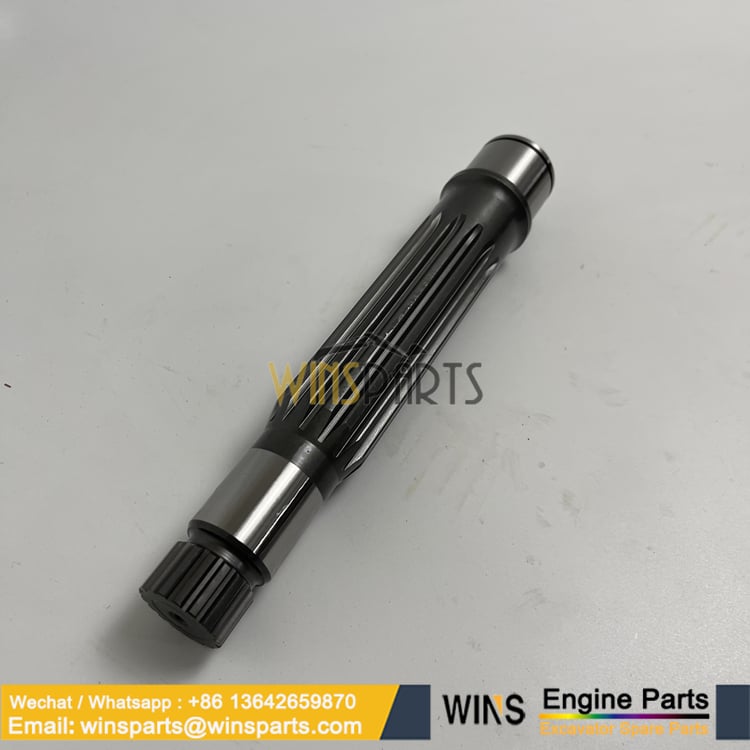

LC10V00010S111 Kobelco
LC10V00010S111 Kobelco

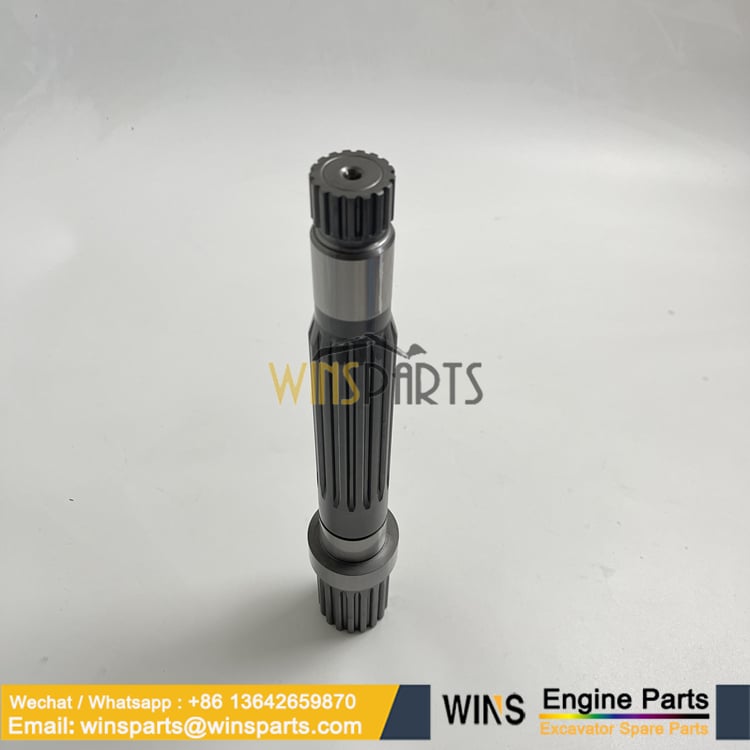

LC10V00010S113 Kobelco
LC10V00010S113 Kobelco

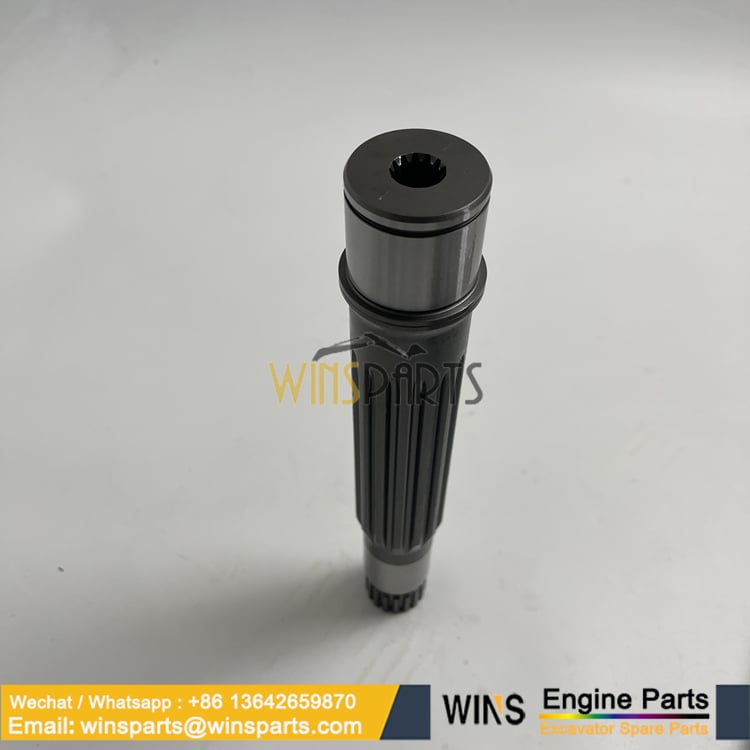

LC10V00010S113 LC10V00010S11 1 SHAFT HYDRAULIC PUMP Kobelco SK350-8 SK330-8 SK350-9
LC10V00010S113 LC10V00010S11 1 SHAFT HYDRAULIC PUMP Kobelco SK350-8 SK330-8 SK350-9

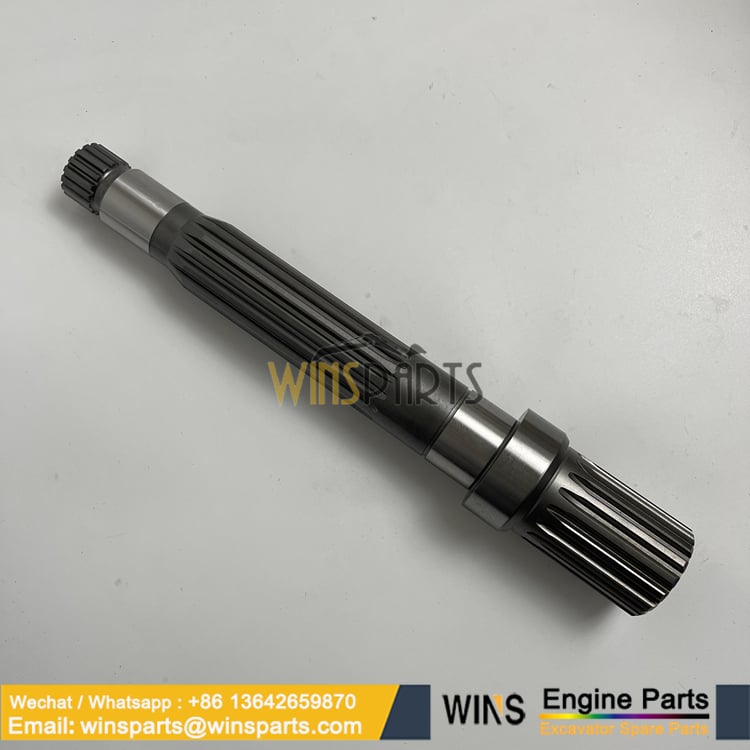

LC10V00010S113 LC10V00010S111 (3)
LC10V00010S113 LC10V00010S111 (3)

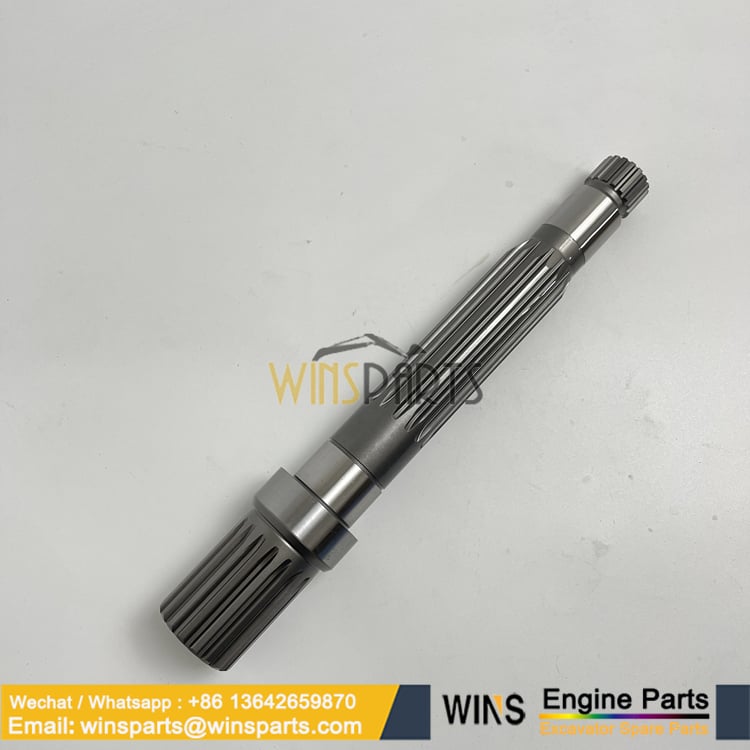

LC10V00010S113 LC10V00010S111 SHAFT HYDRAULIC PUMP Kobelco (3)
LC10V00010S113 LC10V00010S111 SHAFT HYDRAULIC PUMP Kobelco (3)
LC10V00010S113 LC10V00010S111 SHAFT HYDRAULIC PUMP Kobelco
LC10V00010S113 LC10V00010S111 SHAFT HYDRAULIC PUMP Kobelco

Ref Qty Part Number Description Indicators
111 1 LC10V00010S111 SHAFT SHAFT (F)
113 1 LC10V00010S113 SHAFT SHAFT (R)
116 1 LC10V00010S116 GEAR GEAR
123 2 LC10V00002S123 BEARING
124 2 LC10V00010S124 BEARING BEARING,NEEDLE
127 3 2441U723S127 SPACER
141 2 NSS NOT SERVICED SEPARATELY BLOCK,CYLINDER
151 18 NSS NOT SERVICED SEPARATELY PISTON
152 18 NSS NOT SERVICED SEPARATELY SHOE
153 2 LC10V00010S153 PLATE
156 2 YN10V00005S156 BUSHING
157 18 LC10V00010S157 SPRING SPRING
211 2 2441U242S211 PLATE
212 2 NSS NOT SERVICED SEPARATELY PLATE
214 2 NSS NOT SERVICED SEPARATELY BUSHING
251 2 LC10V00010S018 SUPPORT SUPPORT
261 1 LC10V00010S261 COVER COVER,SEAL
271 2 YN10V00043S271 BOX CASE
312 1 LC10V00010S312 BLOCK VALVE
313 1 NSS NOT SERVICED SEPARATELY PLATE,VALVE
314 1 NSS NOT SERVICED SEPARATELY PLATE,VALVE
325 1 YN10V00043S325 COVER
401 8 2437U213S401 SCREW
406 4 ZS23C08020 SCREW M08x1.25x20mm
407 3 ZS23C06055 SCREW M06x1.0x55mm
466 2 2441U667S466 PLUG 1/4″ PF
467 2 2441U549S464 PLUG
468 4 2441U436S469 PLUG
490 32 2441U722S490 PLUG 1/16″ NPTF
531 2 NSS NOT SERVICED SEPARATELY PIN
532 2 LC10V00010S532 PISTON
534 2 2437U213S534 STOP
535 2 2437U213S535 STOP
546 2 YN10V00043S546 SPACER
548 2 NSS NOT SERVICED SEPARATELY PIN,FEEDBACK
702 2 YN10V00003S702 GASKET
710 2 YX10V00003S012 O-RING
717 4 YN10V00020S012 O-RING O-RING
724 16 YX10V00003S015 O-RING
725 7 YT10V00003S710 O-RING
727 3 YN10V01001S727 GASKET
728 4 YN10V00020S015 O-RING O-RING
732 2 YT10V00003S708 O-RING
774 1 LC10V00010S019 GASKET OIL SEAL
789 2 ZD85P01800 RING Back-Up — ID 18 x OD 22 x Th 1.25mm
792 2 ZD85G03500 RING Back-Up — ID 35 x OD 40 x Th 1.25mm
806 2 ZN18C16010 NUT M16x2.0mm
808 2 ZN18C20012 NUT M20x2.5mm
824 2 ZR16X04000 RING Retaining — ID 37 x OD 40 x Th 1.8mm
885 2 2441U723S885 PIN
886 4 ZP26D06014 PIN Roll — OD 06 x 14mm Long
901 2 ZS91C01000 BOLT Eye — M10x1.50x18mm
886 4 ZP26D06014 PIN Roll — OD 06 x 14mm Long
954 2 2437U213S954 SCREW
981 1 NSS NOT SERVICED SEPARATELY NAME PLATE
983 2 2437U407S983 RIVET
K 1 LC10V00010R100 REPAIR KIT CONSISTS OF ITEM 151X9, 152X9
K 1 LC10V00020R100 REPAIR KIT CONSISTS OF ITEM 141X1, 313X1
K 1 LC10V00020R200 REPAIR KIT CONSISTS OF ITEM 141X1, 314X1
K 1 LC10V00010R500 REPAIR KIT CONSISTS OF ITEM 531X1, 548X1
K 1 LC10V00010R600 REPAIR KIT CONSISTS OF ITEM 212X1, 214X1  Excavator Engine Spare Parts
