Product Description

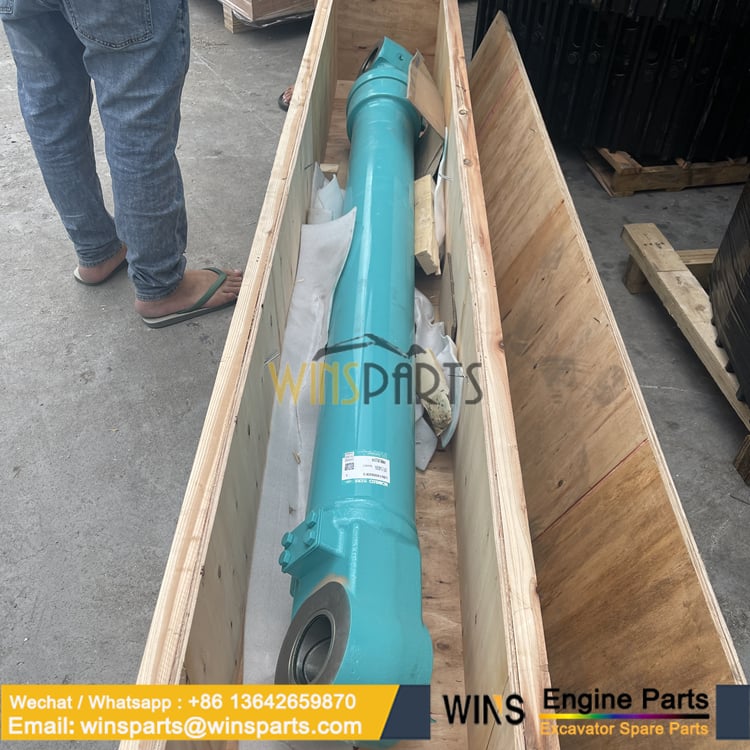

LB01V00020F1 LB01V00020F3 LB01V00020F2 BUCKET CYLINDER Assembly Kobelco SK295-8 SK295-9 Excavator Spare Parts
Number :LB01V00020F1 LB01V00020F3 LB01V00020F2Type : BUCKET CYLINDER AssemblyUtend :Kobelco SK295-8 SK295-9 ExcavatorPlace of Origin :China/JapanPacking : Fumigate Seaworthy PackingEngine Brand : ISUZU/HINO/MISTUBISHIExcavator Brand : New.Holland/KOBELCO/HITACHI

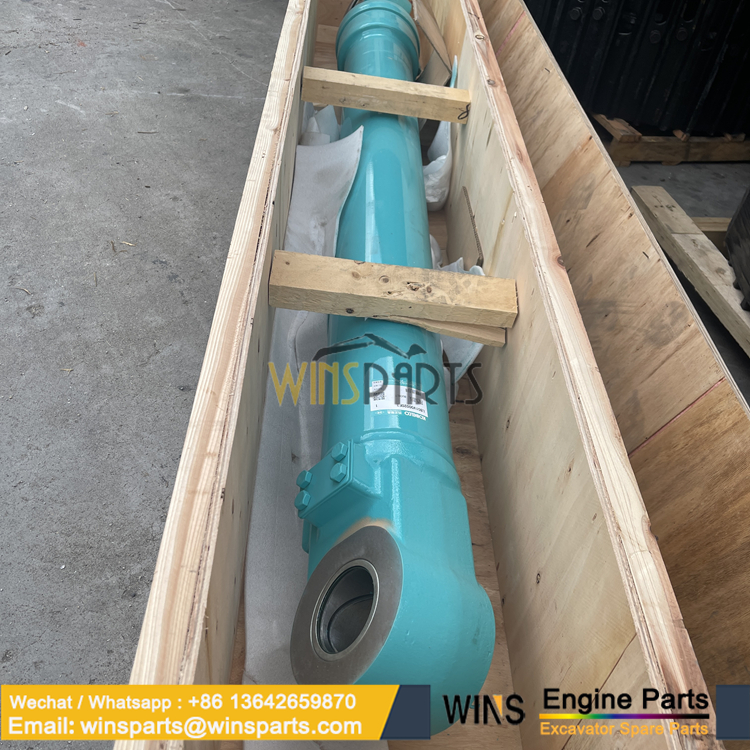

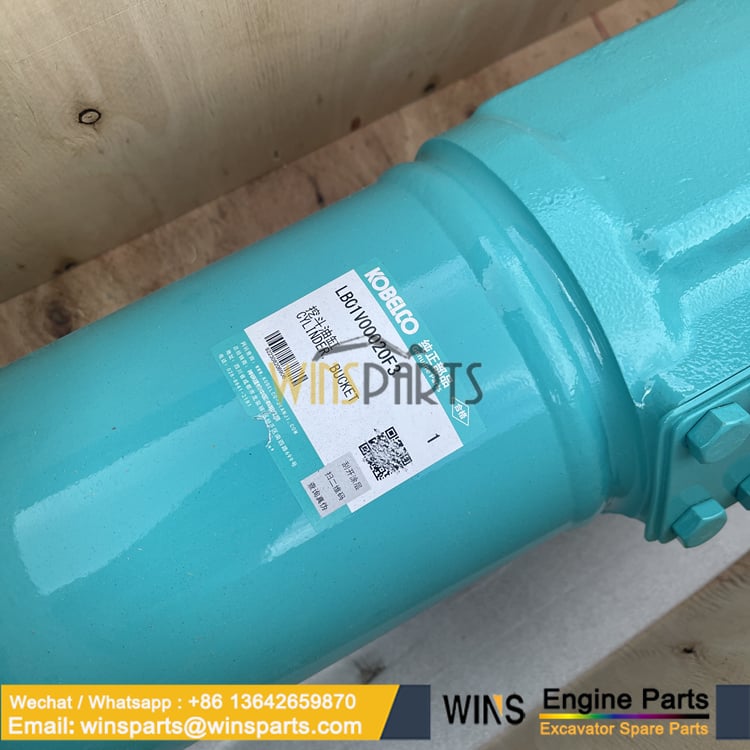

LB01V00018F1 LB01V00018F2 LB01V00018F3 Boom CYLINDER Assembly Kobelco SK295-8 SK295-9 Excavator LB01V00019F1 LB01V00019F2 LB01V00019F3 Arm CYLINDER Assembly Kobelco SK295-8 SK295-9 Excavator LB01V00020F1 LB01V00020F3 LB01V00020F2 BUCKET CYLINDER Assembly Kobelco SK295-8 SK295-9 LB01V00020F3 BUCKET CYLINDER Assembly Kobelco SK295-8 SK295-9 Ref Qty Part Number Description Indicators
LB01V00019F1CYLINDER Assembly, Arm
11NANOT SERVICED Tube
21NANOT SERVICED Rod
34LQ02B01481P1BUSHING ID 100 x OD 115 x 57mm Long
41LB01V00019S005COVER Cover
51LB01V00019S006BUSHING
61YN01V00148S012RING Retaining
71LB01V00019S008GASKET Seal
81LB01V00019S009GASKET Seal
91LB01V00019S010RING Back-Up
101LB01V00019S011GASKET Seal, Dust
111ZD12G14500O-RING ID 144.40 ± 1.16 x OD 150mm
121LB01V00019S013RING Back-Up
131LB01V00019S014O-RING
141LB01V00019S015RING
151LB01V00019S016PISTON
161LB01V00019S017GASKET Seal, Piston
172LB01V00019S018RING Wear
182LB01V00019S019RING
191ZD12G08500O-RING ID 84.40 ± 0.73 x OD 90mm
202LB01V00019S021RING Back-Up
211LB01V00019S022NUT
221YN01V00148S024DOWEL Screw, Set
231LB01V00019S024BUSHING Cushion
241YN01V00148S026RING
2514LB01V00019S026SCREW
261LB01V00019S027HYDRAULIC VALVE Oriface
271YN01V00148S029SPRING
281YN01V00148S030SPACER
291ZD12P01400O-RING ID 13.80 ± 0.19 x OD 18mm
301YN01V00148S032PLUG
314LB01V00018S025GASKET Seal
K1LB01V00019R100REPAIR KIT Contains Items 7 – 13
K1LB01V00019R200REPAIR KIT Contains Items 16 & 20
K1LB01V00019R300REPAIR KIT Contains Items 7 – 13, 16 & 20
K1LB01V00019R400REPAIR KIT Contains Items 1, 3 & 31
K1LB01V00019R500REPAIR KIT Contains Items 2, 3, 23, 24 & 31
Ref Qty Part Number Description Indicators
LB01V00018F1CYLINDER Assembly, Boom
11NANOT SERVICED Tube
21NANOT SERVICED Rod
34LB01V01011P1BUSHING Bushing
41LB01V00018S005COVER Cover
51LB01V00018S006BUSHING Bushing
61LB01V00018S007RING Ring, Retaining
71LB01V00018S008SEAL Seal
81LB01V00018S009SEAL Seal
91LB01V00018S010RING Ring, Back-Up
101LB01V00018S011SEAL Seal, Dust
111ZD12G13500O-RING ID 134.40 ± 1.08 x OD 140mm
1212LB01V00018S013RING Ring, Back-Up
131LB01V00018S014O-RING O-Ring
141LB01V00018S015RING Ring
151LB01V00018S016PISTON Piston
161LB01V00018S017SEAL Seal, Piston
172LB01V00018S018RING Ring, Wear
182LB01V00018S019RING Ring
191ZD12G08000O-RING ID 79.40 ± 0.69 x OD 85mm
202LB01V00018S021RING Ring, Back-Up
211LB01V00018S022NUT Nut
221YN01V00148S024DOWEL Screw, Set
2316YN01V00148S027SCREW Screw, Cap
244LB01V00018S025GASKET Seal
K1LB01V00018R100REPAIR KIT Contains Items 9 – 13
K1LB01V00018R200REPAIR KIT Contains Items 16 – 20
K1LB01V00018R300REPAIR KIT Contains Items 7 – 13, 17 – 20
K1LB01V00018R400REPAIR KIT Contains Items 1, 3 & 24
K1LB01V00018R500REPAIR KIT Contains Items 2, 3 & 24
Ref Qty Part Number Description Indicators
1LB01V00020F1BUCKET CYLINDER Assembly
14NANOT SERVICED Tube
24LB01V01013P1BUSHING Bushing
31NANOT SERVICED Rod
51LB01V00020S005COVER Cover
61LB01V00020S006BUSHING Bushing
71LB01V00020S007RING Ring, Retainer
81LB01V00020S008SEAL Seal
91LB01V00020S009SEAL Seal
101LB01V00020S010RING Ring, Back-Up
111LB01V00020S011SEAL Seal, Dust
122ZD12G12500O-RING ID 124.40 ± 1.01 x OD 130mm
132LB01V00020S013RING Ring, Back-Up
141ZD12G13000O-RING ID 129.40 ± 1.05 x OD 135mm
151LB01V00020S015RING Ring
161LB01V00020S016PISTON Piston
171LB01V00020S017SEAL Seal, Piston
182LB01V00020S018RING Ring, Wear
192LB01V00020S019RING Ring
201ZD12G07000O-RING ID 69.40 ± 0.61 x OD 75mm
212LB01V00020S021RING Ring, Back-Up
221LB01V00020S022NUT Nut
231YN01V00148S024DOWEL Screw, Set
2416YN01V00148S027SCREW Screw, Cap
254LB01V00020S025SEAL Seal
K1LB01V00020R100REPAIR KIT Contains Items 8 – 14
K1LB01V00020R200REPAIR KIT Contains Items 17 – 21
K1LB01V00020R300REPAIR KIT Contains Items 8 – 14 & 17 – 21
K1LB01V00020R400REPAIR KIT Contains Items 1, 2 & 25
K1LB01V00020R500REPAIR KIT Contains Items 2, 3 & 25
