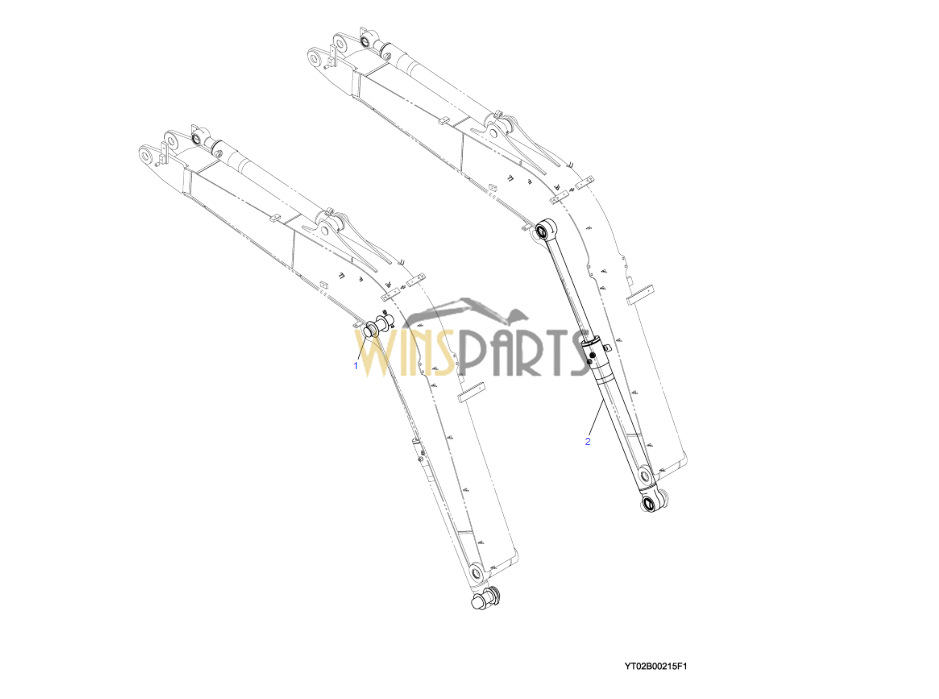

YT02B00215F1 BOOM CYLINDER KOBELCO SK75SR-7 SK75SR-7F SK85CS-7 SK85MSR-7
. (BOOM)
.

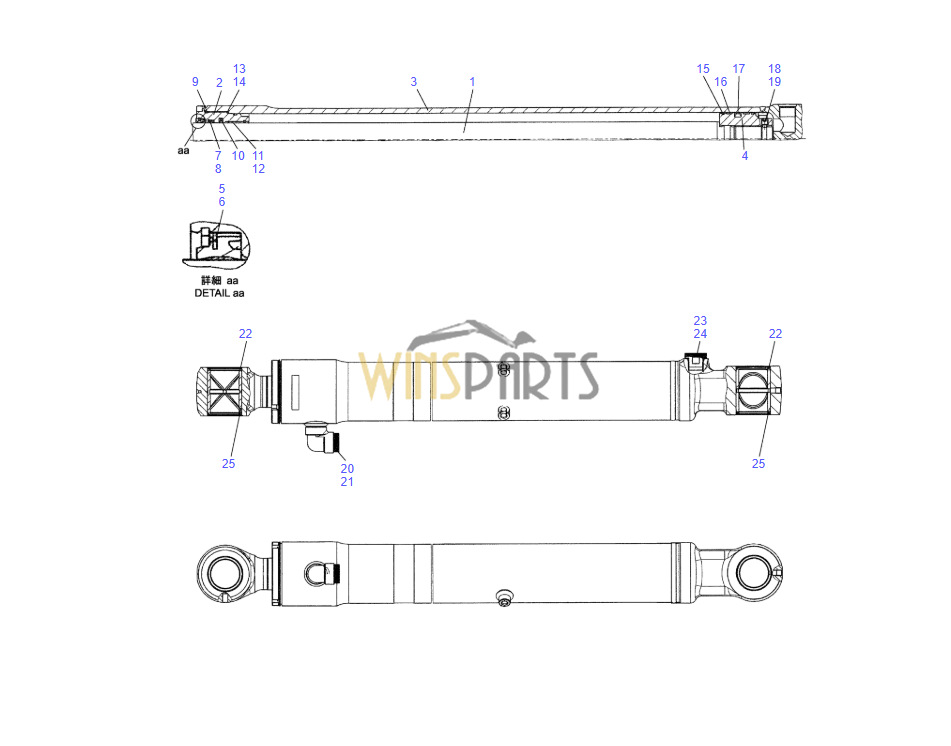

655-01_YT02B00086F1_MDE_AFR-01_D0002504733_1 1 YT02B00086F1 CYLINDER INSTAL 1 P.655-01
HC655-00_YT01V00058F1_KCM-EUR_X_D0002604211_1 2 YT01V00058F1 CYLINDER, BOOM 1 HC 655-00
YT02B00086F1 CYLINDER INSTAL Not Service
.
1 YT02B01138P1 PIN 1
2 YR02B01298P1 PIN 1
3 HS18C12125G2 CAPSCREW 1
4 ZS18C10020 CAPSCREW 1
5 2418T21137 WASHER 1
6 ZW16H10000 WASHER 1
7 ZN18C12010 NUT 2
8 YT02B01008D1 SHIM (0.5) 1
9 B16T0442D93 SHIM (0.9) 1
10 YT02B01008D2 SHIM (1.2) 1
11 YR02B01262P1 SHIM (2.0) 2
12 B16T0442D82 SHIM (0.5) 1
13 B16T0442D81 SHIM (0.9) 1
14 B16T0442D80 SHIM (1.2) 1
15 YR02B01261P1 SHIM (2.0) 2
.
1 YT01V00058S001 ROD 1 R5
2 LG01V00005S032 COVER 1
3 YT01V00058S003 TUBE 1 R4
4 LG01V00005S020 SLEEVE 1
5 LG01V00005S033 SLEEVE 1
6 LG01V00005S034 PISTON 1
7 LG01V00004S025 SEAL, DUST 1 R1, R3
8 LG01V00004S006 RING, RETAINING 1 R1, R3
9 LG01V00004S007 SEAL 1 R1, R3
10 LG01V00004S008 RING, RETAINING 1 R1, R3
11 LG01V00005S007 O-RING 1 R1, R3
12 LG01V00004S010 RING, BUFFER 1 R1, R3
13 LG01V00005S013 SLEEVE 1
14 LG01V00004S014 RING, RETAINING 1
15 LG01V00005S012 RING, BACK UP 3 R1, R3
16 LG01V00005S011 O-RING 2 R1, R3
17 LG01V00005S024 RING 2 R2, R3
18 LG01V00005S022 RING, WEAR 2 R2, R3
19 LG01V00005S023 SEAL, PISTON 1 R2, R3
20 LG01V00005S025 SCREW 1
21 LG01V00005S026 BALL 1
22 NO P/No PLUG 2
23 NO P/No GASKET 2
24 LG01V00004S003 SEAL, DUST 2 R5
25 LG01V00005S019 SEAL, DUST 2 R4
26 NO P/No PLUG 1
27 NO P/No GASKET 1
28 YT01V00058S028 BUSHING 1 R5
29 YT01V00058S029 BUSHING 1 R4
.
YT01V00052R100 REPAIR KIT 1 RK1
. (7, 8, 9, 10, 11, 12)X1
. (16)X2
. (15)X3
.
YT01V00052R200 REPAIR KIT 1 RK2
. (19)X1
. (17, 18)X2
.
YT01V00052R300 REPAIR KIT 1 RK3
. (7, 8, 9, 10, 11, 12, 19)X1
. (16, 17, 18)X2
. (15)X3
.
YT01V00058R400 TUBE KIT, CYL 1 RK4
. (3, 29)X1
. (25)X2
.
YT01V00058R500 ROD KIT, CYL 1 RK5
. (1, 28)X1
. (24)X2
.

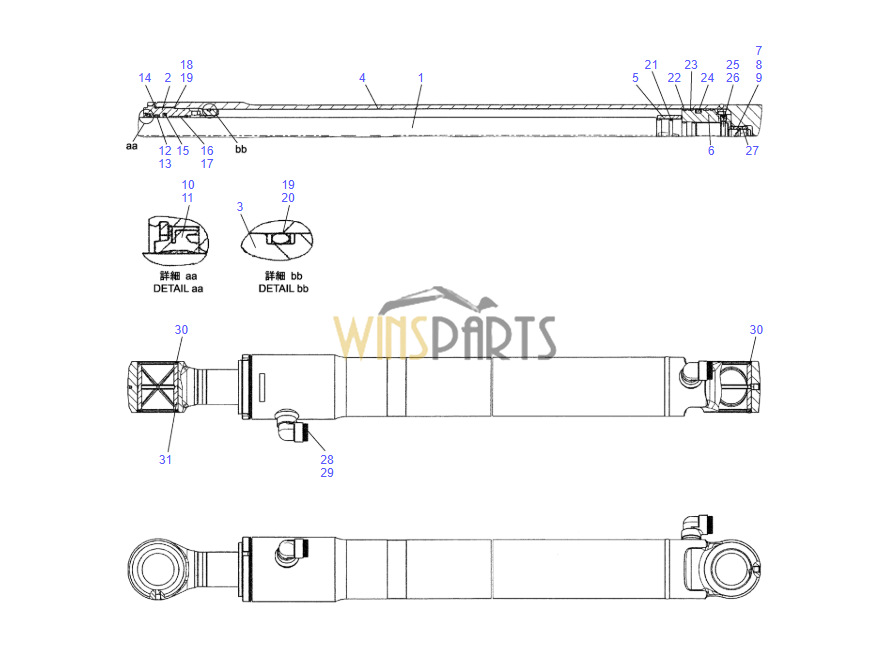

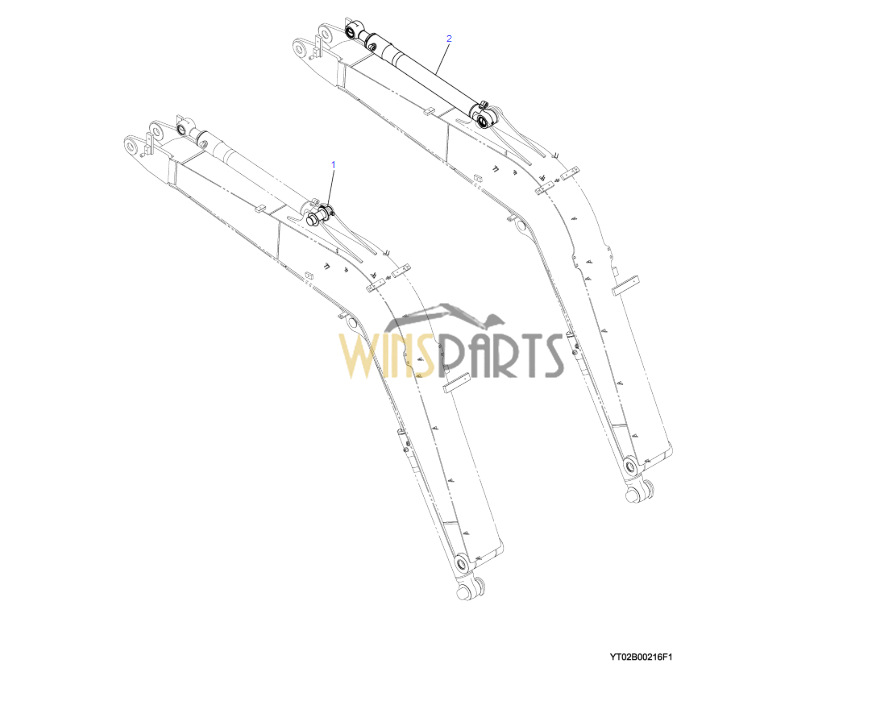

660-01_YT02B00165F1_MDE_AFR-01_D0002504737_1 1 YT02B00165F1 CYLINDER INSTAL 1 P.660-01
HC660-00_YT01V00059F1_KCM-EUR_X_D0002604210_1 2 YT01V00059F1 CYLINDER, ARM 1 HC 660-00
YT02B00165F1 CYLINDER INSTAL Not Service
.
1 YT12B01217P1 PIN 1
2 HS18C14115G2 CAPSCREW 1
3 ZN18C14011 NUT 2
4 B16T0442D56 SHIM (0.5) 1
5 B16T0442D43 SHIM (0.9) 1
6 B16T0442D27 SHIM (1.2) 1
7 PY02B01028P1 SHIM (2.0) 2
.
1 YT01V00059S001 ROD 1 R5
2 LG01V00002S036 COVER 1
3 LG01V00002S038 RING 1
4 YT01V00059S004 TUBE 1 R4
5 LG01V00002S039 SLEEVE 1
6 LG01V00002S040 PISTON 1
7 YT01V00053S007 CUSHION 1
8 LG01V00002S042 RING, RETAINING 1
9 LE01V00031S028 RING, RETAINING 2
10 LG01V00002S033 SEAL, DUST 1 R1, R3
11 LG01V00002S006 RING, RETAINING 1 R1, R3
12 LG01V00002S008 SEAL 1 R1, R3
13 LG01V00002S009 RING, RETAINING 1 R1, R3
14 LE01V00033S008 O-RING 1 R1, R3
15 LG01V00002S010 RING, BUFFER 1 R1, R3
16 LG01V00002S037 SLEEVE 1
17 LG01V00002S014 RING, RETAINING 1
18 LG01V00002S012 RING, BACK UP 1 R1, R3
19 LE01V00031S008 O-RING 2 R1, R3
20 LG01V00002S016 RING, BACK UP 2 R1, R3
21 LG01V00002S043 SLEEVE 1
22 LE01V00033S020 RING 2 R2, R3
23 LE01V00033S021 RING, WEAR 2 R2, R3
24 LE01V00033S022 SEAL, PISTON 1 R2, R3
25 LE01V00030S029 SCREW 1
26 LE01V00030S030 BALL 1
27 LG01V00002S044 SLEEVE 1
28 NO P/No PLUG 2
29 NO P/No GASKET 2
30 LG01V00002S003 SEAL, DUST 4 R4, R5
31 LG01V00002S004 SLEEVE 2 R4, R5
.
YT01V00053R100 REPAIR KIT 1 RK1
. (10, 11, 12, 13, 14, 15, 18)X1
. (19, 20)X2
.
YT01V00053R200 REPAIR KIT 1 RK2
. (24)X1
. (22, 23)X2
.
YT01V00053R300 REPAIR KIT 1 RK3
. (10, 11, 12, 13, 14, 15, 18, 24)X1
. (19, 20, 22, 23)X2
.
YT01V00059R400 TUBE KIT, CYL 1 RK4
. (4, 31)X1
. (30)X2
.
YT01V00059R500 ROD KIT, CYL 1 RK5
. (1, 31)X1
. (30)X2
YT42H00320F1 HYD LINES, BOOM Not Service
.
1 YT42H01862P1 TUBE 1
2 YT42H01863P1 TUBE 1
3 YT42H01864P1 TUBE 1
4 YT42H01865P1 TUBE 1
5 YT42H01562P1 CLAMP 2
6 ZC36M22011 CLAMP 2
7 ZM73C10045 SEMS-BOLT 4
8 YN64H01393D1 CAP 2
YT42H00321F1 HYD LINES, BOOM Not Service
.
1 YT42H01866P1 TUBE 1
2 YT42H01867P1 TUBE 1
3 YT42H01868P1 TUBE 1
4 YT42H01869P1 TUBE 1
5 ZA28F22012 CONNECTOR 4
6 ZE72X12000 PLUG 2
7 YT25V01001P1 BLOCK 2
8 ZC36M22011 CLAMP 3
9 YT43H01116P1 CLAMP 2
10 ZM73C10045 SEMS-BOLT 5
11 ZM73C12030 SEMS-BOLT 4
12 ZS18C10050 CAPSCREW 2
13 ZW16H10000 WASHER 2
14 ZD12P02400 O-RING 4
YT42H00320F1 HYD LINES, BOOM Not Service
.
1 YT42H01862P1 TUBE 1
2 YT42H01863P1 TUBE 1
3 YT42H01864P1 TUBE 1
4 YT42H01865P1 TUBE 1
5 YT42H01562P1 CLAMP 2
6 ZC36M22011 CLAMP 2
7 ZM73C10045 SEMS-BOLT 4
8 YN64H01393D1 CAP 2
YT02B00239F1 BOOM GROUP Not Service
.
1 2444R1117D090 HOSE 1
2 ZG91S02000 NIPPLE, GREASE 1
3 ZG91V02000 NIPPLE, GREASE 1
4 ZC46X10009 CLIP 1
5 PY01P01043D3 CLIP 1
6 ZS18C06016 CAPSCREW 1
7 ZW26X06000 LOCK WASHER 1
8 YN20M01702P1 WASHER 1
1 YT12B00405F1 ARM 1
1-1B YT12B01010P2 BUSHING 2
1-1C YT12B01443P1 BUSHING 2
1-1D YT12B01112P1 BUSHING 2
1-2A YY85B01400P1 BLOCK, TAPPED 2
1-2B YT12B01436P1 BLOCK, TAPPED 2
1-3A 2416T9878 BLOCK, TAPPED 4
2 2445R220D5 SEAL, DUST 2
3 2445R138D19 SEAL, DUST 2
4 2445R220D1 SEAL, DUST 2
YT02B00163F1 BOOM GROUP KOBELCO SK75SR-7 SK75SR-7F SK85CS-7 SK85MSR-7
.
1 2444R1117D090 HOSE 1
2 ZG91S02000 NIPPLE, GREASE 1
3 ZG91V02000 NIPPLE, GREASE 1
4 PY01P01043D3 CLIP 1
YT02B00170F1 BOOM INSTAL Not Service
.
1 YT02B01360P1 PIN 1
2 YT02B01222P2 PIN 1
3 2419R9D5 PIN 1
8 YT02B01448D1 SHIM (2.4) 2
9 YT02B01448D2 SHIM (2.9) 2
10 YT02B01448D3 SHIM (3.4) 2
12 YT02B01448D5 SHIM (1.9) 2
YT02B00249F1 BOOM GROUP Not Service
.
1 2444R1117D090 HOSE 1
2 ZG91S02000 NIPPLE, GREASE 1
3 ZG91V02000 NIPPLE, GREASE 1
4 ZC46X10009 CLIP 1
5 PY01P01043D3 CLIP 1
6 YT02C01888P2 SEMS-BOLT 1
YT12B00407F1 ARM, 1.71M Not Service
. (NIBBLER & BREAKER)
.
1 YT12B00408F1 ARM 1
1-1B YT12B01010P2 BUSHING 2
1-1C YT12B01443P1 BUSHING 2
1-1D YT12B01112P1 BUSHING 2
1-2A YY85B01400P1 BLOCK, TAPPED 2
1-2B YT12B01436P1 BLOCK, TAPPED 2
2 2445R220D5 SEAL, DUST 2
3 2445R138D19 SEAL, DUST 2
4 2445R220D1 SEAL, DUST 2
YT12B00435F1 ARM, LONG 2.13M Not Service. (NIBBLER & BREAKER)
.
1 YT12B00436F1 ARM, LONG 1
1-1B YT12B01010P2 BUSHING 2
1-1C YT12B01443P1 BUSHING 2
1-1D YT12B01112P1 BUSHING 2
1-2A YY85B01400P1 BLOCK, TAPPED 2
1-2B YT12B01436P1 BLOCK, TAPPED 2
2 2445R220D5 SEAL, DUST 2
3 2445R138D19 SEAL, DUST 2
4 2445R220D1 SEAL, DUST 2
.

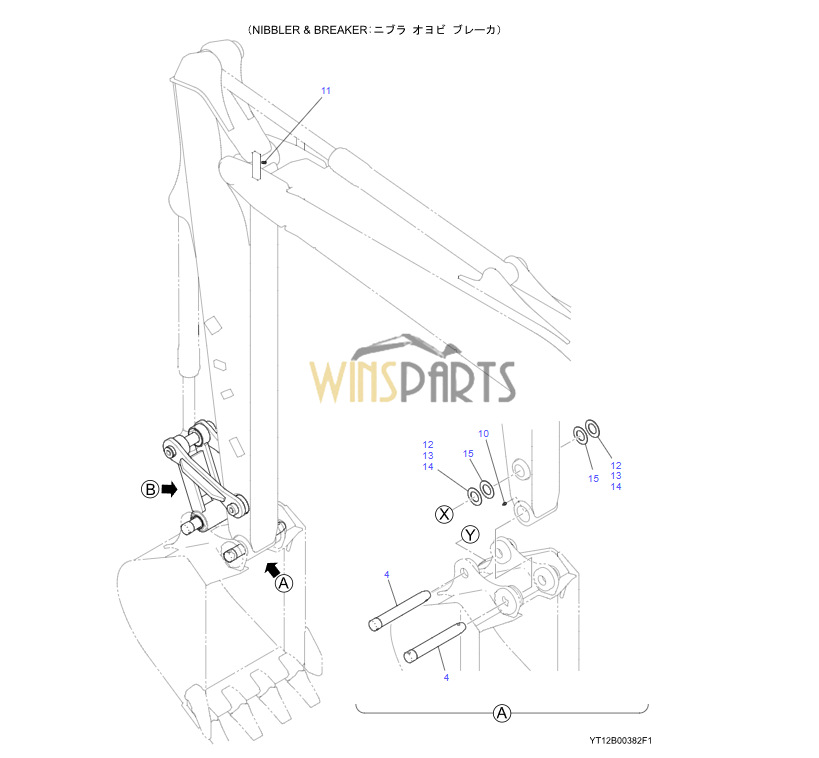

1 YT12B01603F1 LINK, BUCKET 1
1-2 YT12B01435P1 BUSHING 2
1-3 LE12B01055P1 BUSHING 2
2 YT12B01408P1 LINK 1
3 YT12B01381P1 LINK 1
4 YT12B01113P1 PIN 2
5 YT12B01346P1 PIN 2
6 HS18C12100G2 CAPSCREW 2
7 ZN18C12010 NUT 4
8 2445R138D19 SEAL, DUST 4
9 2445R220D5 SEAL, DUST 2
10 ZG91S02000 NIPPLE, GREASE 4
11 ZG91V02000 NIPPLE, GREASE 1
12 B16T0442D54 SHIM (0.5) 6
13 B16T0442D41 SHIM (0.9) 6
14 B16T0442D25 SHIM (1.2) 6
15 YR12B01028P1 SHIM (2.0) 6
YT12B00254F1 ARM INSTAL Not Service
.
1 YT12B01423P1 PIN 1
2 ZS18C10025 CAPSCREW 1
3 PA12B01031P1 WASHER 1
4 ZW16H10000 WASHER 1
5 YR02B01266D1 SHIM (0.9) 2
6 YR02B01266D3 SHIM (0.5) 2
7 YR02B01265P1 SHIM (2.0) 2
YT12B00125F1 ARM INSTAL Not Service
.
1 YT12B01217P1 PIN 1
2 HS18C14115G2 CAPSCREW 1
3 ZN18C14011 NUT 2
4 B16T0442D27 SHIM (1.2) 1
5 B16T0442D43 SHIM (0.9) 1
6 B16T0442D56 SHIM (0.5) 1
7 PY02B01028P1 SHIM (2.0) 2
YT12B00253F1 ARM INSTAL Not Service
.
720-01_YT12B00254F1_MDE_AFR-01_D0002504731_1 1 YT12B00254F1 ARM INSTAL 1 P.720-01
720-02_YT12B00125F1_MDE_AFR-01_D0002504736_1 2 YT12B00125F1 ARM INSTAL 1 P.720-02
.

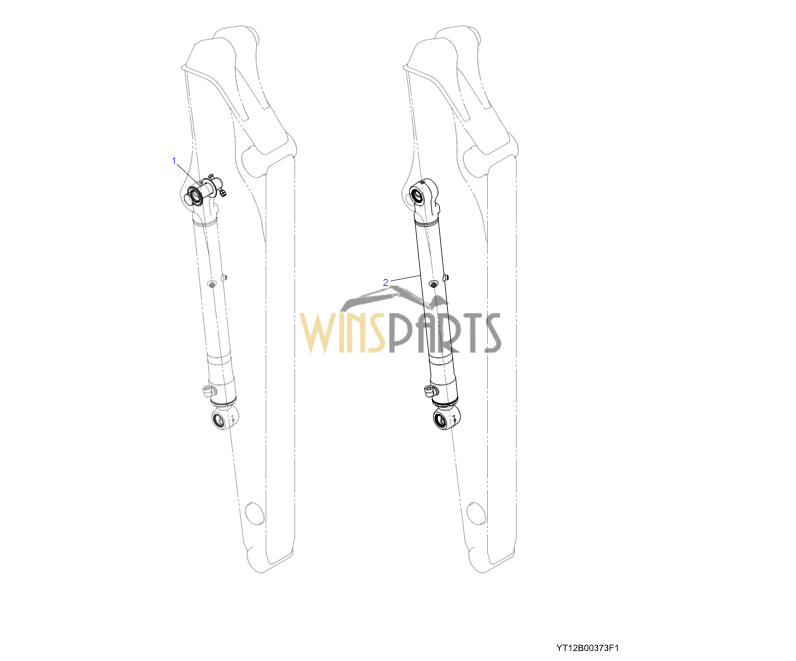

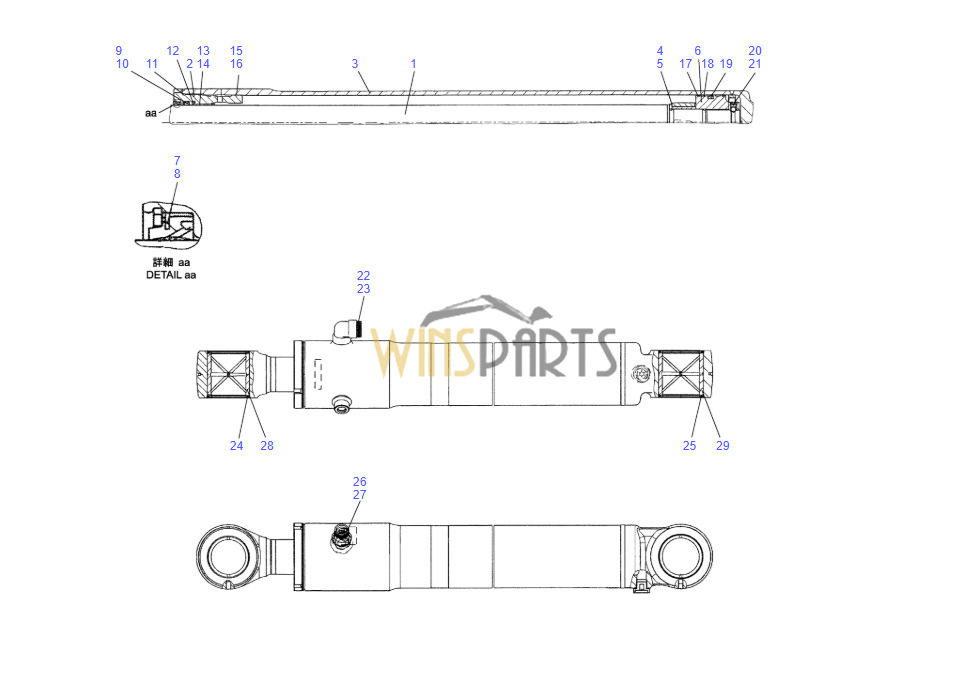

730-01_YT12B00005F1_JP-01_D0002504732_1 1 YT12B00005F1 CYLINDER INSTAL 1 P.730-01
HC730-00_YT01V00060F1_KCM-EUR_X2_D0002604221_1 2 YT01V00060F1 CYLINDER, BUCKET 1 HC 730-00
.
1 YT01V00060S001 ROD 1 R5
2 YT01V00060S002 COVER 1
3 YT01V00060S003 TUBE 1 R4
4 YT01V00060S004 PISTON 1
5 LE01V00034S005 SEAL, DUST 1 R1, R3
6 LE01V00030S008 RING, RETAINING 1 R1, R3
7 LE01V00030S010 SEAL 1 R1, R3
8 LE01V00030S011 RING, RETAINING 1 R1, R3
9 YT01V00060S009 O-RING 1 R1, R3
10 LE01V00030S012 RING, BUFFER 1 R1, R3
11 LG01V00003S029 SLEEVE 1
12 LE01V00030S014 RING, RETAINING 1
13 LG01V00003S012 RING, BACK UP 1 R1, R3
14 YT01V00060S014 O-RING 1 R1, R3
15 YT01V00060S015 RING 2 R2, R3
16 YT01V00060S016 RING, WEAR 2 R2, R3
17 YT01V00060S017 SEAL, PISTON 1 R2, R3
18 LG01V00003S021 SCREW 1
19 LE01V00030S030 BALL 1
20 LE01V00030S032 PLATE 1
21 LE01V00030S031 COVER 1
22 LE01V00030S004 SEAL, DUST 4 R4, R5
23 NO P/No PLUG 1
24 NO P/No GASKET 1
25 YT01V00054S025 BUSHING 2 R4, R5
.
YT01V00060R100 SEAL KIT, CYL ROD 1 RK1
. (5, 6, 7, 8, 9, 10, 13, 14)X1
.
YT01V00060R200 SEAL KIT, CYL PISTON 1 RK2
. (17)X1
. (15, 16)X2
.
YT01V00060R300 SEAL KIT, CYL 1 RK3
. (5, 6, 7, 8, 9, 10, 13, 14, 17)X1
. (15, 16)X2
.
YT01V00060R400 TUBE KIT, CYL 1 RK4
. (3, 25)X1
. (22)X2
.
YT01V00060R500 ROD KIT, CYL 1 RK5
. (1, 25)X1
. (22)X2
YT12B00005F1 CYLINDER
.
1 YT12B01020P1 PIN 1
2 HS18C12100G2 CAPSCREW 1
3 ZN18C12010 NUT 2
4 B16T0442D54 SHIM (0.5) 1
5 B16T0442D41 SHIM (0.9) 1
6 B16T0442D25 SHIM (1.2) 1
7 B16T0442D23 SHIM (1.6) 1
8 YR12B01028P1 SHIM (2.0) 2
YT30T00013F1 YT30T00014F1 FILTER ELEMENT KIT KOBELCO SK75SR-7 SK75SR-7F SK85CS-7 SK85MSR-7
.
1 YT30T00014F1 ELEMENT KIT 1
1-1 YT30T01008P1 ELEMENT, FUEL 1
1-2 YN21P01088R100 ELEMENT, FILTER 1
1-2B YN21P01088S002 ELEMENT, FILTER 1
1-2H LS02P01012S011 GASKET 1
1-2J YN21P01036S009 O-RING 1
1-3 YT30T01009P1 ELEMENT, OIL 1
1-4 YR52V01004R600 REPAIR KIT 1
1-4A YR52V01002P2 ELEMENT, FILTER 2
1-4B YR52V01001S002 JOINT 1
1-4C ZD11P14000 O-RING 1
1-5 2421R171 WRENCH 1 YT09-40001–40251
. YT09045001–45028
1-5 YW01T01014P1 WRENCH, ADJUST 1 YT09045029-
1-6 YT01T01008P1 WRENCH, FILTER 1
2 YT91Z00041D1 MANUAL, OPERATORS 1
3 YT91Z00043D1 MANUAL, PARTS 1 YT09-40001–40251
. YT09045001–49229
4 YN20T02672P1 LABEL 1 YT09-40001–40251
. YT09045001–49293
5 2445Z912 O-RING 4
6 YN50S01011P1 KEY 1
7 YN11E01294P2 HARNESS 2
8 LQ80E01019P2 HARNESS 2
28 YN20T03045P1 LABEL 1 YT09049294-
