VHS171114661 VH17103E0062 AIR INTAKE AND EXHAUST SYSTEM 11492 VH11492E0011 PLATE, WATER SEAL 1 11499 VH11499E0010 PLUG, CYLINDER BLOCK HOLE 1…

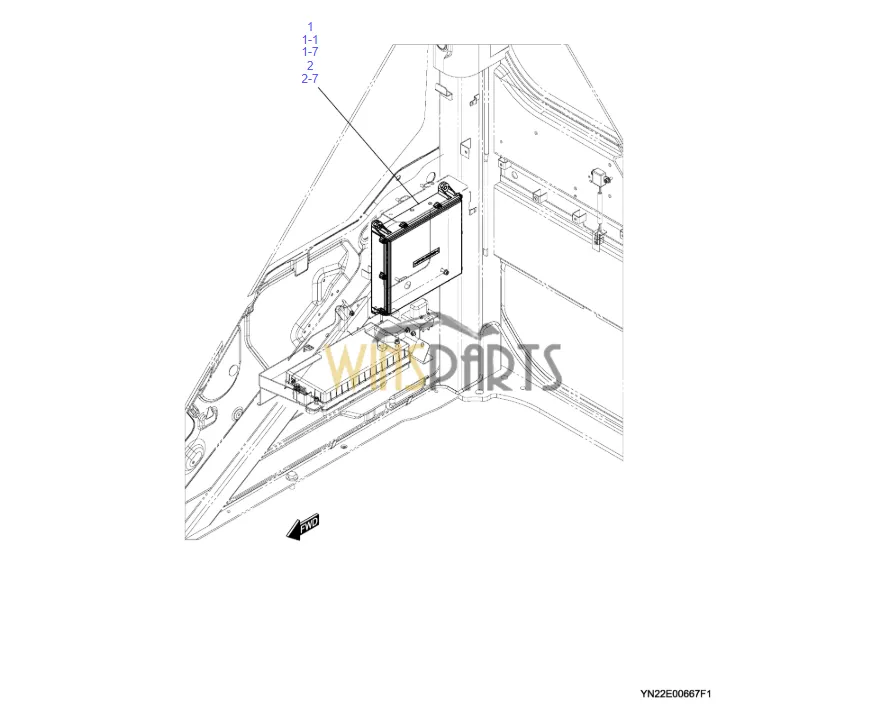

YN22E00694F3 YN22E00667F1 YN22E00694F2 CONTROLLER YN22E00488F1 ECU
. (MECHATRO CONTROLLER)
1 YN22E00694F2 CONTROLLER 1 YN15T17101–17209
. YQ15-T3101–T3107
1-1 YN22E00488F1 CONTROLLER 1
1 YN22E00694F3 CONTROLLER 1 YN15T17210–18441
. YQ15-T3108–T3159
1-1 YN22E00488F1 CONTROLLER 1
1 YN22E00694F5 CONTROLLER 1 YN15T18442–19610
. YQ15-T3160–T3230
1-1 YN22E00488F1 CONTROLLER 1
1 YN22E00694F6 CONTROLLER 1 YQ15405001–05022
1-7 YN22E00751F1 CONTROLLER 1
1 YN22E00694F7 CONTROLLER 1
1-7 YN22E00751F1 CONTROLLER 1
1 YN22E00694F8 CONTROLLER 1 YN15427906–28528
. YQ15405232–05287
1-7 YN22E00751F1 CONTROLLER 1
2 YN22E00694FA CONTROLLER 1 YN15428529–30075
. YQ15405288–05540
2-7 YN22E00751F1 CONTROLLER 1
2 YN22E00694FB CONTROLLER 1 X
2-7 YN22E00751F1 CONTROLLER
.
1 YN22E01455P1 BRACKET 1
2 LQ52S00032P1 SENSOR, ANGLE 1
3 YN50S00040D7 SWITCH 1
4 YN52S00106P1 POTENTIOMETER 1
5 YN22E01445P1 LABEL 1
6 ZM61C06016 SEMS-BOLT 4
7 ZM61C06025 SEMS-BOLT 11
8 YX50S00004F1 SWITCH 1
8-1 YX50S00001F1 SWITCH 1
8-2 YX50S00004S002 BOOT 1
9 YN22E01426P1 PLATE 1
10 YV22E01002P1 LABEL 1
11 ZM41C03008 SEMS-BOLT 4
12 ZM66C06040 SEMS-BOLT 1
13 YN22E01435P1 BRACKET 1 YN15T17101–19492
. YQ15-T3101–T3230
13 YN22E01501P1 BRACKET 1 YN15T19493-
. YQ15-T3231-
14 YN20T02685P1 LABEL 1
15 YN22E01406P1 COVER 1
16 YN22E01407P1 COVER 1
17 LC22E01001D1 RESISTOR 1
18 ZM61C04008 SEMS-BOLT 1
.
3 YN22E01458P2 PLATE 1
4 YN22E01449P2 PLATE 1
5 YN22E01457P1 COVER 1
6 ZM66C06016 SEMS-BOLT 2
7 ZM61C05012 SEMS-BOLT 4
8 ZM73C06016 SEMS-BOLT 5
11 YN22E01456P1 COVER 1
12 PE21C01070DJ TRIM 1
13 YN22E01459P1 INSULATION 2
.

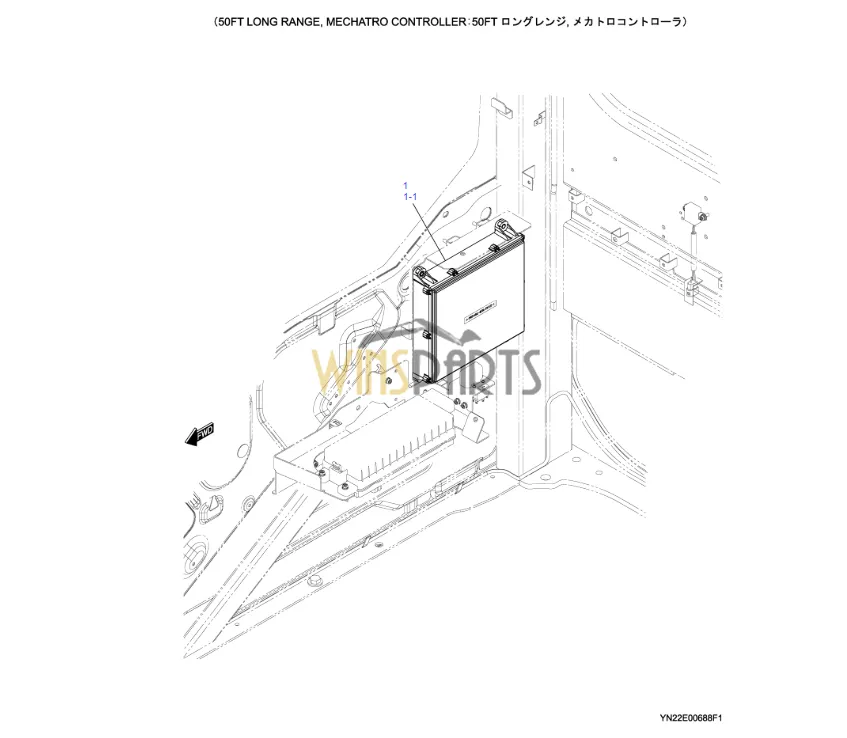

1 YN22E00689F1 CONTROLLER 1 YQ15-T3101–T3295
. YQ15405001–05540
1-1 YN22E00488F1 CONTROLLER 1 YQ15-T3101–T3230
1-1 YN22E00751F1 CONTROLLER 1 YQ15-T3231-
1 YN22E00689F2 CONTROLLER 1 YQ15405541-
1-1 YN22E00751F2 CONTROLLER
.

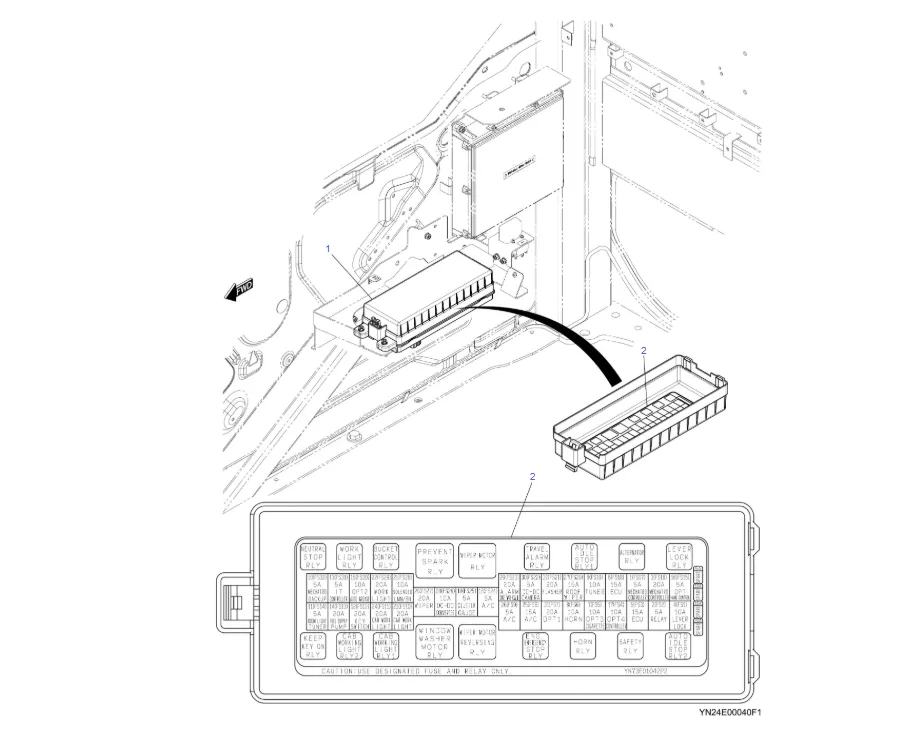

1 YN24E00036F2 RELAY BOX ASSY 1
1-1 YN24E00036S001 COVER 1
1-2 YN24E00036S002 HOUSING 1
1-3 YN24E00036S003 HOUSING 1
1-4 YN24E00036S004 PRINTED BOARD 1
1-5 YN24E00016S005 FUSE 11 5A
1-6 YN24E00016S006 FUSE 9 10A
1-7 YN24E00016S007 FUSE 5 15A
1-8 YN24E00016S008 FUSE 11 20A
1-9 YN24S00010P1 RELAY 10
1-10 YN24S00012P2 RELAY 4
1-11 YN24E00016S011 HANDLE 1
1-12 YN24E00016S013 CONNECTOR 3
2 YN73E01042P2 LABEL 1

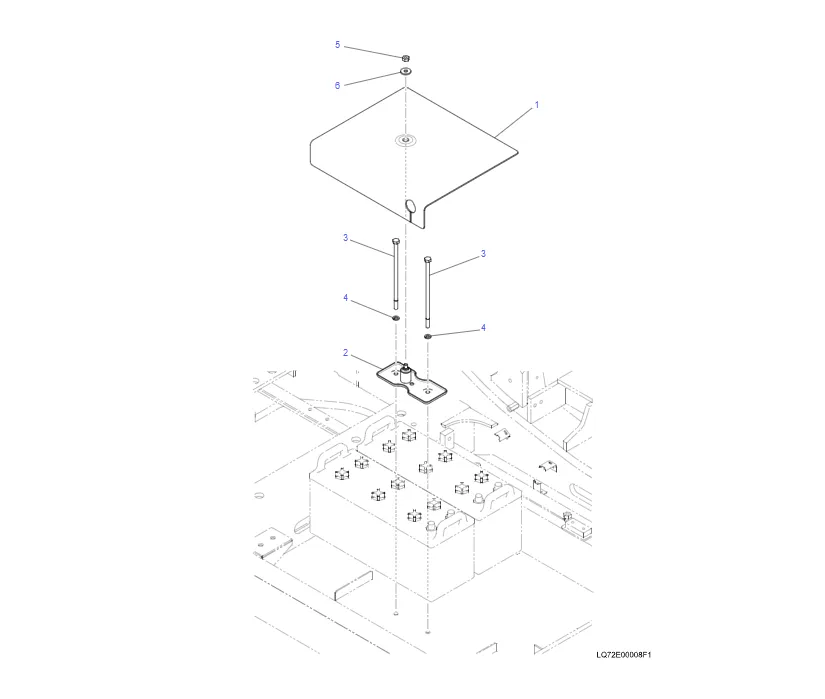

LQ72E00008F1 BATTERY INSTAL 1 P.470-01
2 YN72S00018F1 BATTERY 2 N120
LQ72E00008F1 BATTERY INSTAL
.
1 YN72E01033P2 COVER 1
2 YN72E01055P1 PLATE 1
3 R20T0084D17 CAPSCREW 2
4 ZW26X10000 LOCK WASHER 2
5 ZN18C10008 NUT 1
6 2418T12346 WASHER 1
