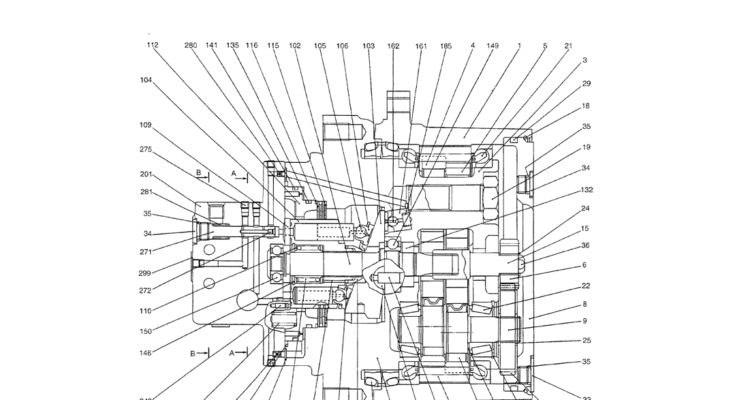

07-023(01) MOTOR ASSY (PROPELLING)-Kobelco SK70SR-1E SK70SR-2 SK70 Excavator Parts Number Electronic Catalog EPC Manuals 1 YT15V00008R500 REPAIR KIT CONSISTS OF REF 2 (1), 3 (1) 1 LF15V00002R490 SEAL KIT REPAIR, CONSISTS OF REF 28 (4), 29 (1), 30 (1), 31…

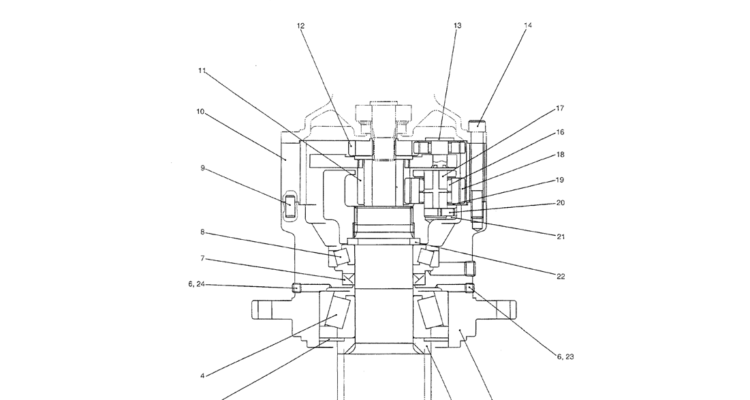

07-020 GEAR BOX REDUCTION ASSY (SWING)-Kobelco SK70SR-1E SK70SR-2 SK70 Excavator Parts Number Electronic Catalog EPC Manuals 1 YT32W00002R100 REPAIR KIT CONSISTS OF REF 16 (6), 17 (3), 18 (3), 19 (6), 20 (3), 21 (1) 24 1 ZG91V02000 LUBE NIPPLE…

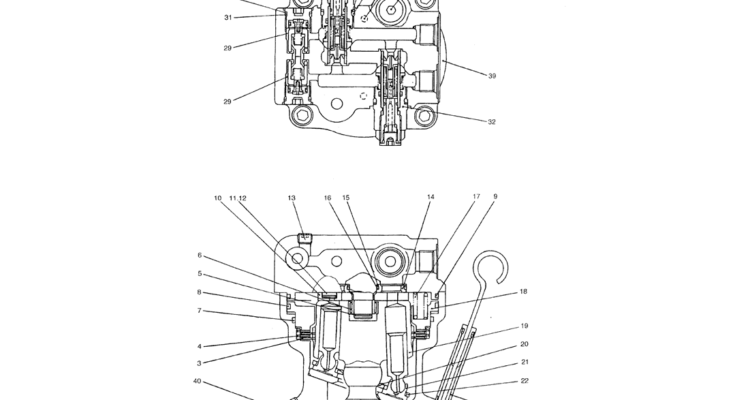

07-019 MOTOR ASSY (SWING)-Kobelco SK70SR-1E SK70SR-2 SK70 Excavator Parts Number Electronic Catalog EPC Manuals 40 1 2441U754S20 PLUG 39 1 NSS NOT SERVICED SEPARATELY COVER 38 4 ZS23C12030 SCREW M12x1.75x30mm 37 1 ZD12P01400 O-RING ID 13.80 ± 0.19 x…

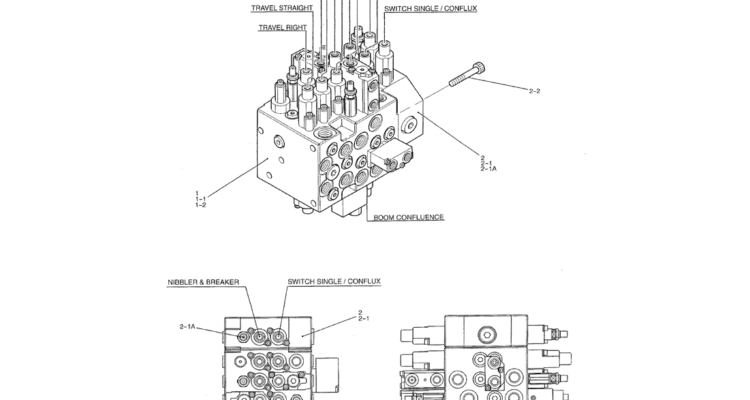

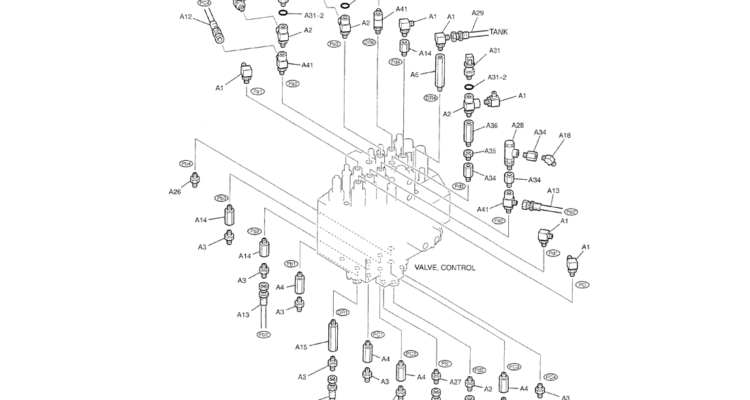

07-001 VALVE ASSY, CONTROL-Kobelco SK70SR-1E SK70SR-2 SK70 Excavator Parts Number Electronic Catalog EPC Manuals 2-2 4 ZS23C12065 SCREW M12x1.75x60mm 2-1A 1 YT22V00004F1 VALVE ASSY, OVERLOAD RELIEF, SEE FIG 07-007 2-1 1 YT30V00017F1 VALVE ASSY, CONTROL, SEE FIG 07-003 2 1…
05-002 FRAME UPP (AUTOMATIC AIR RELIEF SPEC)-Kobelco SK70SR-1E SK70SR-2 SK70 Excavator Parts Number Electronic Catalog EPC Manuals B18 1 2418Z1333D4 TUBE 19.5mm ID x 23.8mm OD x 500mm Length B17 3 PY01P01043D8 CLIP Wire Ties -- 368mm Long B9 1…

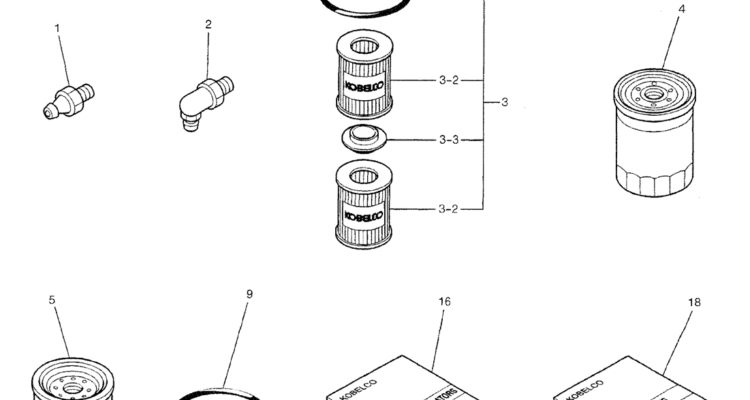

04-004 ELEMENT KIT -Kobelco SK70SR-1E SK70SR-2 SK70 Excavator Parts Number Electronic Catalog EPC Manuals 18 1 YT91Z00002D7 MANUAL, PARTS 16 1 YT91Z00001D9 MANUAL, OPERATORS 9 4 2445Z912 O-RING ID 90 ± 0.40 x OD 108mm 5 1 2446R346D1 FILTER…

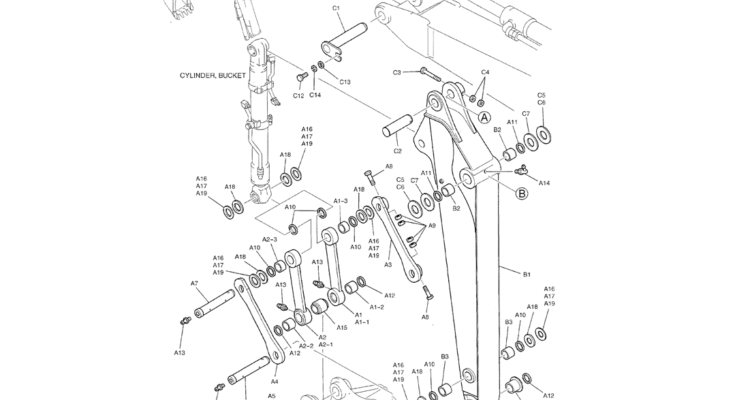

03-010 ARM ASSY, STD, 1.65M (5 FT 5 IN), P/N YT120B00067F1-Kobelco SK70SR-1E SK70SR-2 SK70 Excavator Parts Number Electronic Catalog EPC Manuals C14 1 ZW26X12000 LOCK WASHER ID 12 x OD 21 x Th 3.0mm C13 1 2418T21942 WASHER ID 13…

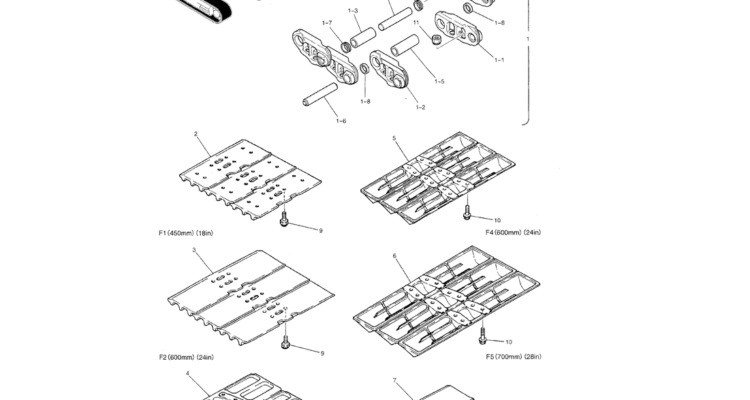

02-010 TRACK LINK SHOE ASSY-Kobelco SK70SR-1E SK70SR-2 SK70 Excavator Parts Number Electronic Catalog EPC Manuals 7 39 YX62D00003P1 SHOE RUBBER-PAD 2 YT60D00012F6 SHOE ASSY, CONSISTS OF REF 1, 7, 9 & 11 6 39 2424J178D2 SHOE TRIANGLE 2 YT60D00012F5…

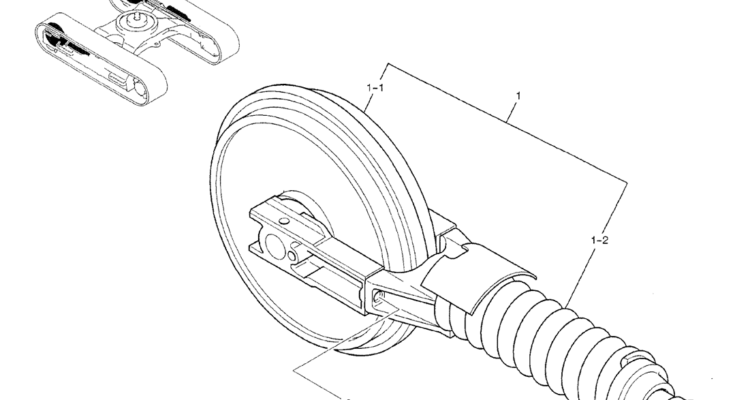

02-005 IDLER ASSY, CRAWLER-Kobelco SK70SR-1E SK70SR-2 SK70 Excavator Parts Number Electronic Catalog EPC Manuals 1-4 2 ZS18C12030 SCREW M12x1.75x30mm 1-3 1 2444P803 LUBE NIPPLE 5/8" - 18 UNF, Straight 1-2 1 YT54D00002F1 IDLER ADJUST ASSY, SEE FIG. 02-007 1-1 1…

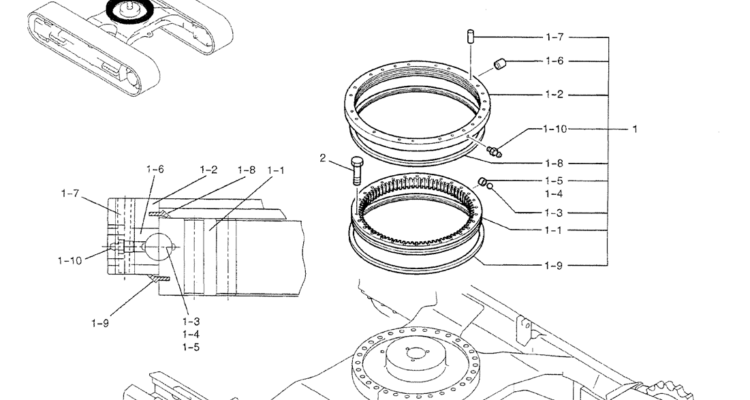

02-004 SLEWING RING ASSEMBLY-Kobelco SK70SR-1E SK70SR-2 SK70 Excavator Parts Number Electronic Catalog EPC Manuals 2 30 ZS13C16090 SCREW M16x2.0x90mm 1-10 1 ZG91S02000 LUBE NIPPLE 1/8" PT -- Straight 1-9 1 2425U235S7 SEAL 1-8 1 2425U235S9 SEAL 1-7 1 2419T1964D10…
