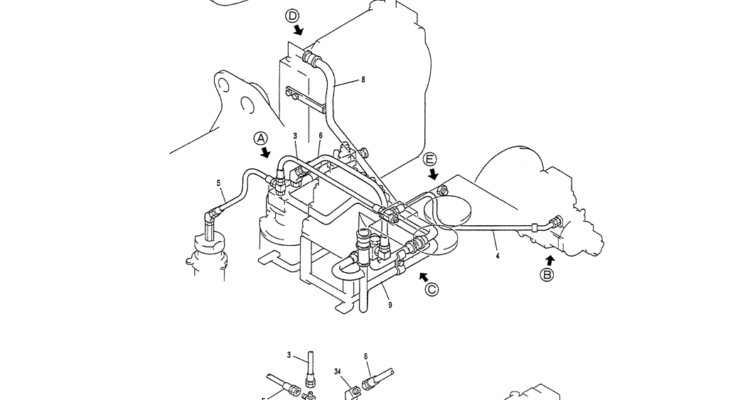

01-022(01) HYD LINES, UPP (RETURN)-Kobelco SK120LC-5 SK120-V SK120LC-3 Excavator Parts Number Electronic Catalog EPC Manuals 35 1 ZE72X16000 PLUG (Incls. O-Ring ZD12P02900) 34 1 ZH42X12000 ELBOW 45° -- 3/4" PF (Incls. O-Ring 237-6012) 33-3 2 R44P0089D7S3 GASKET 33 1 R44P0089D7…

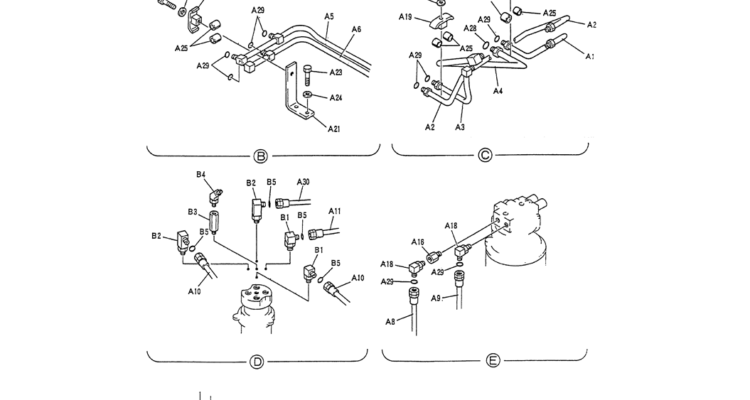

01-021(02) HYD LINES, UPP (MAIN)-Kobelco SK120LC-5 SK120-V SK120LC-3 Excavator Parts Number Electronic Catalog EPC Manuals B5 4 ZD12A01600 O-RING ID 15.60 ± 0.12 x OD 19.16mm B4 1 ZH32X08000 HYD CONNECTOR Elbow, 90° -- 1/2"PT (Incls. O-Ring ZD12P01800) B3 1…

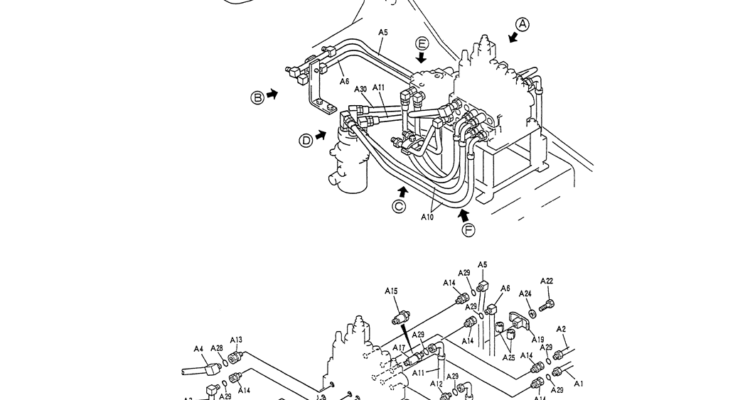

01-021(01) HYD LINES, UPP (MAIN)-Kobelco SK120LC-5 SK120-V SK120LC-3 Excavator Parts Number Electronic Catalog EPC Manuals B5 4 ZD12A01600 O-RING ID 15.60 ± 0.12 x OD 19.16mm B4 1 ZH32X08000 HYD CONNECTOR Elbow, 90° -- 1/2"PT (Incls. O-Ring ZD12P01800) B3 1…

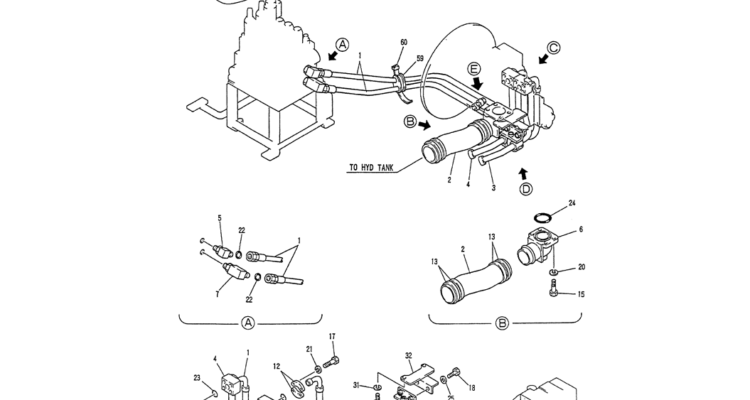

01-020 HYD LINES, UPP (SUCTION, DELIVERY)-Kobelco SK120LC-5 SK120-V SK120LC-3 Excavator Parts Number Electronic Catalog EPC Manuals 60 1 2432Z290D6 CLIP Wire Ties -- 292mm Long 59 1 YN03H01169P1 GROMMET 34 2 ZS18C12030 SCREW M12x1.75x30mm 33 1 YW30H01012P1 ANGLE 32 1…

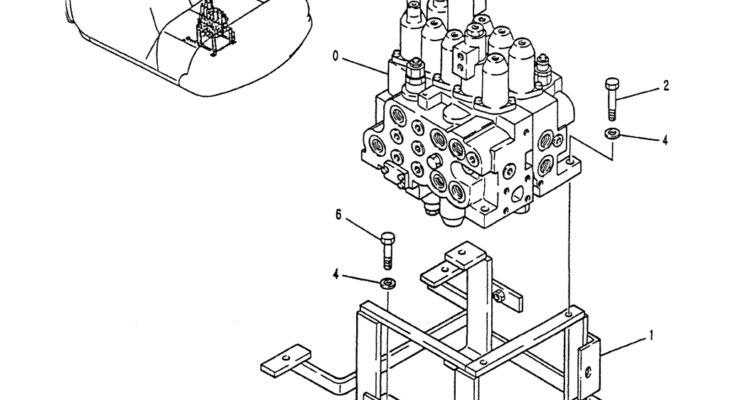

01-019 VALVE INSTAL-Kobelco SK120LC-5 SK120-V SK120LC-3 Excavator Parts Number Electronic Catalog EPC Manuals 6 2 ZS18C12050 SCREW M12x1.75x50mm 5 5 ZN18C12010 NUT M12x1.75mm 4 10 ZW16H12000 WASHER ID 13 x OD 26 x Th 3.2mm 3 2 ZS18C12035 SCREW M12x1.75x35mm…

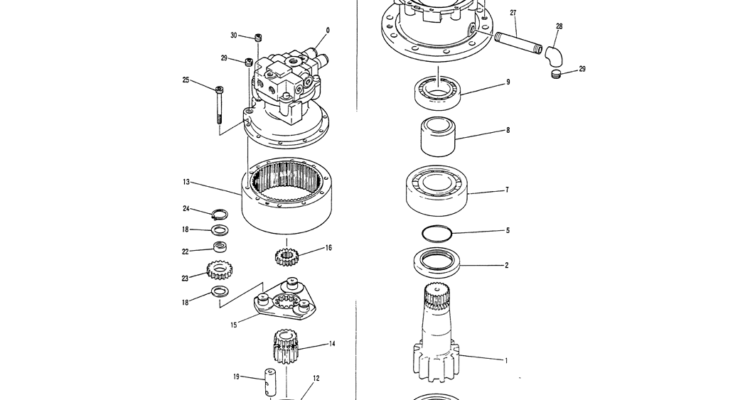

01-018 MOTOR ASSY, SWING-Kobelco SK120LC-5 SK120-V SK120LC-3 Excavator Parts Number Electronic Catalog EPC Manuals 32 8 YW32W01020P1 THRUST WASHER 30 1 ZE82T08000 PLUG 1/2" PT 29 2 ZE82T12000 PLUG 3/4" PT 28 1 ZG31U12000 ELBOW 27 1 2420T6698D4 PIPE 26…

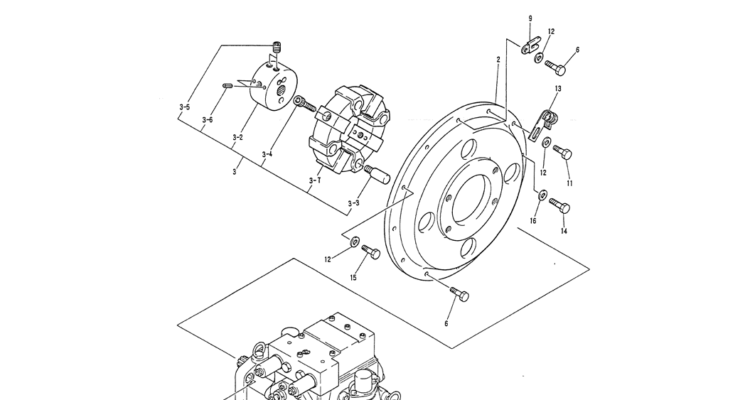

01-017 POWER TAKE-OFF ASSY-Kobelco SK120LC-5 SK120-V SK120LC-3 Excavator Parts Number Electronic Catalog EPC Manuals 16 1 ZW16H10000 WASHER ID 11 x OD 24 x Th 3.2mm 15 1 ZS18C10035 SCREW M10x1.50x35mm 14 1 ZS18C10030 SCREW M10x1.50x30mm 1 YW30P01002P1 CLIP CLIP,…

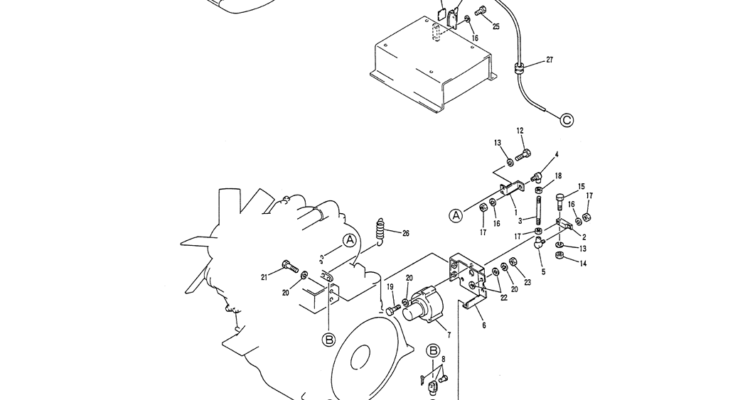

01-016 CONTROL ASSY, ENGINE-Kobelco SK120LC-5 SK120-V SK120LC-3 Excavator Parts Number Electronic Catalog EPC Manuals 31 1 YW11M01026P1 PACKING 31 1 YW11M01026P1 PACKING, ASN YP002573- 30 1 2432Z290D4 Wire Ties -- 365mm Long 29 2 ZS18F10030 BOLT M10x1.25x30mm 28 1 ZW16X06000…

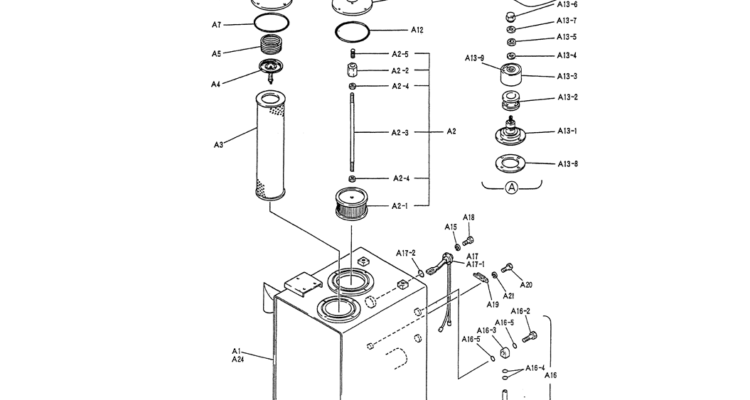

01-015 TANK ASSY, HYD-Kobelco SK120LC-5 SK120-V SK120LC-3 Excavator Parts Number Electronic Catalog EPC Manuals B3 3 LE33H01017D1 SHIM (1.0) B2 4 ZW13H16000 WASHER ID 17 x OD 32 x Th 4.5mm B1 4 ZS13C16035 SCREW M16x2.0x35mm AR YW33H00009F1 TANK INSTAL,…

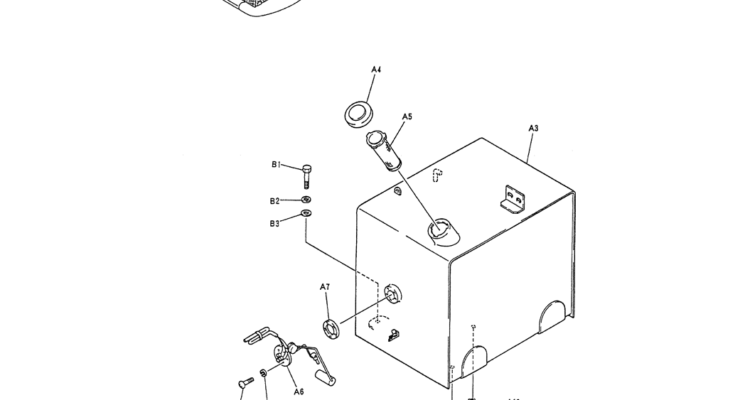

01-014 TANK ASSY, FUEL (P/N-YW20P00023F3)-Kobelco SK120LC-5 SK120-V SK120LC-3 Excavator Parts Number Electronic Catalog EPC Manuals B3 3 LE33H01017D1 SHIM (1.0) B2 4 ZW13H16000 WASHER ID 17 x OD 32 x Th 4.5mm B1 4 ZS13C16035 SCREW M16x2.0x35mm AR YW20P00011F1 TANK…
