08-020(02) TURBOCHARGER PIPING-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 9 2 VAMF241253 SCREW W/Washer 8 1 VA3433604200 GASKET Drain Pipe 7 1 VAF444006300 HYD CONNECTOR 6 2 VAMF241225 BOLT W/Washer 4 1 VA3043653501 EYEBOLT 3 2 VAF420210000…

08-020(01) TURBOCHARGER (MODEL TD04HL)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 11 1 VA4918314000 COUPLING Assy. 10 1 VA4918916660 HOUSING Turbine 8 1 NSS NOT SERVICED SEPARATELY Cover, Compressor 7 1 VA4918955750 Includes Ref. 8 & 9 6…

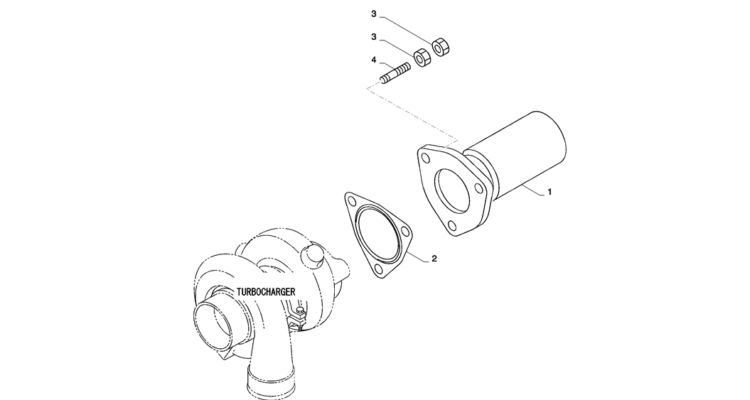

08-019(00) MUFFLER-ROD-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 4 3 VA3423201800 STUD 2 1 VA32A3203300 GASKET 1 1 VA3423203502 EXHAUST SYSTEM PIPE 3 6 VA3233200801 NUT Lock         Kobelco Part Number Information parts manager…

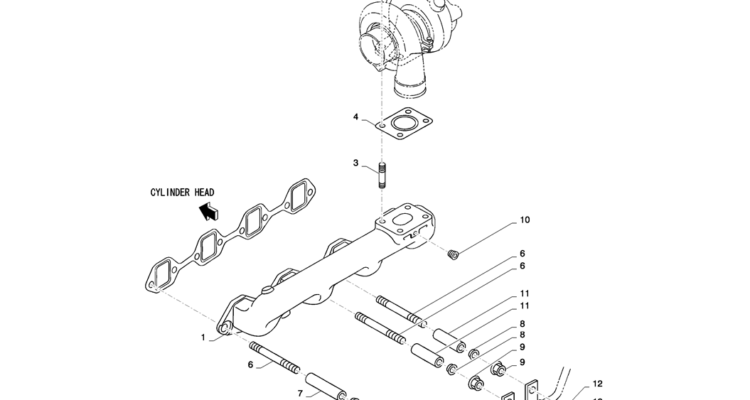

08-018(00) EXHAUST SYSTEM-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 12 2 VAF232008000 NUT 11 2 VA3433221401 SPACER 9 8 VA32A3202300 FLANGE NUT 8 8 VA3433231301 WASHER 7 6 VA3433201202 SPACER 6 8 VA3433200700 STUD 5 8 VA3233200801…

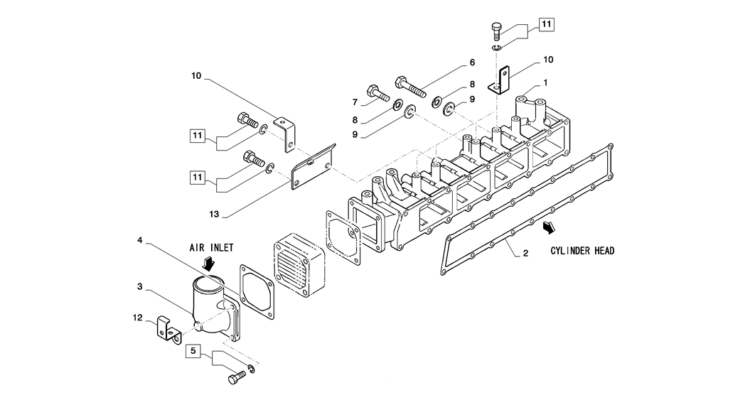

08-017(00) INLET SYSTEM-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 13 1 VA32G6103800 BRACKET Inj. Pipe 12 1 VA32G9001101 Harness 11 6 VAMF241252 BOLT W/Washer 9 18 VAF250008000 WASHER Plain 8 18 VAF251508000 SPRING WASHER 7 9 VAF103508035…

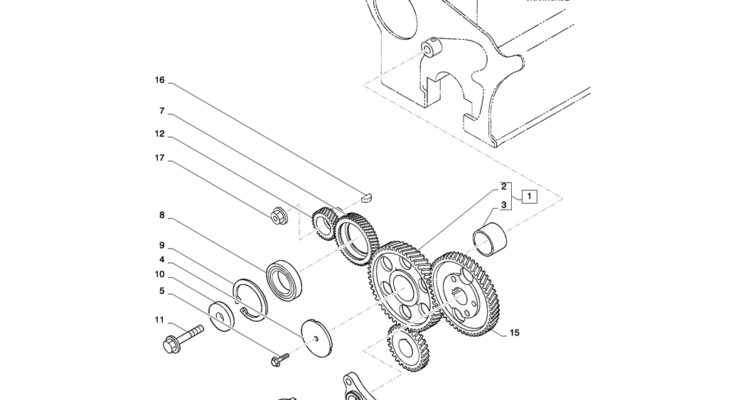

08-016(00) TIMING GEAR-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 18 2 VAMF140229 BOLT Flange 17 1 VA41A0500400 FLANGE NUT 16 1 VAF287004016 WOODRUFF KEY 15 1 VA32G2311200 SPACER Timing Plate 14 1 VAF285008022 Spring 13 1 VA32G2311300…

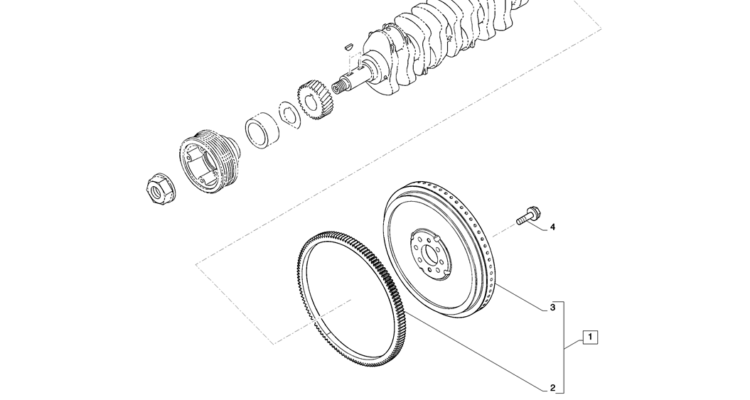

08-015(00) FLYWHEEL-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 4 6 VA9223331600 2 1 VA3432101201 RING GEAR , Z=127 1 1 VA32G2100010 FLYWHEEL Assy., Includes Ref. 2 & 3 3 1 NSS NOT SERVICED SEPARATELY Flywheel    …

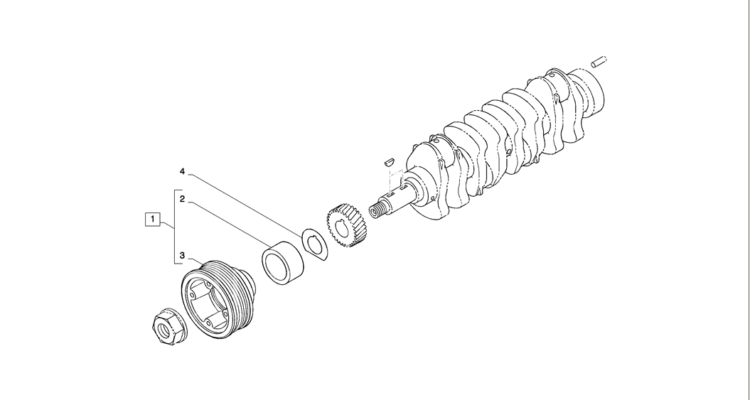

08-014(00) CRANK PULLEY-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 4 1 VA3432022100 PLATE Baffle 2 1 VA3432002200 SLEEVE Oil Seal 1 1 VA3432003031 PULLEY Assy., Crank, Includes Ref. 2 & 3 3 1 NSS NOT SERVICED SEPARATELY…

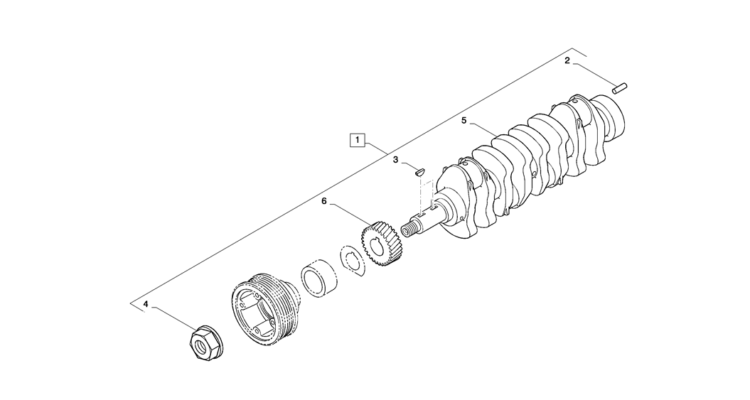

08-013(00) CRANKSHAFT-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 6 1 VA32G2300101 GEAR Crankshaft , Z=32 5 1 NSS NOT SERVICED SEPARATELY Crankshaft 3 2 VAF287007022 WOODRUFF KEY 2 2 VAF284610000 PIN Dowel 1 1 VA32G2000012 Includes Ref.…

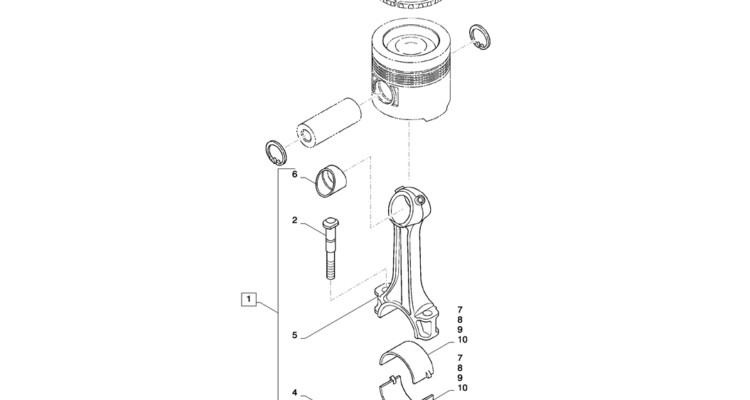

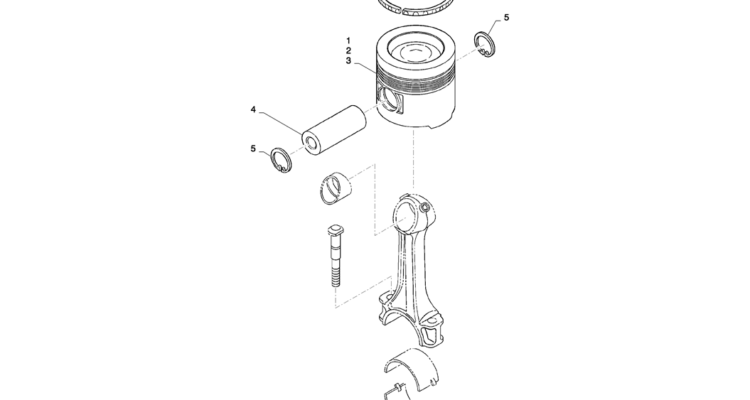

08-012(00) CONNECTING-ROD-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 10 8 VA32F1902400 BEARING Con-Rod, U.S 0.75 9 8 VA32F1902300 BEARING Con-Rod, U.S 0.50 8 8 VA32F1902200 BEARING Con-Rod, U.S 0.25 6 4 VA32F1901500 BUSHING Con-Rod 5 4 NSS…
