01-007(02) RADIATOR INSTALLATION-Kobelco SK80MSR SK80CS-2 SK80CS-1E SK80 Excavator Parts Number Electronic Catalog EPC Manuals 25 6 ZM73C12030 BOLT Sems 24 1 YT05P01168P1 STAY 23 1 YT05P00019F1 RADIATOR 22 4 ZM73C10025 BOLT Sems 21 8 ZM73C08020 BOLT Sems 20 8…
01-007(01) RADIATOR INSTALLATION-Kobelco SK80MSR SK80CS-2 SK80CS-1E SK80 Excavator Parts Number Electronic Catalog EPC Manuals 13 1 YT05P01230P2 FRAME 12 2 YJ13E01014P1 GROMMET 11 1 YT05P01235P1 INSULATION 10 1 2427P1836D35 WEATHERSEAL STRIP 9 1 YT05P01113P1 RUBBER SLEEVE 8 1 YT05P01112P1…
01-006(00) CONTROL ASSEMBLY, ENGINE-Kobelco SK80MSR SK80CS-2 SK80CS-1E SK80 Excavator Parts Number Electronic Catalog EPC Manuals 21 3 ZM73C10030 BOLT Sems 20 1 ZW26X06000 LOCK WASHER 19 2 ZW26X08000 WASHER Lock 18 3 ZN18C08007 NUT 17 1 2420T7359 NUT 16…
01-005(01) ENGINE INSTALLATION-Kobelco SK80MSR SK80CS-2 SK80CS-1E SK80 Excavator Parts Number Electronic Catalog EPC Manuals 17 2 ZH32X08012 ELBOW 90 16 1 YA03H01018P1 ELEC CONNECTOR 15 5 HD16P02400G2 O-RING , ASN LF06-04503 15 4 HD16P02400G2 O-RING , BTW…
01-004(01) CYLINDER INSTALLATION-Kobelco SK80MSR SK80CS-2 SK80CS-1E SK80 Excavator Parts Number Electronic Catalog EPC Manuals AR LF02B00015F1 14 1 LF01V00007F1 HYDRAULIC CYLINDER Swing 13 3 LF02B01029D3 SHIM (0.9) 12 3 LF02B01029D2 SHIM (0.9) 11 3 LF02B01029D1 SHIM (0.5) 10 1…
2 2 LF52F01011P1 BUSHING 1 1 LF52F00025P1 FRAME Upp. AR LF52F00024F1 Upp. 5 2 ZG91U02000 LUBE NIPPLE 4 1 ZS18F20085 CAPTIVE WASHER SCREW 3 1 ZN18F20016 NUT 2 23 ZS13C16085 SCREW Cap 1 1 HS53C16085G1 SCREW Cap AR LF52F00018F1 Upp.…

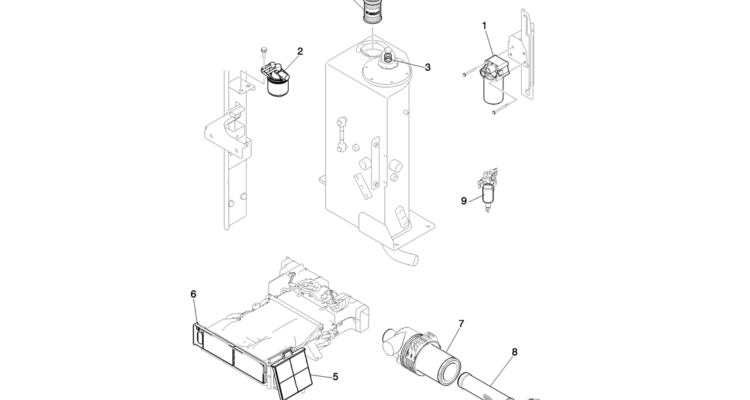

00-001(00) FILTER LIST-Kobelco SK80MSR SK80CS-2 SK80CS-1E SK80 Excavator Parts Number Electronic Catalog EPC Manuals 9 1 VI8972133810 ELEMENT Filter, Fuel 8 1 YT11P00009S007 ELEMENT Inner 7 1 YT11P00009S002 ELEMENT Filter, Outer 6 1 YN50V01014P1 CAB FILTER Inner…
03-001 STD, BOOM ASSY, 4.6M-Kobelco SK120LC-5 SK120-V SK120LC-3 Excavator Parts Number Electronic Catalog EPC Manuals E8 2 B16T0442D2 SHIM ID 72 x OD 130 x Th 1.6mm E7 2 B16T0442D1 SHIM ID 72 x OD 130 x Th…
02-018 HYD LINES, LOW (FOR LONG CRAWLER)-Kobelco SK120LC-5 SK120-V SK120LC-3 Excavator Parts Number Electronic Catalog EPC Manuals C6 2 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm C5 2 ZD12P01800 O-RING ID 17.80 ± 0.21 x OD 22mm…
02-016 HYD LINES, LOW-Kobelco SK120LC-5 SK120-V SK120LC-3 Excavator Parts Number Electronic Catalog EPC Manuals C6 2 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm C5 2 ZD12P01800 O-RING ID 17.80 ± 0.21 x OD 22mm C4 4…
