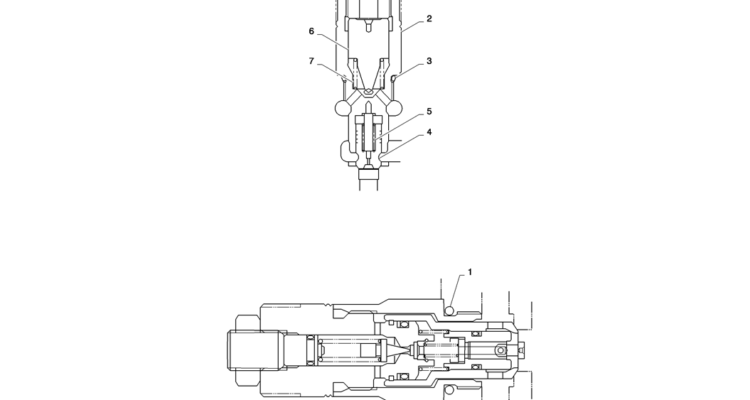

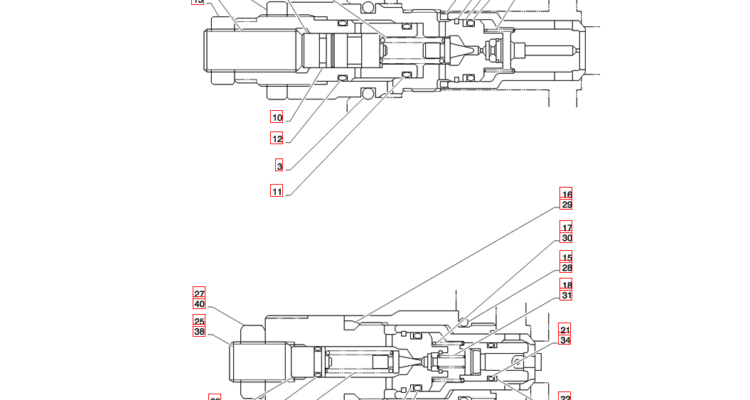

01-017(08)VALVE INSTALL-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 9 1 ZD12P01800 O-RING 8 1 YN30V00120S401 PLUG 7 1 YN30V00120S302 SPRING 6 1 YN30V00120S301 POPPET 5 1 YN30V00120S202 SPRING 4 1 YN30V00120S201 POPPET 3 1 ZD12P02000 O-RING…

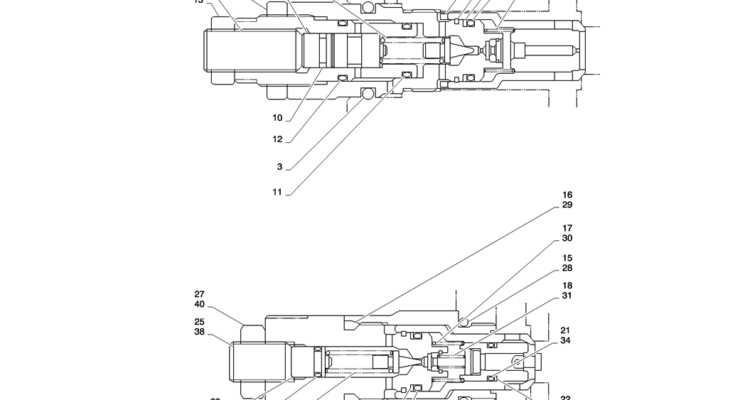

01-017(07)VALVE INSTALL-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 40 1 YN22V00001S671 LOCK NUT 39 1 ZD12P00800 O-RING 38 1 YN22V00002S651 ADJUSTMENT SCREW 37 1 2436R750S512 SPRING 36 1 YN22V00002S612 SPRING SEAT 35 1 YN22V00002S564 RING Back…

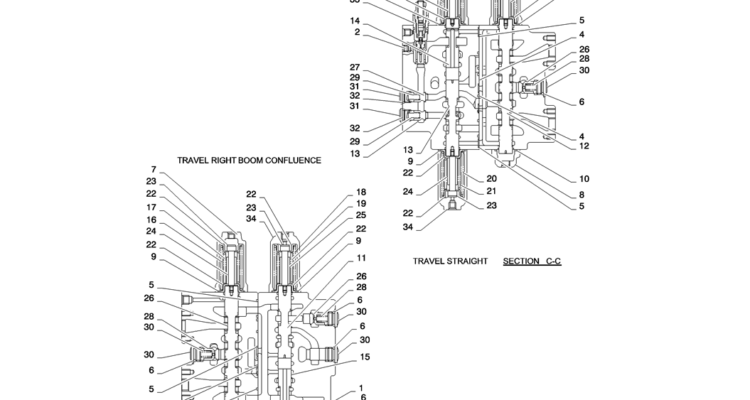

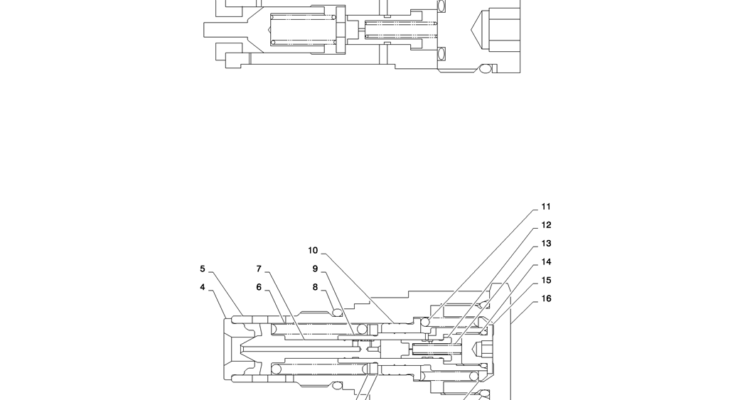

01-017(06)VALVE INSTALL-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 40 1 YN22V00001S671 LOCK NUT 39 1 ZD12P00800 O-RING 38 1 YN22V00002S651 ADJUSTMENT SCREW 37 1 2436R750S512 SPRING 36 1 YN22V00002S612 SPRING SEAT 35 1 YN22V00002S564 RING Back…

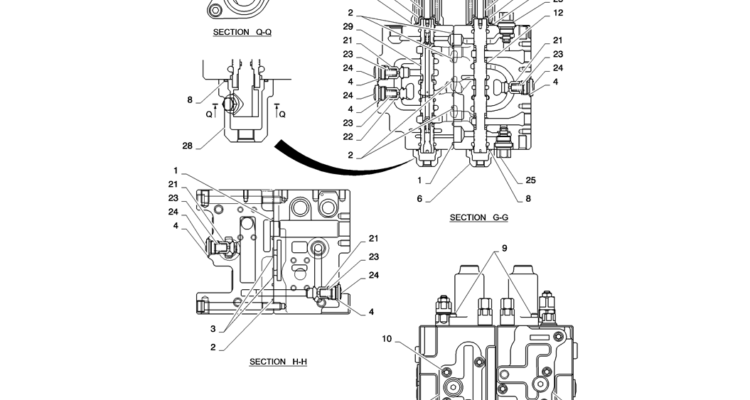

01-017(05)VALVE INSTALL-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 1 YN30V00101R230 Consists Of Item: 13(1), 16(1), 18(1), 20(1), 29(1), 17(2) 1 YF30V00011R210 KIT Consists Of Item: 13(1), 18(1), 19(1), 17(2) 1 YN30V00101R220 SPOOL Repair Kit, Consists Of…
01-017(04)VALVE INSTALL-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 1 YN30V00101R230 Consists Of Item: 23(1), 24(1), 22(2) 1 YF30V00011R210 KIT Consists Of Item: 23(1), 24(1), 22(2) 1 YN30V00101R220 SPOOL Repair Kit, Consists Of Item: 23(1), 24(1), 34(1),…

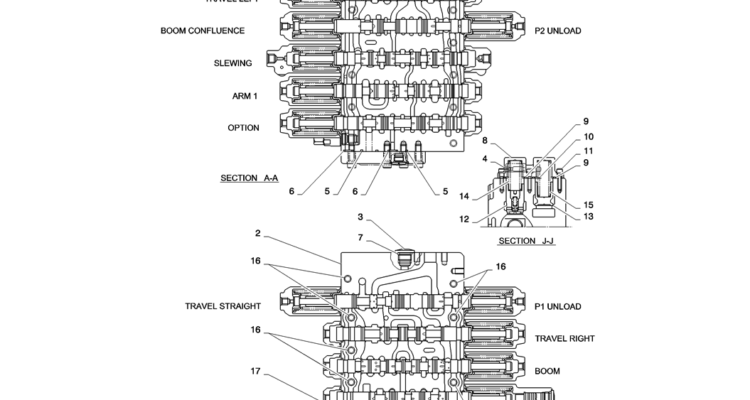

01-017(03)VALVE INSTALL-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 17 2 LC30V00036S974 SCREW Cap 16 8 LC30V00036S973 SCREW Cap 15 1 YN30V00101S528 SPRING 14 1 YN30V00101S527 SPRING 13 1 YN30V00101S518 HYDRAULIC VALVE Poppet 12 1 YN30V00101S517 HYDRAULIC…
01-017(02)VALVE INSTALL-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 5 2 YN30V00120F2 VALVE Control 4 2 NSS NOT SERVICED SEPARATELY Pin 2 40 ZS23C08025 SCREW Cap 1 11 ZD12P01500 O-RING AR YF64H00035F1 3 1 NSS NOT SERVICED…

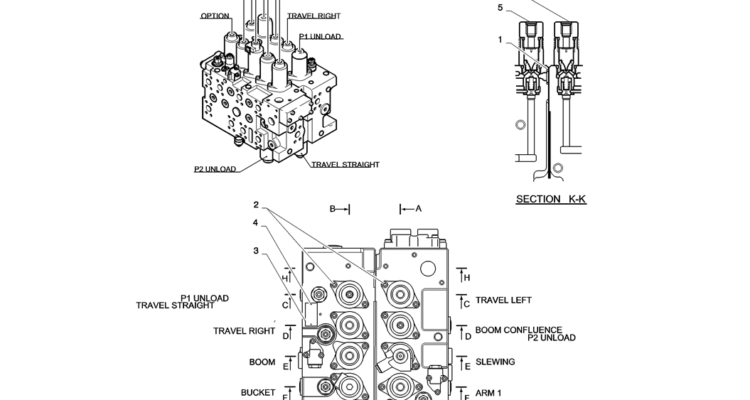

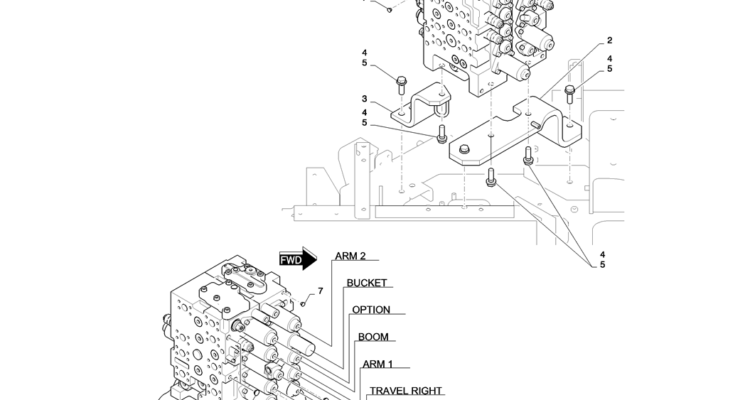

01-017(01)VALVE INSTALL-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 9 2 YN13E01375P1 CLIP 8 2 YN64H01393D1 CAP 7 2 YN64H01391D1 CAP 6 5 YN64H01392D1 CAP 5 7 ZW16H16000 WASHER 3 1 YF64H01063P1 BRACKET 2 1 YF64H01064P1 BRACKET…

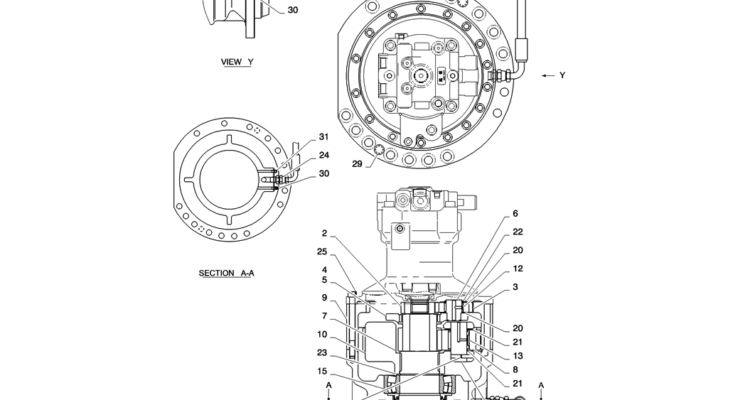

01-016(04)SWING MOTOR INSTALL-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 31 1 2444Z3305 BREATHER Valve, Relief 30 1 ZG91V02000 LUBE NIPPLE 29 2 PV02B01073DB CAP 28 1 2444Z2728D3 PLUG 27 1 ZX32M08040 26 1 ZH22Z08000 HYD CONNECTOR…
01-016(03)SWING MOTOR INSTALL-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 31 1 2444Z3305 BREATHER Valve, Relief 30 1 ZG91V02000 LUBE NIPPLE 29 2 PV02B01073DB CAP 28 1 2444Z2728D3 PLUG 27 1 ZX32M08040 26 1 ZH22Z08000 HYD CONNECTOR…
