05-018ARM ASSY, EXTENSION-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals 25 2 B16T0442D2 SHIM ID 72 x OD 130 x Th 1.6mm 24 2 B16T0442D44 SHIM ID 72 x OD 130 x Th 0.9mm 23 2 B16T0442D57…

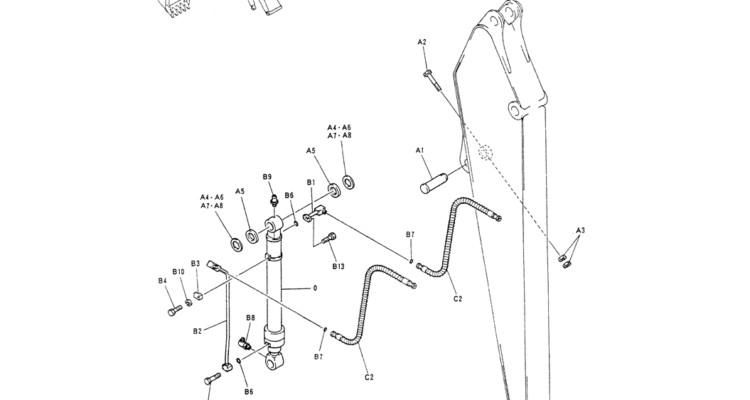

05-017HYD LINES, ARM 3.3M-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals C2 2 ZX50H12175 HOSE YN43H00001F2 HYD LINES,ARM B13 4 ZS18C10035 SCREW M10x1.50x35mm B10 1 ZW26X10000 LOCK WASHER ID 10 x OD 18 x Th 2.5mm B9…

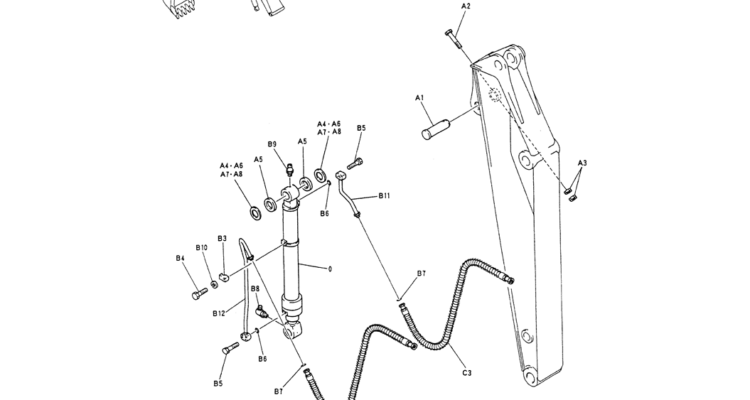

05-016HYD LINES, ARM 2.4M-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals C3 2 ZX50H12140 HOSE 1400mm Long (55-7/64 in) YN43H00001F3 HYD LINES,ARM B12 1 YN43H01028P2 TUBE B11 1 YN43H01027P2 TUBE B10 1 ZW26X10000 LOCK WASHER ID 10…

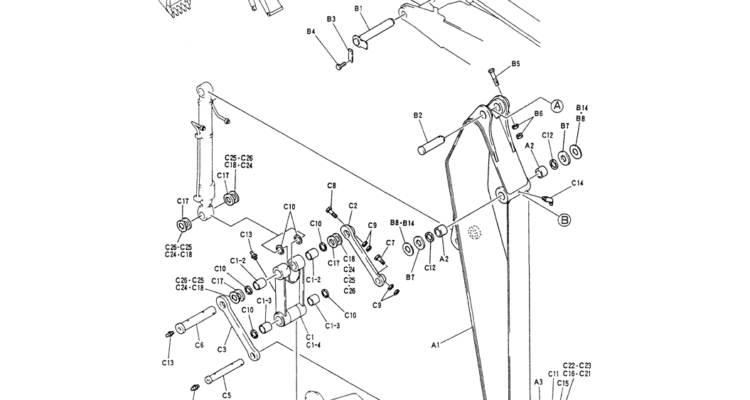

05-015LONG ARM ASSY, 3.3M-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals C26 4 YN12B01122D3 SHIM ID 82 x OD 140 x Th 1.6mm C25 4 YN12B01122D2 SHIM ID 82 x OD 140 x Th 0.9mm C24 4…

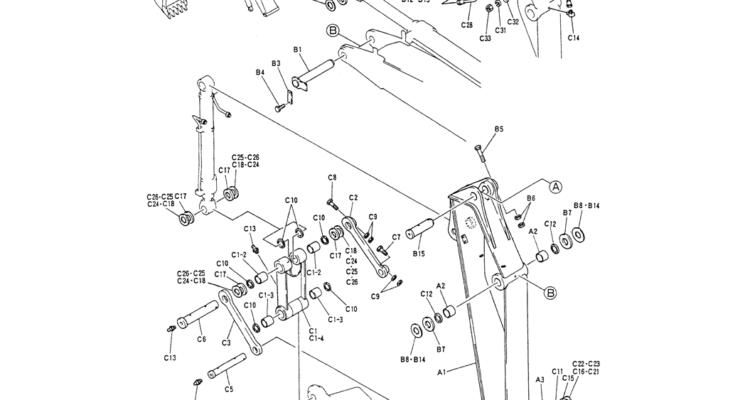

05-014SHORT ARM ASSY, 2.4M-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals C33 2 ZN18C06005 NUT M06x1.0mm C32 2 ZW16X06000 WASHER ID 06 x OD 12.5 x Th 1.6mm C31 2 ZW26X06000 LOCK WASHER ID 06 x OD…

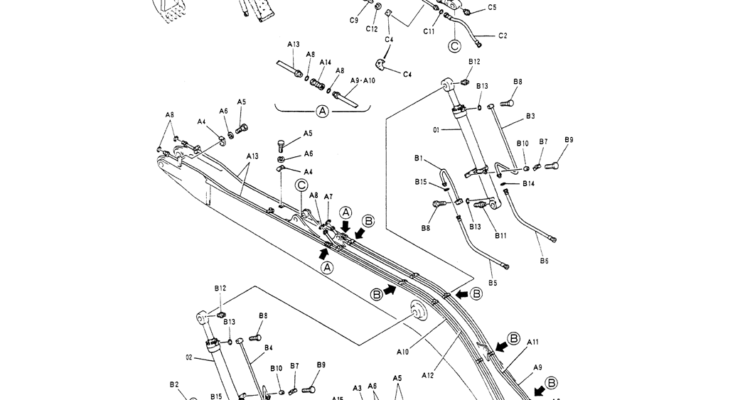

05-013HYD LINES, BOOM 8.15M (50FT LONG RANGE)-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals C12 5 ZW26X12000 LOCK WASHER ID 12 x OD 21 x Th 3.0mm Cll 1 ZD12A01800 O-RING ID 18.77 ± 0.12 x OD…

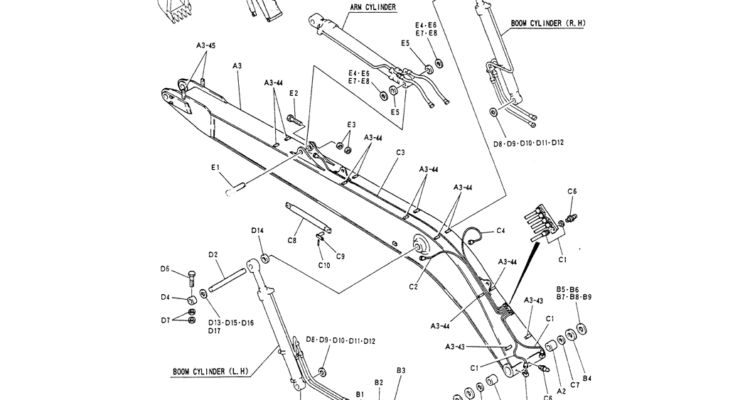

05-012BOOM ASSY, 8.15M (50FT LONG RANGE)-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals E8 2 B16T0442D62 SHIM ID 87 x OD 140 x Th 1.6mm E7 2 B16T0442D77 SHIM ID 87 x OD 140 x Th 0.9mm…

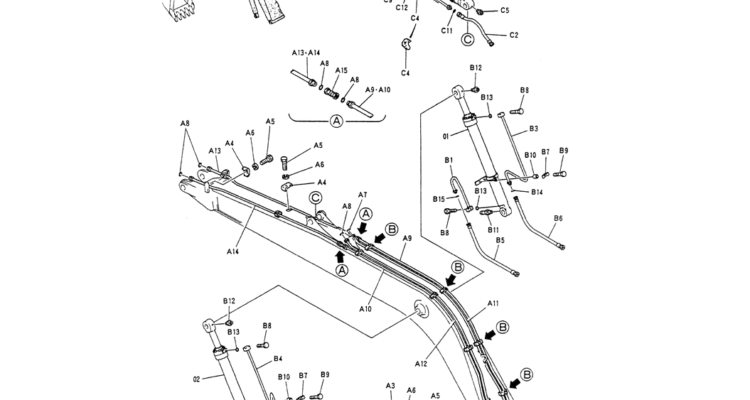

05-011HYD LINES, BOOM 7.0M (40 FT LONG RANGE)-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals C12 5 ZW26X12000 LOCK WASHER ID 12 x OD 21 x Th 3.0mm C11 1 ZD12A01800 O-RING ID 18.77 ± 0.12 x…
05-010BOOM ASSY 7.0M-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals E8 2 B16T0442D62 SHIM ID 87 x OD 140 x Th 1.6mm E7 2 B16T0442D77 SHIM ID 87 x OD 140 x Th 0.9mm E6 2 B16T0442D78…

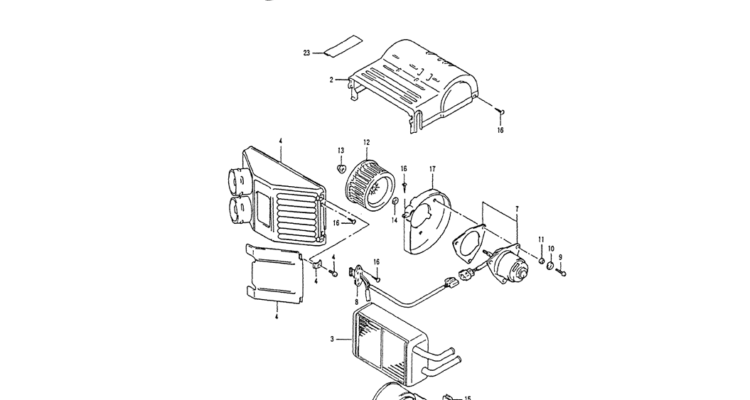

05-009HEATER ASSY -Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals 23 1 2479U293S23 GUIDE. AIR 22 1 2479U293S22 PACKING 17 1 2479U293S17 PLATE 16 11 2479U293S16 SCREW TAPPING 15 1 2479U293S15 GROMMET 14 1 24100U1254S26 WASHER 13…
