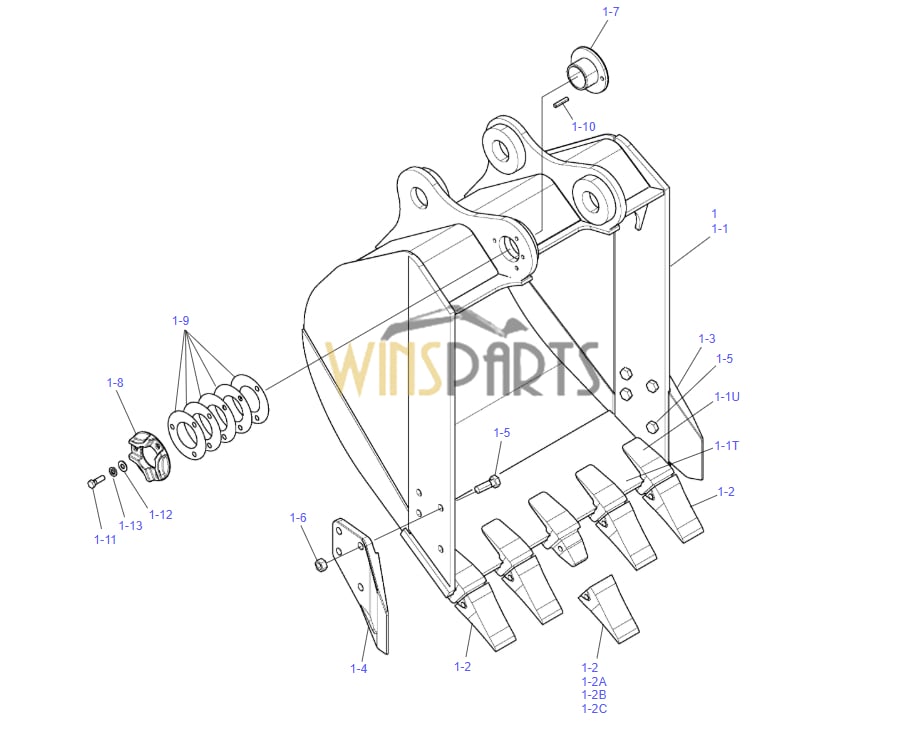

YN61B00331F1 YN61B00312F1 0.8M3 BUCKET ASSY Kobelco SK200-8 SK210LC-8
(SIDE TYPE PIN)
1 YN61B00331F1 BUCKET ASSY 1
1-1 YN61B00328P1 BUCKET 1
1-1T YN69B01048D1 EDGE, CUTTING 1
1-1U YN61B01020P1 ADAPTER 5
1-2 YN69B00008F1 TOOTH ASSY 5
1-2A YN69B00008S001 TOOTH 1
1-2B YN69B00008S002 PIN 1
1-2C YN69B00008S003 SPRING 1
1-3 YN69B00006P1 CUTTER, SIDE 1
1-4 YN69B00007P1 CUTTER, SIDE 1
1-5 ZS13C24070 CAPSCREW 8
1-6 ZN13C24019 NUT 8
1-7 YB61B01003P1 BUSHING 1
1-8 YB61B01005P1 PLATE 1
1-9 YB61B01004P1 SHIM (1.0) 5
1-10 2419T3747D2 PIN 1
1-11 ZS13C16050 CAPSCREW 3
1-12 YB61B01007P1 WASHER 3
1-13 ZW16H16000 WASHER 3
YN61B00324F1 BUCKET ASSY, 0.8M3
(HD, SIDE TYPE PIN)
1 YN61B00325F1 BUCKET ASSY 1
1-1 YN61B00326P1 BUCKET 1
1-1T 2412P627D1 EDGE, CUTTING 1
1-1V LQ61B01002P1 ADAPTER 4
1-2 LQ61B01003F1 TOOTH ASSY 4
1-2A LQ61B01003S001 POINT 1
1-2B LQ61B01003S002 PIN 1
1-2C LQ61B01003S003 SPRING 1
1-3 2412J351D1 CUTTER, SIDE 1
1-4 2412J351D2 CUTTER, SIDE 1
1-5 YB61B01003P1 BUSHING 1
1-6 YB61B01005P1 PLATE 1
1-7 YB61B01004P1 SHIM (1.0) 5
1-8 2419T3747D2 PIN 1
1-9 ZS13C24065 CAPSCREW 10
1-10 ZS13C16050 CAPSCREW 3
1-11 ZN13C24019 NUT 10
1-12 ZW22X16000 LOCK WASHER 3
1-13 YB61B01007P1 WASHER 3
YN61B00358F1 BUCKET ASSY, 0.8M3
(REINFORCEMENT BUCKET)
1 YN61B00424F1 BUCKET ASSY 1
1-1 YN61B00410F1 BUCKET ASSY 1
1-1A YN61B00403P1 BUCKET 1
1-1Au YN69B01048D1 EDGE, CUTTING 1
1-1Av YN61B01020P1 ADAPTER 5
1-1B YN69B00008F1 TOOTH ASSY 5
1-1Ba YN69B00008S001 TOOTH 1
1-1Bb YN69B00008S002 PIN 1
1-1Bc YN69B00008S003 SPRING 1
1-1C YN69B00006P1 CUTTER, SIDE 1
1-1D YN69B00007P1 CUTTER, SIDE 1
1-1E ZS13C24070 CAPSCREW 8
1-1F ZN13C24019 NUT 8
1-1G YB61B01003P1 BUSHING 1
1-1H YB61B01005P1 PLATE 1
1-1J YB61B01004P1 SHIM (1.0) 5
1-1K 2419T3747D2 PIN 1
1-1L ZS13C16050 CAPSCREW 3
1-1M YB61B01007P1 WASHER 3
1-1N ZW16H16000 WASHER 3
1-2 YN61B00407P1 BUCKET 1
1-2A YN61B01311P1 BAR, FLAT 5
1-2B YN61B01358P1 BAR, FLAT 4
1-2C YN61B01312P1 BAR, FLAT 6

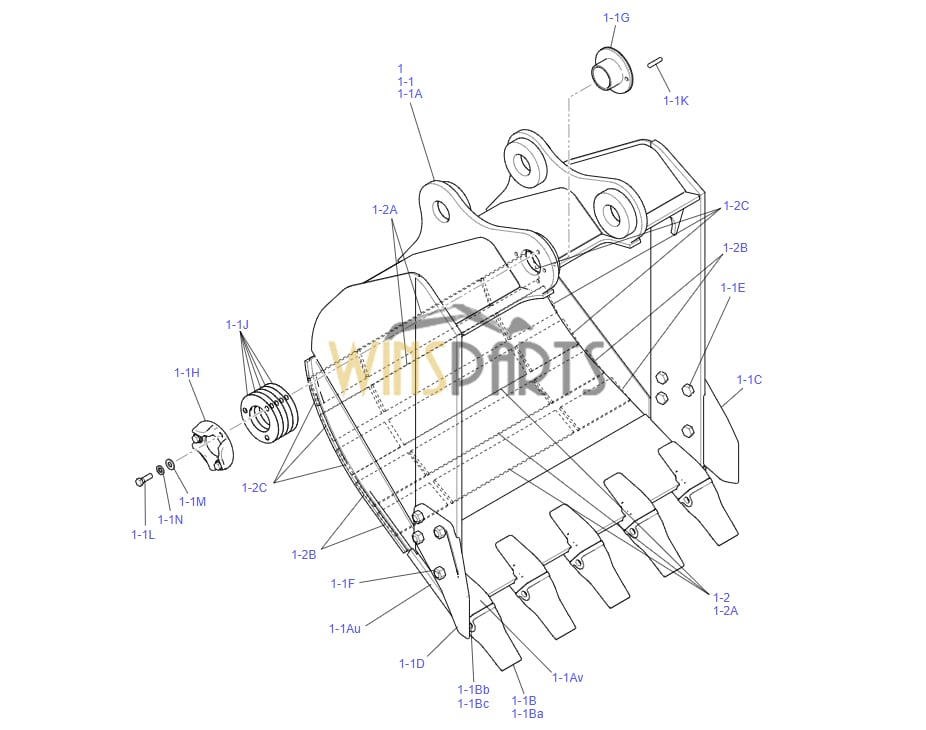

YN61B00353F1 BUCKET ASSY, 0.93M3
(REINFORCEMENT BUCKET)
1 YN61B00425F1 BUCKET ASSY 1
1-1 YN61B00412F1 BUCKET ASSY 1
1-1A YN61B00406P1 BUCKET 1
1-1Au YN69B01048D8 EDGE, CUTTING 1
1-1Av YN61B01020P1 ADAPTER 5
1-1B YN69B00008F1 TOOTH ASSY 5
1-1Ba YN69B00008S001 TOOTH 1
1-1Bb YN69B00008S002 PIN 1
1-1Bc YN69B00008S003 SPRING 1
1-1C YN69B00006P1 CUTTER, SIDE 1
1-1D YN69B00007P1 CUTTER, SIDE 1
1-1E ZS13C24070 CAPSCREW 8
1-1F ZN13C24019 NUT 8
1-1G YB61B01003P1 BUSHING 1
1-1H YB61B01005P1 PLATE 1
1-1J YB61B01004P1 SHIM (1.0) 5
1-1K 2419T3747D2 PIN 1
1-1L ZS13C16050 CAPSCREW 3
1-1M YB61B01007P1 WASHER 3
1-1N ZW16H16000 WASHER 3
1-2 YN61B00408P1 BUCKET 1
1-2A LQ61B01202P1 BAR, FLAT 5
1-2B YN61B01358P1 BAR, FLAT 4
1-2C YN61B01312P1 BAR, FLAT 6
YN61B00309F1 BUCKET ASSY, 0.93M3
(SIDE TYPE PIN)
1 YN61B00332F1 BUCKET ASSY 1
1-1 YN61B00330P1 BUCKET 1
1-1T YN69B01048D8 EDGE, CUTTING 1
1-1U YN61B01020P1 ADAPTER 5
1-2 YN69B00008F1 TOOTH ASSY 5
1-2A YN69B00008S001 TOOTH 1
1-2B YN69B00008S002 PIN 1
1-2C YN69B00008S003 SPRING 1
1-3 YN69B00006P1 CUTTER, SIDE 1
1-4 YN69B00007P1 CUTTER, SIDE 1
1-5 ZS13C24070 CAPSCREW 8
1-6 ZN13C24019 NUT 8
1-7 YB61B01003P1 BUSHING 1
1-8 YB61B01005P1 PLATE 1
1-9 YB61B01004P1 SHIM (1.0) 5
1-10 2419T3747D2 PIN 1
1-11 ZS13C16050 CAPSCREW 3
1-12 YB61B01007P1 WASHER 3
1-13 ZW16H16000 WASHER 3

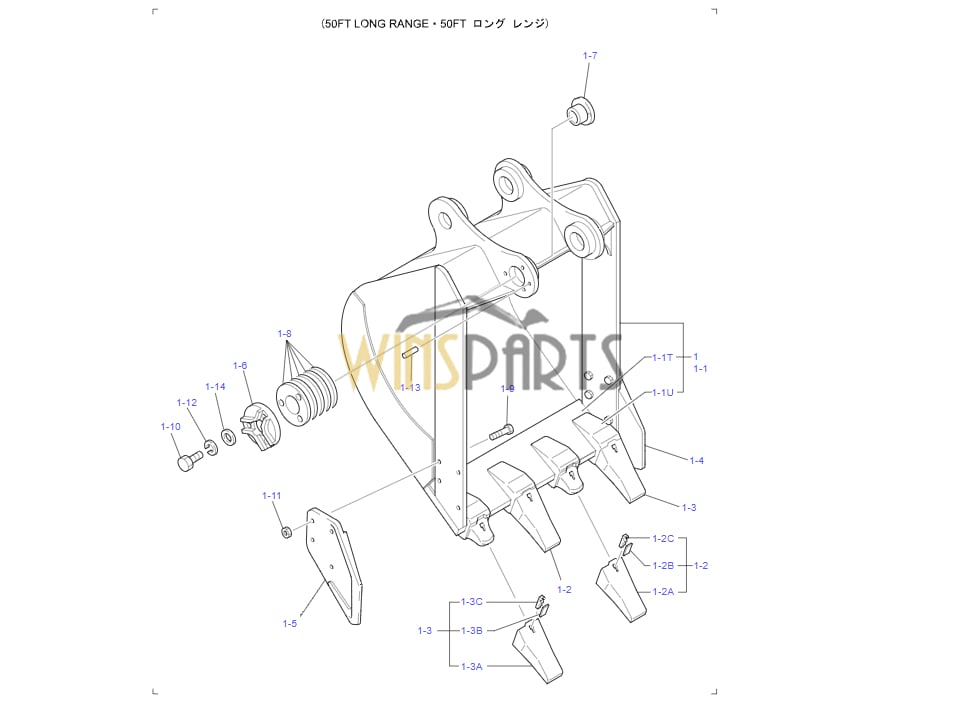

YN61B00293F1 BUCKET ASSY, 0.45M3
(50FT LONG RANGE)
1 YN61B00156F1 BUCKET ASSY 1
1-1 YN61B00157P1 BUCKET 1
1-1T YN69B01020D1 EDGE, CUTTING 1
1-1U LP61B01013P1 ADAPTER 4
1-2 2412U16F1 TOOTH ASSY 2 YQ12T00101–T01138
1-2A 2412U16S1 POINT 1 YQ12T00101–T01138
1-2B B12P0015E2 PIN, LOCKING 1 YQ12T00101–T01138
1-2C B12P0015E3 LOCK, RUBBER 1 YQ12T00101–T01138
1-2 2412U16F1 TOOTH ASSY 4 YQ12T01139-
1-2A 2412U16S1 POINT 1 YQ12T01139-
1-2B B12P0015E2 PIN, LOCKING 1 YQ12T01139-
1-2C B12P0015E3 LOCK, RUBBER 1 YQ12T01139-
1-3 2412U112F1 TOOTH ASSY 2 YQ12T00101–T01138
1-3A 2412U112S1 POINT, TOOTH 1 YQ12T00101–T01138
1-3B B12P0015E2 PIN, LOCKING 1 YQ12T00101–T01138
1-3C B12P0015E3 LOCK, RUBBER 1 YQ12T00101–T01138
1-4 2412N278D11 CUTTER, SIDE 1
1-5 2412N278D21 CUTTER, SIDE 1
1-6 YY61B01008P1 PLATE 1
1-7 YY61B01002P1 BUSHING 1
1-8 YY61B01006P1 SHIM (1.0) 5
1-9 ZS13C20050 CAPSCREW 8
1-10 ZS13C14040 CAPSCREW 3
1-11 ZN13C20016 NUT 8
1-12 ZW22X14000 LOCK WASHER 3
1-13 2419T3772D2 PIN 1
1-14 YY61B01010P1 WASHER 3
