VHS171114661 VH17103E0062 AIR INTAKE AND EXHAUST SYSTEM 11492 VH11492E0011 PLATE, WATER SEAL 1 11499 VH11499E0010 PLUG, CYLINDER BLOCK HOLE 1…
YN61B00007F1 BUCKET INSTAL KOBELCO
LP61B00008F1 BUCKET INSTAL Not Service .

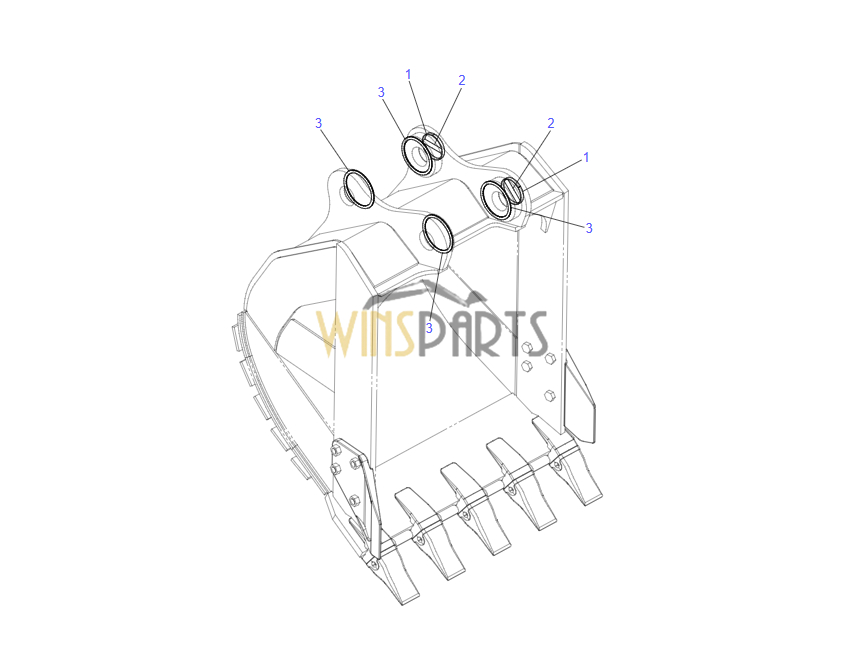

1 2418T23987D2 RING 2
2 2419T6002D6 PIN 2
3 2445Z1136 O-RING 4
1 2418T23986D1 RING 2
2 2419T6002D7 PIN 2
3 2445Z869 O-RING 4
.

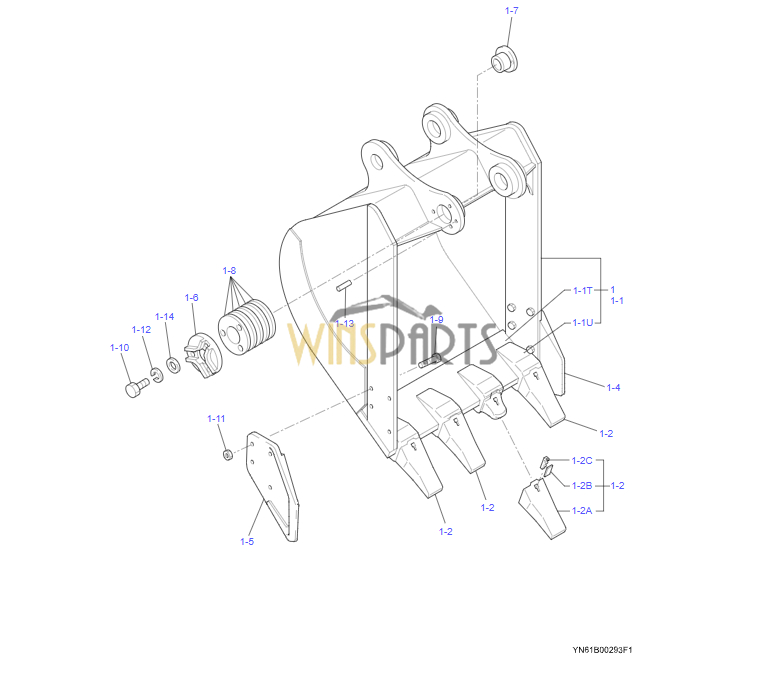

1 YN61B00156F1 BUCKET ASSY 1
1-1 YN61B00157P1 BUCKET 1
1-1T YN69B01020D1 EDGE, CUTTING 1
1-1U LP61B01013P1 ADAPTER 4
1-2 2412U16F1 TOOTH ASSY 4
1-2A 2412U16S1 POINT 1
1-2B B12P0015E2 PIN, LOCKING 1
1-2C B12P0015E3 LOCK, RUBBER 1
1-4 2412N278D11 CUTTER, SIDE 1
1-5 2412N278D21 CUTTER, SIDE 1
1-6 YY61B01008P1 PLATE 1
1-7 YY61B01002P1 BUSHING 1
1-8 YY61B01006P1 SHIM (1.0) 5
1-9 ZS13C20050 CAPSCREW 8
1-10 ZS13C14040 CAPSCREW 3
1-11 ZN13C20016 NUT 8
1-12 ZW22X14000 LOCK WASHER 3
1-13 2419T3772D2 PIN 1
1-14 YY61B01010P1 WASHER 3

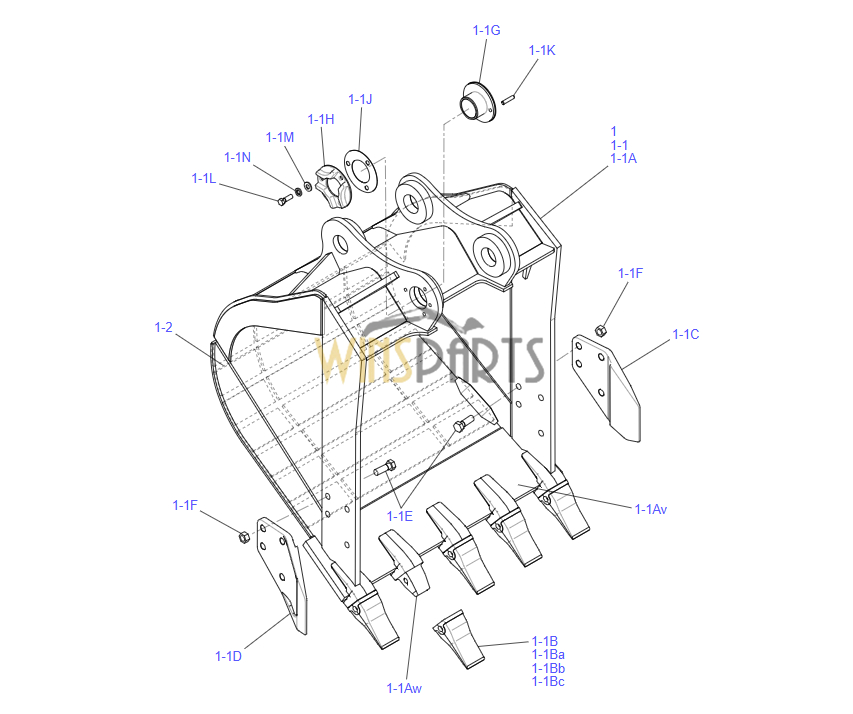

1 YN61B00583F1 BUCKET ASSY 1
1-1 YN61B00584F1 BUCKET ASSY 1
1-1A YN61B00586P1 BUCKET 1
1-1Av YN69B01048D8 EDGE, CUTTING 1
1-1Aw YN61B01020P1 ADAPTER 5
1-1B YN69B00008F1 TOOTH ASSY 5
1-1Ba YN69B00008S001 TOOTH 1
1-1Bb YN69B00008S002 PIN 1
1-1Bc YN69B00008S003 SPRING 1
1-1C YN69B00006P1 CUTTER, SIDE 1
1-1D YN69B00007P1 CUTTER, SIDE 1
1-1E ZS13C24070 CAPSCREW 8
1-1F ZN13C24019 NUT 8
1-1G YB61B01003P1 BUSHING 1
1-1H YB61B01005P1 PLATE 1
1-1J YB61B01004P1 SHIM 5
1-1K 2419T3747D2 PIN 1
1-1L ZS13C16050 CAPSCREW 3
1-1M YB61B01007P1 WASHER 3
1-1N ZW16H16000 WASHER 3
1-2 YN61B01656P1 PLATE ASSY 1
.

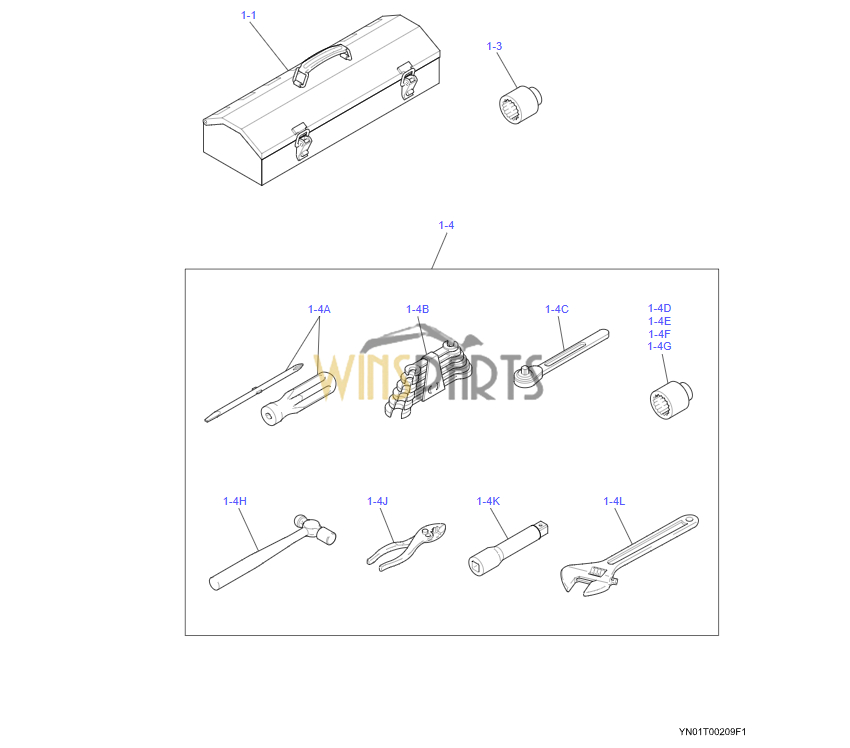

1 YN01T00204F1 TOOL & ACCESSORY 1
1-1 YN01T01059P1 BOX, TOOL 1
1-3 2408R587D5 SOCKET 1
1-4 YN01T00208F1 TOOL ASSY 1
1-4A 2421Z294 DRIVER 1
1-4B YN01T01058P1 SPANNER 1
1-4C 2406R527 HANDLE, RATCHET 1
1-4D 2408R587D1 SOCKET 1
1-4E 2408R587D2 SOCKET 1
1-4F 2408R587D3 SOCKET 1
1-4G 2408R587D4 SOCKET 1
1-4H 2421R397 HAMMER 1
1-4J 2421R392 PLIER 1
1-4K 2406Z623D4 BAR, EXTENSION 1
1-4L 2421R394 WRENCH, ADJUST 1
