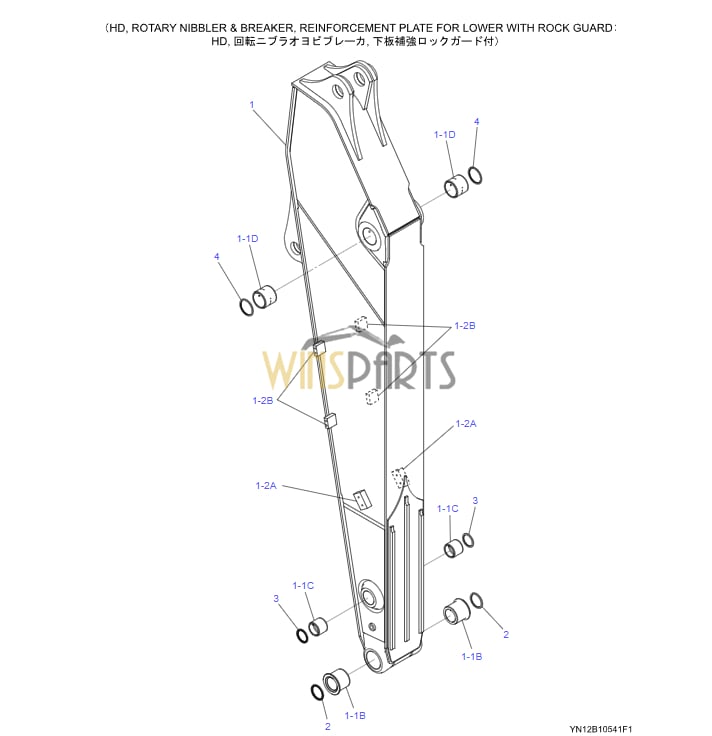

YN12B10541F1 YN12B12049F1 YN12B10542F1 ARM, 2.94M KOBELCO SK200-10 SK210LC-10
YN12B10982F1 ARM, 2.94M
YN12B10691F1 ARM, 2.94M
YN12B20015F1 ARM, 2.94M
1 YN12B20016F1 ARM
1 YN12B10690F1 ARM 1
1 YN12B10983F1 ARM 1
1-1B YN12B11184P1 BUSHING 2
1-1C YN12B02404P1 BUSHING 2
1-1D YN12B11831P1 BUSHING 2
1-2A YN12B11706P1 BLOCK, TAPPED 2
1-2B YN02B02285P1 BLOCK, TAPPED 4 .
1 YN12B10542F1 ARM
1-1B YN12B11184P1 BUSHING 2
1-1C YN12B02404P1 BUSHING 2
1-1D YN12B11831P1 BUSHING 2
1-2A YN12B11706P1 BLOCK, TAPPED 2
1-2B YN02B02285P1 BLOCK, TAPPED 4
1 YN12B12049F1 ARM 1
1-1B YN12B11184P1 BUSHING 2
1-1C YN12B02404P1 BUSHING 2
1-1D YN12B11831P1 BUSHING 2
1-2A YN12B11706P1 BLOCK, TAPPED 2
1-2B YN02B02285P1 BLOCK, TAPPED 4
2 2445R220D4 SEAL, DUST 2
3 2445R220D3 SEAL, DUST 2
4 2445R138D8 SEAL, DUST 2
YN12B10691F1 ARM, 2.94M
1-1B YN12B11184P1 BUSHING 2
1-1C YN12B02404P1 BUSHING 2
1-1D YN12B11831P1 BUSHING 2
1-2A YN12B11706P1 BLOCK, TAPPED 2
1-2B YN02B02285P1 BLOCK, TAPPED 4
2 2445R220D4 SEAL, DUST 2
3 2445R220D3 SEAL, DUST 2
4 2445R138D8 SEAL, DUST 2

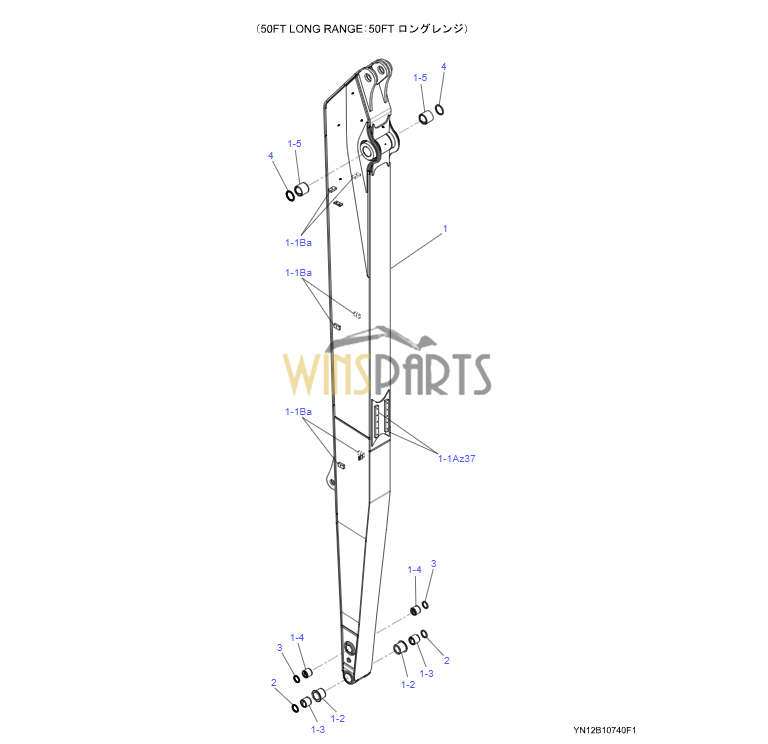

1 YN12B10741F1 ARM 1 YQ15-T3101–T3231
1-1Az37 YN12B01102P1 BLOCK, TAPPED 2
1-1Ba 2416T9804 BLOCK, TAPPED 6
1-2 YY12B01446P1 BUSHING 2
1-3 LP12B01191P1 BUSHING 2
1-4 YN12B11847P1 BUSHING 2
1-5 LQ12B01100P1 BUSHING 2
1 YN12B10872F1 ARM 1 YQ15-T3232-
1-1Az37 YN12B01102P1 BLOCK, TAPPED 2
1-1Ba 2416T9804 BLOCK, TAPPED 6
1-2 YY12B01446P1 BUSHING 2
1-3 LP12B01191P1 BUSHING 2
1-4 YN12B11847P1 BUSHING 2
1-5 LQ12B01100P1 BUSHING 2
2 2445R220D2 SEAL, DUST 2
3 2445R220D1 SEAL, DUST 2
4 2445R220D6 SEAL, DUST 2
YN12B10725F1 ARM GROUP Not Service
YN12B10786F1 ARM GROUP Not Service
1 YN12B10787F1 ARM GROUP 1 P.719-2 YN12B10565F1 ARM GROUP
2 YN12B10723F1 ARM GROUP 1 P.719-02 YQ15-T3222-
.

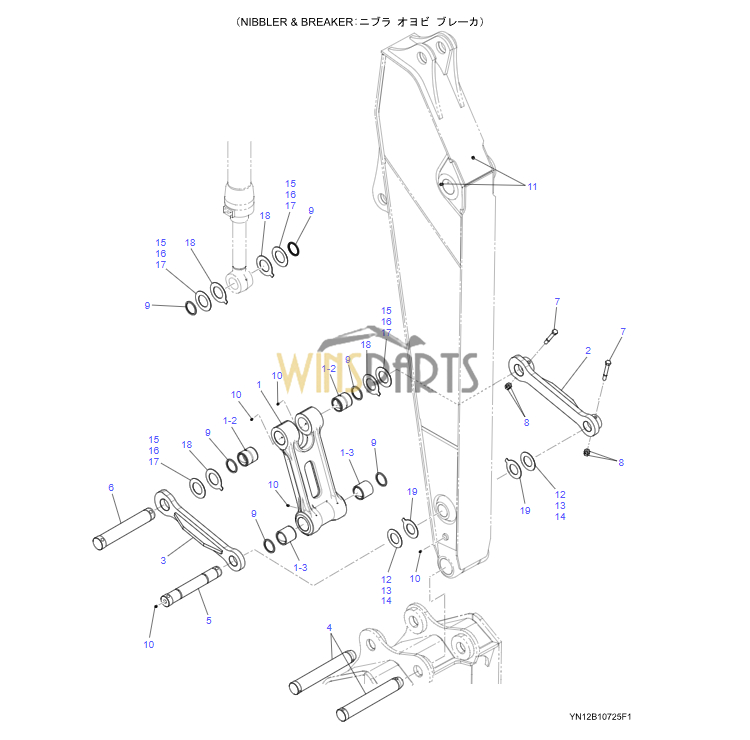

1 YN12B11802F1 LINK, BUCKET 1
1-2 YN12B02403P1 BUSHING 2
1-3 YN12B02405P1 BUSHING 2
2 YN12B11604P1 LINK 1
3 YN12B01228P1 LINK 1
4 YN12B02407P1 PIN 2
5 YN12B11522P1 PIN 1
6 YN12B11520P1 PIN 1
7 HS18C20145G2 CAPSCREW 2
8 ZN18C20016 NUT 4
9 2445R220D4 SEAL, DUST 6
10 ZG91S02000 NIPPLE, GREASE 5
11 ZG91S04000 NIPPLE, GREASE 2
12 B16T0442D57 SHIM (0.5) 1
13 B16T0442D44 SHIM (0.9) 1
14 B16T0442D2 SHIM (1.6) 1
15 YN12B01122D1 SHIM (0.5) 2
16 YN12B01122D2 SHIM (0.9) 2
17 YN12B01122D3 SHIM (1.6) 2
18 YN12B01601D1 SHIM (2.0) 4
19 YN12B01602D1 SHIM (2.0) 2
.

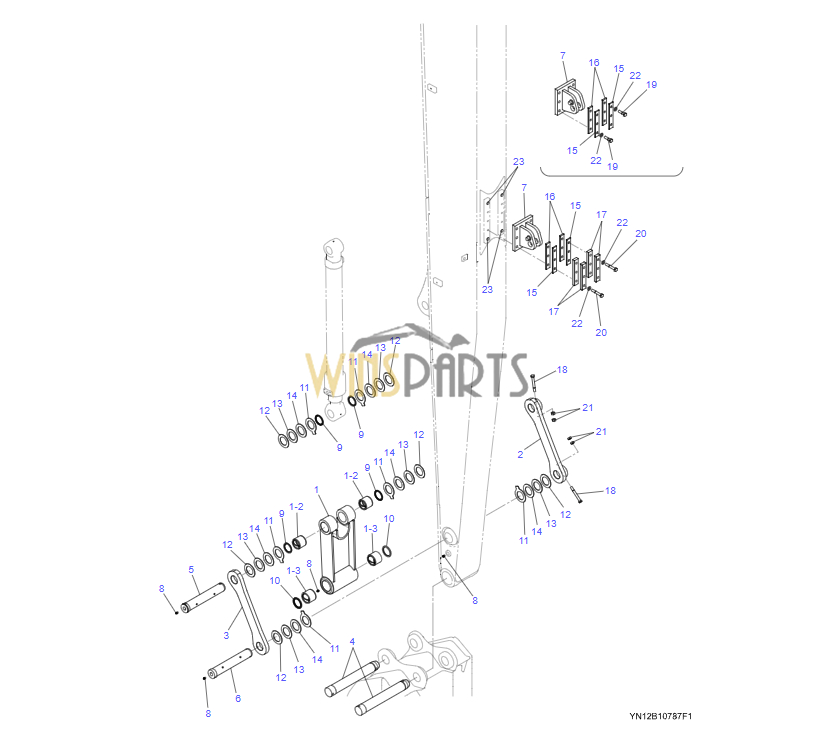

1 YY12B01249F1 LINK, BUCKET 1
1-2 LP12B01031P1 BUSHING 2
1-3 LP12B01036P1 BUSHING 2
2 YY12B01074P1 LINK 1
3 YW12B01034P1 LINK 1
4 YN12B01786P1 PIN 2
5 YN12B01788P1 PIN 1
6 YN12B01787P1 PIN 1
7 YN12B01157P1 BRACKET 1
8 ZG91S02000 NIPPLE, GREASE 4
9 2445R138D3 SEAL, DUST 4
10 2445R220D2 SEAL, DUST 2
11 YN12B01610D1 SHIM (2.0) 6
12 B16T0442D56 SHIM (0.5) 6
13 B16T0442D43 SHIM (0.9) 6
14 B16T0442D19 SHIM (1.6) 6
15 YN12B11588P1 SHIM (6.0) 2
16 YN12B11589P1 SHIM (9.0) 2
17 YN12B11590P1 SHIM (19.0) 4
18 HS18C14115G2 CAPSCREW 2
19 ZS18C14055 CAPSCREW 6
20 ZS18C14090 CAPSCREW 6
21 ZN18C14011 NUT 4
22 ZW16P14000 WASHER 6
23 PV02B01073D5 CAP 4

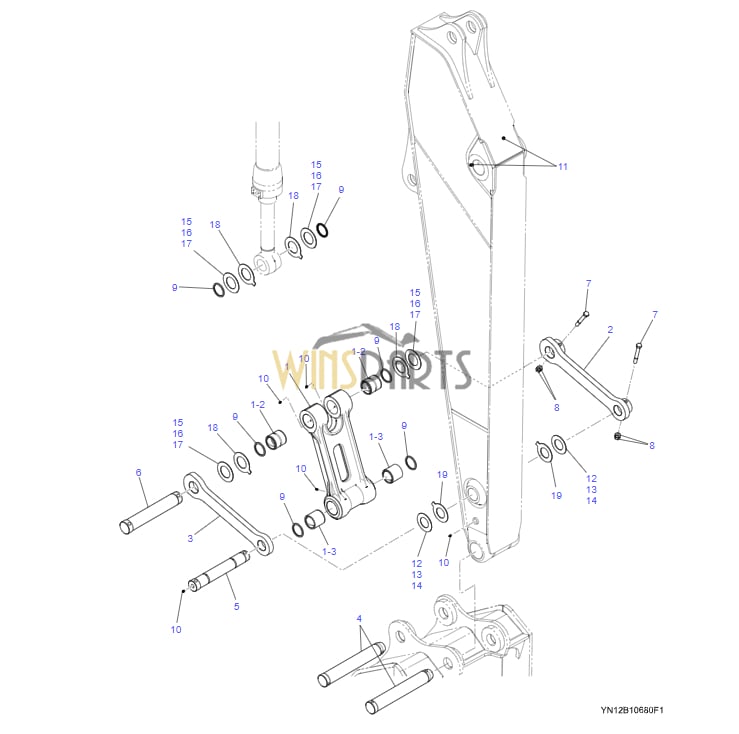

1 YN12B11802F1 LINK, BUCKET 1
1-2 YN12B02403P1 BUSHING 2
1-3 YN12B02405P1 BUSHING 2
2 YN12B11572P1 LINK 1
3 YN12B01322P1 LINK 1
4 YN12B02407P1 PIN 2
5 YN12B11522P1 PIN 1
6 YN12B11520P1 PIN 1
7 HS18C20145G2 CAPSCREW 2
8 ZN18C20016 NUT 4
9 2445R220D4 SEAL, DUST 6
10 ZG91S02000 NIPPLE, GREASE 5
11 ZG91S04000 NIPPLE, GREASE 2
12 B16T0442D57 SHIM (0.5) 1
13 B16T0442D44 SHIM (0.9) 1
14 B16T0442D2 SHIM (1.6) 1
15 YN12B01122D1 SHIM (0.5) 2
16 YN12B01122D2 SHIM (0.9) 2
17 YN12B01122D3 SHIM (1.6) 2
18 YN12B01601D1 SHIM (2.0) 4
19 YN12B01602D1 SHIM (2.0) 2
.
1 YY12B01249F1 LINK, BUCKET 1
1-2 LP12B01031P1 BUSHING 2
1-3 LP12B01036P1 BUSHING 2
2 YY12B01074P1 LINK 1
3 YW12B01034P1 LINK 1
4 YN12B01786P1 PIN 2
5 YN12B01788P1 PIN 1
6 YN12B01787P1 PIN 1
7 YN12B01157P1 BRACKET 1
8 ZG91S02000 NIPPLE, GREASE 4
9 2445R138D3 SEAL, DUST 4
10 2445R220D2 SEAL, DUST 2
11 YN12B01610D1 SHIM (2.0) 6
12 B16T0442D56 SHIM (0.5) 6
13 B16T0442D43 SHIM (0.9) 6
14 B16T0442D19 SHIM (1.6) 6
15 YN12B11588P1 SHIM (6.0) 2
16 YN12B11589P1 SHIM (9.0) 2
17 YN12B11590P1 SHIM (19.0) 4
18 HS18C14115G2 CAPSCREW 2
19 ZS18C14055 CAPSCREW 6
20 ZS18C14090 CAPSCREW 6
21 ZN18C14011 NUT 4
22 ZW16P14000 WASHER 6
23 PV02B01073D5 CAP

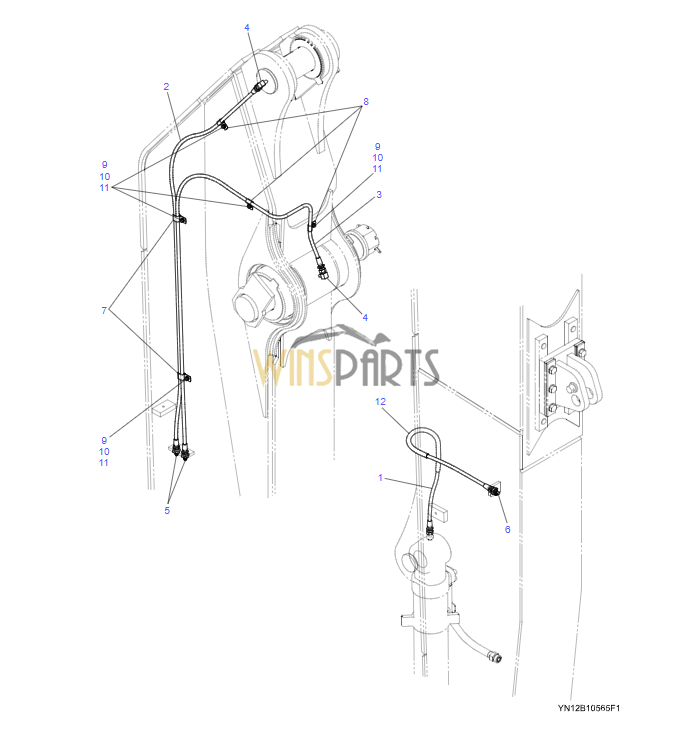

YN12B10565F1 ARM GROUP
YN12B10723F1ARM GROUP
.
1 2444R1117D110 HOSE 1
2 2444R1117D190 HOSE 1
3 2444R1117D205 HOSE 1
4 ZH32Z04002 ELBOW, 90 2
5 ZG91U02000 NIPPLE, GREASE 3
6 ZC48X10009 CLIP 2
7 ZC46X10009 CLIP 3
8 ZN18C06005 NUT 5
9 ZW26X06000 LOCK WASHER 5
10 ZW16P06000 WASHER 5
11 2418R676D5 TUBE 1
12 PY01P01043D3 CLIP 1
YN12B10545F1 ARM INSTAL
1 YN12B10608F1 ARM INSTAL 1 P.720-01
2 YN12B10557F1 ARM INSTAL 1 P.720-02
YN12B10557F1 ARM INSTAL
1 YN02B02436P1 PIN 1
2 HS18C16150G2 CAPSCREW 1
3 ZN18C16013 NUT 2
4 YN02B01415D1 SHIM (2.0) 2
5 B16T0442D78 SHIM (0.5) 1
6 B16T0442D77 SHIM (0.9) 1
7 B16T0442D62 SHIM (1.6) 1
YN12B00435F3 ARM INSTAL Not Service
. (LONG RANGE)
.
3 HS18C16150G2 CAPSCREW 1
4 ZN18C16013 NUT 2
5 2420Z1047 NUT 1
6 ZP15D08100 SPLIT PIN 1
7 2418Z715 WASHER 1
8 B16T0442D53 SHIM (0.5) 1
9 B16T0442D40 SHIM (0.9) 1
10 B16T0442D78 SHIM (0.5) 1
11 B16T0442D77 SHIM (0.9) 1
12 B16T0442D62 SHIM (1.6) 1
13 YN02B01414D1 SHIM (2.0) 2
14 YN02B01415D1 SHIM (2.0) 2
16 YN12B01613P1 PIN 1
17 YN12B01789P1 PIN 1
