YANMAR DIESEL ENGINE3TNV82AYANMAR 3TNV82 3TNV82A-BPYBD 3TNV82A-BPYBC 3TNV82A-BPYBU DIESEL ENGINE PARTSGENUINE PARTS KOBELCO SK28SR-6 SK30SR-6 SK35SR-6 SK30UR-6 SK38UR-6 SK28SR-6E SK30SR-6E SK35SR-6E…
YANMAR 4TNV88 4TNV88-BPYBD 4TNV88-BPYBC 4TNV88-BPYBE DIESEL ENGINE PARTS
YANMAR 4TNV88 DIESEL ENGINE
YANMAR 4TNV88 DIESEL ENGINE 4TNV88-BPYBD 4TNV88-BPYBC 4TNV88-BPYBE PARTS
CASE CX55B CX58C

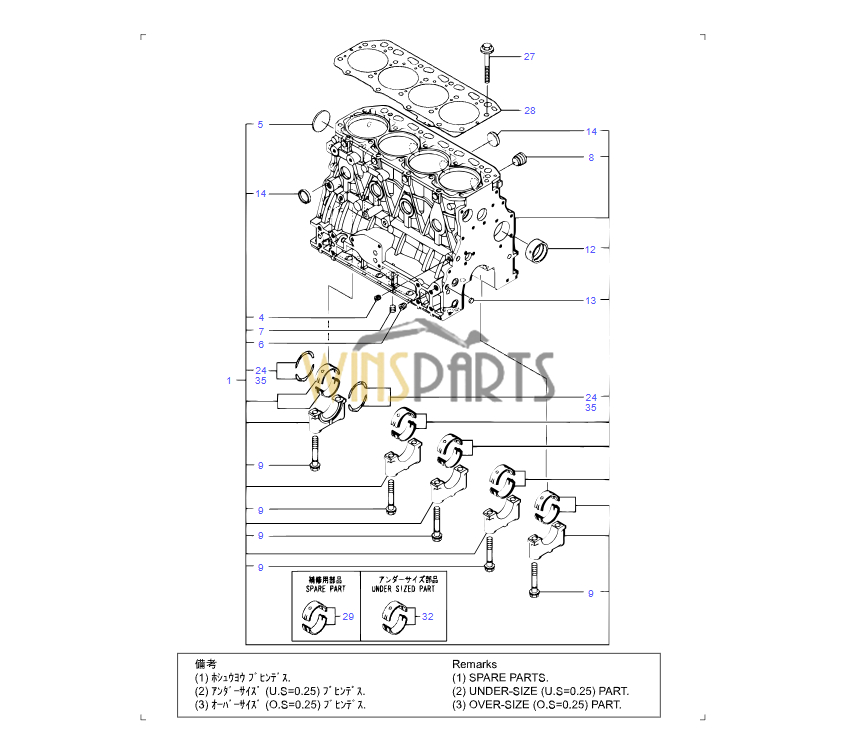

72960201560 729602-01560 1 VV72960201560 ･BLOCK ASSY, CYLINDER 1
12406001050 124060-01050 4 VV12406001050 ･･PLUG 1
12900101250 129001-01250 5 VV12900101250 ･･PLUG 1
12416001910 124160-01910 6 VV12416001910 ･･PLUG 2
12416001910 124160-01910 7 VV12416001910 ･･PLUG 1
17105101921 171051-01921 8 VV17105101921 ･･PLUG 1
12915002020 129150-02020 9 VV12915002020 ･･BOLT 10
12979502412 129795-02412 12 VV12979502412 ･･BUSH 1
27241120000 272411-20000 13 VV27241120000 ･･PLUG 2
27241300000 272413-00000 14 VV27241300000 ･･PLUG 30 8
12915002931 129150-02931 24 VV12915002931 ･･METAL, THRUST 2
12915001200 129150-01200 27 VV12915001200 ･BOLT 18
12940701340 129407-01340 28 VV12940701340 ･GASKET, HEAD 1
12900102931 129001-02931 29 VV12900102931 ･METAL(MAIN 5 -1
12915002871 129150-02871 32 VV12915002871 ･METAL, MAIN 0.25US 5 -2
12915002941 129150-02941 35 VV12915002941 ･METAL, THRUST 0.25 1 -3
. . .

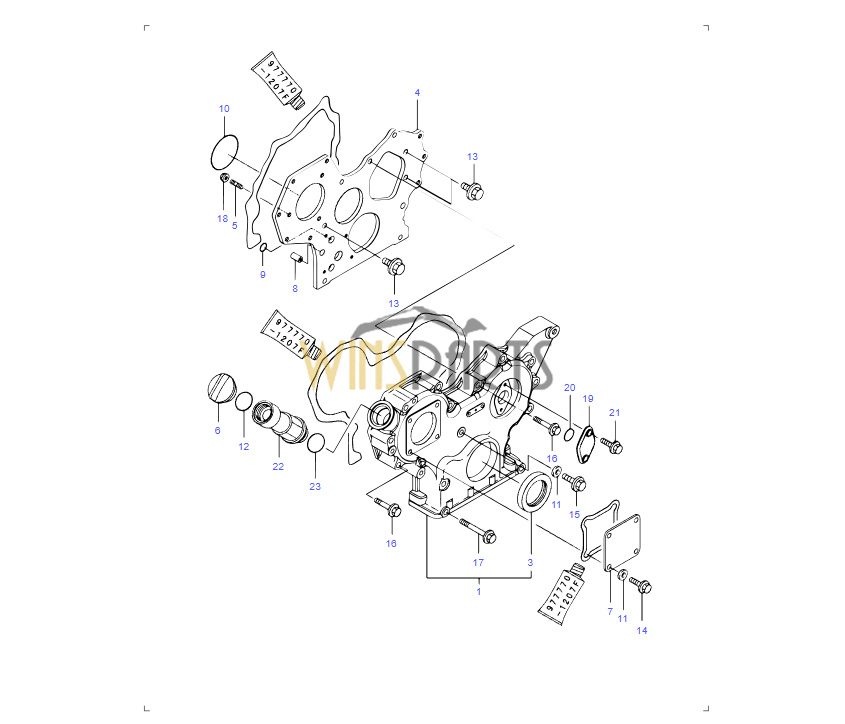

71980301500 719803-01500 1 VV71980301500 ･CASE ASSY 1
11993401800 119934-01800 3 VV11993401800 ･･SEAL, OIL 1
11980301520 119803-01520 4 VV11980301520 ･FLANGE 1
11980201561 119802-01561 5 VV11980201561 ･STUD 3
12416001751 124160-01751 6 VV12416001751 ･COVER 1
12424001871 124240-01871 7 VV12424001871 ･COVER 1
12979501950 129795-01950 8 VV12979501950 ･PIPE 2
11960932040 119609-32040 9 VV11960932040 ･O-RING 2
12185051960 121850-51960 10 VV12185051960 ･O-RING 1
22190080002 221900-80002 11 VV22190080002 ･WASHER, SEAL 5
24311000320 243110-00320 12 VV24311000320 ･O-RING 1
26106080162 261060-80162 13 VV26106080162 ･BOLT 3
26106080162 261060-80162 14 VV26106080162 ･BOLT 4
26106080302 261060-80302 15 VV26106080302 ･BOLT 1
26106080552 261060-80552 16 VV26106080552 ･BOLT 12
26106080852 261060-80852 17 VV26106080852 ･BOLT 3
26306080002 263060-80002 18 VV26306080002 ･NUT 3
12102301551 121023-01551 19 VV12102301551 ･COVER 1
24341000240 243410-00240 20 VV24341000240 ･O-RING 1
26106060162 261060-60162 21 VV26106060162 ･BOLT 2
17103111741 171031-11741 22 VV17103111741 ･PIPE 1
24311000320 243110-00320 23 VV24311000320 ･O-RING 1
. . .

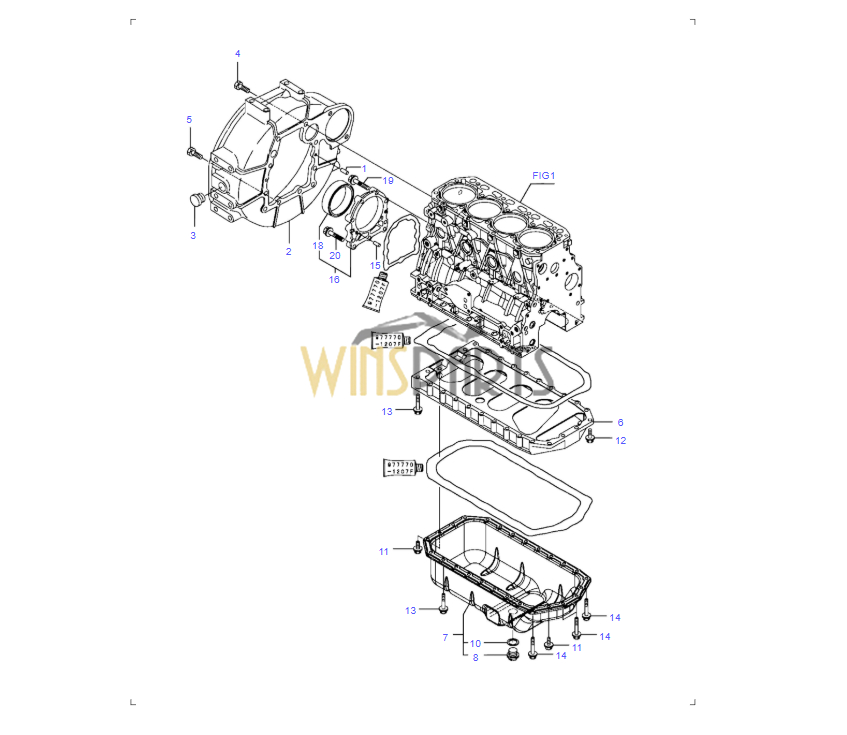

12910001580 129100-01580 1 VV12910001580 ･PIN 2
12961201600 129612-01600 2 VV12961201600 ･HOUSING 1
11962001750 119620-01750 3 VV11962001750 ･CAP 1
26206100252 262061-00252 4 VV26206100252 ･BOLT 6
26206100302 262061-00302 5 VV26206100302 ･BOLT 4
12940001730 129400-01730 6 VV12940001730 ･SPACER 1
12943601780 129436-01780 7 VV12943601780 ･SUMP ASSY, OIL 1
11964001640 119640-01640 8 VV11964001640 ･･PLUG 1
22190220002 221902-20002 10 VV22190220002 ･･WASHER, SEAL 1
26106080162 261060-80162 11 VV26106080162 ･BOLT 4
26106080252 261060-80252 12 VV26106080252 ･BOLT 2
26106080452 261060-80452 13 VV26106080452 ･BOLT 20
26106080502 261060-80502 14 VV26106080502 ･BOLT 4
12910001580 129100-01580 15 VV12910001580 ･PIN 2
12910001640 129100-01640 16 VV12910001640 ･CASE ASSY 1
12979501780 129795-01780 18 VV12979501780 ･･SEAL, OIL 1
12948601670 129486-01670 19 VV12948601670 ･BOLT 6
26106080352 261060-80352 20 VV26106080352 ･BOLT 3
. . .

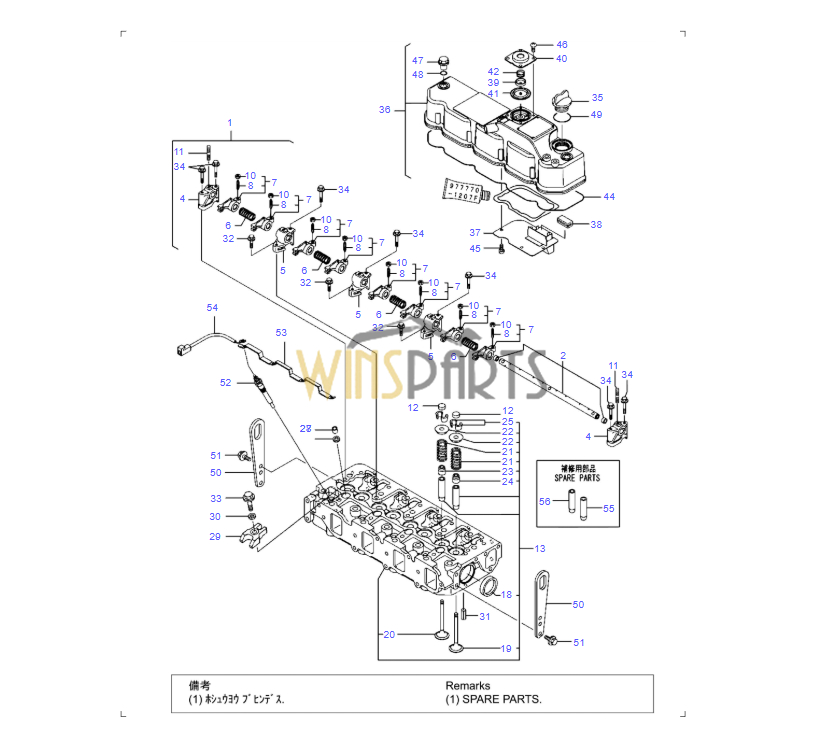

12960111241 129601-11241 1 VV12960111241 ･SHAFT ASSY 1
12960111251 129601-11251 2 VV12960111251 ･･SHAFT 1
11980211260 119802-11260 4 VV11980211260 ･･SUPPORT 2
11980211270 119802-11270 5 VV11980211270 ･･SUPPORT 3
12915011280 129150-11280 6 VV12915011280 ･･SPRING 4
12900411650 129004-11650 7 VV12900411650 ･･ARM, ROCKER 8
12915011230 129150-11230 8 VV12915011230 ･･･SCREW 8
12915011750 129150-11750 10 VV12915011750 ･･･NUT 8
26226080182 262260-80182 11 VV26226080182 ･･STUD 3
12915011370 129150-11370 12 VV12915011370 ･CAP 8
12960411700 129604-11700 13 VV12960411700 ･HEAD ASSY, CYLINDER 1
27241400000 272414-00000 18 VV27241400000 ･･PLUG 2
12900511100 129005-11100 19 VV12900511100 ･･VALVE 4
12910011112 129100-11112 20 VV12910011112 ･･VALVE 4
12979511120 129795-11120 21 VV12979511120 ･･SPRING 8
12979511180 129795-11180 22 VV12979511180 ･･RETAINER 8
12140011340 121400-11340 23 VV12140011340 ･･SEAL, VALVE STEM 4
12446011340 124460-11340 24 VV12446011340 ･･SEAL, VALVE STEM 4
27310080001 273100-80001 25 VV27310080001 ･･COTTER 8
11980211870 119802-11870 27 VV11980211870 ･PROTECTOR 4
11962511880 119625-11880 28 VV11962511880 ･VALVE SEAT 4
12900411900 129004-11900 29 VV12900411900 ･RETAINER 4
12027054410 120270-54410 30 VV12027054410 ･WASHER 4
22351060012 223510-60012 31 VV22351060012 ･PIN, SPRING 2
26106080252 261060-80252 32 VV26106080252 ･BOLT 3
26106080352 261060-80352 33 VV26106080352 ･BOLT 4
26106080502 261060-80502 34 VV26106080502 ･BOLT 7
12416001751 124160-01751 35 VV12416001751 ･COVER 1
12960111350 129601-11350 36 VV12960111350 ･BONNET ASSY 1
12900403010 129004-03010 37 VV12900403010 ･･PLATE 1
12915003070 129150-03070 38 VV12915003070 ･･BAFFLE 1
11980203110 119802-03110 39 VV11980203110 ･･PLATE 1
11980203121 119802-03121 40 VV11980203121 ･･COVER 1
11980203130 119802-03130 41 VV11980203130 ･･DIAPHRAGM 1
11980203141 119802-03141 42 VV11980203141 ･･SPRING 1
12960111310 129601-11310 44 VV12960111310 ･･GASKET 1
22857500100 228575-00100 45 VV22857500100 ･･SCREW 4
22857500100 228575-00100 46 VV22857500100 ･･SCREW 4
12416011360 124160-11360 47 VV12416011360 ･KNOB 3
24311000120 243110-00120 48 VV24311000120 ･O-RING 3
24311000320 243110-00320 49 VV24311000320 ･O-RING 1
12990007900 129900-07900 50 VV12990007900 ･LIFTER 2
26106080162 261060-80162 51 VV26106080162 ･BOLT 4
12900877800 129008-77800 52 VV12900877800 ･PLUG 4
12960477821 129604-77821 53 VV12960477821 ･CONNECTOR 1
11980377830 119803-77830 54 VV11980377830 ･HARNESS 1
12013011860 120130-11860 55 VV12013011860 ･GUIDE 4 -1
12915011810 129150-11810 56 VV12915011810 ･GUIDE 4 -1
. . .

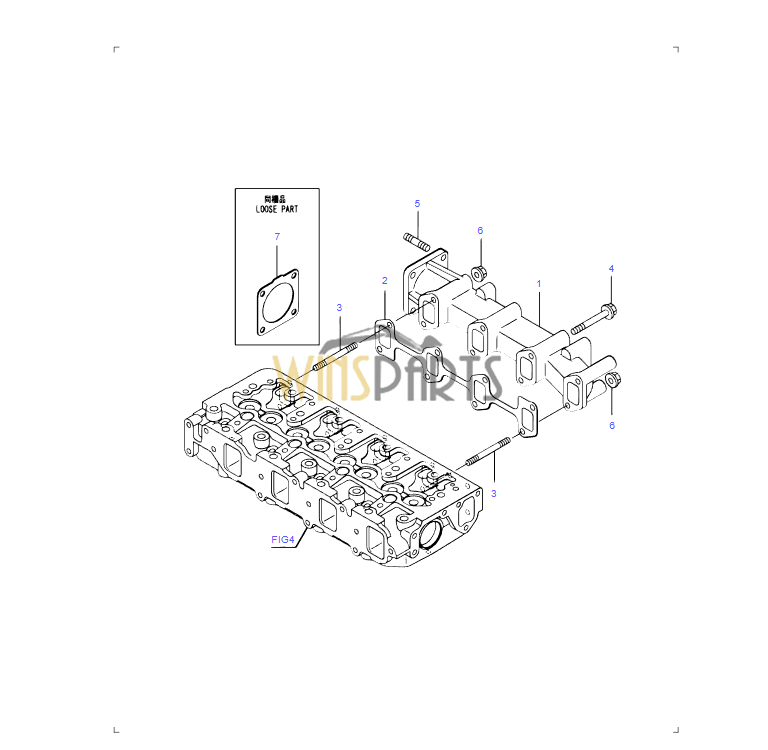

12964013109 129640-13109 1 VV12964013109 ･MANIFOLD 1
12955013110 129550-13110 2 VV12955013110 ･GASKET 1
12390013610 123900-13610 3 VV12390013610 ･STUD 2
12390013630 123900-13630 4 VV12390013630 ･BOLT 6
11913118320 119131-18320 5 VV11913118320 ･STUD 4
26306080002 263060-80002 6 VV26306080002 ･NUT 2
12993013201 129930-13201 7 VV12993013201 ･GASKET 1
. . .

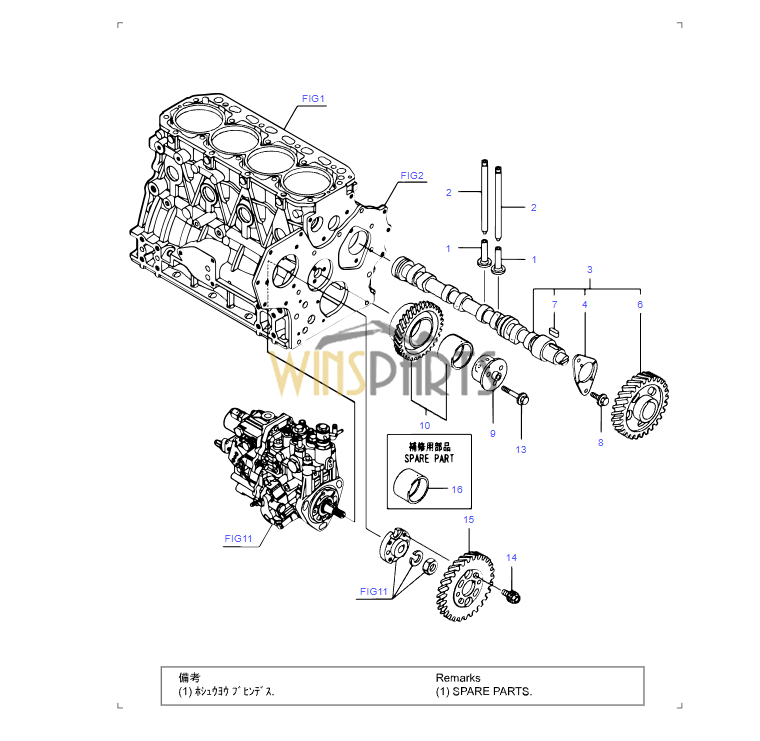

12915014200 129150-14200 1 VV12915014200 ･TAPPET 8
12915014400 129150-14400 2 VV12915014400 ･ROD, PUSH 8
72940214580 729402-14580 3 VV72940214580 ･CAMSHAFT ASSY 1
12915002450 129150-02450 4 VV12915002450 ･･METAL, THRUST 1
12915014101 129150-14101 6 VV12915014101 ･･GEAR, CAMSHAFT 1
22512070140 225120-70140 7 VV22512070140 ･･KEY 1
26106080142 261060-80142 8 VV26106080142 ･BOLT 2
11980325050 119803-25050 9 VV11980325050 ･SHAFT 1
11980225101 119802-25101 10 VV11980225101 ･GEAR ASSY 1
26106080402 261060-80402 13 VV26106080402 ･BOLT 3
12915025301 129150-25301 14 VV12915025301 ･BOLT 4
11980225901 119802-25901 15 VV11980225901 ･GEAR, PUMP 1
11980225071 119802-25071 16 VV11980225071 ･BUSH 1 -1
. . .

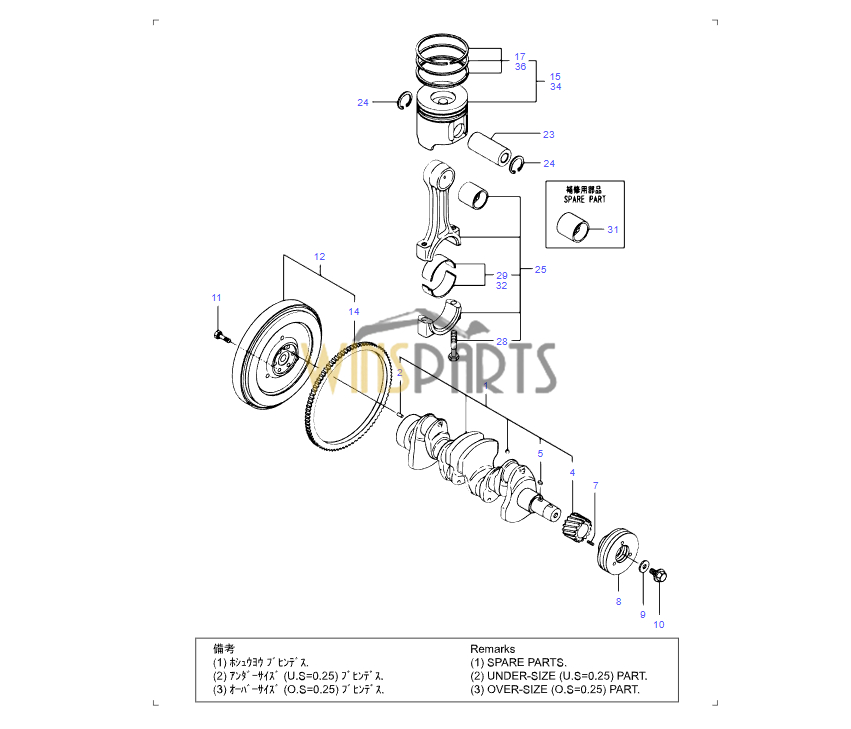

12960421000 129604-21000 1 VV12960421000 ･CRANKSHAFT ASSY 1
12910001580 129100-01580 2 VV12910001580 ･･PIN 1
11980321200 119803-21200 4 VV11980321200 ･･GEAR 1
22512070140 225120-70140 5 VV22512070140 ･･KEY 1
22351030010 223510-30010 7 VV22351030010 ･PIN, SPRING 1
11980221650 119802-21650 8 VV11980221650 ･V-PULLEY 1
12979521661 129795-21661 9 VV12979521661 ･WASHER 1
12185021680 121850-21680 10 VV12185021680 ･BOLT 1
12111121501 121111-21501 11 VV12111121501 ･BOLT 6
12948921590 129489-21590 12 VV12948921590 ･FLYWHEEL ASSY 1
11986521600 119865-21600 14 VV11986521600 ･･GEAR 1
12900522080 129005-22080 15 VV12900522080 ･PISTON ASSY 4
12900522500 129005-22500 17 VV12900522500 ･･RING SET, PISTON 4
12920222300 129202-22300 23 VV12920222300 ･PIN 4
22252000260 222520-00260 24 VV22252000260 ･RING 8
72940223100 729402-23100 25 VV72940223100 ･ROD ASSY, CONNECTING 4
12155023200 121550-23200 28 VV12155023200 ･･BOLT 8
12915023601 129150-23601 29 VV12915023601 ･･METAL, CRANK PIN 4
12910023910 129100-23910 31 VV12910023910 ･METAL, PISTON PIN 4 -1
12915023611 129150-23611 32 VV12915023611 ･METAL, CRANK PIN .25 4 -2
12900522900 129005-22900 34 VV12900522900 ･PISTON ASSY, 0.25 OS 4 -3
12900522950 129005-22950 36 VV12900522950 ･･RING SET, PISTON .25 4 -3
. . .

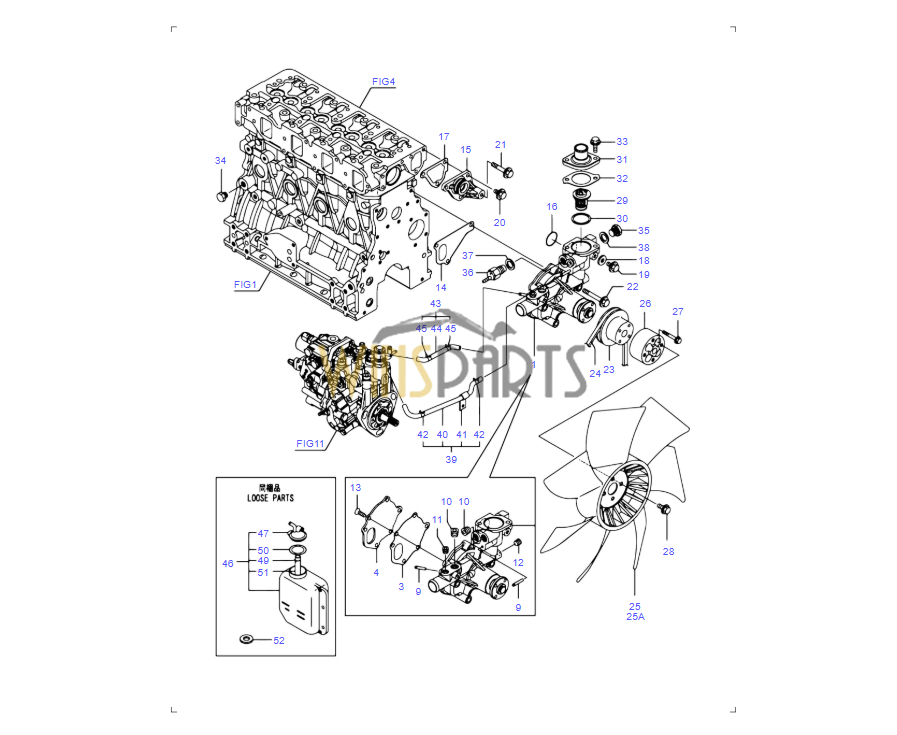

12924242000 129242-42000 1 VV12924242000 ･PUMP ASSY, WATER 1
12910042051 129100-42051 3 VV12910042051 ･･GASKET 1
12910042121 129100-42121 4 VV12910042121 ･･PLATE 1
11980249113 119802-49113 9 VV11980249113 ･･JOINT 2
12991649740 129916-49740 10 VV12991649740 ･･PLUG 2
23875020000 238750-20000 11 VV23875020000 ･･PLUG 1
23876010000 238760-10000 12 VV23876010000 ･･PLUG 1
26577060142 265770-60142 13 VV26577060142 ･･SCREW M 6X 14 3
12948642021 129486-42021 14 VV12948642021 ･GASKET 1
12900442040 129004-42040 15 VV12900442040 ･JOINT 1
12948642140 129486-42140 16 VV12948642140 ･O-RING 1
12439549840 124395-49840 17 VV12439549840 ･GASKET 1
23414080000 234140-80000 18 VV23414080000 ･GASKET 1
26106080122 261060-80122 19 VV26106080122 ･BOLT 1
26106080162 261060-80162 20 VV26106080162 ･BOLT 3
26106080452 261060-80452 21 VV26106080452 ･BOLT 1
26106080602 261060-80602 22 VV26106080602 ･BOLT 3
12940342380 129403-42380 23 VV12940342380 ･V-PULLEY 1
12961242350 129612-42350 24 VV12961242350 ･V-BELT 1
12990744740 129907-44740 25 VV12990744740 ･FAN 1 BPYBD
12963144740 129631-44740 25A VV12963144740 ･FAN, 430X7 1 BPYBC/E
12963044770 129630-44770 26 VV12963044770 ･SPACER, FAN 37MM 1
26106060352 261060-60352 27 VV26106060352 ･BOLT 4
26106080162 261060-80162 28 VV26106080162 ･BOLT 4
12915549801 129155-49801 29 VV12915549801 ･THERMOSTAT 1
12915049811 129150-49811 30 VV12915049811 ･GASKET 1
12935049530 129350-49530 31 VV12935049530 ･COVER 1
12979549551 129795-49551 32 VV12979549551 ･GASKET 1
26106080222 261060-80222 33 VV26106080222 ･BOLT 2
17105649120 171056-49120 34 VV17105649120 ･PLUG 1
12145042450 121450-42450 35 VV12145042450 ･PLUG 1
12125044901 121250-44901 36 VV12125044901 ･SWITCH 1
12446544950 124465-44950 37 VV12446544950 ･GASKET 1
12446544950 124465-44950 38 VV12446544950 ･GASKET 1
12900449610 129004-49610 39 VV12900449610 ･PIPE ASSY 1
12900449711 129004-49711 40 VV12900449711 ･･PIPE ASSY 1
11980249730 119802-49730 41 VV11980249730 ･･RETAINER 1
12472259050 124722-59050 42 VV12472259050 ･･CLIP 2
12900449620 129004-49620 43 VV12900449620 ･PIPE ASSY 1
12900449721 129004-49721 44 VV12900449721 ･･PIPE ASSY 1
12472259050 124722-59050 45 VV12472259050 ･･CLIP 2
12146844520 121468-44520 46 VV12146844520 ･TANK ASSY 1
12145044531 121450-44531 47 VV12145044531 ･･CAP 1
12445044560 124450-44560 49 VV12445044560 ･･RETAINER 1
12147044581 121470-44581 50 VV12147044581 ･･GASKET 1
23065070130 230650-70130 51 VV23065070130 ･･HOSE 1
12915049360 129150-49360 52 VV12915049360 ･GASKET 1
. . .

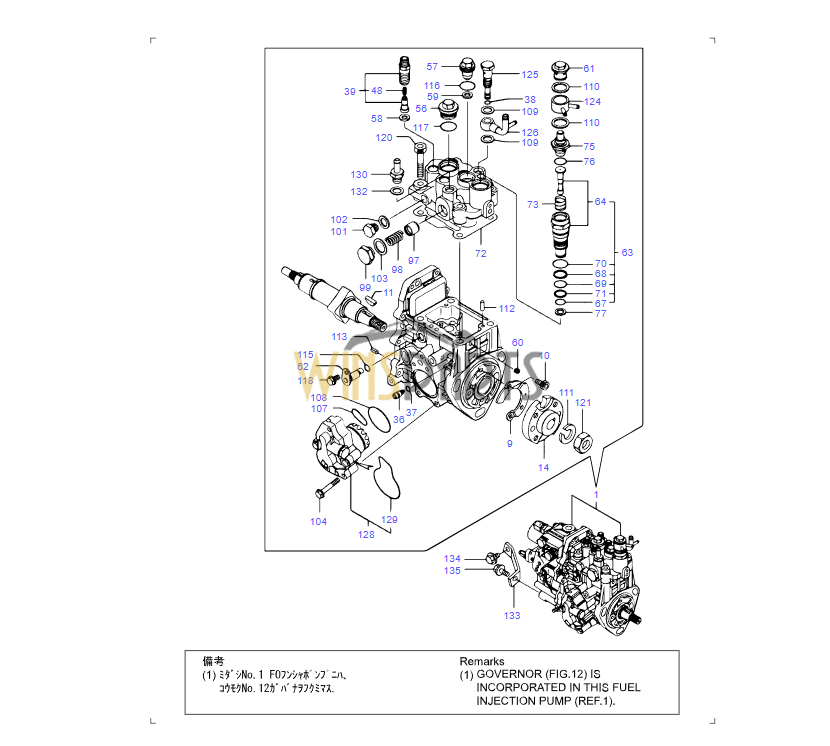

72963151330 729631-51330 1 VV72963151330 ･FIE ASSY 1 -1
12900851900 129008-51900 9 VV12900851900 ･･COVER 1
12900851920 129008-51920 10 VV12900851920 ･･BOLT 2
11980251090 119802-51090 11 VV11980251090 ･･KEY 1
15855251151 158552-51151 14 VV15855251151 ･･FLANGE 1
15860051270 158600-51270 36 VV15860051270 ･･STOPPER 1
15856351281 158563-51281 37 VV15856351281 ･･O-RING 1
15856351281 158563-51281 38 VV15856351281 ･･O-RING 1
12900851390 129008-51390 39 VV12900851390 ･･VALVE ASSY 4
15856351330 158563-51330 48 VV15856351330 ･･･SPRING 4
15860151550 158601-51550 56 VV15860151550 ･･PLUG 1
11980251560 119802-51560 57 VV11980251560 ･･PLUG 1
15855251571 158552-51571 58 VV15855251571 ･･GASKET 4
15855251571 158552-51571 59 VV15855251571 ･･GASKET 1
15855751570 158557-51570 60 VV15855751570 ･･PLUG 1
15860151570 158601-51570 61 VV15860151570 ･･PLUG 1
15855251580 158552-51580 62 VV15855251580 ･･LIFTER 1
11980251590 119802-51590 63 VV11980251590 ･･TIMER SET 1
11980251600 119802-51600 64 VV11980251600 ･･･TIMER ASSY 1
15855351670 158553-51670 67 VV15855351670 ･･･O-RING 1
11980251680 119802-51680 68 VV11980251680 ･･･RING 1
11980251690 119802-51690 69 VV11980251690 ･･･O-RING 1
24356190200 243561-90200 70 VV24356190200 ･･･O-RING 1
24372000150 243720-00150 71 VV24372000150 ･･･RING, BACK UP 1
15855251600 158552-51600 72 VV15855251600 ･･GASKET 1
15855351630 158553-51630 73 VV15855351630 ･･SPRING 1
15855351650 158553-51650 75 VV15855351650 ･･ELEMENT 1
15855351660 158553-51660 76 VV15855351660 ･･O-RING 1
15855351680 158553-51680 77 VV15855351680 ･･GASKET 1
15860151770 158601-51770 97 VV15860151770 ･･PISTON 1
15855251781 158552-51781 98 VV15855251781 ･･SPRING 1
15860151790 158601-51790 99 VV15860151790 ･･PLUG 1
15855351930 158553-51930 101 VV15855351930 ･･PLUG 1
22190120002 221901-20002 102 VV22190120002 ･･WASHER, SEAL 1
22190180002 221901-80002 103 VV22190180002 ･･WASHER, SEAL 1
15855351770 158553-51770 104 VV15855351770 ･･BOLT 4
15855252311 158552-52311 107 VV15855252311 ･･O-RING 1
15855252400 158552-52400 108 VV15855252400 ･･O-RING 1
22190120002 221901-20002 109 VV22190120002 ･･WASHER, SEAL 2
22190180002 221901-80002 110 VV22190180002 ･･WASHER, SEAL 2
22217140000 222171-40000 111 VV22217140000 ･･WASHER, SPRING 1
22312050140 223120-50140 112 VV22312050140 ･･PIN, PARALLEL 2
22351050010 223510-50010 113 VV22351050010 ･･PIN, SPRING 2
24311000070 243110-00070 115 VV24311000070 ･･O-RING 1
24356190180 243561-90180 116 VV24356190180 ･･O-RING 1
24356190200 243561-90200 117 VV24356190200 ･･O-RING 1
26106060102 261060-60102 118 VV26106060102 ･･BOLT 1
26450080452 264500-80452 120 VV26450080452 ･･BOLT 4
26776140002 267761-40002 121 VV26776140002 ･･NUT 1
15855351551 158553-51551 124 VV15855351551 ･･JOINT 1
15860151650 158601-51650 125 VV15860151650 ･･JOINT 1
15855251670 158552-51670 126 VV15855251670 ･･JOINT 1
15855252100 158552-52100 128 VV15855252100 ･･PUMP ASSY, FEED 1
15855252500 158552-52500 129 VV15855252500 ･･･O-RING 1
11993459910 119934-59910 130 VV11993459910 ･･JOINT 1
22190120002 221901-20002 132 VV22190120002 ･･WASHER, SEAL 1
12960151250 129601-51250 133 VV12960151250 ･RETAINER 1
26106080162 261060-80162 134 VV26106080162 ･BOLT 1
26106080202 261060-80202 135 VV26106080202 ･BOLT 1
. . . 729604-53300 FUEL INJECTION VALVE
. . .
72960453300 729604-53300 1 VV72960453300 ･VALVE ASSY,INJECTION 4
11425053080 114250-53080 2 VV11425053080 ･･NUT 4
11425053120 114250-53120 8 VV11425053120 ･･SPRING 4
11425053130 114250-53130 9 VV11425053130 ･･SPRING SEAT 4
11425053140 114250-53140 10 VV11425053140 ･･PLATE 4
11425053210 114250-53210 11 VV11425053210 ･･PIN 8
12960453300 129604-53300 12 VV12960453300 ･･NOZZLE ASSY 4
11980353400 119803-53400 15 VV11980353400 ･･SHIM SET 4
12915059120 129150-59120 42 VV12915059120 ･RETAINER 1
12915059131 129150-59131 45 VV12915059131 ･･BOLT 2
12955059120 129550-59120 46 VV12955059120 ･RETAINER 1
12915059131 129150-59131 49 VV12915059131 ･･BOLT 2
12960159810 129601-59810 51 VV12960159810 ･PIPE ASSY, INJECTION 1
12960159820 129601-59820 55 VV12960159820 ･PIPE ASSY, INJECTION 1
12960159830 129601-59830 59 VV12960159830 ･PIPE ASSY, INJECTION 1
12960159840 129601-59840 63 VV12960159840 ･PIPE ASSY, INJECTION 1
11980259550 119802-59550 68 VV11980259550 ･PIPE ASSY 1
12472259050 124722-59050 69 VV12472259050 ･･CLIP 2
11980259560 119802-59560 70 VV11980259560 ･･PIPE 1
12948659551 129486-59551 71 VV12948659551 ･PIPE ASSY 3
12472259050 124722-59050 72 VV12472259050 ･･CLIP 6
11959359581 119593-59581 74 VV11959359581 ･CAP 1
12406077680 124060-77680 75 VV12406077680 ･CLIP 1
. . .

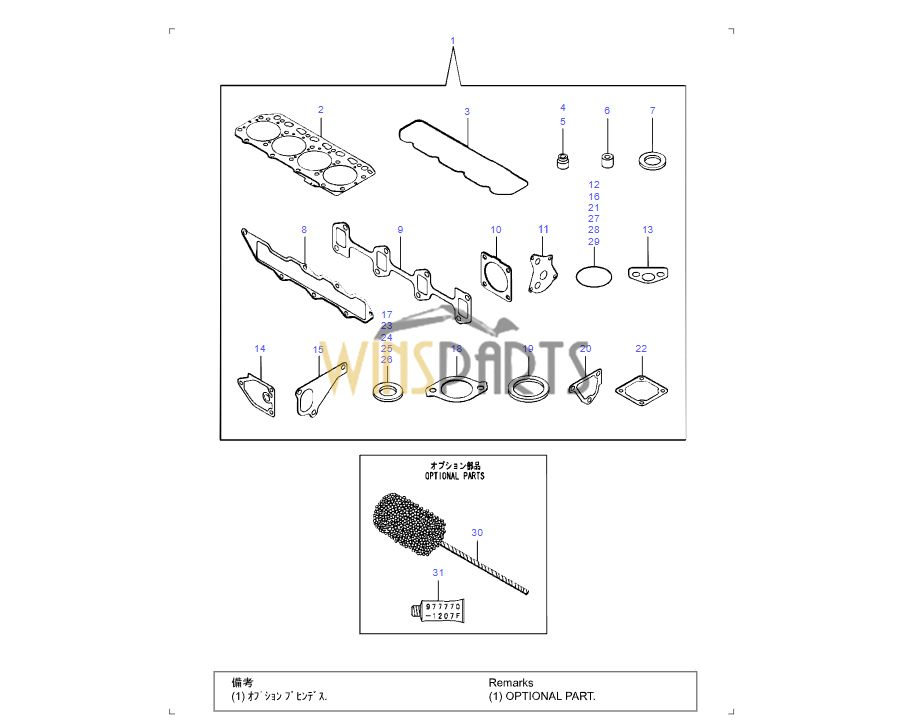

12968892600 129688-92600 1 VV12968892600 ･SET,PACKING CMP 1 -1
12940701340 129407-01340 2 VV12940701340 ･･GASKET, HEAD 1
12960111310 129601-11310 3 VV12960111310 ･･GASKET 1
12140011340 121400-11340 4 VV12140011340 ･･SEAL, VALVE STEM 4
12446011340 124460-11340 5 VV12446011340 ･･SEAL, VALVE STEM 4
11980211870 119802-11870 6 VV11980211870 ･･PROTECTOR 4
11962511880 119625-11880 7 VV11962511880 ･･VALVE SEAT 4
12940712110 129407-12110 8 VV12940712110 ･･GASKET 1
12955013110 129550-13110 9 VV12955013110 ･･GASKET 1
12993013201 129930-13201 10 VV12993013201 ･･GASKET 1
12915032020 129150-32020 11 VV12915032020 ･･GASKET 1
11960932040 119609-32040 12 VV11960932040 ･･O-RING 2
12915035042 129150-35042 13 VV12915035042 ･･GASKET 1
12915035111 129150-35111 14 VV12915035111 ･･GASKET 1
12948642021 129486-42021 15 VV12948642021 ･･GASKET 1
12948642140 129486-42140 16 VV12948642140 ･･O-RING 1
12446544950 124465-44950 17 VV12446544950 ･･GASKET 2
12979549551 129795-49551 18 VV12979549551 ･･GASKET 1
12915049811 129150-49811 19 VV12915049811 ･･GASKET 1
12439549840 124395-49840 20 VV12439549840 ･･GASKET 1
12185051960 121850-51960 21 VV12185051960 ･･O-RING 1
12915077511 129150-77511 22 VV12915077511 ･･GASKET 1
22190080002 221900-80002 23 VV22190080002 ･･WASHER, SEAL 2
22190100002 221901-00002 24 VV22190100002 ･･WASHER, SEAL 2
22190220002 221902-20002 25 VV22190220002 ･･WASHER, SEAL 1
23414080000 234140-80000 26 VV23414080000 ･･GASKET 1
24311000120 243110-00120 27 VV24311000120 ･･O-RING 3
24311000320 243110-00320 28 VV24311000320 ･･O-RING 3
24341000240 243410-00240 29 VV24341000240 ･･O-RING 1
12940092430 129400-92430 30 VV12940092430 ･HONE 1 -1
9777701207F 9777701207F 31 VV9777701207F ･GASKET.LIQUID 1 -1
