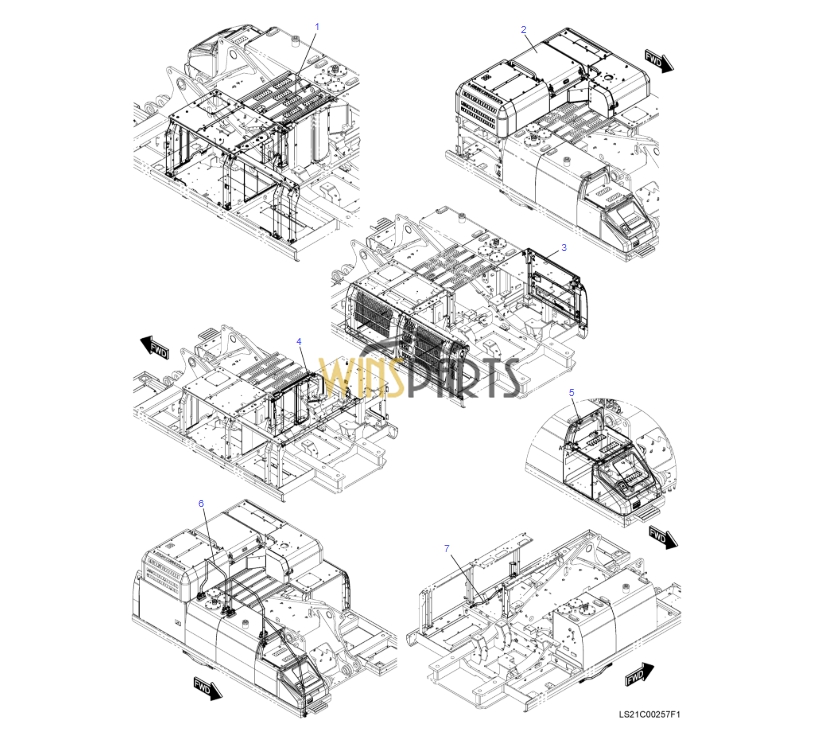

LS21C00274F1 GUARD ASSY KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10
.
360-01_LS21C00274F1_KCMU-06_D0002346161_1 1 LS21C00274F1 GUARD INSTAL 1 P.360-01
360-02_LS21C00275F1_KCMU-07_D0002346160_1 2 LS21C00275F1 GUARD INSTAL 1 P.360-02
360-03_LS21C00276F1_KCMU-01_D0002346159_1 3 LS21C00276F1 GUARD INSTAL 1 P.360-03
360-04_LS21C00277F1_KCMU-03_D0002346158_1 4 LS21C00277F1 GUARD INSTAL 1 P.360-04
360-05_LS21C00278F1_KCMU-06_D0002346157_1 5 LS21C00278F1 GUARD INSTAL 1 P.360-05
360-06_LS41C00039F1_KCMU-02_X_D0002346155_1 6 LS41C00039F1 HANDRAIL INSTAL 1 P.360-06
360-07_LS21C00279F1_KCMU_D0002346156_1 7 LS21C00279F1 GUARD INSTAL 1 P.360-07

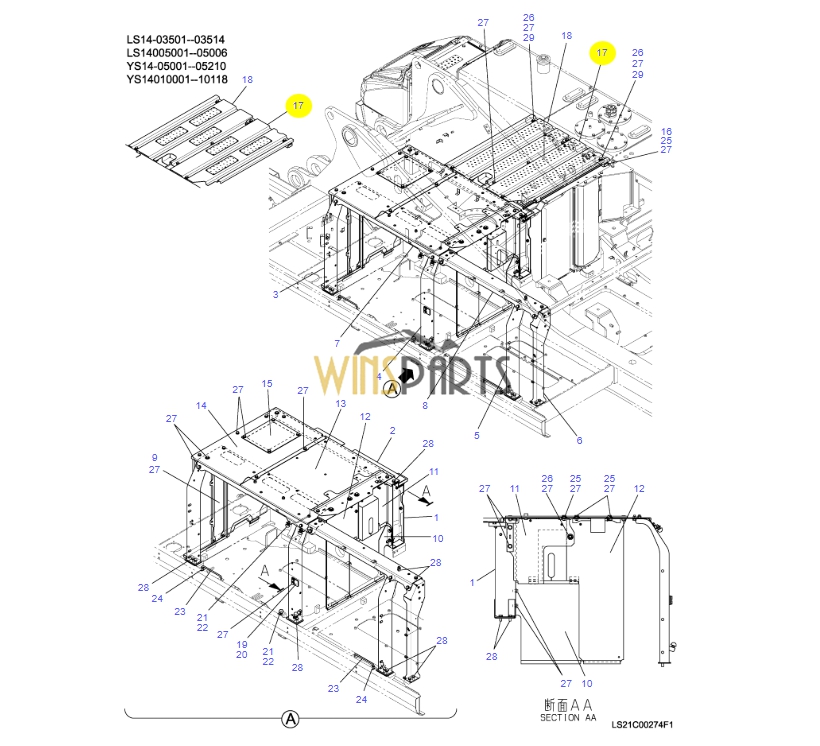

LS21C00274F1 GUARD INSTAL
.
1 LS21C04382P1 PILLAR 1
2 LS21C04218F1 BRACKET ASSY 1
2-1 LS21C04206P1 BEAM 1 LS14-03501–03514
. LS14005001–05009
. YS14-05001–05210
. YS14010001–10173
2-1 LS21C04900P1 BEAM 1 LS14005010-
. YS14010174-
2-2 LS21C04191P1 INSULATION 1
3 LS21C04361P1 PILLAR 1
4 LS21C04350P1 PILLAR 1
5 LS21C04353P1 PILLAR 1
6 LS21C04385P1 PILLAR 1
7 LS21C04389P1 BEAM 1
8 LS21C04391P1 BEAM 1
9 LS21C04224F1 GUARD ASSY 1
9-1 LS21C04367P1 GUARD 1 YS14-05001–05035
9-1 LS21C04367P2 GUARD 1 LS14-03501-
. YS14-05036-
9-2 LS21C04287P1 INSULATION 1
9-3 LS21C04288P1 INSULATION 1 YS14-05001–05035
9-3 LS21C04438P1 INSULATION 1 LS14-03501-
. YS14-05036-
9-4 LS21C04289P1 INSULATION 1
9-5 PM21C01152DW STRIP, WEATHER 1
9-6 2427P1836D19 STRIP, WEATHER 1
9-7 LS21C03038D2 STRIP, WEATHER 1
9-8 LS21C04439P1 INSULATION 1 LS14-03501-
. YS14-05036-
10 LS21C04290F1 GUARD ASSY 1
10-1 LS21C04326P1 GUARD 1
10-2 2427P1836D25 STRIP, WEATHER 1
10-3 PA21C01010D6 STRIP, WEATHER 1
11 LS21C04225F1 GUARD ASSY 1
11-1 LS21C04378P1 GUARD 1
11-2 LS21C04293P1 RUBBER 1
12 LS21C04109F1 GUARD ASSY 1
12-1 LS21C04110P1 GUARD 1
12-2 LS21C04289P1 INSULATION 1
12-3 2427P1836D11 STRIP, WEATHER 1
13 LS21C04094F1 GUARD ASSY 1
13-1 LS21C04356P1 GUARD 1
13-2 LS21C04101P1 INSULATION 1
14 LS21C04228F1 GUARD ASSY 1
14-1 LS21C04229P1 GUARD 1
14-2 LS21C04102P1 INSULATION 1
15 LS21C03878P1 COVER 1
16 LS21C04304P1 BRACKET 1
17 LS21C04235F1 GUARD ASSY 1 LS14-03501–03514
. LS14005001–05006
. YS14-05001–05210
. YS14010001–10118
17-1 LS21C04294P1 GUARD 1
17-2 YN21C06508P1 PLATE 3
17-3 YN21C03168P1 RIVET 18
17 LS21C04832P1 GUARD 1 LS14005007-
. YS14010119-
18 LS21C04296F1 GUARD ASSY 1 LS14-03501–03514
. LS14005001–05006
. YS14-05001–05210
. YS14010001–10118
18-1 LS21C04297P1 GUARD 1
18-2 YN21C06508P1 PLATE 3
18-3 YN21C03168P1 RIVET 18
18 LS21C04830P1 GUARD 1 LS14005007-
. YS14010119-
19 LQ21C02766P1 STRIKER 1
20 LQ21C02996P1 SHIM (1.0) 1
21 YN21C03212P1 STOPPER 4
22 ZN18F10008 NUT 4
23 2416T6289D6 STAY 2
24 2419R9D2 PIN 2
25 HY25X12040G1 WASHER 5
26 LQ21C02848P1 WASHER 6 LS14-03501–03514
. LS14005001–05006
. YS14-05001–05210
. YS14010001–10118
26 LQ21C02848P1 WASHER 1 LS14005007-
. YS14010119-
27 ZM73C12025 SEMS-BOLT 42
28 ZM73C12030 SEMS-BOLT 18
29 LS21C04785P1 WASHER 5 LS14005007-
. YS14010119-

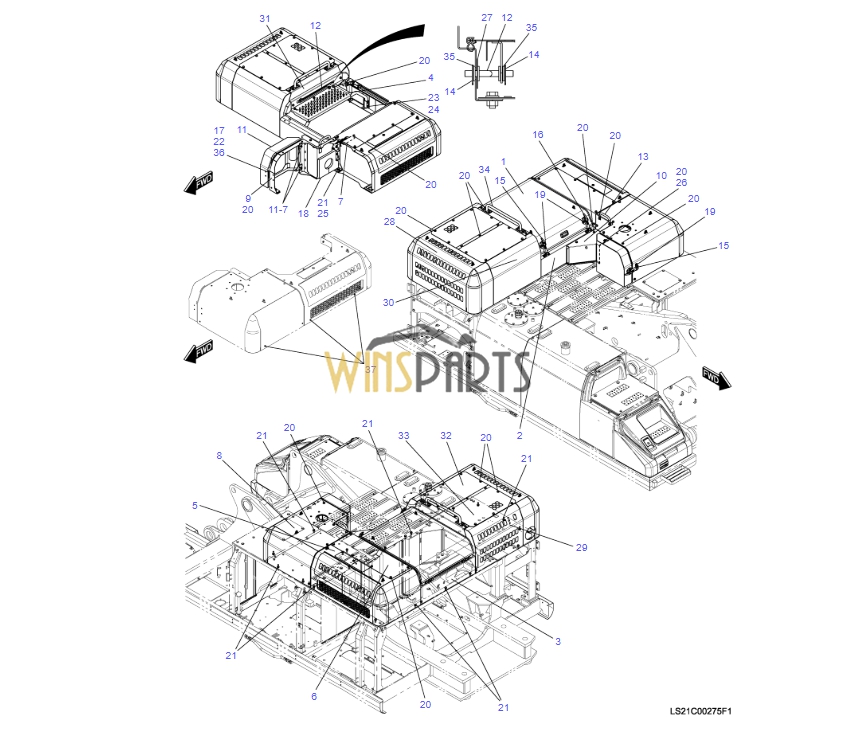

LS21C00275F1 GUARD INSTAL
.
1 LS22C00047F1 BONNET ASSY 1
1-1 LS22C01931P1 BONNET 1
1-1K LE21C01276P1 HINGE 2
1-2 YJ21C01080DF STRIP, WEATHER 2
1-3 2406Z304 HANDLE 1
2 LS22C01989F1 COVER ASSY 1
2-1 LS22C02043P1 COVER 1
2-2 YJ21C01080D6 STRIP, WEATHER 1
2-3 2416T13435 RUBBER, CUSHION 2
3 LS22C02027F1 COVER ASSY 1
3-1 LS22C02052P1 COVER 1
3-2 YY21C02131P1 INSULATION 1
3-3 YY26C01031P1 INSULATION 1
3-4 LS22C02028P1 RUBBER 2
3-5 YR21C01168D8 STRIP, WEATHER 1
4 LS22C01762P1 GUARD 1
5 LS22C00048F1 BONNET ASSY 1
5-1 LS22C02067P2 BONNET 1 YS14-05001–05020
5-1Rd PW21C01737P1 HINGE 3
5-1Sb PM21C01221P1 LOCK 2
5-1Sc PW21C01737P1 HINGE 2
5-1X PM21C01221P1 LOCK 2
5-1 LS22C02067P3 BONNET 1 LS14-03501–03514
. LS14005001–05001
. YS14-05021–05210
. YS14010001–10015
5-1Rd PW21C01737P1 HINGE 3
5-1Sb PM21C01221P1 LOCK 2
5-1Sc PW21C01737P1 HINGE 2
5-1X PM21C01221P1 LOCK 2
5-1 LS22C02244P1 BONNET 1 LS14005002-
. YS14010016-
5-1Rd PW21C01737P1 HINGE 3
5-1Sb PM21C01221P1 LOCK 2
5-1Sc PW21C01737P1 HINGE 2
5-1X PM21C01221P1 LOCK 2
5-2 LS22C01914P1 PLATE 1 LS14-03501–03514
. LS14005001–05001
. YS14-05021–05210
. YS14010001–10015
5-2 LS22C02243P1 PLATE 1 LS14005002-
. YS14010016-
5-4 LS22C02079P1 RUBBER 2
5-5 PE21C01070D1 TRIM 2
5-6 LS22C01996P1 RUBBER 1
5-7 LS22C01959P1 RUBBER 2
5-8 LS22C01997P1 INSULATION 2
5-9 LS22C01984P1 INSULATION 1
5-10 LS22C01998P1 INSULATION 1
5-11 YY21C02131P1 INSULATION 2
5-12 PM21C01268F1 LOCK 1
5-12A YR22C01025P2 LOCK 1
5-12B PM21C01269P1 PLATE 1
5-14 ZM73C08016 SEMS-BOLT 8
5-15 PE21C01070D9 TRIM 1
6 LS22C01782P1 BRACKET 1
7 LS22C01904P1 PLATE 1
8 LS22C01930F1 COVER ASSY 1
8-1 LS22C01907P2 COVER 1 YS14-05001–05020
8-1 LS22C01907P3 COVER 1 LS14-03501–03514
. LS14005001–05001
. YS14-05021–05210
. YS14010001–10015
8-1 LS22C02245P1 COVER 1 LS14005002-
. YS14010016-
8-2 LS22C01911P1 RUBBER 1
8-3 YJ21C01103DF STRIP, WEATHER 1
9 LS22C01942F1 COVER ASSY 1
9-1 LS22C01999P1 BRACKET 1
9-2 YJ21C01080D6 STRIP, WEATHER 1
10 LS22C01990F1 COVER ASSY 1
10-1 LS22C01969P2 COVER 1
10-2 2416T13435 RUBBER, CUSHION 1
10-3 YR21C01168D8 STRIP, WEATHER 1 YS14-05001–05035
10-3 YR21C01168DP STRIP, WEATHER 1 LS14-03501-
. YS14-05036-
10-4 PH21C01136DV STRIP, WEATHER 1
10-5 PA21C01177P2 LABEL 1
11 LS22C02000P1 COVER 1
11-7 LE21C01358P1 HINGE 2
12 LS22C01956P1 STAY 1
13 LS22C01866P1 HANDLE 1
14 2419R9D4 PIN 2
15 LC21C01811P2 CATCH 2 YS14-05001–05210
. YS14010001–10296
15 LS21C04850P1 CATCH 2 YS14010297-
16 LC21C01812P2 CATCH 1 YS14-05001–05210
. YS14010001–10296
16 LS21C04823P1 CATCH 1 YS14010297-
17 2416T28650 RUBBER, CUSHION 1
18 LS22C02031P1 INSULATION 1
19 ZM73C08020 SEMS-BOLT 12
20 ZM73C12025 SEMS-BOLT 63
21 ZM73C12035 SEMS-BOLT 23
22 ZS18C08020 CAPSCREW 2
23 ZS18C12060 CAPSCREW 4 LS14-03501–03504
. YS14-05001–05120
23 ZS18C12065 CAPSCREW 4 LS14-03505-
. YS14-05121-
24 ZW16H12000 WASHER 4
25 HY25X12040G1 WASHER 4
26 LQ21C02848P1 WASHER 1
27 LQ21C04452P1 WASHER 1
28 LS22C01946P2 BONNET 1
29 LS22C02054P1 COVER 1
30 LS22C02055P1 COVER 1
31 LS22C02018P1 BRACKET 1 LS14-03501–03514
. LS14005001–05011
. YS14-05001–05210
. YS14010001–10223
31 LS22C02329F1 BRACKET ASSY 1 LS14005012-
. YS14010224-
31-1 LS22C02018P1 BRACKET 1
31-2 PX21C01196P1 RUBBER 1
32 LS22C01726P1 GUARD 1 LS14-03501–03514
. LS14005001–05011
. YS14-05001–05210
. YS14010001–10223
32 LS22C02330F1 GUARD ASSY 1 LS14005012-
. YS14010224-
32-1 LS22C01726P1 GUARD 1
32-2 LS22C02325P1 RUBBER 2
33 LS22C01727P1 GUARD 1
34 LS21C01084P1 STAY 1
35 2418T10357 WASHER 2
36 2418T23178 WASHER 2
37 YN64H01391D1 CAP 3 LS14-03501-
LS21C00276F1 GUARD INSTAL
.
1 LS21C04177F1 PANEL ASSY 1
1-1 LS21C04179P1 PANEL 1
1-1J LS21C03171P1 HINGE 2
1-1K YN21C06245P1 LOCK 1
1-2 LS21C04266P1 PLATE 1
1-3 LS21C04267P1 PLATE 1
1-4 YN21C04485P1 RUBBER 1
1-5 LS21C04202P1 RUBBER 2
1-6 LS21C04203P1 RUBBER 4
1-7 LS21C04204P1 RUBBER 2
1-8 ZM73C08016 SEMS-BOLT 15
2 LS21C04255F1 PANEL ASSY 1
2-1 LS21C04256P1 PANEL 1
2-1L LS21C03171P1 HINGE 2
2-2 LS21C04258P1 PLATE 1
2-3 LQ21C02282P1 RUBBER 1
2-4 LS21C04205P1 RUBBER 2
2-5 LS21C04203P1 RUBBER 2
2-6 LS21C04204P1 RUBBER 2
2-7 ZM73C08016 SEMS-BOLT 16
3 LS21C04178F1 PANEL ASSY 1
3-1 LS21C04180P1 PANEL 1 YS14-05001–05035
3-1H YN21C06245P1 LOCK 1
3-1J LE21C01276P1 HINGE 2
3-1 LS21C04180P2 PANEL 1 LS14-03501-
. YS14-05036-
3-1H YN21C06245P1 LOCK 1
3-1J LE21C01276P1 HINGE 2
3-2 LS21C04253P1 RUBBER 1
4 LS21C03957P1 PANEL 1
5 LS21C03126P1 PANEL 1
6 LS21C04277F1 BRACKET ASSY 1
6-1 LS21C03932P1 BRACKET 1
6-2 LS21C03002P1 INSULATION 1
7 LS21C03927P1 BRACKET 1
8 LS21C04117P1 PLATE 1 YS14-05001–05025
8 LS21C04435P1 COVER 1 LS14-03501-
. YS14-05026-
9 LS21C04171P1 BRACKET 1
10 ZN18C12010 NUT 8
11 ZW16H12000 WASHER 8
12 ZW26X12000 LOCK WASHER 8
13 LC21C02900P1 SHIM (1.0) 2
14 ZM73C12025 SEMS-BOLT 13
15 ZM73C12030 SEMS-BOLT 6 YS14-05001–05025
15 ZM73C12030 SEMS-BOLT 3 LS14-03501-
. YS14-05026-
16 ZM73C12035 SEMS-BOLT 2 YS14-05001–05025
16 ZM73C12035 SEMS-BOLT 5 LS14-03501-
. YS14-05026-
