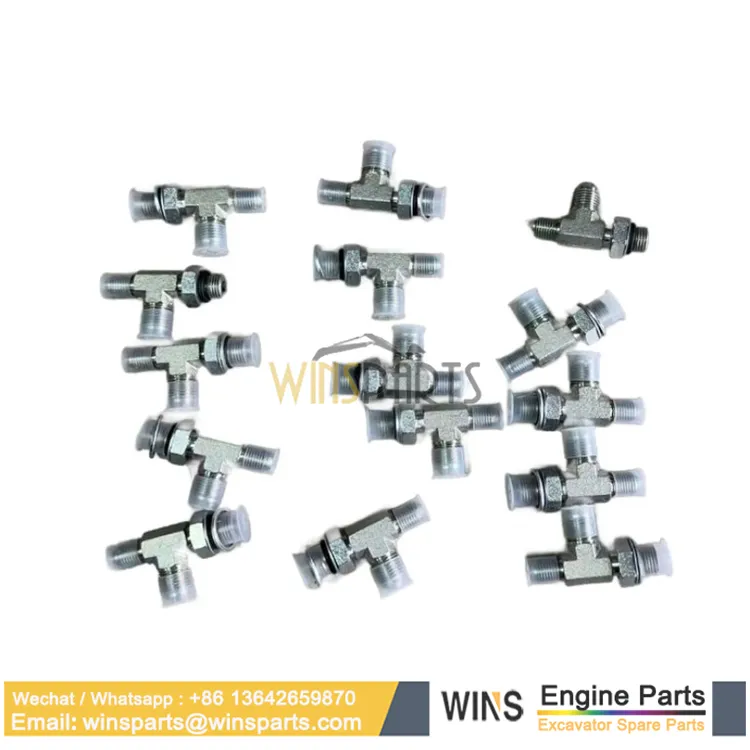

4203485 PUMP FITTING PIPE PILOT PIPINGS Hitachi
4203485 PUMP FITTING PIPE PILOT PIPINGS Hitachi Excavator
🔩 Product Specifications
- Part Number:4203485
- Interchange Number:
- Part Name:PUMP FITTING PIPE
- Application: Hitachi EX100-2, EX100-3, EX100-3C, EX100-5, EX100-5 JPN, EX100M-2, EX100M-3, EX100M-5
- Condition: 100% Brand New Replacement
- Availability: In Stock & Ready to Ship Globally
*05. 3035589 John Deere Hitachi SHAFT;CENTER
*06. 3033592 John Deere Hitachi SLEEVE
01. 1009491 John Deere Hitachi CASING;GEAR
01-73. 9065879 John Deere Hitachi PUMP;DOUBLE ASS’Y
04. 3033590 John Deere Hitachi GEAR;CENTER
05. 3038090 John Deere Hitachi SHAFT;CENTER
08. 4023596 John Deere Hitachi BRG.;BALL
09. 4198787 John Deere Hitachi BRG.;BALL
10. 4191219 John Deere Hitachi RING;RETAINING
11. 4179833 John Deere Hitachi SEAL;OIL
12. 3033593 John Deere Hitachi COVER;T.MISSION
13. 4179834 John Deere Hitachi O-RING
14. 991733 John Deere Hitachi RING;RETAINING
17. 4181700 John Deere Hitachi PUMP;GEAR
19. M341028 [2] BOLT;SOCKET
20. 984054 [2] WASHER;SPRING
21. A590110 [2] WASHER
23. 4191974 John Deere Hitachi ADAPTER
23A. 4506418 John Deere Hitachi O-RING
28. 3034465 [2] GEAR;DRIVE
29. 991345 [2] RING;RETAINING
32. 9065880 [2] PUMP;SINGLE
32A. 9070528 John Deere Hitachi REGULATOR
35. M211645 [8] BOLT
36. 4126090 [4] WASHER;SEAL
37. A590916 [4] WASHER;SPRING
41. 94-0649 John Deere Hitachi ELBOW
42. J728684 John Deere Hitachi REDUCER
43. 4511984 John Deere Hitachi PLUG
45. 4196389 John Deere Hitachi GAUGE;LEVEL
45A. 4509180 John Deere Hitachi O-RING
48. 4092534 John Deere Hitachi PLUG
48A. 4509180 John Deere Hitachi O-RING
50. 4184689 [2] PIPE
51. 4203485 John Deere Hitachi FITTING;PIPE
51A. 957366 John Deere Hitachi O-RING
52. 4181053 John Deere Hitachi PIPE
53. 4179837 [5] FITTING;PIPE
53A. 957366 John Deere Hitachi O-RING
55. 3033595 John Deere Hitachi PIPE
56. 3036487 John Deere Hitachi PIPE
57. 4118499 [4] FITTING;PIPE
57A. 957366 John Deere Hitachi O-RING
59. 4179843 [2] CLAMP
60. J900828 John Deere Hitachi BOLT
61. M500807 John Deere Hitachi NUT
62. A590908 John Deere Hitachi WASHER;SPRING
65. 4092149 John Deere Hitachi BOLT;EYE
67. 3037596 John Deere Hitachi NAME-PLATE
68. M492564 [2] SCREW;DRIVE
73. 4118705 John Deere Hitachi COUPLING ASS’Y
73A. 4183171 John Deere Hitachi HUB
73B. 4183170 [2] SCREW;SET
73C. 4101345 [12] PIN;SPRING
73D. 4183167 [4] INSERT
73E. 4183169 [4] BOLT;SOCKET
73F. 4183166 [4] INSERT
73G. 4183168 [4] BOLT;SOCKET
73H. 4183165 John Deere Hitachi COUPLING
74. J901040 [3] BOLT
75. 4114402 [3] WASHER
76. A590910 [8] WASHER;SPRING
77. J901030 [5] BOLT
