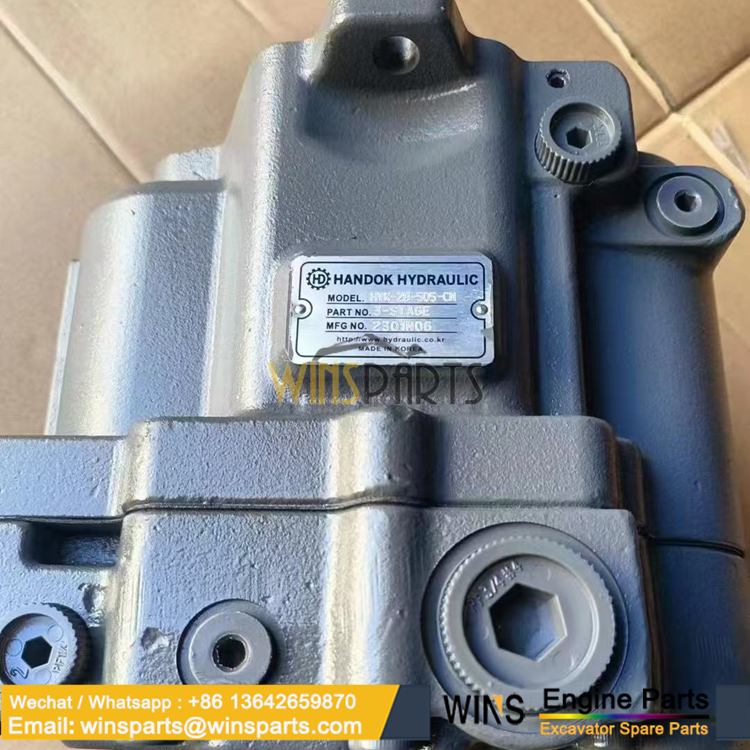

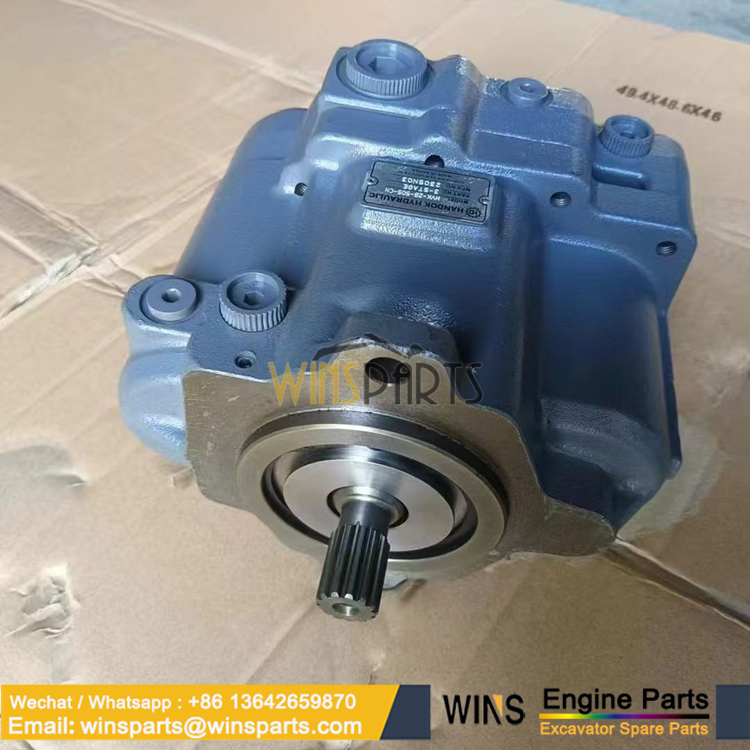

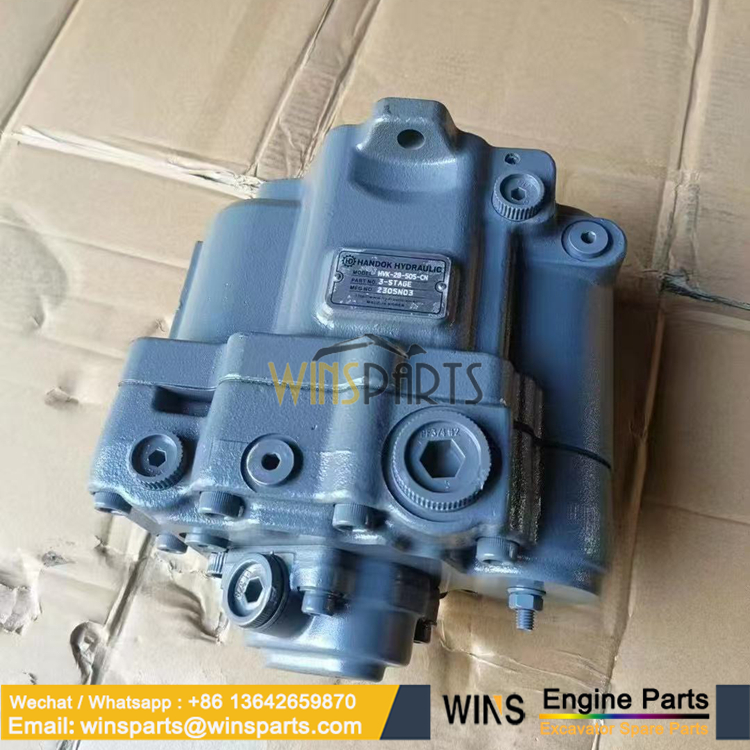

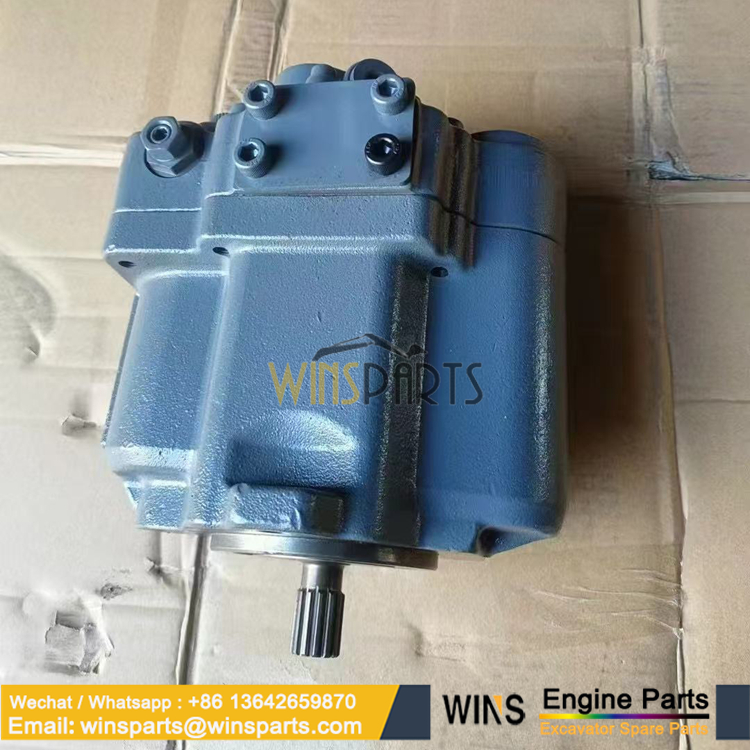

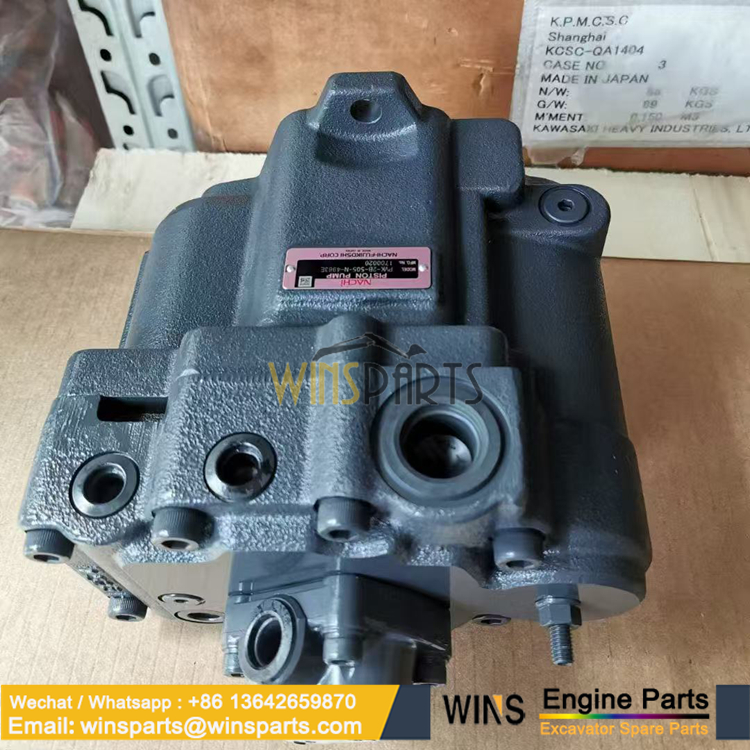

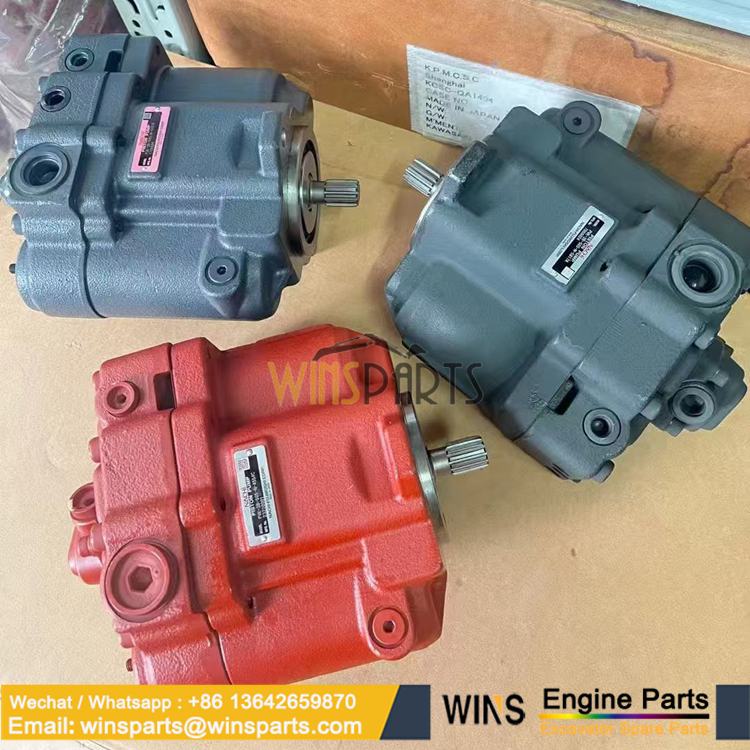

4466809 Hydraulic Main Pump Hitachi ZX55UR
$1.00

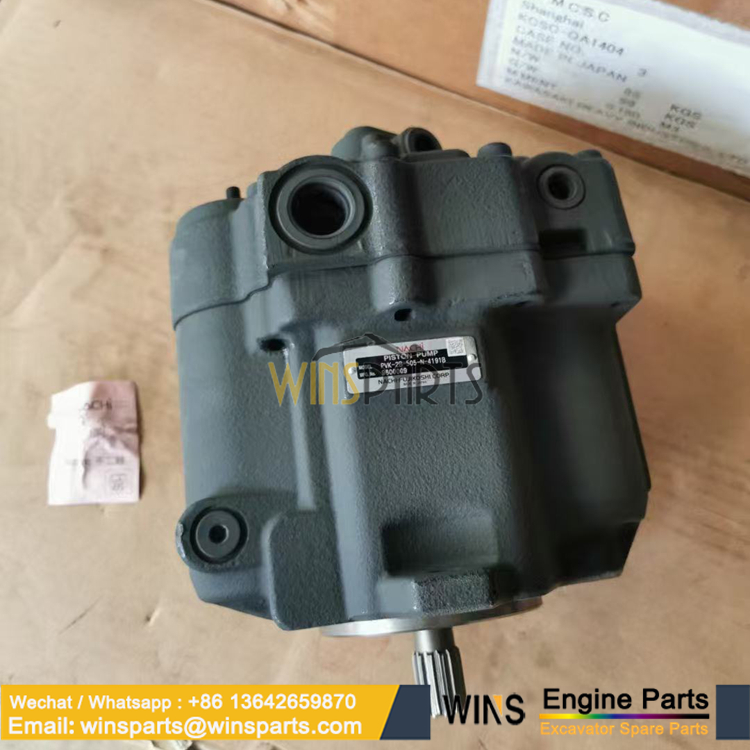

4466809 Hydraulic Main Pump NACHI PVK-2B-505-N-4983E PISTON PUMP Hitachi ZX55UR ZX55UR Excavator Spare Parts
Number:4466809
Type:Hydraulic Main Pump NACHI PVK-2B-505-N-4983E
Application:PISTON PUMP Hitachi ZX55UR ZX55UR
Place of Origin:China/Japan
Packing: Fumigate Seaworthy Packing
Engine Brand: ISUZU/HINO/MITSUBISHI
Excavator Brand: New Holland/KOBELCO/HITACHI
4466809 [1] PUMP;PISTON
1. +++++++ [1] BODY
2. +++++++ [1] BODY
3. 0842101 [1] SHAFT
Pos. Part No Qty Parts name Comments
4. +++++++ [1] BUSHING
5. +++++++ [1] PLATE;VALVE
6. +++++++ [11] PISTON
7. +++++++ [11] SHOE
8. +++++++ [1] HOLDER;SHOE
9. +++++++ [1] HOLDER
10. 0842102 [1] PLATE
11. +++++++ [3] NEEDLE
12. 0842103 [2] PIN
13. +++++++ [1] PACKING
14. +++++++ [1] SPRING
15. 0842104 [1] SPRING
16. 0800005 [1] HOLDER
17. 0630612 [1] GUIDE;SPRING
18. 0429816 [3] PIN
19. +++++++ [3] RETAINER
20. 0842105 [1] PIN;STOPPER
21. 0800007 [1] SPRING
22. 0630606 [1] HOLDER
23. 0842106 [1] SLEEVE
24. +++++++ [1] PISTON
25. +++++++ [1] O-RING
26. 0429817 [1] BRG.;BALL
Pos. Part No Qty Parts name Comments
27. +++++++ [1] BRG.;NEEDLE
28. +++++++ [1] SEAL;OIL
29. 988850 [1] RING;RETAINING
30. +++++++ [1] RING;RETAINING
31. 942517 [1] RING;RETAINING
32. 0630505 [1] PLUG
33. +++++++ [1] O-RING
34. +++++++ [1] O-RING
35. 0800010 [7] BOLT;SOCKET
36. 0655913 [1] SCREW
37. 0630509 [1] NUT
38. +++++++ [1] WASHER;SEAL
39. +++++++ [1] PUMP;GEAR ASS’Y
40. 0800012 [1] COUPLING
41. +++++++ [2] BALL;STEEL
42. +++++++ [4] BOLT;SOCKET
43. +++++++ [2] BRG.
44. +++++++ [4] WASHER
45. +++++++ [1] O-RING
46. 0630506 [1] PLUG
47. +++++++ [1] O-RING
48. +++++++ [1] VALVE
48A. 4506420 [1] O-RING
Pos. Part No Qty Parts name Comments
48B. 0842107 [2] O-RING
48C. 0842802 [1] RING;BACK-UP
48D. 0842108 [1] O-RING
48E. 0842109 [1] O-RING
48F. 0842601 [1] RING;BACK-UP
49. 0664917 [1] PLUG
50. +++++++ [1] O-RING
51. +++++++ [3] PLUG
52. +++++++ [1] CHOKE
54. +++++++ [1] GASKET
200. 0842111
[1] CYL. BARREL KIT
300. 0842112 [1] KIT;SEAL
1. +++++++ [1] BODY
2. +++++++ [1] BODY
3. 0842101 [1] SHAFT
4. +++++++ [1] BUSHING
5. +++++++ [1] PLATE;VALVE
6. +++++++ [11] PISTON
7. +++++++ [11] SHOE
8. +++++++ [1] HOLDER;SHOE
9. +++++++ [1] HOLDER
10. 0949001 [1] PLATE
11. +++++++ [3] NEEDLE
12. 0842103 [2] PIN
13. +++++++ [1] PACKING
14. +++++++ [1] SPRING
15. 0842104 [1] SPRING
16. 0800005 [1] HOLDER
17. 0630612 [1] GUIDE;SPRING
18. 0429816 [3] PIN
19. +++++++ [3] RETAINER
20. 0861301 [1] PIN
21. 0800007 [1] SPRING
22. 0630606 [1] HOLDER
23. 0842106 [1] SLEEVE
24. 0842113 [1] PISTON
25. 4509180 [1] O-RING
26. 0429817 [1] BRG.;BALL
27. +++++++ [1] BRG.;NEEDLE
28. +++++++ [1] SEAL;OIL
29. 988850 [1] RING;RETAINING
30. 446751 [1] RING;RETAINING
31. 942517 [1] RING;RETAINING
32. 0630505 [1] PLUG
33. 957366 [1] O-RING
34. A811075 [1] O-RING
35. 0800010 [7] BOLT;SOCKET
36. 0655913 [1] SCREW
37. 0630509 [1] NUT
38. 4608835 [1] WASHER;SEAL
39. 4345902 [1] PUMP;GEAR ASS’Y
40. 0948901 [1] COUPLING
41. +++++++ [2] BALL;STEEL
42. +++++++ [4] BOLT;SOCKET
43. +++++++ [2] BRG.
44. +++++++ [4] WASHER
45. 0637703 [1] O-RING
46. 0630506 [1] PLUG
47. 4506418 [1] O-RING
48. 4633156 [1] VALVE
48A. +++++++ [1] SLEEVE
48B. +++++++ [1] SPOOL
48C. +++++++ [1] GUIDE;SPRING
48D. +++++++ [1] GUIDE;SPRING
48E. +++++++ [2] SPRING
48F. +++++++ [1] ADJUSTER
48G. 4506320 [1] O-RING
48H. 4506420 [1] O-RING
48I. 0842109 [1] O-RING
48J. 0842108 [1] O-RING
48K. 0842107 [2] O-RING
49. +++++++ [2] PLUG
50. 0949002 [2] ROD
51. +++++++ [3] PLUG
52. +++++++ [1] CHOKE
54. 0630515 [1] GASKET
200. 0842111
[1] CYL. BARREL KIT
300. 4633148 [1] KIT;SEAL
