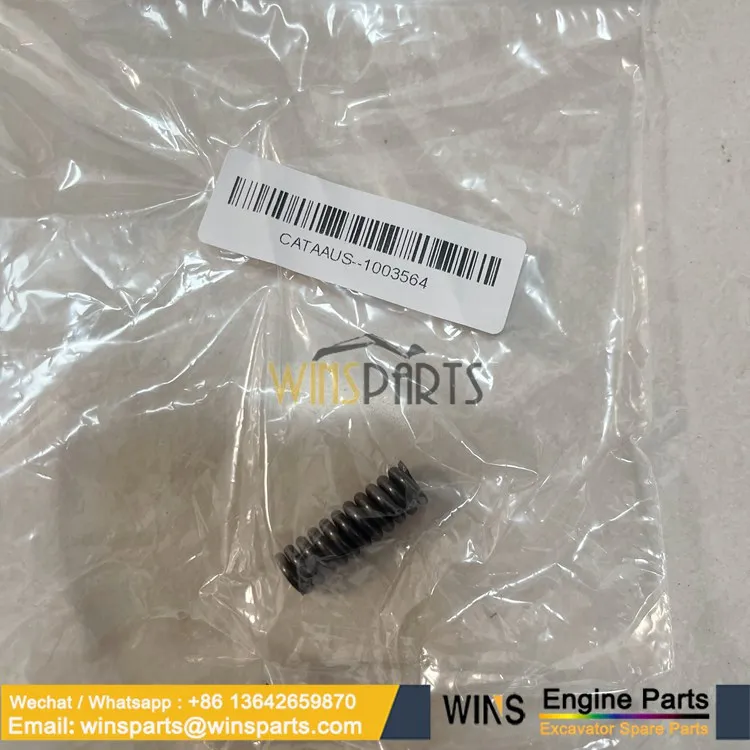

100-3564 1003564 Caterpillar Control Valve Spring
100-3564 Caterpillar Control Valve Spring OEM 1003564 Fits 416C 420D D5M D6N Parts
Product Information
-
- Brand: Caterpillar
- Category: Springs & Hardware
- Part Number: 100-3564
- Part Name: Control Valve Spring
- Alternative OEM: 1003564 / CA1003564 / 100-3564
- Compatible Equipment: Caterpillar 416C, 416D, 420D, 428C, 430D Backhoes; D5H, D5M, D5N, D6M, D6N Dozers; 517, 527 Skidders
- Condition: 100% New Aftermarket Replacement
1. 4T-4524 Caterpillar CONTROL VALVEGUARD-DUST
2. 031-0214 [2] BOLT-LOCKING
3. 8S-4710 [2] BOLT
4. 5P-0537 [2] WASHER-HARD
5. 4T-4513 Caterpillar CONTROL VALVESPRING
6. 100-3567 Caterpillar CONTROL VALVEHOUSING-DETENT
7. 128-2776 Caterpillar CONTROL VALVEGASKET
8. 100-3566 Caterpillar CONTROL VALVEPISTON-DETENT
9. 4B-9782 Caterpillar CONTROL VALVEBALL
10. 4T-4532 Caterpillar CONTROL VALVEHOUSING
11. 144-4277 Caterpillar CONTROL VALVESHAFT AS-DETENT
12. 100-3564 Caterpillar CONTROL VALVESPRING
13. 4T-4521 [2] RETAINER
14. 100-3563 Caterpillar CONTROL VALVESPACER
15. 8F-0212 Caterpillar CONTROL VALVESEAL-O-RING
16. 7F-8607 [2] SEAL-O-RING
17. 4T-4534 Caterpillar CONTROL VALVESPRING
18. 9T-3729 Caterpillar CONTROL VALVESPRING
19. 2M-9780 Caterpillar CONTROL VALVESEAL-O-RING
20. 9S-8006 Caterpillar CONTROL VALVEPLUG
21. 4T-4520 Caterpillar CONTROL VALVEWASHER-SPECIAL
22. 5B-9318 [7] BALL
23. 126-5476 Caterpillar CONTROL VALVESEAT AS-SHUTTLE
4T-7807 Caterpillar CONTROL VALVERING-BACKUP
24. 7J-0204 Caterpillar CONTROL VALVESEAL-O-RING
25. 8T-2360 Caterpillar CONTROL VALVESEAL-O-RING
26. 126-5796 Caterpillar CONTROL VALVEVALVE GP-SHUTTLE
126-5984 Caterpillar CONTROL VALVERING-BACKUP
126-5985 Caterpillar CONTROL VALVERING-BACKUP
27. 8T-2361 Caterpillar CONTROL VALVESEAL-O-RING
28. 1P-7363 Caterpillar CONTROL VALVESEAL-O-RING
29. 3J-7354 Caterpillar CONTROL VALVESEAL-O-RING
30. 1U-2744 Caterpillar CONTROL VALVEVALVE GP-CHECK
31. 5K-9090 Caterpillar CONTROL VALVESEAL-O-RING
32. 4T-7795 Caterpillar CONTROL VALVERING-BACKUP
33. 4K-1388 Caterpillar CONTROL VALVESEAL-O-RING
34. 3D-2824 Caterpillar CONTROL VALVESEAL-O-RING
35. 4T-4531 Caterpillar CONTROL VALVEPLUG
36. 4T-7795 Caterpillar CONTROL VALVERING-BACKUP
37. 4K-1388 Caterpillar CONTROL VALVESEAL-O-RING
38. 5K-9090 Caterpillar CONTROL VALVESEAL-O-RING
39. 4T-4528 Caterpillar CONTROL VALVERETAINER
Product Function & Specs:
Heavy-duty replacement compression spring designed for hydraulic control valves. Engineered from high-tensile spring steel to maintain precise return tension and spool alignment under constant cyclic pressure. Ensures smooth, predictable valve response inside the machine’s primary hydraulic or transmission control block.
Failure Symptoms:
- Sticky, sluggish, or unresponsive hydraulic control levers.
- Hydraulic spool failing to center properly, causing drift in cylinders or attachments.
- Loss of system pressure or erratic valve behavior due to a fatigued, sagged, or broken spring.
Quick Installation Notes:
- Relieve all hydraulic system pressure completely before disassembling the valve group.
- Clean the valve bore and spool housing thoroughly to prevent any grit or metallic debris from entering the system.
- Compare the free height of the old spring to the new one to verify tension loss; replace any worn matching spools if needed.
- Lubricate the spring and valve spool with clean hydraulic oil prior to reassembly.
FAQ:
Q: Can this part replace OEM 100-3564?
A: Yes, 100% interchangeable. Dimensions, wire diameter, and spring rate match the original Cat specifications exactly.
Q: Is this an OEM or aftermarket replacement?
A: This is a premium aftermarket replacement spring built with high-fatigue resistant spring steel. Same operational life, better cost.
Q: What equipment does this spring fit?
A: It fits a wide array of Cat backhoes (416B/C/D, 420D, 428B/C/D, 430D) and track-type tractors (D5H, D5M, D5N, D6M, D6N). Send us your machine’s serial number or valve group part number to double-check fitment.
Q: Should I replace valve springs individually or as a set?
A: If your control valve block has multiple identical spools that have worked the same hours, we highly recommend replacing them as a set to keep operating pressures and lever feel consistent.
Q: Do you support bulk orders?
A: Yes. We offer competitive wholesale terms for hydraulic rebuild centers, fleet repair shops, and distributors. Contact our sales desk directly for pricing.
