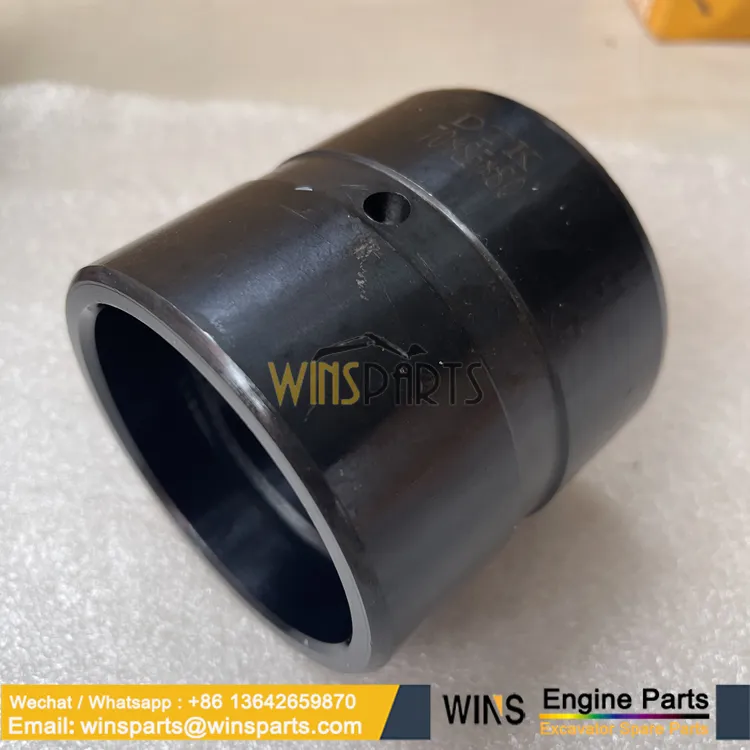

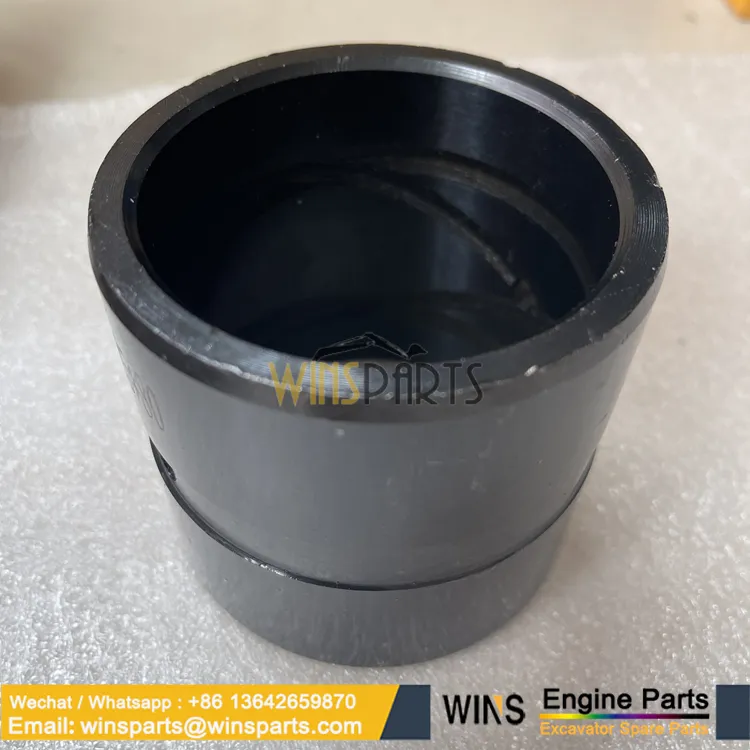

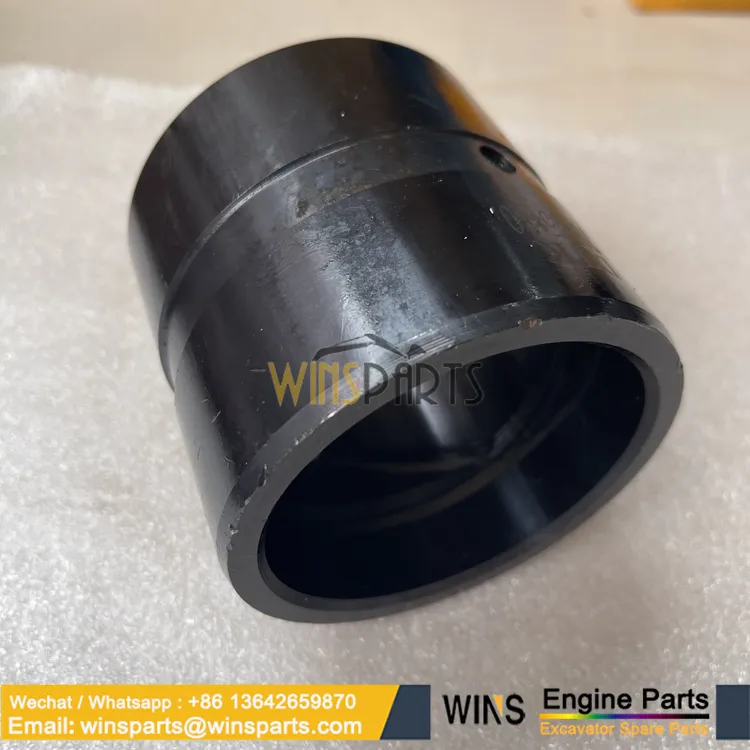

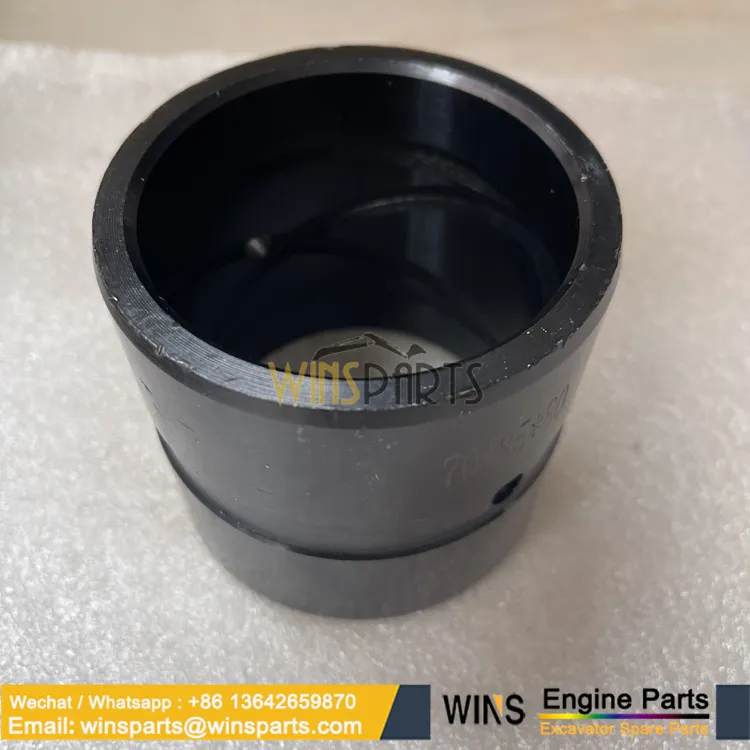

YX12B01021P1 BUSHING YW12B01036P1 YV12B01068P1 KOBELCO
$1.00
YX12B01021P1 BUSHING YW12B01036P1 YV12B01068P1 KOBELCO SK135SR SK135SR-1E SK135SRL SK135SRL-1E SK135SRLC Excavator Spare Parts
Number:YX12B01021P1 BUSHING YW12B01036P1
Type:BUSHING
Application:KOBELCO SK135SR SK135SR-1E SK135SRL SK135SRL-1E SK135SRLC
Place of Origin:China/Japan
Packing: Fumigate Seaworthy Packing
Engine Brand: ISUZU/HINO/MITSUBISHI
Excavator Brand: New Holland/KOBELCO/HITACHI
. . YY12B00149F1 Kobelco ARM KOB GROUP
A1. YY12B01249F1 Kobelco LINK KOB ASSY, BUCKET
A1- NSS Kobelco NOT SOLD SEPARAT CON LINK, BUCKET
A1- 2.
LP12B01031P1 [2] BUSHING KOB
A1- 3. LP12B01036P1 [2] BUSHING KOB
A2. YY12B01074P1 Kobelco LINK KOB
A3. YW12B01034P1 Kobelco LINK KOB
A4. YY12B01242P1 [2] PIN KOB
A5. LP12B01028P1 Kobelco PIN KOB , Serial Range: YH04-03001-YH04-04101 Superseded by part
number: YX12B01042P1
A6. LP12B01029P1 Kobelco PIN KOB , Serial Range: YH04-03001-YH04-04101 Superseded by part
number: YX12B01042P1
Pos. Part No Qty Parts name Comments
A7. HS18C14115G2 [2] BOLT,Hex, M14115mm, Cl
10.9 KOB M14x2.0x150mm
A8. ZN18C14011
[4] NUT KOB M14x2.0mm
A9. 2445R220D2 [4] SEAL,6580mm OD x
5mm Thk
KOB Dust — ID 65OD 80Th 5mm Superseded by part number:
84499663
A10. 2445R138D3 [6] SEAL,6075mm OD x
4mm Thk
KOB Dust — ID 60OD 75Th 4mm
A11. 2445R138D6 [2] SEAL,7085.3mm OD x
4mm Thk
KOB Seal, Dust — ID 70OD 85Th 4mm
A12. ZG91S02000 [4] LUBE NIPPLE,1/8″ NPT1/8″
NPT
KOB 1/8″ PT — Straight
A13. ZG91U02000 Kobelco LUBE NIPPLE KOB 90°1/8″ PT
A14. YW12B01025P1 [6] SHIM,62100mm OD x
3mm Thk
KOB ID 62OD 100Th 3.0mm
A15. B16T0442D56 [6] SHIM,62100mm OD x
0.5mm Thk
KOB ID 62OD 100Th 0.5mm
A16. B16T0442D43 [6] SHIM,62100mm OD x
0.9mm Thk
KOB ID 62OD 100Th 0.9mm
A17. B16T0442D27 [6] SHIM,62100mm OD x
1.2mm Thk
KOB ID 62OD 100Th 1.2mm
A18. B16T0442D19 [6] SHIM,62100mm OD x
1.6mm Thk
KOB ID 62OD 100Th 1.6mm
. . YY12B00176F1 Kobelco ARM KOB ASSY
B1. NSS Kobelco NOT SOLD SEPARAT CON ARM
B1-
2.
YY12B01044P1 Kobelco PLATE KOB
B1- 2416T13112 Kobelco BLOCK KOB TAPPED Superseded by part number: YY12B01319P1
B1- YY12B01285P1 Kobelco BLOCK KOB TAPPED Superseded by part number: YY12B01320P1
B1- YN43H01051P1 [2] BLOCK KOB TAPPED
B2. LP12B01030P1 [2] BUSHING KOB
B3. YW12B01042P1 [2] BUSHING KOB
B4. YX12B01021P1 [2] BUSHING KOB
. . YY12B00003F1 Kobelco ARM KOB INSTAL
Pos. Part No Qty Parts name Comments
C1. LP02B01012P2 Kobelco PIN KOB
C2. YY02B01062P1 Kobelco PIN KOB
C3. 2418T12645D2 Kobelco PLATE KOB 125261Th 9.0mm
C4. ZS18C12020 [2] SCREW,Hex, M1220mm KOB M12x1.75x20mm
C5. HS18C16140G2 Kobelco SCREW,M16140mm, Cl 10.9 KOB M16x2.0x140mm
C6. ZN18C16013 [2] NUT KOB M16x2.0mm
C7. B16T0442D44 [3] SHIM,72130mm OD x
0.9mm Thk
KOB ID 72OD 130Th 0.9mm
C8. YN12B01009P1 [4] SHIM,3mm Thk KOB (3.0)
C9. B16T0442D57 [3] SHIM,72130mm OD x
0.5mm Thk
KOB ID 72OD 130Th 0.5mm
C10. B16T0442D1 Kobelco SHIM,130mm OD72mm ID x
1.2mm Thk
KOB ID 72OD 130Th 1.2mm
C11. B16T0442D2 Kobelco SHIM,130mm OD72mm ID x
1.6mm Thk
KOB ID 72OD 130Th 1.6mm Excavator Engine Spare Parts
