YN32W00025F1 YN15V00055F1 YN15V00054F1 Hydraulic Swing Motor Assy KOBELCO
$1.00

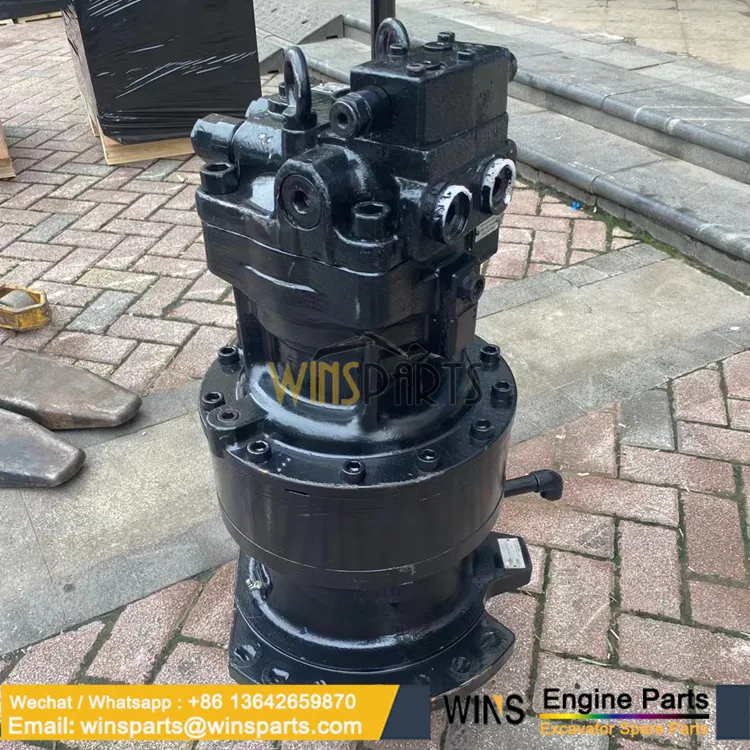

YN32W00025F1 YN15V00055F1 YN15V00054F1 Swing Hydraulic Motor Assy GEAR REDUCTION SWING GEARBOX KOBELCO SK200-8 SK210-8 SK210-9 New Holland E215C E245C Excavator Spare Parts
Number:YN32W00025F1 YN15V00055F1 YN15V00054F1YN32W00025F2 YN15V00055F2 YN15V00054F2
Type:Swing Hydraulic Motor Assy GEAR REDUCTION SWING GEARBOX
Application:KOBELCO SK200-8 SK210-8 SK210-9 New Holland E215C E245C Excavator
Place of Origin:China/Japan
Packing: Fumigate Seaworthy Packing
Engine Brand: ISUZU/HINO/MITSUBISHI
Excavator Brand: New Holland/KOBELCO/HITACHI
1. 11124834 [13] BOLT,Hex, M20 x 55mm, Cl 10.9 LEC M20 X 55 FULL 10.9 DAC
2. 87643225 [2] PLUG SM 10.0mm Slotted Plastic, (YN64H01391D1) Superseded by
part number: YN64H01391D1
3. 87369427 [1] LEVEL GAUGE SM 385.5mm Long (15-11/64 in), (YN32W01101D1) Superseded
by part number: YN32W01101D1
4. YN32W01114D4 [1] RIGID TUBE SM 262mm Long (10-5/16 in)
5. 84189984 [1] RIGID TUBE,20.80 mm ID x 27.20
mm OD x 250 mm L
SM DIA 27.2 Superseded by part number: YN32W01122D1
6. 87369430 [1] PLUG SM Cap, 3/4″ PT, (ZE91T12000) Superseded by part number:
ZE91T12000
7. YN15V00054F1 [1] HYDRAULIC MOTOR SM Swing Hydraulic Motor Assy
7-1. YN15V00055F1 [1] HYDRAULIC MOTOR SM Assy
7-2. YN32W00025F1 [1] GEAR REDUCTION UNIT SM Swing Gear Reduction Unit
1. YN32W01125P1 [1] GEAR SM Shaft
2. YN32W01136P1 [1] GEAR SM
3. YN32W01135P1 [3] GEAR SM Pinion
4. YN32W01126P1 [1] GEAR SM
5. YN32W01143P1 [4] GEAR SM
6. YN32W01127P1 [1] GEAR SM Ring
7. YN32W01123F1 [1] SPIDER KOB Gear, Incl 7-1 – 7-2
7-1. NSS [1] NOT SOLD SEPARAT CON Spider, Incl in 7
7-2. NSS [3] NOT SOLD SEPARAT CON Shaft, Incl in 7
8. YN32W01130P1 [1] PLANET CARRIER SM
9. YN32W01131P1 [4] SHAFT SM
Pos. Part No Qty Parts name Comments
10. YN32W01030P1 [1] SPHERICAL BEARING KOB Superseded by part number: 25Z804D18
11. YN32W01029P1 [1] SPHERICAL BEARING KOB Superseded by part number: R25P0047D9
12. YN32W01060P1 [1] OIL SEAL SM
13. YN32W01132P1 [1] BOX SM
14. YN32W01026P1 [3] THRUST WASHER KOB
15. YN32W01028P1 [3] THRUST WASHER KOB
16. YN32W01022P1 [102] ROLLER KOB
17. YN32W01072P1 [4] NEEDLE BEARING SM
18. YN32W01063P1 [8] WASHER SM
19. 11068370 [1] SNAP RING MKT Retaining, ID 32.20 x OD 35 x Th 1.6mm Superseded by part
number: 11068375
20. ZR16X09000 [1] RING KOB Retaining, ID 84.50 x OD 108 x 3.0mm
21. YN32W01133P1 [1] SLEEVE SM
22. 72210023 [4] PIN SM Roll Superseded by part number: ZP26D08025
23. 72210021 [11] SCREW,Hex Socket Head,
M14 x 130mm
SM Screw M14x2.0x135mm, (ZS23C14130) Superseded by part
number: ZS23C14130
24. PV02B01073DB [2] CAP KOB 18.4mm Plastic
25. YN32W01080D5 [1] RIGID TUBE SM 1/2″ PT x 112mm Long
26. ZG31U08000 [1] HYD CONNECTOR SM Elbow, 90° — 1/2″ PT
27. 72210000 [1] PLUG SM 1/2″ PT, (ZE82T08000) Superseded by part number: ZE82T08000
28. 72211282 [3] SNAP RING SM Retaining, ID 37 x OD 40 x Th 1.8mm, (ZR16X04000)
Superseded by part number: ZR16X04000
29. YN32W01081P1 [1] OIL SEAL SM
30. 72283072 [1] LUBE NIPPLE,67 Degree x
1/8″ PT
IMO 67° x 1/8″ PT, (ZG91V02000) Superseded by part number:
ZG91V02000
31. 72210250 [1] PLUG IMO 1/8″PT, (ZE82T02000) Superseded by part number:
ZE82T02000 Excavator Engine Spare Parts
