TB00026 TB00025 BEARING ROLLER HYDRAULIC PUMP KAWASAKI FOR Case
TB00026 TB00025 BEARING ROLLER HYDRAULIC PUMP KAWASAKI FOR Case
HYDRAULIC PUMP KAWASAKI FOR 332/J9613 KSJ2851 KSJ2847 215/13399 334/J4795 20/925600
0. KSJ2851 CASE PUMP, HYDRAULIC SUM Includes Parts On Figures 08-100-00 01 – 08-103-00 01 Superseded by part number: KSJ15460
. . KSJ15460R CASE REMAN-HYD PUMP SUM New style pilot pumps are internally drained. If drain port is not present the dealer can discard the 2 elbows and use plug PN159085A1 in the tube assembly.
. . KSJ15460C CASE CORE-HYDRAULIC PUMP SUM Return Number
19. TJ00071 [2] PISTON SUM Incl. 20, 21
20. NSS [9] NOT SOLD SEPARAT CON Piston
21. NSS [9] NOT SOLD SEPARAT CON Shoe
22. LJ017080 CASE BARREL SUM Incl. 23, 24, Replaces LJ01118, LJ015660 Superseded by part number: LJ018660, LJ018430, LJ018650
23. NSS CASE NOT SOLD SEPARAT CON Block, Cylinder
24. NSS CASE NOT SOLD SEPARAT CON Plate
25. LJ017070 CASE BARREL SUM Incl. 26, 27, Replaces LJ01119, LJ015670 Superseded by part number: LJ018660, LJ018430, LJ018650
26. NSS CASE NOT SOLD SEPARAT CON Block, Cylinder
27. NSS CASE NOT SOLD SEPARAT CON Plate
28. LR012710 [2] VALVE POPPET SUM Incl. 29, 30
29. NSS CASE NOT SOLD SEPARAT CON Plate
30. NSS CASE NOT SOLD SEPARAT CON Bushing
31. TA00050 [2] SPECIAL PIN SUM Incl. 32, 33
32. NSS CASE NOT SOLD SEPARAT CON Pin
33. NSS CASE NOT SOLD SEPARAT CON Pin
34. LB00925 CASE DRIVE SHAFT SUM
35. LB00926 CASE DRIVE SHAFT SUM
36. TC00021 CASE GEAR SUM

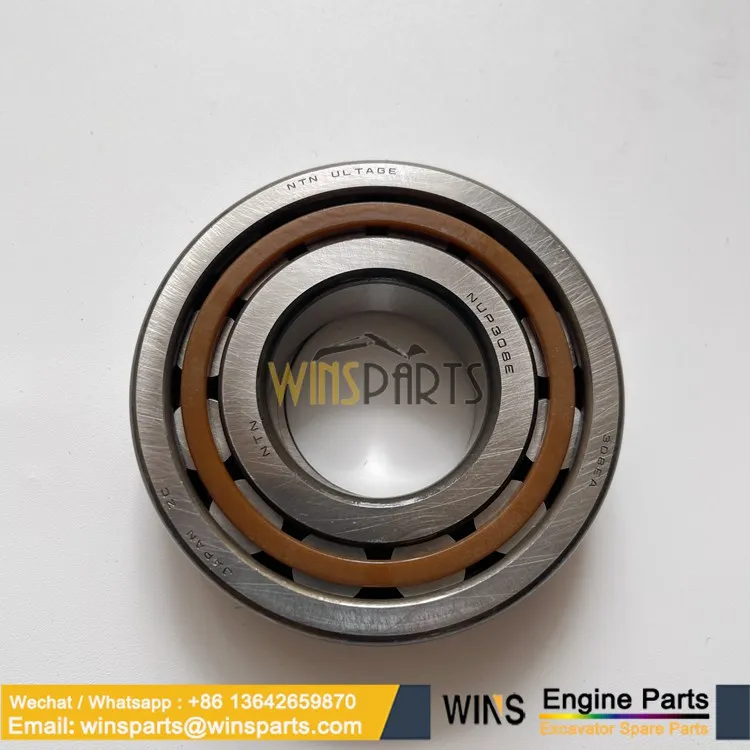

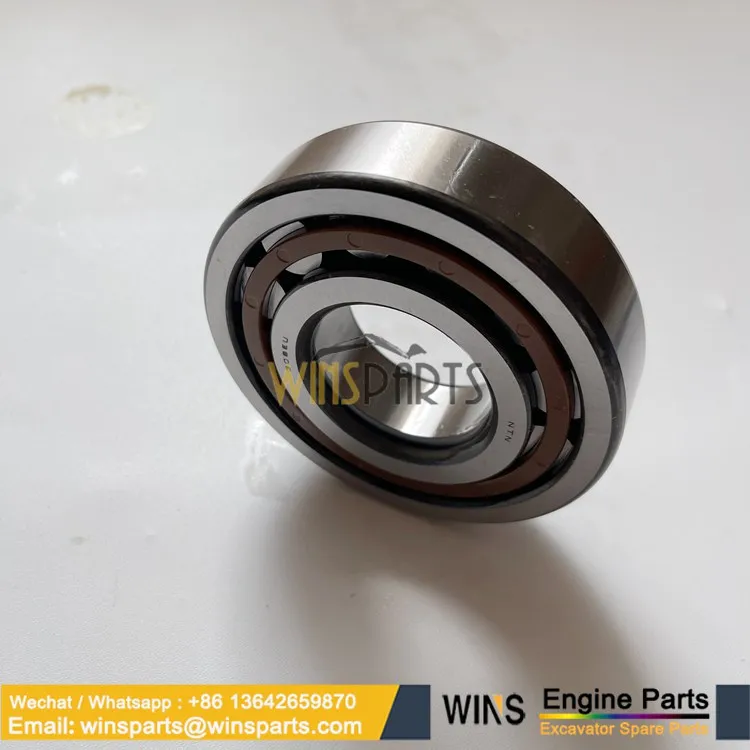

37. TB00026 [2] BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W SUM

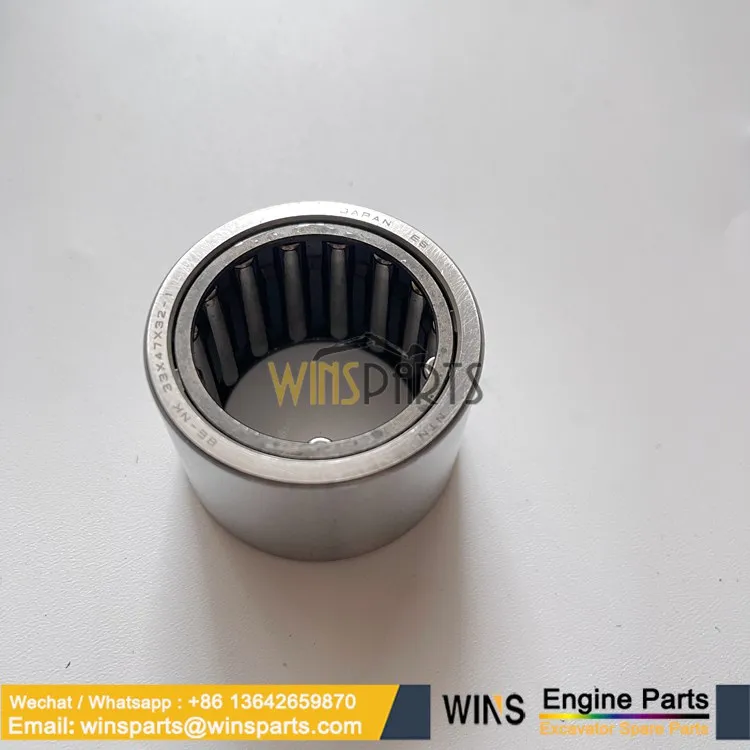

38. TB00025 [2] NEEDLE BEARING,33 mm ID x 47 mm OD x 32 mm SUM
39. 156963A1 [3] SPACER SUM
40. TR00047 [2] PLATE SUM
41. 169288A1 [2] BUSHING SUM
42. TG00025 [18] SPRING SUM
43. 160113A1 [2] PLATE SUM
44. LS002640 [2] SPOOL SUM
45. TW00032 CASE COVER SUM
46. 160604A1 [2] HOUSING SUM
47. LS00235 CASE BLOCK SUM
48. NSS CASE NOT SOLD SEPARAT CON Cover
49. 167078A1 [8] BOLT,M8 x 40mm, Cl 12.9 SUM M8 x 40; 12.9
50. 861-8020 [4] HEX SOC SCREW,M8 x 20mm, Cl 12.9 CAS Superseded by part number: 86512138
51. 863-10020 [4] HEX SOC SCREW,M10 x 20mm, Cl 12.9 CAS
52. 155496A1 [2] PLUG SUM
53. TLM0023 [2] PLUG SUM
54. 155471A1 [4] PLUG SUM
55. LK00003 [32] PLUG SUM
56. TJ00066 [2] PISTON SUM
57. 160115A1 [2] STOP SUM
58. 160116A1 [2] STOP SUM
59. NSS [2] NOT SOLD SEPARAT CON Seat
60. NSS CASE NOT SOLD SEPARAT CON Stopper
61. NSS CASE NOT SOLD SEPARAT CON Stopper
62. NSS [2] NOT SOLD SEPARAT CON Ball
63. 154553A1 [2] O-RING SUM
64. 154713A1 [2] O-RING SUM
65. 154805A1 [4] O-RING SUM
66. 154455A1 [16] O-RING SUM
67. 154467A1 [4] O-RING,10.8mm ID x 2.4mm Width SUM
68. 154475A1 [2] O-RING SUM
69. 154503A1 [4] O-RING SUM
70. 154489A1 [2] O-RING SUM
71. TE00812 CASE OIL SEAL SUM Superseded by part number: LE018630
72. 153970A1 [2] BACK-UP RING SUM
73. 154017A1 [2] BACK-UP RING SUM
74. 164R016VR [2] NUT SUM M16; 10
75. 829-1420 [2] NUT,M20, Cl 10 CAS Superseded by part number: 9847024
76. 800-1140 [2] SNAP RING,M40, Ext CAS Superseded by part number: 370006
77. 156954A1 [2] DOWEL SUM
78. 338W060Z014B [4] LINCH PIN SUM
79. 126R010SR [2] EYEBOLT SUM BOLT, EYE
80. LA00036 [2] SET SCREW,Hex SUM
81. 160296A1 [2] SET SCREW SUM
82. NSS CASE NOT SOLD SEPARAT CON Name Plate
83. NSS [2] NOT SOLD SEPARAT CON Rivet
84. LJ014460 CASE VALVE SECTION SUM See Figure 08-102-00 01, Replaces 160160A1
163. LZ006740 CASE SEAL KIT SUM Incl. 63 – 73, Also Includes Figure 08-101-00 01 Ref. 188 – 190, Figure 08-102-00 01 Ref. 89, 90, 98 – 100, Figure 08-103-00 01 Ref. 138 – 150
164. TNP0022 [2] VALVE SUM Incl. 59, 60, 62
165. TNP0023 [2] VALVE SUM Incl. 59, 61, 62
170. LJ014450 CASE HYDRAULIC PUMP SUM See Figure 08-101-00 01, Replaces LJ01270 Superseded by part number: LJ018430
